Host Attach DFL FPGA Management Engine IP Driver¶
Last updated: July 11, 2024
Upstream Status: Upstreamed
Devices supported: Stratix 10, Agilex 7
Introduction¶
This set of drivers is designed to support FME functionality, as implemented under FPGA Device Feature List (DFL) framework. It is used to expose FME capabilities.
| Driver | Mapping | Source(s) | Required for DFL |
|---|---|---|---|
| dfl-fme.ko | FPGA Management Engine IP | drivers/fpga/ - dfl-fme.h, dfl-fme-main.c, dfl-fme-pr.c, dfl-fme-error.c, dfl-fme-perf.c | Y |
| dfl-fme-mgr.ko | PR IP | drivers/fpga/dfl-fme-mgr.c | N |
| dfl-fme-br.ko | SW Dependency | drivers/fpga/dfl-fme-br.c | N |
| dfl-fme-region.ko | SW Dependency | drivers/fpga/dfl-fme-region.c | N |
graph TD;
A[dfl-fme]-->B[dfl-fme-mgr];
A[dfl-fme]-->C[dfl-fme-br];
A[dfl-fme]-->D[dfl-fme-region]; FPGA Management Engine IP¶
The FPGA Management Engine IP provides management features for the platform and controls reset and loading of the AFU into the partial reconfiguration region of the FPGA. Implementation of a PR region is optional.
Each FME feature exposes its capability to host software drivers through a device feature header (DFH) register found at the beginning of its control status register (CSR) space. The FME CSR maps to physical function 0 (PF0) Base address register 0 (BAR0) so that software can access it through a single PCIe link. For more information about DFHs, refer to the Device Feature Header (DFH) structure.
Driver Sources¶
The GitHub source code for these drivers can be found at https://github.com/OFS/linux-dfl/tree/master/drivers/fpga, where branches labelled fpga-ofs-dev-*-lts correspond with the latest developmental versions of the DFL driver suite on that specific kernel version.
The Upstream source code for this driver can be found at https://git.kernel.org/pub/scm/linux/kernel/git/stable/linux.git/tree/drivers/fpga?h=master.
Driver Capabilities¶
This driver set is a DFL specific implementation of generic FPGA drivers available in the kernel. dfl-fme-mgr is a DFL specific instantiation of the generic FPGA manager (drivers/linux/fpga/fpga-mgr.c), dfl-fme-br builds on top of a generic FPGA bridge (drivers/fpga/fpga-bridge.c), and dfl-fme-region instantiates an FPGA region. All three supplementary DFL Drivers depend on dfl-fme.
The DFL FME driver is a feature device implemented under the Device Feature List (DFL) framework. It enables the platform driver for the FME IP and implements all FPGA platform level management features. Only one FME is created per DFL based FPGA device. The DFL Bridge, Manager, and Region drivers are only required when attempting to configure a PR region in the FIM.
Kernel Configurations¶

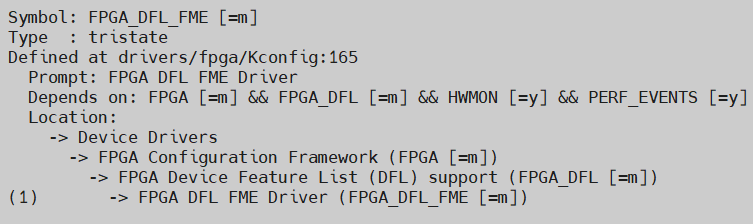

FPGA_DFL_FME

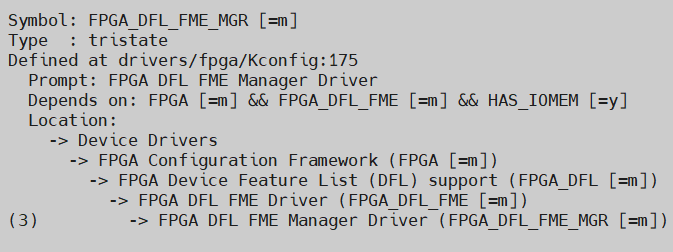

FPGA_DFL_FME_MGR

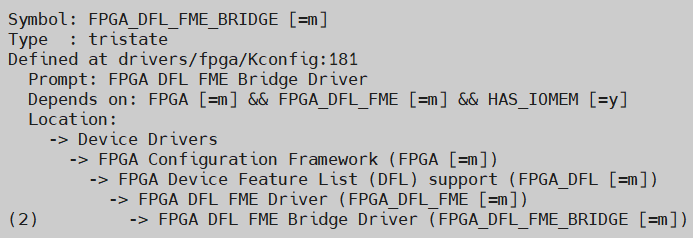

FPGA_DFL_FME_BRIDGE

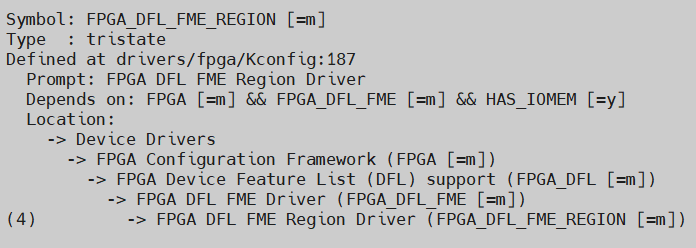

FPGA_DFL_FME_REGION
Known Issues¶
None known
Example Designs¶
The FPGA Management Engine IP is included as a part of the FIM design for PCIe Attach supporting DFL, Stratix 10 PCIe Attach, and SoC Attach. Please refer to site for more information about these designs.
