Max® 10 Board Management Controller Driver¶

Last updated: March 05, 2025

Upstream Status: Upstreamed

intel-m10-bmc-log is not upstreamed.

Devices supported: Stratix 10, Agilex 7

Introduction¶

This driver is designed to support the core functionality of the Max 10 Board Management Controller. It provides support for accessing the BMC, and supports all operations that are in turn supported by the BMC itself including configuring non-volatile FPGA flash, reading telemetry data, and remotely updating the FPGA and BMC images.

Driver	Mapping	Source(s)	Required for DFL
intel-m10-bmc-core.ko	MAX 10 Board Management Controller	drivers/mfd/intel-m10-bmc-core.c	N
intel-m10-bmc-pmci.ko	MAX 10 Board Management Controller with PMCI	drivers/mfd/intel-m10-bmc-pmci.c	N
intel-m10-bmc-spi.ko	MAX 10 Board Management Controller with SPI	drivers/mfd/intel-m10-bmc-spi.c	N
intel-m10-bmc-sec-update.ko	MAX10 BMC Secure Update driver	drivers/fpga/intel-m10-bmc-sec-update.c	N
intel-m10-bmc-hwmon.ko	MAX10 BMC Hardware Monitoring	drivers/hwmon/intel-m10-bmc-hwmon.c	N

graph TD;
    A[intel-m10-bmc-core]-->B[intel-m10-bmc-spi]
    A[intel-m10-bmc-core]-->C[intel-m10-bmc-pmci]
    A[intel-m10-bmc-core]-->E[intel-m10-bmc-hwmon]
    A[intel-m10-bmc-core]-->F[intel-m10-bmc-sec-update]

intel-m10-bmc-core provides common code for the Board Management Controller chip. It polls the M10 handshake register, can access and update BMC CSRs, display version information, and read MAC statistics.

Either intel-m10-bmc-spi or intel-m10-bmc-pmci are required for a given BMC, depending on which communication standard is supported by the board as provide by its DFH. D5005 uses SPI, Agilex 7 devices use PMCI. Both of these drivers assist in communicating across the connection between the FPGA fabric and the Max 10 by acting as a master device. As the SPI master the driver will covert SPI messages to Avalon transactions. Both drivers consume the common code present in intel-m10-bmc-core.

intel-m10-bmc-hwmon hooks into the generic Linux hwmon framework already present in the Kernel and instantiations the Max 10 BMC instance. This includes support for all on-board sensors for voltage, current, and temperature.

Board Management Controller¶

The Board Management Controller (BMC) supports features such as board power management, flash management, configuration management, and board telemetry monitoring and protection. The majority of the BMC logic is in a separate Max® 10 device; a small portion of the BMC known as the PMCI resides in the main Agilex FPGA.

Driver Sources¶

The GitHub source code for this driver suite can be found at https://github.com/OFS/linux-dfl/blob/master/drivers/, and under the fpga, mfd, and hwmon directories.

The Upstream source code for this driver can be found at https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/tree/drivers/mfd?h=master.

Driver Capabilities¶

Communicate with BMC handshake register, issue supported commands
Read / write to BMC attached flash
Register on-board sensors with kernel hwmon framework

Kernel Configurations¶

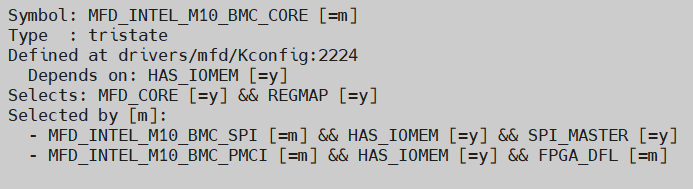

MFD_INTEL_M10_BMC_CORE

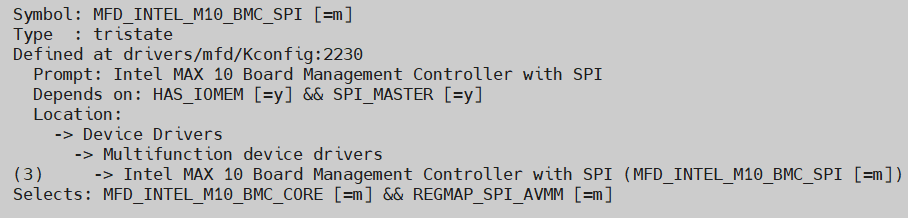

MFD_INTEL_M10_BMC_SPI

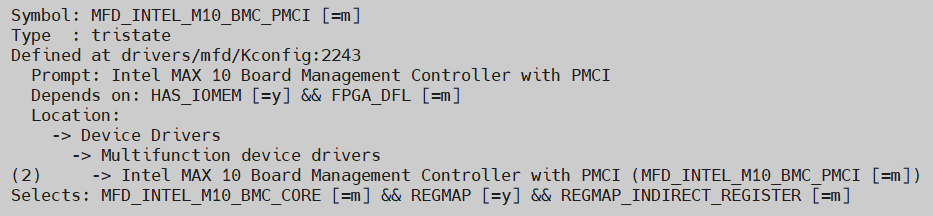

MFD_INTEL_M10_BMC_PMCI

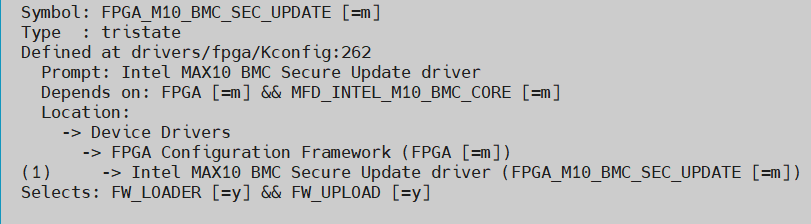

FPGA_M10_BMC_SEC_UPDATE

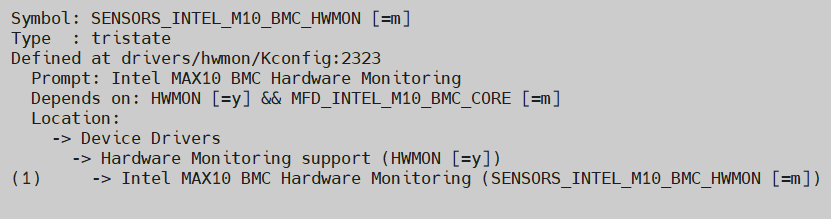

SENSORS_INTEL_M10_BMC_HWMON

Known Issues¶

None known
