4Kp60 Multi-Sensor HDR Camera Solution System Example Design for Agilex™ 5 Devices - SOF Modular Design Toolkit (MDT) Flow¶

Pre-requisites¶

Software Requirements to build¶

Linux OS installed.
72 GB free storage (~2GB for Quartus® Build and ~70GB for YOCTO/KAS build).
Python/PIP/KAS for Yocto Build (or a suitable container) see KAS.
Altera® Quartus® Prime Pro Edition version 25.1 Linux.
- Altera® Quartus® Agilex™ 5 Support.
FPGA NiosV Open-Source Tools 25.1 (installed with Quartus® Prime).

License Requirements to build¶

OpenCore Plus (OCP) IP evaluation license.
Free licenses (must be downloaded and installed):
- Nios® V Processor.

Hardware Requirements¶

Agilex™ 5 FPGA E-Series 065B Modular Development Kit.

Agilex™ 5 FPGA E-Series 065B Modular Development Kit

1 or 2 Framos FSM:GO IMX678C Camera Modules, with:
- Wide 110deg HFOV Lens, or
- Medium 100deg HFOV Lens, or
- Narrow 54deg HFOV Lens.
Mount/Tripod
- Framos Tripod Mount Adapter.
- Tripod.
A Framos cable for PixelMate MIPI-CSI-2 for each Camera Module:
- 150mm flex-cable, or
- 300mm micro-coax cable.
Minimum 8GB U3 microSD Card.
DP Cable or HDMI Cable (with 4Kp60 Converter Dongle).
USB Micro B JTAG Cable (for JTAG programming).
USB Micro B Serial Cable (for HPS terminal connection).
RJ45 Ethernet Cable (HPS network connection).
Monitor/TV (recommend 4Kp60 capable).

Software Requirements to run¶

Host PC with:
- 8 GB of RAM (less if not rebuilding binaries).
- Linux/Windows OS installed.
- Serial terminal (such as GtkTerm or Minicom on Linux, and TeraTerm or PuTTY on Windows).
  - FTDI FT232R USB UART drivers (for a Windows host).
- Tool to write images for removable USB drives or microSD cards such as Win32DiskImager on Windows or "dd" command on Linux.
- Altera® Quartus® Prime Pro Edition version 25.1 Programmer and Tools.
- Ethernet connection (either direct from Host PC to development board, or via a switch or router).
  - Note, you may need to disconnected/disabled VPN if it is installed on the Host PC.
- Web browser.

Getting Started - build and run SOF, and microSD Card Image¶

Follow the instructions provided in this section to build the 4K Multi-Sensor HDR Camera Solution System Example Design on the Agilex™ 5 FPGA E-Series 065B Modular Development Kit. You will build a SOF file using the Modular Development Toolkit, and a microSD Card image using KAS and Yocto (suitable for use with the OpenCore License).

Reference pre-built Binaries¶

You can use the pre-built binaries for reference:

Boot Source	Link
Pre-built microSD Card Image for SOF MDT Flow	fpga-first-vvp-isp-demo-image-agilex5_mk_a5e065bb32aes1.wic.gz
Pre-built FPGA First `.sof` file	fsbl_agilex5_modkit_vvpisp_time_limited.sof

HW Compilation¶

Use the SOF Modular Design Toolkit (MDT) Flow to create and build the FPGA Design.

SW Compilation¶

Use the Create microSD card image (.wic.gz) using YOCTO/KAS flow to create the microSD card image.

Note

use KAS_MACHINE=agilex5_mk_a5e065bb32aes1 and kas/agilex_camera_ff.yml configuration

Programming¶

Setting Up your Modular Development Board¶

Warning

Handle ESD-sensitive equipment (boards, microSD Cards, Camera sensors, etc.) only when properly grounded and at an ESD-safe workstation

Configure the board switches as shown:

Modular Development Board - Default Switch Positions

Main switch configurations used by the Camera Solution System Example Design

JTAG Mode: SOM S4=OFF:OFF, or
ASx4 (QSPI) Mode: SOM S4=ON:ON

Connect micro USB cable between the carrier board (J35) and the Host PC. This will be used for JTAG communication. Look at what ports are enumerated on your Host computer. There should be a series of four.
Connect micro USB cable between the SOM board (J2, HSP_UART) and the Host PC. This will be used for HPS UART communication. Look at what ports are enumerated on your Host computer. There should be a series of four. Use the 3^rd one in the list as the HPS serial port.
Connect an RJ45 cable between the ethernet port on the SOM board (J6, ETH 1G HPS) and make sure it is on the same network as your Host PC. You can check the eth0 IP address after boot using the Linux ip a command.

Board Connections

Burn the microSD Card Image¶

Either use your own or download the pre-built <name>.wic.gz image.
Extract <name>.wic image from the zip file
- On Linux, use the dd utility:
```
tar -xzf `<name>.wic.gz`
```
- On Windows, use the 7-Zip program (or similar):
  - Right click <name>.wic.gz file, and select "Extract All..."

Write the <name>.wic image to the microSD card using a USB writer:
- On Linux, use the dd utility:
```
# Determine the device associated with the SD card on the host computer.
cat /proc/partitions
# This will return for example /dev/sd<x>
# Use dd to write the image in the corresponding device
sudo dd if=<name>.wic of=/dev/sd<x> bs=1M
# Flush the changes to the microSD card
sync
```
- On Windows, use the Win32DiskImager program (or similar):
  - Click browse icon and select "*.*" filter:
  Navigate to your download and select <name>.wic in the "Disk Imager" tool
  - Write the image (note your Device may be different to that shown):
  Write the microSD Card using the "Disk Imager" tool

Turn off the board and insert the microSD card in the microSD card slot located on the SOM board.

Running¶

Board and Host PC Setup¶

Warning

Handle ESD-sensitive equipment (boards, microSD Cards, Camera sensors, etc.) only when properly grounded and at an ESD-safe workstation

Make the required connections between the Host PC and the Modular Development board as shown in the following diagram:

Development Kit and Host PC Connection diagram

Connect the Framos cable(s) between the Framos Camera Module(s) and the Modular Development board taking care to align the cable(s) correctly with the connectors (pin 1 to pin 1). For a single camera module, either MIPI connector can be used.

Board MIPI connections

Board MIPI and Ribbon Cable

Camera and Ribbon Cable

Board with Connections

Connect the Modular Development carrier board DisplayPort Tx connector to the Monitor using a suitable cable (and dongle if you are using HDMI).

Program the FPGA SOF¶

To program the FPGA using SOF with first stage bootloader (fsbl):
- Power down the board. Set MSEL=JTAG by setting the S4 dip switch on the SOM to OFF-OFF.
  - This prevents the starting of any bootloader and FPGA configuration after power up and until the SOF is programmed over JTAG.
- Power up the board.
- Either use your own or download the pre-built fsbl SOF image, and program the FPGA with either the command:
```
quartus_pgm -c 1 -m jtag -o "p;fsbl_agilex5_modkit_vvpisp_time_limited.sof"
```
- or, optionally use the Quartus® Programmer GUI:
  - Launch the Quartus® Programmer and Configure the "Hardware Setup..." settings as follows:

Programmer GUI Hardware Settings

Click "Auto Detect", select the device A5EC065BB32AR0 and press "Change File.."

Programmer after "Auto Detect"

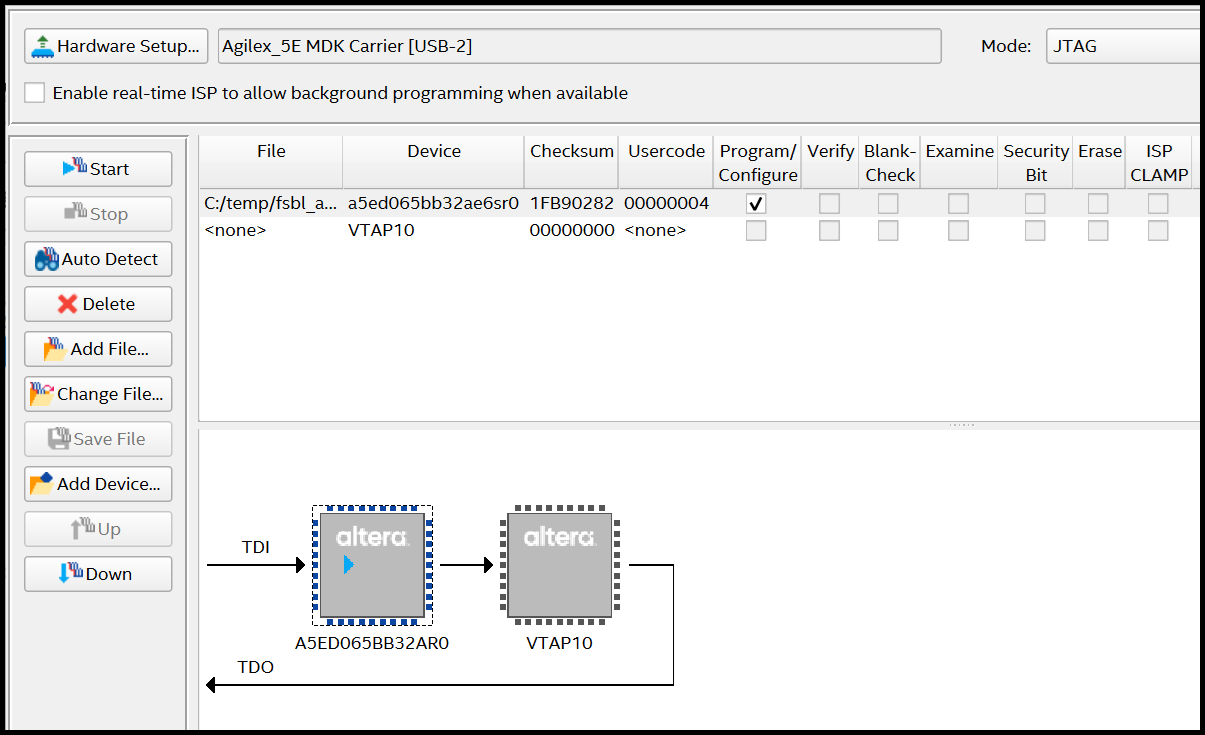

Select your fsbl_agilex5_modkit_vvpisp_time_limited.sof file. Check the "Program/Configure" box and press the "Start" button (see below). Wait until the programming has been completed.

Programming the FPGA with SOF file

Connect Browser to UI¶

Power up the board (if not already powered) and set up the serial terminal emulator (minicom, teraterm, putty, etc.):
- Select the correct COMx port. (The Modular Development board presents 4 serial COM ports over a single connection and the Linux system uses the 3^rd port in order). Set the port configuration as follows:
  - 115200 baud rate, 8 Data bits, 1 Stop bit, CRC and Hardware flow control disabled.
The Linux OS will boot and the 4K Multi-Sensor HDR Camera Solution System Example Design Application should run automatically.
A few seconds after Linux boots, the application will detect the attached Monitor and the ISP processed output will be displayed using the best supported format.
Take note of the board's IP address.
- The board's IP address can also be found using the terminal by logging in as root (no password required) and querying the Ethernet controller:
```
root
ifconfig
```
- eth0 provides the IPv4 or IPv6 address to connect to.

Example ifconfig output for if network provides DHCP

Example ifconfig output for if no DHCP support, or direct connection

Connect your web browser to the boards IP address so you can interact with the 4K Multi-Sensor HDR Camera Solution System Example Design using the GUI.
- To connect using IPv6 for the examples above you would use http://[fe80::a8bb:ccff:fe55:6688] (note the square brackets)
- To connect using IPv4 for the DHCP example above you would use http://192.168.0.1

Example web browser URL for IPv6 address

Example web browser URL for IPv4 address

During connection, you will see the Altera® splash screen, after which you will be presented with the Web GUI:

Example Camera Solution GUI
