USB 3.1 Gen-1 Controller Tutorial Example Design User Guide

Introduction

The USB 3.1, an advancement in the Universal Serial Bus (USB) standard, introduces significant improvements in data transfer speed, power delivery, and overall performance. USB 3.1 Gen 1 controller on Agilex™ 5 E-Series supports a maximum data transfer rate of 5 Gigabits per second (5 Gbps) in Super Speed. It is compatible with USB 2.0 devices and utilizes both Type-A and the versatile Type-C connectors.

In addition to enhanced speed, USB 3.1 offers better power efficiency and improved data encoding, making it ideal for high-bandwidth applications such as 4K video transfer and fast external storage. The USB 3.1 is a key enabler for faster and more efficient data communication in embedded and HPS devices.

Overview

The Hard Processor System (HPS) in the Agilex™ 5 E-Series Premium Dev Kit provides a USB 3.1 Gen 1 Controller that supports host, device, and dual role device (DRD) mode functions for high-speed applications. Both the USB 2.0 protocol and USB 3.1 protocol are supported.

This page provides instructions on how to enable the Host Mode, Device Mode, and Dual Role Device (DRD) Mode.


For the enablement of the three modes, there are modifications to be made respectively on the Golden Hardware System Design (GHRD) and/or Yocto Build, please refer to the table below to understand the modification required for each mode.

USB 3.1 Mode GHRD Yocto
Host Use Default, No Changes Use Default, No Changes
Device Use Default, No Changes Patch on Yocto Required
Dual Role Device Quartus Design Changes Required Patch on Yocto Required

These are the subsections included in this page:

  1. The Enablement of USB 3.1 in Host Mode

    1.1 GHRD and Yocto

    1.2 Boot-Up and Testing - Transfer a file to a Removable Storage

  2. The Enablement of USB 3.1 in Device Mode

    2.1 GHRD

    2.2 Yocto

    2.3 Boot-Up and Testing - Using the Dev Kit as a Removable Storage

  3. The Enablement of USB 3.1 in Dual-Role Device (DRD) Mode

    3.1 GHRD

    3.2 Yocto

    3.3 Boot-Up and Testing - Using the Dev Kit in DRD Mode

Binary Versions

Please take note that all the instructions on this page are based on the release versions listed in Prebuilt Binaries and Component Versions. The instructions MAY NOT be applicable to other Quartus release. Also, take note that all tests are based on Booting the Golden System Reference Design (GSRD) from SD Card.

Prebuilt Binaries

The Agilex™ 5 Premium Development Kit GSRD binaries for 25.1.1 release are located at https://releases.rocketboards.org/2025.08/

Component Versions

Altera® Quartus® Prime Pro Edition Version 25.1.1 and the following software component versions are used to build the binaries presented in this page:

Component Location Branch Commit ID/Tag
Agilex 5 GHRD https://github.com/altera-fpga/agilex5e-ed-gsrd master QPDS25.1.1_REL_GSRD_PR
Linux https://github.com/altera-fpga/linux-socfpga socfpga-6.12.19-lts QPDS25.1.1_REL_GSRD_PR
Arm Trusted Firmware https://github.com/altera-fpga/arm-trusted-firmware socfpga_v2.12.1 QPDS25.1.1_REL_GSRD_PR
U-Boot https://github.com/altera-fpga/u-boot-socfpga socfpga_v2025.04 QPDS25.1.1_REL_GSRD_PR
Yocto https://git.yoctoproject.org/poky walnascar latest
Yocto: meta-intel-fpga https://git.yoctoproject.org/meta-intel-fpga walnascar latest
Yocto: meta-intel-fpga-refdes https://github.com/altera-fpga/meta-intel-fpga-refdes walnascar QPDS25.1.1_REL_GSRD_PR

Prerequisites

Development Kit

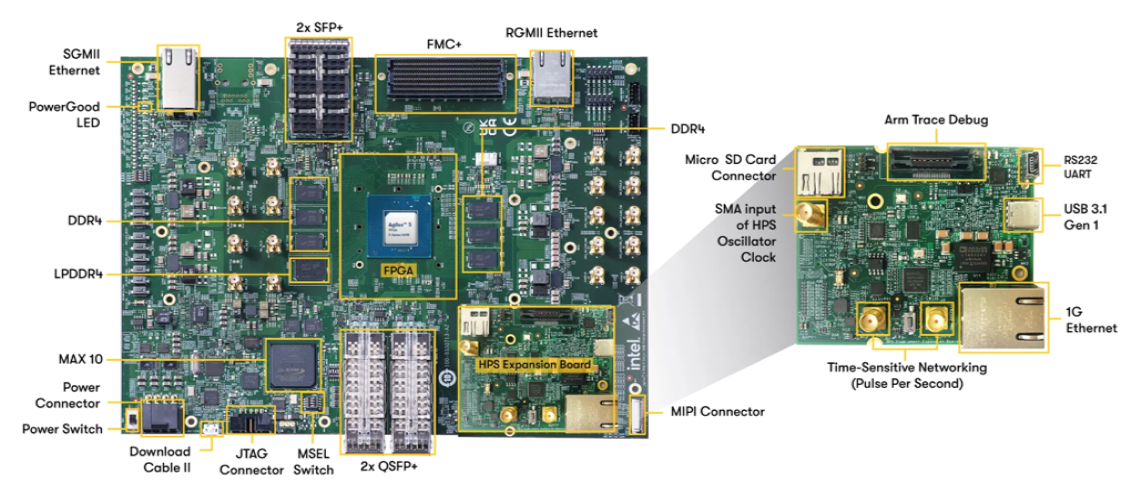

This tutorial example design is based on the Agilex 5 E-Series Premium Development Kit GSRD. It is recommended that you familiarize yourself with the GSRD development flow before proceeding with this tutorial. The HPS Enablement Expansion Board (also referred as HPS Daughter Card) is included with the development kit.

  • Altera® Agilex™ 5 FPGA E-Series 065B Premium Development Kit, ordering code DK-A5E065BB32AES1.
    • HPS Enablement Expansion Board. Included with the development kit
    • HPS NAND Board. Enables eMMC storage for HPS. Orderable separately
    • HPS Test Board. Supports SD card boot, and external Arm tracing. Orderable separately
    • Mini USB Cable. Included with the development kit
    • Micro USB Cable. Included with the development kit
    • Ethernet Cable. Included with the development kit
    • Micro SD card and USB card writer. Included with the development kit

Refer to Agilex™ 5 E-series Premium Development Kit for details about the board, including how to install the HPS Boards, and how to set MSEL dispswitches.

Development Environment

  • Host PC with
    • 64 GB of RAM or more
    • Linux OS installed. Ubuntu 22.04LTS was used to create this page, other versions and distributions may work too
    • Serial terminal (for example GtkTerm or Minicom on Linux and TeraTerm or PuTTY on Windows)
    • Altera® Quartus® Prime Pro Edition Version 25.1.1
    • TFTP server. This used to download the eMMC binaries to board to be flashed by U-Boot
  • Local Ethernet network, with DHCP server
  • Internet connection. For downloading the files.

Test Environment

  • Test PC with
    • Can be Windows OS or Linux OS
    • USB Ports
  • USB Type-C thumbdrive larger than 5GB storage
  • USB Type-C cable to connect to the dev kit and Test PC

Release Notes

Refer to Agilex 5 E-series PDK GSRD Release Notes for release readiness information and known issues.

1. The Enablement of USB 3.1 in Host Mode

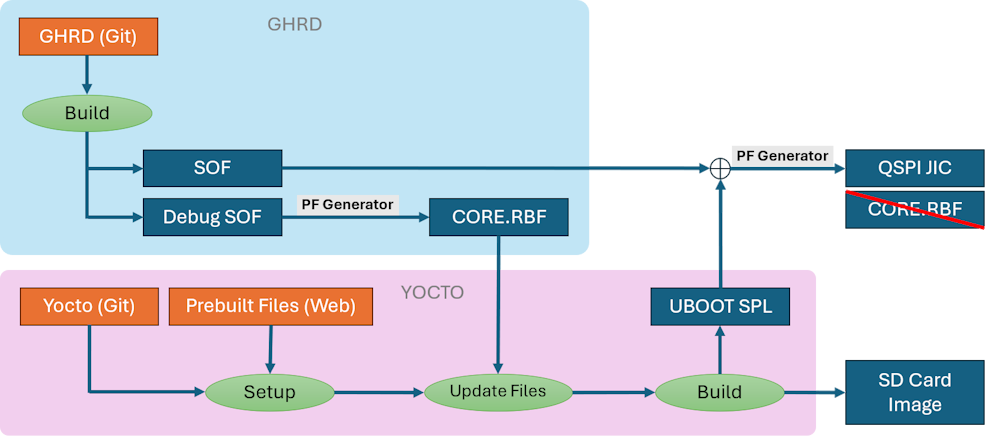

The USB 3.1 Host Mode is enabled by default in the GSRD, thus no modification required.


1.1 GHRD and Yocto

1. Refer to HPS GSRD User Guide for the Agilex™ 5 E-Series Premium Dev Kit for the instructions to create the GSRD reference design.

2. To boot the premium dev kit from SD Card, follow the instructions in Build SD Card Boot Binaries to create the SD Image.

3. The GSRD SD Card image boots up the dev kit in Host mode.

1.2 Boot-Up and Testing - Transfer a file to a Removable Storage

1. Boot up the dev kit with the SD Card and Quartus Programmer with the ghrd.hps.rbf, login the Linux with “root”.

2. Plug in the dev kit’s USB Type-C port with a USB Type-C thumbdrive.


Note: For certain models of thumbdrive, plug-in with one orientation would show it as "high speed USB device", flipping the thumbdrive's orientation would show it as "SuperSpeed USB device".

3. The thumbdrive appears as /dev/sda1.

4. Mount the thumbdrive as a new mountpoint mp1.

mkdir /mnt/mp1
mount -t auto /dev/sda1 /mnt/mp1
dd if=/dev/random of=/tmp/test.txt bs=1M count=200

5. Create a sample file “test.txt” in /tmp, copy the text.txt to the mounted drive

touch /tmp/host_test.txt
cp /tmp/host_test.txt /mnt/mp1

6. Remove the test file from the mounted drive.

ls /mnt/mp1/host_test.txt
rm /mnt/mp1/host_test.txt

7. At the end of the test, unmount the mounted drive.

umount –l /mnt/mp1

2. The Enablement of USB 3.1 in Device Mode

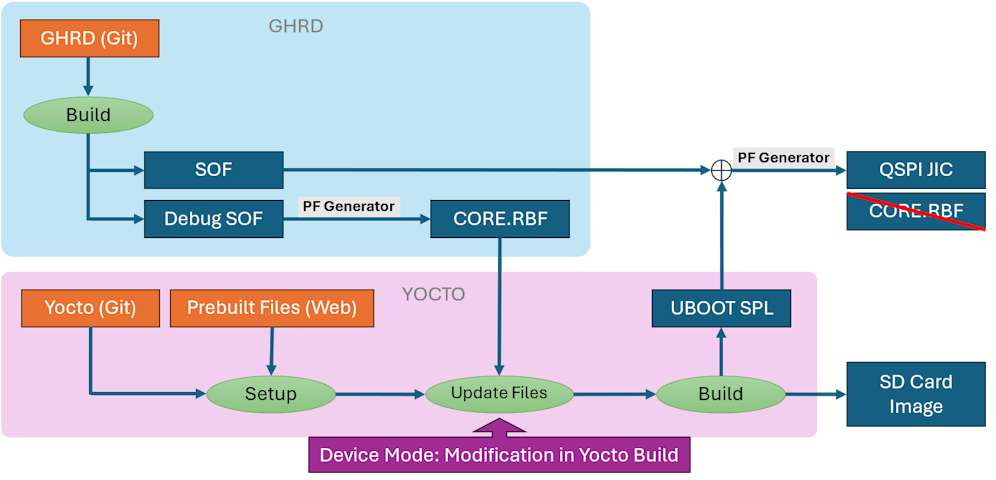

To enable the USB 3.1 in Device Mode, the GHRD requires no changes, but the modification in the Yocto Build is required.


2.1 GHRD

1. Refer to the instructions in Setup Environment and Build Hardware Design sections of HPS GSRD User Guide for the Agilex™ 5 E-Series Premium Dev Kit - Build SD Card Boot Binaries to build the GHRD.

2. When the GHRD is successfully built, the sof file is generated:

  • $TOP_FOLDER/agilex5_soc_devkit_ghrd/output_files/legacy_baseline.sof

3. Follow the instruction in the page to convert the sof file to the ghrd.hps.rbf and ghrd.core.rbf files. The ghrs.core.rbf will be included in the SD Card image in the Yocto build section.

2.2 Yocto

For the modification of Yocto Build, follow the instructions below:

1. Clone the Yocto script and prepare the build:

cd $TOP_FOLDER
rm -rf gsrd-socfpga
git clone -b QPDS25.1.1_REL_GSRD_PR https://github.com/altera-fpga/gsrd-socfpga
cd gsrd-socfpga
. agilex5_dk_a5e065bb32aes1-gsrd-build.sh
build_setup

2. Apply the Device Mode Enablement Patch

a. Download the patch: Device_Mode_Yocto_Patch

The patch changes the value of dr_mode in the &usb31 node from "host" to "peripheral" in device tree file socfpga_agilex5_socdk.dts.

 &usb31 {
    status = "okay";
    dr_mode = "peripheral";
 };

b. Copy and apply the patch with the instuctions:

cd $TOP_FOLDER/gsrd-socfpga/meta-intel-fpga-refdes/
cp 0001-update-yocto-build-for-USB3.1-Device-Mode-v1.patch .
git am 0001-update-yocto-build-for-USB3.1-Device-Mode-v1.patch

Note: You may ignore the whitespace error message when applying the patch.

3. Follow the "Customize Yocto" section and "Build Yocto" section in Build SD Card Boot Binaries for the instructions to run bitbake_image and package to generate the SD Card Image:

  • $TOP_FOLDER/gsrd-socfpga/agilex5_dk_a5e065bb32aes1-gsrd-images/u-boot-agilex5-socdk-gsrd-atf/u-boot-spl-dtb.hex
  • $TOP_FOLDER/gsrd-socfpga/agilex5_dk_a5e065bb32aes1-gsrd-images/u-boot.itb
  • $TOP_FOLDER/gsrd-socfpga/agilex5_dk_a5e065bb32aes1-gsrd-images/sdimage.tar.gz

2.3 Boot-Up and Testing - Using the Dev Kit as a Removable Storage

1. Boot up the dev kit with the SD Card and Quartus Programmer with the ghrd.hps.rbf, login the Linux with “root”.

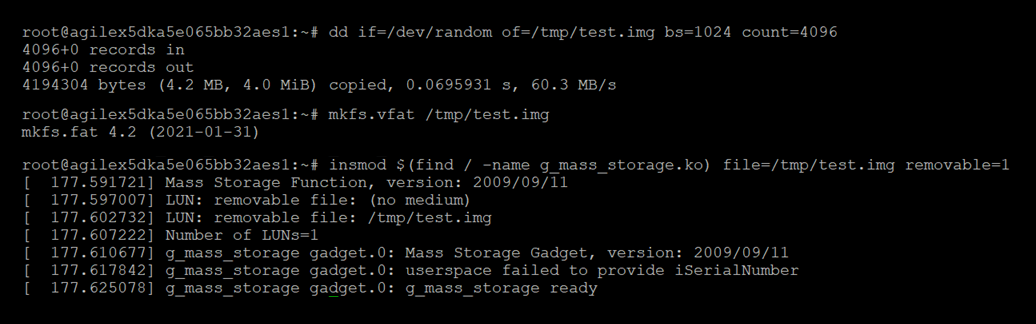

2. Run the following commands to set up the dev kit as a Storage Device.

dd if=/dev/random of=/tmp/test.img bs=1024 count=4096
mkfs.vfat /tmp/test.img

3. Load the kernel driver for gadget storage.

insmod $(find / -name g_mass_storage.ko) file=/tmp/test.img removable=1


4. Plug in the dev kit’s USB Type-C port with the USB Cable, connect the other end to the Test PC. Observe that the dev kit is being seen by Test PC as a storage.


Note: For certain models of thumbdrive, plug-in with one orientation would show it as "high speed USB device", flipping the thumbdrive's orientation would show it as "SuperSpeed USB device".

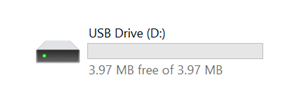

5. On the Test PC, write a file “device_test.txt” in the dev kit storage.

6. On the dev kit, create a new mountpoint mp2.

mkdir /mnt/mp2
mount /tmp/test.img /mnt/mp2

7. You should be able to read the file from both the dev kit and Test PC.

ls /mnt/mp2/device_test.txt

8. At the end of the test, unmount the mounted drive.

umount –l /mnt/mp2

3. The Enablement of USB 3.1 in Dual-Role Device (DRD) Mode

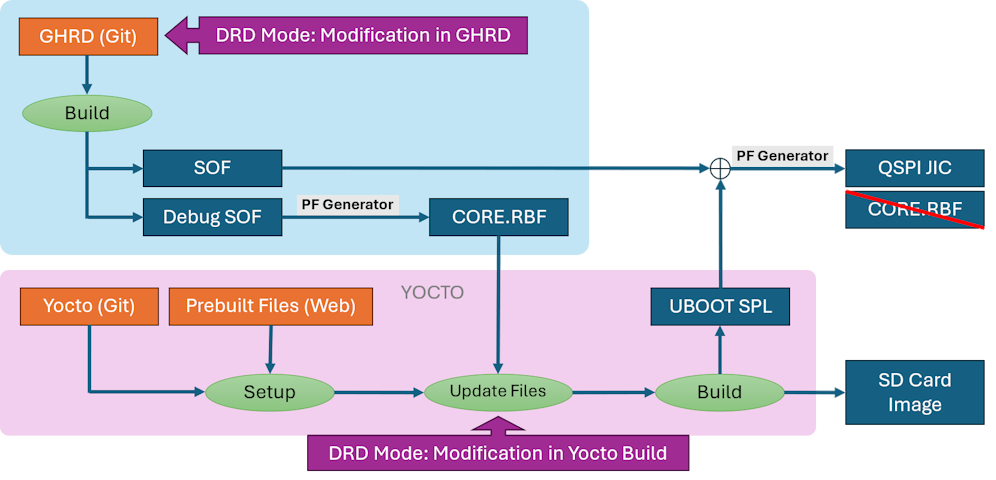

To enable the USB 3.1 in Dual Role Device (DRD) Mode, the modifications of both the Quartus Project and the Yocto Build are required.


3.1 GHRD

1. Setup Environment

sudo rm -rf agilex5_gsrd.enablement
mkdir agilex5_gsrd.enablement
cd agilex5_gsrd.enablement
export TOP_FOLDER=`pwd`

Download the compiler toolchain, add it to the PATH variable, to be used by the GHRD makefile to build the HPS Debug FSBL:

cd $TOP_FOLDER
wget https://developer.arm.com/-/media/Files/downloads/gnu/14.3.rel1/binrel/\
arm-gnu-toolchain-14.3.rel1-x86_64-aarch64-none-linux-gnu.tar.xz
tar xf arm-gnu-toolchain-14.3.rel1-x86_64-aarch64-none-linux-gnu.tar.xz
rm -f arm-gnu-toolchain-14.3.rel1-x86_64-aarch64-none-linux-gnu.tar.xz
export PATH=`pwd`/arm-gnu-toolchain-14.3.rel1-x86_64-aarch64-none-linux-gnu/bin/:$PATH
export ARCH=arm64
export CROSS_COMPILE=aarch64-none-linux-gnu-

Enable Quartus tools to be called from command line:

export QUARTUS_ROOTDIR=~/altera_pro/25.1.1/quartus/
export PATH=$QUARTUS_ROOTDIR/bin:$QUARTUS_ROOTDIR/linux64:$QUARTUS_ROOTDIR/../qsys/bin:$PATH

2. Build Hardware Design

Note: Use Quartus Prime Pro Version 25.1.1

cd $TOP_FOLDER
rm -rf agilex5_soc_devkit_ghrd && mkdir agilex5_soc_devkit_ghrd && cd agilex5_soc_devkit_ghrd
wget https://github.com/altera-fpga/agilex5e-ed-gsrd/releases/download/QPDS25.1.1_REL_GSRD_PR/a5ed065es-premium-devkit-oobe-legacy-baseline.zip
unzip a5ed065es-premium-devkit-oobe-legacy-baseline.zip

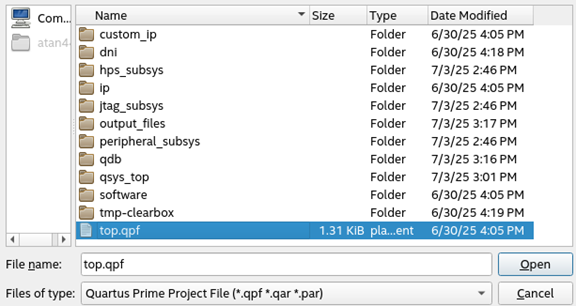

3. Launch GHRD Project in Quartus

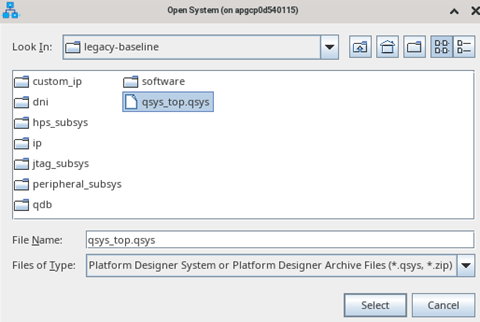

4. Launch Qsys File in Platform Designer


5. Add new Parallel IO (PIO) in the Peripheral Subsystem

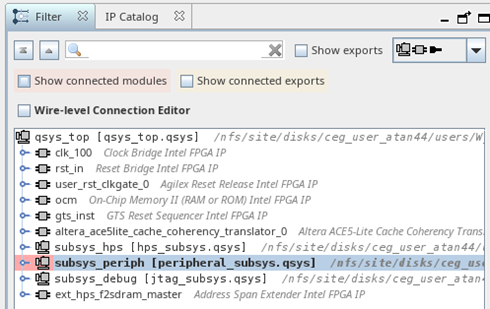

a. On the Filter tab, click on the subsys_periph to open the peripheral subsystem view.

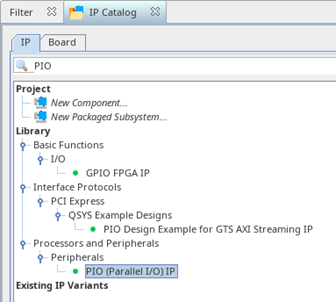

b. Search for "Parallel IO", double click to add the component to the Subsystem.

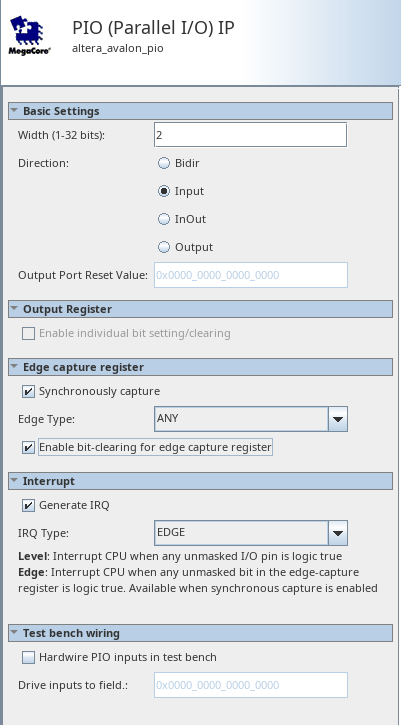

c. Setting of PIO:

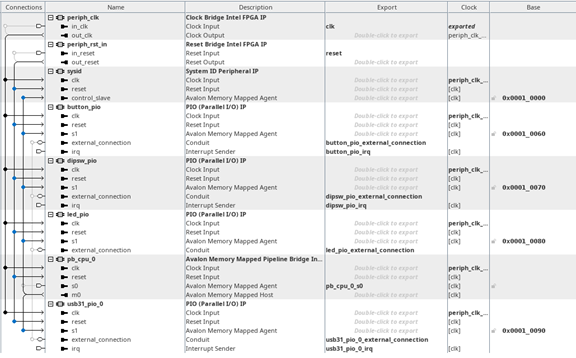

d. Add the PIO to the Peripheral Subsystem.



e. Rename the PIO to usb31_pio_0 and make the connections:

Pin Connection
clk periph_clk
rst periph_rst_in
s1 pb_cpu_0, offset set to 0x0001 0090
external connection exported as usb31_pio_0_external_connection
irq exported as usb31_pio_0_irq

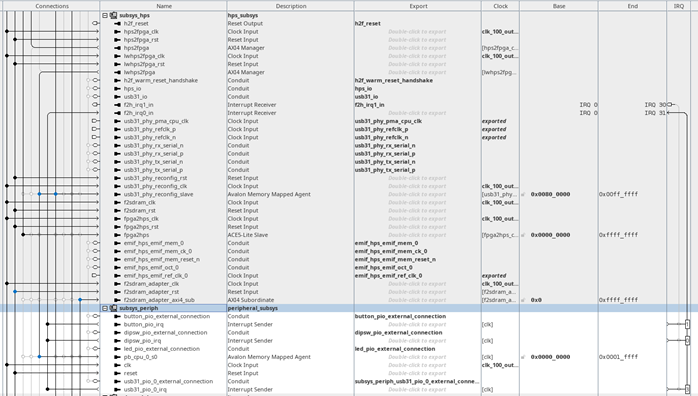

6. Setting in the Top System

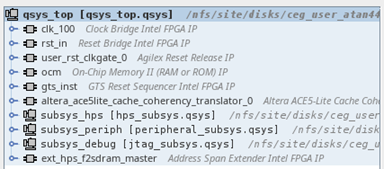

a. Back to the Top System View


b. You should see the usb31_pio_0_external_connection and usb31_pio_0_irq exported in the subsys_periph block.


c. Make the following connections:

Pin Connection
usb31_pio_0_irq f2h_irq0_in
usb31_pio_0_external_connection exported as subsys_periph_usb31_pio_0_external_connection

d. Take note that the usb31_pio_0_irq must be connected to IRQ [3], as this pin is defined in Yocto device tree file.


7. Synthesize Design in Platform Designer

Platform Designer changes are completed. Click “Sync System Infos” and “Generate HDL” for design synthesis.


8. Modify Verilog File

a. In Quartus, open the legacy_baseline_top.v file.

b. Add a new wire for fpga_usb31_pio

module ghrd_agilex5_top (

    input wire fpga_clk_100,

    output wire [4-1:0] fpga_led_pio,
    input  wire [4-1:0] fpga_dipsw_pio,
    input  wire [4-1:0] fpga_button_pio,
    // Add the line below
    input  wire [  1:0] fpga_usb31_pio,

c. Comment the original usb31_io_vbus_det and usb31_io_usb31_id

    // comment the 2 lines below:
    // input  wire usb31_io_vbus_det,
    // input  wire usb31_io_usb31_id,

d. Add the exported external connection to the qsys_top instance

// Qsys Top instance
qsys_top soc_inst (
        // comment the 2 lines below:
        // .usb31_io_vbus_det                    (usb31_io_vbus_det),
        // .usb31_io_usb31_id                    (usb31_io_usb31_id),

        // add the line below:
        .subsys_periph_usb31_pio_0_external_connection_export    (fpga_usb31_pio),

9. Modify QSF File

a. In Quartus, open the legacy_baseline.qsf file.

b. Search for the lines below, comment and add in the lines respectively.

# comment these lines with #
# set_location_assignment PIN_CF118 -to usb31_io_usb31_id
# set_instance_assignment -name IO_STANDARD "3.3-V LVCMOS" -to usb31_io_usb31_id
# set_location_assignment PIN_CF121 -to usb31_io_vbus_det
# set_instance_assignment -name IO_STANDARD "3.3-V LVCMOS" -to usb31_io_vbus_det

# add in these lines:
set_location_assignment PIN_CF118 -to fpga_usb31_pio[0]
set_instance_assignment -name IO_STANDARD "3.3-V LVCMOS" -to fpga_usb31_pio[0]
set_location_assignment PIN_CF121 -to fpga_usb31_pio[1]
set_instance_assignment -name IO_STANDARD "3.3-V LVCMOS" -to fpga_usb31_pio[1]

10. Compilation of the Design

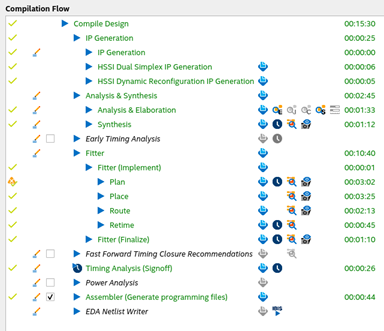

a. After the files are update, you may proceed with Compilation of the Design.

  • If there are new changes in Platform Designer, you need to re-run "Analysis & Synthesis".
  • Check "Assembler (Generate Programming Files)" to generate the SOF.


The following files are created: - $TOP_FOLDER/agilex5_soc_devkit_ghrd/output_files/legacy_baseline.sof

b. To convert the SOF to RBF, run the command below

cd $TOP_FOLDER
rm -f ghrd_a5ed065bb32ae6sr0.rbf
quartus_pfg -c agilex5_soc_devkit_ghrd/output_files/legacy_baseline.sof ghrd_a5ed065bb32ae6sr0.rbf -o hps=1

The following files are created:

  • $TOP_FOLDER/agilex5_soc_devkit_ghrd/ghrd_a5ed065bb32ae6sr0.core.rbf
  • $TOP_FOLDER/agilex5_soc_devkit_ghrd/ghrd_a5ed065bb32ae6sr0.hps.rbf

3.2 Yocto

For modification of Yocto Build, follow the instructions below:

1. Clone the Yocto script and prepare the build:

cd $TOP_FOLDER
rm -rf gsrd-socfpga
git clone -b QPDS25.1.1_REL_GSRD_PR https://github.com/altera-fpga/gsrd-socfpga
cd gsrd-socfpga
. agilex5_dk_a5e065bb32aes1-gsrd-build.sh
build_setup

2. Apply the Device Mode Enablement Patch

a. Download the patch: DRD_Mode_Yocto_Patch

The patch changes the value of dr_mode in the &usb31 node from "host" to "otg" in the device tree file socfpga_agilex5_socdk.dts.

 &usb31 {
    status = "okay";
    extcon = <&extcon_usb>;
    dr_mode = "otg";
 };

b. Copy and apply the patch with instuctions:

cd $TOP_FOLDER/gsrd-socfpga/meta-intel-fpga-refdes/
cp 0001-update-yocto-build-for-USB3.1-DRD-mode-v1.patch .
git am 0001-update-yocto-build-for-USB3.1-DRD-mode-v1.patch

Note: You may ignore the whitespace error message when applying the patch.

c. Edit the device tree file socfpga_agilex5_ghrd.dtsi.

vim $TOP_FOLDER/gsrd-socfpga//meta-intel-fpga-refdes/recipes-bsp/device-tree/files/socfpga_agilex5_ghrd.dtsi

## Add in new nodes for **usb_pio** and **extcon_usb**, save the file:

        usb_pio: gpio@20010090 {
                compatible = "altr,pio-1.0";
                reg = <0x20010090 0x10>;
                interrupts = <GIC_SPI 20 IRQ_TYPE_EDGE_RISING>;
                altr,gpio-bank-width = <4>;
                altr,interrupt-type = <3>;
                #gpio-cells = <2>;
                gpio-controller;
        };

        extcon_usb: extcon-usb {
                compatible = "linux,extcon-usb-gpio";
                id-gpio = <&usb_pio 0 GPIO_ACTIVE_HIGH>;
                vbus-gpio = <&usb_pio 1 GPIO_ACTIVE_HIGH>;
        };

3. Follow the "Customize Yocto" section and "Build Yocto" section in Build SD Card Boot Binaries for the instructions to run bitbake_image and package to generate the SD Card Image:

  • $TOP_FOLDER/gsrd-socfpga/agilex5_dk_a5e065bb32aes1-gsrd-images/u-boot-agilex5-socdk-gsrd-atf/u-boot-spl-dtb.hex
  • $TOP_FOLDER/gsrd-socfpga/agilex5_dk_a5e065bb32aes1-gsrd-images/u-boot.itb
  • $TOP_FOLDER/gsrd-socfpga/agilex5_dk_a5e065bb32aes1-gsrd-images/sdimage.tar.gz

3.3 Boot-Up and Testing - Using the Dev Kit in DRD Mode

1. Boot up the dev kit with the SD Card and Quartus Programmer with the ghrd.hps.rbf, login the Linux with “root”.

2. Plug in the dev kit’s USB Type-C port with a USB Type-C thumbdrive.

Host Mode Thumbdrive Insert

Note: For certain models of thumbdrive, plug-in with one orientation would show it as "high speed USB device", flipping the thumbdrive's orientation would show it as "SuperSpeed USB device".

3. The thumbdrive should be appeared as /dev/sda1.

4. Mount the thumbdrive as a new mountpoint mp1.

mkdir /mnt/mp1
mount -t auto /dev/sda1 /mnt/mp1
dd if=/dev/random of=/tmp/test.txt bs=1M count=200

5. Create a sample file “test.txt” in /tmp, copy the text.txt to the mounted drive

touch /tmp/test.txt
cp /tmp/test.txt /mnt/mp1

6. Remove the test file from the mounted drive.

ls /mnt/mp1/test.txt
rm /mnt/mp1/test.txt

7. Run the following commands to set up the dev kit as a Storage Device.

dd if=/dev/random of=/tmp/test.img bs=1024 count=4096
mkfs.vfat /tmp/test.img

8. Load the kernel driver for gadget storage.

insmod $(find / -name g_mass_storage.ko) file=/tmp/test.img removable=1


9. Plug in the dev kit’s USB Type-C port with the USB Cable, connect the other end to the Test PC. Observe that the dev kit is being seen by Test PC as a storage.


10. On the Test PC, write a file “devtest.txt” in the dev kit storage.

11. On the dev kit, create a new mountpoint mp2.

mkdir /mnt/mp2
mount /tmp/test.img /mnt/mp2

12. You should be able to read the file from both the dev kit and Test PC.

ls /mnt/mp2/devtest.txt

13. At the end of the tests, unmount the mounted drives.

umount –l /mnt/mp1
umount –l /mnt/mp2
Last update: December 2, 2025
Created: September 8, 2025
Ask in the Forum
