FPGA Crypto Services (FCS) Tutorial Example Design User Guide

Introduction

The new FPGA Crypto Services (FCS) solution features a modular design and utilizes the standard Linux cryptographic framework. This offers the FCS clients a simplified API interface for performing cryptographic operations. Furthermore, it integrates the advanced SIP-SVC v3 protocol, which improves communication with the SDM over the previous SIP-SVC v1 version. This enhancement leads to greater efficiency, flexibility, and security in cryptographic operations.

This tutorial provides an overview of the new architecture, instructions for building various FCS components, guidance on which configurations to enable or disable, details on new commands, and information on modifications needed to execute other API commands. All FCS commands are the same as Legacy FCS solutions except a few which are detailed in the upcoming sections.

Features Actions
Session management Open and Close sessions
Key Management Create a key, Import a key, Export a Key, Remove a key, Get key info
Random number generation Send a request to generate random number
AES Encryption and Description ECB Mode, CTR Mode, CBC Mode
Provision data Retrieve the device provision data for device management and confirmation needs
Counter set and Counter set preauthorization Set one selected counter to its specified value in both provision firmware and the main firmware
Get the digest Request the SHA-2 hash digest on a blob
MAC verify Check the integrity and authenticity of a blob by comparing the calculated MAC with tagged MAC
Get ECDH shared secret Digital signature signing request on a data blob
QSPI COMMANDS OPEN, CLOSE, SET_CS, READ, ERASE, WRITE
Device Information GET_IDCODE, GET_DEVICE_IDENTITY
Attestation Commands MCTP_REQUEST, CREATE_CERTIFICATES_ON_RELOAD, GET_ATTESTATION_CERTIFICATE
SDOS Encryption and Decryption Encrypt an input data and decrypt it
Support ECDSA Use case Get ECDSA public key, ECDSA Hash signing, ECDSA Hash verify, ECDSA SHA2 Data Signing, ECDSA SHA2 Data verify
HPS image validation Check the integrity and authenticity of an image before configuration

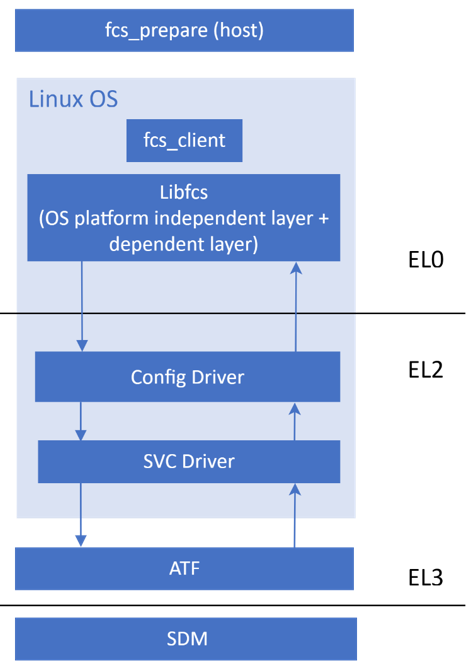

Architecture Overview

The new FCS architecture software stack and its components can be found in the figure below.


FCS Repository

Boards/Device Utilized: Agilex™ 7 F-Series SoC Development Kit

SW Component Repository Branch/tag/Version
LibFCS altera-fpga/libfcs: Altera FPGA Crypto Services Library main
Linux altera-fpga/linux-socfpga: Linux development repository for socfpga socfpga-6.12.19-lts
U-Boot altera-fpga/u-boot-socfpga socfpga_v2025.04
ATF altera-fpga/arm-trusted-firmware socfpga_v2.12.1
FCS Prepare altera-fpga/fcs_apps: Applications for Vendor Authorized Boot support fcs_prepare

Environment Setup

  1. Create the top folder to store all the build artifacts:
mkdir agilex7_fcs
cd agilex7_fcs
export TOP_FOLDER=`pwd`
  1. Download the compiler toolchain, add it to the PATH variable:
cd $TOP_FOLDER
wget https://developer.arm.com/-/media/Files/downloads/gnu/11.2-2022.02/binrel/\
gcc-arm-11.2-2022.02-x86_64-aarch64-none-linux-gnu.tar.xz
tar xf gcc-arm-11.2-2022.02-x86_64-aarch64-none-linux-gnu.tar.xz
rm -f gcc-arm-11.2-2022.02-x86_64-aarch64-none-linux-gnu.tar.xz
export PATH=`pwd`/gcc-arm-11.2-2022.02-x86_64-aarch64-none-linux-gnu/bin:$PATH
export ARCH=arm64
export CROSS_COMPILE=aarch64-none-linux-gnu-
  1. Enable Quartus tools to be called from command line:
export QUARTUS_ROOTDIR=~/intelFPGA_pro/25.1.1/quartus/
export PATH=$QUARTUS_ROOTDIR/bin:$QUARTUS_ROOTDIR/linux64:$QUARTUS_ROOTDIR/../qsys/bin:$PATH
  1. Install Yocto Dependencies:

Make sure you have Yocto system requirements met: https://docs.yoctoproject.org/5.0.1/ref-manual/system-requirements.html#supported-linux-distributions. The commands to install the required packages on Ubuntu 22.04 are:

sudo apt-get update
sudo apt-get upgrade
sudo apt-get install openssh-server mc libgmp3-dev libmpc-dev gawk wget git diffstat unzip texinfo gcc \
build-essential chrpath socat cpio python3 python3-pip python3-pexpect xz-utils debianutils iputils-ping \
python3-git python3-jinja2 libegl1-mesa libsdl1.2-dev pylint xterm python3-subunit mesa-common-dev zstd \
liblz4-tool git fakeroot build-essential ncurses-dev xz-utils libssl-dev bc flex libelf-dev bison xinetd \
tftpd tftp nfs-kernel-server libncurses5 libc6-i386 libstdc++6:i386 libgcc++1:i386 lib32z1 \
device-tree-compiler curl mtd-utils u-boot-tools net-tools swig -y

On Ubuntu 22.04 you will also need to point the /bin/sh to /bin/bash, as the default is a link to /bin/dash:

sudo ln -sf /bin/bash /bin/sh

System Image Creation

Build Arm Trusted Firmware

cd $TOP_FOLDER
rm -rf arm-trusted-firmware
git clone -b socfpga_v2.12.1 https://github.com/altera-opensource/arm-trusted-firmware
cd arm-trusted-firmware
make -j 48 PLAT=agilex bl31
cd ..

Build U-Boot

cd $TOP_FOLDER
rm -rf u-boot-socfpga
git clone -b socfpga_v2025.04 https://github.com/altera-opensource/u-boot-socfpga
cd u-boot-socfpga
# only boot from SD, do not try QSPI and NAND
sed -i 's/u-boot,spl-boot-order.*/u-boot\,spl-boot-order = \&mmc;/g' arch/arm/dts/socfpga_agilex_socdk-u-boot.dtsi
# disable NAND in the device tree
sed -i '/&nand {/!b;n;c\\tstatus = "disabled";' arch/arm/dts/socfpga_agilex_socdk-u-boot.dtsi
# link to atf
ln -s ../arm-trusted-firmware/build/agilex/release/bl31.bin
cat << EOF > config-fragment
# Use 'Image' for kernel image instead of 'kernel.itb'
CONFIG_BOOTFILE="Image"
# disable NAND/UBI related settings from defconfig.
CONFIG_NAND_BOOT=n
CONFIG_SPL_NAND_SUPPORT=n
CONFIG_CMD_NAND_TRIMFFS=n
CONFIG_CMD_NAND_LOCK_UNLOCK=n
CONFIG_NAND_DENALI_DT=n
CONFIG_SYS_NAND_U_BOOT_LOCATIONS=n
CONFIG_SPL_NAND_FRAMEWORK=n
CONFIG_CMD_NAND=n
CONFIG_MTD_RAW_NAND=n
CONFIG_CMD_UBI=n
CONFIG_CMD_UBIFS=n
CONFIG_MTD_UBI=n
CONFIG_ENV_IS_IN_UBI=n
CONFIG_UBI_SILENCE_MSG=n
CONFIG_UBIFS_SILENCE_MSG=n
# disable distroboot and use specific boot command.
CONFIG_DISTRO_DEFAULTS=n
CONFIG_HUSH_PARSER=y
CONFIG_SYS_PROMPT_HUSH_PS2="> "
CONFIG_USE_BOOTCOMMAND=y
CONFIG_BOOTCOMMAND="load mmc 0:1 \${loadaddr} signed_bitstream_core.rbf; bridge disable;fpga load 0 \${loadaddr} \${filesize};bridge enable; setenv bootfile Image; run mmcload;run linux_qspi_enable;run rsu_status;run mmcboot"
CONFIG_CMD_FAT=y
CONFIG_CMD_FS_GENERIC=y
CONFIG_DOS_PARTITION=y
CONFIG_SPL_DOS_PARTITION=y
CONFIG_CMD_PART=y
CONFIG_SPL_CRC32=y
CONFIG_LZO=y
CONFIG_CMD_DHCP=y
# enable more QSPI flash manufacturers
CONFIG_SPI_FLASH_MACRONIX=y
CONFIG_SPI_FLASH_GIGADEVICE=y
CONFIG_SPI_FLASH_WINBOND=y
CONFIG_SPI_FLASH_ISSI=y
EOF
# build U-Boot
make clean && make mrproper
make socfpga_agilex_defconfig
# use created custom configuration file to merge with the default configuration obtained in .config file.
./scripts/kconfig/merge_config.sh -O . -m .config config-fragment
make -j 64
cd ..

The following files are created:

  • $TOP_FOLDER/u-boot-socfpga/u-boot.itb
  • $TOP_FOLDER/u-boot-socfpga/spl/u-boot-spl-dtb.hex

Build Linux

cd $TOP_FOLDER
rm -rf linux-socfpga
git clone -b socfpga-6.12.19-lts https://github.com/altera-opensource/linux-socfpga
cd linux-socfpga
make defconfig

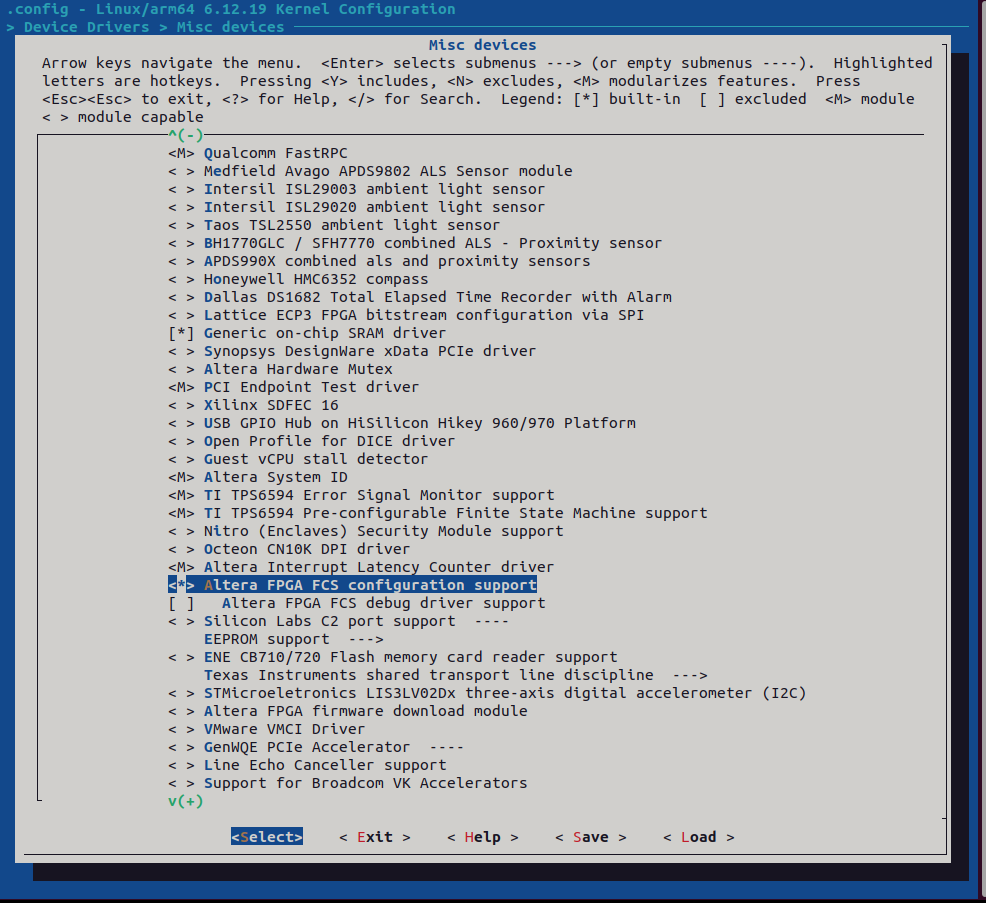

After that, the FCS drivers need to be enabled using menuconfig

make menuconfig

Select the following configuration options for FCS.

Device Drivers → Misc devices → Altera FPGA FCS configuration support(select *)


Finally, build the Linux Image:

make -j 64 Image dtbs

The following files are created:

  • $TOP_FOLDER/linux-socfpga/arch/arm64/boot/dts/intel/socfpga_agilex_socdk.dtb
  • $TOP_FOLDER/linux-socfpga/arch/arm64/boot/Image

Compile LibFCS and FCS Client application

Compile the FCS Client and LibFCS

git clone https://github.com/altera-fpga/libfcs
cd libfcs/
export ARCH=arm64; export CROSS_COMPILE=aarch64-none-linux-gnu-
rm -rf build/ && rm -rf third_party/libkcapi/ && cmake -S . -B build -DARCH=linux_aarch64 -DOS=linux && cmake --build build

The output files of the compilation must be copied to the target device, as below:

  • $TOP_FOLDER/libfcs/build/bin/fcs_client
  • $TOP_FOLDER/libfcs/build/lib/LibFCS.so
  • $TOP_FOLDER/libfcs/build/lib/LibFCS.so.1
  • $TOP_FOLDER/libfcs/include/libfcs.h

Compile fcs_prepare tool

git clone https://github.com/altera-fpga/fcs_apps fcs_prepare
cd fcs_prepare
gi checkout fcs_prepare
export ARCH=; export CROSS_COMPILE=
make clean && make all

Install Yocto Dependencies

Make sure you have Yocto system requirements met: https://docs.yoctoproject.org/5.0.1/ref-manual/system-requirements.html#supported-linux-distributions. The commands to install the required packages on Ubuntu 22.04 are:

sudo apt-get update
sudo apt-get upgrade
sudo apt-get install openssh-server mc libgmp3-dev libmpc-dev gawk wget git diffstat unzip texinfo gcc \
build-essential chrpath socat cpio python3 python3-pip python3-pexpect xz-utils debianutils iputils-ping \
python3-git python3-jinja2 libegl1-mesa libsdl1.2-dev pylint xterm python3-subunit mesa-common-dev zstd \
liblz4-tool git fakeroot build-essential ncurses-dev xz-utils libssl-dev bc flex libelf-dev bison xinetd \
tftpd tftp nfs-kernel-server libncurses5 libc6-i386 libstdc++6:i386 libgcc++1:i386 lib32z1 \
device-tree-compiler curl mtd-utils u-boot-tools net-tools swig -y

On Ubuntu 22.04 you will also need to point the /bin/sh to /bin/bash, as the default is a link to /bin/dash:

sudo ln -sf /bin/bash /bin/sh

Build Rootfs

cd $TOP_FOLDER
rm -rf yocto && mkdir yocto && cd yocto
git clone -b styhead https://git.yoctoproject.org/poky
git clone -b styhead https://git.yoctoproject.org/meta-intel-fpga
git clone -b styhead https://github.com/openembedded/meta-openembedded
# work around issue
echo 'do_package_qa[noexec] = "1"' >> $(find meta-intel-fpga -name linux-socfpga_6.6.bb)
source poky/oe-init-build-env ./build
echo 'MACHINE = "agilex7_dk_si_agf014eb"' >> conf/local.conf
echo 'BBLAYERS += " ${TOPDIR}/../meta-intel-fpga "' >> conf/bblayers.conf
echo 'BBLAYERS += " ${TOPDIR}/../meta-openembedded/meta-oe "' >> conf/bblayers.conf
echo 'CORE_IMAGE_EXTRA_INSTALL += "openssh gdbserver"' >> conf/local.conf
bitbake core-image-minimal

The following file is created:

  • $TOP_FOLDER/yocto/build/tmp/deploy/images/agilex7_dk_si_agf014eb/core-image-minimal-agilex7_dk_si_agf014eb.rootfs.tar.gz

Generate Signature Chains

cd $TOP_FOLDER
mkdir keys && cd keys
mkdir -p privatekeys; mkdir -p publickeys; mkdir -p qky

Start a Nios V command shell to have all Quartus tools in the PATH:

~/intelFPGA_pro/25.1.1/niosv/bin/niosv-shell

Generate Root Key

quartus_sign --family=agilex --operation=make_private_pem --curve=secp384r1 --no_passphrase privatekeys/root0.pem
quartus_sign --family=agilex --operation=make_public_pem privatekeys/root0.pem publickeys/root0_public.pem
quartus_sign --family=agilex --operation=make_root publickeys/root0_public.pem qky/root0.qky

Generate FPGA Signing Keys

quartus_sign --family=agilex --operation=make_private_pem --curve=secp384r1 --no_passphrase privatekeys/sign0.pem
quartus_sign --family=agilex --operation=make_public_pem privatekeys/sign0.pem publickeys/sign0_public.pe

Generate Signature Chain

FPGA Signing - Cancel ID 1 – Permissions: FPGA/HPS/HPS Debug

quartus_sign --family=agilex --operation=append_key --previous_pem=privatekeys/root0.pem --previous_qky=qky/root0.qky --permission=14 --cancel=1 --input_pem=publickeys/sign0_public.pem qky/sign0_cancel1.qky

Build Hardware Design

Build the GHRD

cd $TOP_FOLDER
wget https://github.com/altera-fpga/agilex7f-ed-gsrd/archive/refs/tags/QPDS25.1.1_REL_GSRD_PR.zip
unzip QPDS25.1.1_REL_GSRD_PR.zip
rm QPDS25.1.1_REL_GSRD_PR.zip
mv agilex7f-ed-gsrd-QPDS25.1.1_REL_GSRD_PR agilex7f-ed-gsrd
cd agilex7f-ed-gsrd
make agf014eb-si-devkit-oobe-baseline-all
cd ..

The following files are created:

  • $TOP_FOLDER/agilex7f-ed-gsrd/install/designs/agf014eb_si_devkit_oobe_baseline.sof

Enable Security Features: Authentication

Next, enable the QKY key file in the Quartus project: For the FPGA configuration bitstream to be properly signed, enable the Quartus key File in the Quartus Project.

Open the GHRD project in Quartus.

  • From the Assignments Menu, navigate to Device > Device and Pin Options > Security. Under the Quartus key file, browse and select qky/sign0_cancel1.qky.
  • Alternatively, you can add the following assignment to the .qsf file: "set_global_assignment -name QKY_FILE "

Regenerate the sof by running the Assembler.

  • From the Processing menu, select Compilation Dashboard. In the Compilation Dashboard, select Assembler to regenerate the sof.

Generate and Sign FPGA and HPS RBF Files

Add FSBL bootloader to configuration bitstream, and generate the core and HPS .rbf files:

cd $TOP_FOLDER
mkdir bitstreams && cd bitstreams
cp ../agilex7f-ed-gsrd/install/designs/agf014eb_si_devkit_oobe_baseline.sof design.sof
quartus_pfg -c design.sof ghrd.rbf \
-o hps_path=$TOP_FOLDER/u-boot-socfpga/spl/u-boot-spl-dtb.hex \
-o hps=1 \
-o sign_later=ON

After that, two .rbf files are created:

  • $TOP_FOLDER /bitstreams/ghrd.core.rbf
  • $TOP_FOLDER /bitstreams/ghrd.hps.rbf

Finally, sign the .rbf files:

quartus_sign --family=agilex --operation=sign --qky=../keys/qky/sign0_cancel1.qky \
--pem=../keys/privatekeys/sign0.pem ghrd.core.rbf signed_bitstream_core.rbf
quartus_sign --family=agilex --operation=sign --qky=../keys/qky/sign0_cancel1.qky \
--pem=../keys/privatekeys/sign0.pem ghrd.hps.rbf signed_bitstream_hps.rbf

Generate SDOS Signed Certificate (If SDOS is needed)

Generate the SDOS signed certificate using the command below:

First, generate the SDOS Service Root Key compact certificate:

quartus_pfg -ccert -o ccert_type=PROV_SERVICE_ROOT_KEY -o entropy=<32-byte hex string> unsigned_prov_srk.ccert

Next, create a signature chain with the correct permission bit set using the following command:

quartus_sign --family=agilex --operation=append_key \
--previous_pem=root0_private.pem \
--previous_qky=root0.qky \
--permission=0x8000 \
--cancel=1 \
--input_pem=sdosccert1_public.pem \
sdosccert1_sign_chain.qky

Finally, sign the generated compact certificate using the following command:

quartus_sign --family=agilex --operation=sign \
--pem=sdosccert1_private.pem \
--qky=sdosccert1_sign_chain.qky \
unsigned_prov_srk.ccert signed_prov_srk.ccert

Generate the Key Object File for Encryption/Decryption

First, create the key data file in .txt format:

cd $TOP_FOLDER/fcs_prepare
echo  111111112222222233333333444444445555555566666666777777778888888899999999aaaaAAAAbbbbBBBBccccCCCC >> key.txt
./fcs_prepare -G aes_key.obj -i 14 -x 256 -k 1 -u 0x3 -t key.txt

To view the aes_test.obj file, use the command below to observe the output:

./fcs_prepare -P aes_key.obj

---- Decode and print crypto service key object file ----
Successfully decode aes_test.obj file with 80 bytes
Print crypto service key object
    key_id              0x0000000e
    key_type            1 (1:AES, 2:HMAC, 3:ECC NIST P Curve, 4:ECC-BrainPool)
    key_usage           0x00000003 (B0:Enc, B1:Dec, B2:Sign, B3:Verify, B4:Exchange)
    key_size            256 bits
    key_object_version  1
    key_fips_mode       0
    key_owner_id        0
    key_user_id         0
    key_protection      0
    key_wrap_version    0
    data
        11 11 11 11 22 22 22 22 33 33 33 33 44 44 44 44
        55 55 55 55 66 66 66 66 77 77 77 77 88 88 88 88
    iv
        00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
    mac
        00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
        00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
        00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

Prepare the fcs_client Files

Copy the fcs_client binary and drivers

Cd $TOP_FOLDER
mkdir fcs_client_bins && cd fcs_client_bins
cp ../../libfcs/build/bin/fcs_client .
mkdir fcs_drivers && fcs_drivers
cp ../../libfcs/build/lib/libFCS* .
cp ../../libfcs/include/libfcs.h .
cd ..

Copy the key object file

cp ../fcs_prepare/aes_test.obj .
cp ..

Create SD Card Image

cd $TOP_FOLDER
sudo rm -rf sd_card && mkdir sd_card && cd sd_card
# Download the sd-card image creator
wget https://releases.rocketboards.org/release/2020.11/gsrd/tools/make_sdimage_p3.py
sed -i 's/\"\-F 32\",//g' make_sdimage_p3.py
chmod +x make_sdimage_p3.py
# Prepare the image files
mkdir fatfs && cd fatfs
cp $TOP_FOLDER/bitstreams/signed_bitstream_core.rbf .
cp $TOP_FOLDER/u-boot-socfpga/u-boot.itb .
cp $TOP_FOLDER/linux-socfpga/arch/arm64/boot/Image .
cp $TOP_FOLDER/linux-socfpga/arch/arm64/boot/dts/intel/socfpga_agilex_socdk.dtb .
cd ..
mkdir rootfs && cd rootfs
sudo tar xf $TOP_FOLDER/yocto/build/tmp/deploy/images/agilex7_dk_si_agf014eb/core-image-minimal-agilex7_dk_si_agf014eb.rootfs.tar.gz
# Copy the fcs_client files
cd home/
sudo cp -r ../../../fcs_client_bins/ root/
cd ../..
# Create the image
sudo python3 make_sdimage_p3.py -f \
-P fatfs/*,num=1,format=fat,size=100M \
-P rootfs/*,num=2,format=ext3,size=512M \
-s 640M \
-n agilex7_fcs.img
cd ..

Write SD Card Image

On Linux, use the dd utility as shown next:

# Determine the device asociated with the SD card on the host computer.
cat /proc/partitions
# This will return for example /dev/sdx
# Use dd to write the image in the corresponding device
sudo dd if= agilex7_fcs.img of=/dev/sdx bs=1M
# Flush the changes to the SD card
sync

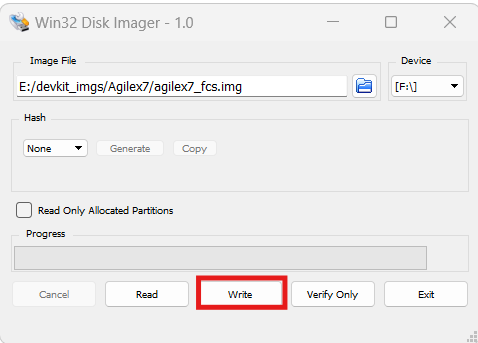

On Windows, use the Win32DiskImager program, available at https://sourceforge.net/projects/win32diskimager. Write the image as shown in the next figure:


Running the Application on Board

Board Configuration

  1. Power down the board
  2. Set MSEL to JTAG mode (SW27: OFF- OFF- OFF- OFF)
  3. Connect the HPS UART to a terminal on the host machine.
  4. Configure the root key, SDOS ccert, and signed_bitstream_hps.rbf
cd $TOP_FOLDER/bitstreams
quartus_pgm -c 1 -m jtag -o "pi;../keys/qky/root0.qky"
quartus_pgm -c 1 -m jtag -o "p;signed_prov_service_root_key_uds_efuse.ccert"
quartus_pgm -c 1 -m jtag -o "p;signed_bitstream_hps.rbf"

On the HPS terminal, observe the FSBL output:

U-Boot SPL 2025.04-g08197d3d7344-dirty (Sep 03 2025 - 12:07:38 -0400)
Reset state: Cold
MPU          1200000 kHz
L4 Main       400000 kHz
L4 sys free   100000 kHz
L4 MP         200000 kHz
L4 SP         100000 kHz
SDMMC          50000 kHz
DDR: 8192 MiB
SDRAM-ECC: Initialized success with 1716 ms
QSPI: Reference clock at 400000 kHz
WDT:   Started watchdog@ffd00200 with servicing every 1000ms (10s timeout)
Trying to boot from MMC1
## Checking hash(es) for config board-0 ... OK
## Checking hash(es) for Image atf ... crc32+ OK
## Checking hash(es) for Image uboot ... crc32+ OK
## Checking hash(es) for Image fdt-0 ... crc32+ OK
...

Linux Environment Setup

Use “root” as login, and navigate to the fcs_client_bins directory. We need to deploy the fcs client drivers and the Linux modules.

cd fcs_client_bins
cd fcs_drivers
cp * /usr/lib
ldconfig

Navigate to the fcs_client binary and check all the dependencies availability using ldd command:

cd ../bins/
ldd fcs_client
        linux-vdso.so.1 (0x0000ffff7f7ec000)
        libFCS.so.2 => /usr/lib/libFCS.so.2 (0x0000ffff7f780000)
        libfdt.so.1 => /usr/lib/libfdt.so.1 (0x0000ffff7f760000)
        libc.so.6 => /lib/libc.so.6 (0x0000ffff7f5b0000)
        /lib/ld-linux-aarch64.so.1 (0x0000ffff7f7b0000)

Testing fcs_client Application

Inside bins/ directory, run the fcs_client help command

./fcs_client -h

The help argument prints out all the supported actions in fcs_client application.

Encryption/Decryption through Crypto-Services Commands

To run an encryption test, first create a random data file and the IV file.

dd if=/dev/urandom of=iv.bin bs=1 count=16
dd if=/dev/urandom of=usr_data.bin bs=1 count=32672

Next, open an fcs_client session and retrieve a session ID:

./fcs_client -e
Crypto service sessionID=affea22b-80c3-a14e-a82e-a3a22656f0ce

After that, import the crypto service key to the device:

./fcs_client -B -s affea22b-80c3-a14e-a82e-a3a22656f0ce -i aes_key.obj

Then use the -Y (AES Crypt) function to encrypt the user_data.bin:

./fcs_client -Y -s affea22b-80c3-a14e-a82e-a3a22656f0ce -n 1 -k 14 -b 0 -m 0 -i usr_data.bin -o enc_usr_data.bin -f iv.bin

The encrypted file enc_usr_data.bin can be seen in the current running directory.

To retrieve the original file from the encrypted one, use the following command:

./fcs_client -Y -s affea22b-80c3-a14e-a82e-a3a22656f0ce -n 1 -k 14 -b 0 -m 1 -i enc_usr_data.bin -o dec_usr_data.bin -f iv.bin

To verify the operation, use “diff” command to check the usr_data.bin with dec_usr_data.bin.

diff usr_data.bin dec_usr_data.bin

No output from this command must be observed on terminal to prove the match case.

SDOS Tests

To perform encryption operation via SDOS, use:

./fcs_client -E -i usr_data.bin -o enc_sdos_usr_data.bin -s affea22b-80c3-a14e-a82e-a3a22656f0ce -d 0x1234 -r 0xabcd -n 0x22334455 -v

The expected output is:

main[2528] filesize=32672
Magic Number: 0xACBDBDED
Data Length (w/ padding): 32672
Pad: 0
SRKI: 0
ASOI: 4660
Owner ID: cd ab 00 00 00 00 00 00
Header Padding: 0x1020304
IV field: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Size of struct fcs_aes_crypt_header: 40
Save encrypted data to enc_sdos_usr_data.bin
Saving 32760 [0x7FF8] bytes

The decryption operation via SDOS can be executing running the command below:

./fcs_client -D -i enc_sdos_usr_data.bin -o dec_sdos_usr_data.bin -s affea22b-80c3-a14e-a82e-a3a22656f0ce -n 0x22334455 -v

The expected output is:

main[2655] filesize=32760
Magic Number: 0xACBDBDED
Data Length (w/ padding): 32672
Pad: 0
SRKI: 0
ASOI: 4660
Owner ID: cd ab 00 00 00 00 00 00
Header Padding: 0x1020304
IV field: 00 00 00 00 6d fc 6b 49 6a ca 23 a6 e6 98 61 8e
Save decrypted data to dec_sdos_usr_data.bin
Saving 32672 [0x7FA0] bytes

Last update: October 2, 2025
Created: October 2, 2025
Ask in the Forum
