HPS Linux Boot Tutorial Example User Guide for Arria® 10 SX SoC Development Kit¶

Introduction¶

Overview¶

This page contains instructions on how to build Linux systems from separate components: Hardware Design, U-Boot, Arm Trusted Firmware, Linux kernel and device tree, Linux root filesystem. This is different from the Golden System Reference Design, where all the software is built through Yocto. While the instructions use Yocto for building the root file system, alternatives could be used there, such as the buildroot utility for example.

The key differences versus the GSRD are:

Fabric is configured from U-Boot directly with the rbf file, with fpga load command, instead of using the bootm command with the core.rbf part of the kernel.itb file
The applications and drivers form meta-intel-fpga-refdes are not included. That includes accessing GPIOs in the fabric for LEDs, push buttons, dip switches, the webserver running on the board, etc.

The following scenarios are covered:

Boot from SD Daughter card
Boot from QSPI Daughter card
Boot from NAND Daughter card

The instructions on this page are based on the GSRD.

Prerequisites¶

The following are required to be able to fully exercise the guides from this page:

Arria® 10 SX SoC Development Kit, ordering code DK-SOC-10AS066S-E.
- DDR4 HILO memory card
- Micro SD boot flash card
- Mini USB cable for serial output
- Micro USB cable for on-board Intel FPGA Download Cable II
- Micro SD card (4GB or greater)
Host PC with
- 64 GB of RAM or more
- Linux OS installed. Ubuntu 22.04LTS was used to create this page, other versions and distributions may work too
- Serial terminal (for example GtkTerm or Minicom on Linux and TeraTerm or PuTTY on Windows)
- Altera® Quartus^® Prime Pro Edition Version 25.1.1
- TFTP server. This used to download the eMMC binaries to board to be flashed by U-Boot
Local Ethernet network, with DHCP server
Internet connection. For downloading the files.

Component Versions¶

Altera® Quartus^® Prime Pro Edition Version 25.1.1 and the following software component versions integrate the 25.1.1 release.

Note: Regarding the GHRD components in the following table, only the device-specific GHRD is used in this page.

Component	Location	Branch	Commit ID/Tag
Agilex 3 GHRD	https://github.com/altera-fpga/agilex3c-ed-gsrd	main	QPDS25.1.1_REL_GSRD_PR
Agilex 5 GHRD	https://github.com/altera-fpga/agilex5e-ed-gsrd	main	QPDS25.1.1_REL_GSRD_PR
Agilex 7 GHRD	https://github.com/altera-fpga/agilex7f-ed-gsrd	main	QPDS25.1.1_REL_GSRD_PR
Stratix 10 GHRD	https://github.com/altera-fpga/stratix10-ed-gsrd	main	QPDS25.1.1_REL_GSRD_PR
Arria 10 GHRD	https://github.com/altera-fpga/arria10-ed-gsrd	main	QPDS25.1.1_REL_GSRD_PR
Linux	https://github.com/altera-fpga/linux-socfpga	socfpga-6.12.19-lts	QPDS25.1.1_REL_GSRD_PR
Arm Trusted Firmware	https://github.com/altera-fpga/arm-trusted-firmware	socfpga_v2.12.1	QPDS25.1.1_REL_GSRD_PR
U-Boot	https://github.com/altera-fpga/u-boot-socfpga	socfpga_v2025.04	QPDS25.1.1_REL_GSRD_PR
Yocto Project	https://git.yoctoproject.org/poky	walnascar	latest
Yocto Project: meta-intel-fpga	https://git.yoctoproject.org/meta-intel-fpga	walnascar	latest
Yocto Project: meta-intel-fpga-refdes	https://github.com/altera-fpga/meta-intel-fpga-refdes	walnascar	QPDS25.1.1_REL_GSRD_PR

Note: The combination of the component versions indicated in the table above has been validated through the use cases described in this page and it is strongly recommended to use these versions together. If you decided to use any component with different version than the indicated, there is not warranty that this will work.

Development Kit¶

Refer to Development Kit for details about the board.

Release Notes¶

Refer to Release Notes for release readiness information and known issues.

Boot from SD Card¶

Setup Environment

Yocto Build Prerequisites

Make sure you have Yocto system requirements met: https://docs.yoctoproject.org/ref-manual/system-requirements.html

The command to install the required packages on Ubuntu 22.04 is:

sudo apt-get update
sudo apt-get upgrade
sudo apt-get install openssh-server mc libgmp3-dev libmpc-dev gawk wget git diffstat unzip texinfo gcc \
build-essential chrpath socat cpio python3 python3-pip python3-pexpect xz-utils debianutils iputils-ping \
python3-git python3-jinja2 libegl1-mesa libsdl1.2-dev pylint xterm python3-subunit mesa-common-dev zstd \
liblz4-tool git fakeroot build-essential ncurses-dev xz-utils libssl-dev bc flex libelf-dev bison xinetd \
tftpd tftp nfs-kernel-server libncurses5 libc6-i386 libstdc++6:i386 libgcc++1:i386 lib32z1 \
device-tree-compiler curl mtd-utils u-boot-tools net-tools swig -y

On Ubuntu 22.04 you will also need to point the /bin/sh to /bin/bash, as the default is a link to /bin/dash:

 sudo ln -sf /bin/bash /bin/sh

1. Create the top folder to store all the build :

sudo rm -rf a10_example.sdmmc
mkdir a10_example.sdmmc
cd a10_example.sdmmc
export TOP_FOLDER=`pwd`

2. Setup the environment

wget https://developer.arm.com/-/media/Files/downloads/gnu/14.3.rel1/binrel/arm-gnu-toolchain-14.3.rel1-x86_64-arm-none-linux-gnueabihf.tar.xz
tar xf arm-gnu-toolchain-14.3.rel1-x86_64-arm-none-linux-gnueabihf.tar.xz
rm arm-gnu-toolchain-14.3.rel1-x86_64-arm-none-linux-gnueabihf.tar.xz
export PATH=`pwd`/arm-gnu-toolchain-14.3.rel1-x86_64-arm-none-linux-gnueabihf/bin:$PATH
export ARCH=arm
export CROSS_COMPILE=arm-none-linux-gnueabihf-

Enable Quartus tools to be called from command line:

export QUARTUS_ROOTDIR=~/altera_pro/25.1.1/quartus/
export PATH=$QUARTUS_ROOTDIR/bin:$QUARTUS_ROOTDIR/linux64:$QUARTUS_ROOTDIR/../qsys/bin:$PATH

Build Hardware Design

cd $TOP_FOLDER
rm -rf arria10-ed-gsrd
git clone -b QPDS25.1.1_REL_GSRD_PR https://github.com/altera-fpga/arria10-ed-gsrd.git
cd arria10-ed-gsrd
make a10-soc-devkit-sdmmc-baseline-all

The following files are created:

$TOP_FOLDER/arria10-ed-gsrd/a10_soc_devkit_ghrd_pro/hps_isw_handoff/hps.xml
$TOP_FOLDER/arria10-ed-gsrd/a10_soc_devkit_ghrd_pro/output_files/ghrd_10as066n2.sof

Build U-Boot

cd $TOP_FOLDER
rm -rf u-boot-socfpga
git clone -b QPDS25.1.1_REL_GSRD_PR https://github.com/altera-fpga/u-boot-socfpga
cd u-boot-socfpga

Convert hps.xml handoff file to include file to be used by the device tree:

./arch/arm/mach-socfpga/qts-filter-a10.sh \
$TOP_FOLDER/arria10-ed-gsrd/a10_soc_devkit_ghrd_pro/hps_isw_handoff/hps.xml \
arch/arm/dts/socfpga_arria10_socdk_sdmmc_handoff.h

Configure and build U-Boot:

make clean && make mrproper
make socfpga_arria10_defconfig
make -j 48
cd ..

The following files are created:

File	Description
$TOP_FOLDER/u-boot-socfpga/spl/u-boot-splx4.sfp	Bootable image, with four SPL binaries, in the format required by BootROM
$TOP_FOLDER/u-boot-socfpga/u-boot.img	U-Boot image

Create the FIT image with the FPGA programming files, used by SPL to configure FPGA:

cd $TOP_FOLDER/u-boot-socfpga
ln -s $TOP_FOLDER/arria10-ed-gsrd/a10_soc_devkit_ghrd_pro/output_files/ghrd_10as066n2.core.rbf .
ln -s $TOP_FOLDER/arria10-ed-gsrd/a10_soc_devkit_ghrd_pro/output_files/ghrd_10as066n2.periph.rbf .
tools/mkimage -E -f board/altera/arria10-socdk/fit_spl_fpga.its fit_spl_fpga.itb

The following file is created:

$TOP_FOLDER/u-boot-socfpga/fit_spl_fpga.itb

Build Linux

cd $TOP_FOLDER
rm -rf linux-socfpga
git clone -b QPDS25.1.1_REL_GSRD_PR https://github.com/altera-fpga/linux-socfpga
cd linux-socfpga
make socfpga_defconfig
make -j 48 zImage Image dtbs modules
make -j 48 modules_install INSTALL_MOD_PATH=modules_install
rm -rf modules_install/lib/modules/*/build
rm -rf modules_install/lib/modules/*/source
cd ..

The following file is created:

$TOP_FOLDER/linux-socfpga/arch/arm/boot/zImage
$TOP_FOLDER/linux-socfpga/arch/arm/boot/Image
$TOP_FOLDER/linux-socfpga/arch/arm/boot/dts/socfpga_cyclone5_socdk.dtb
$TOP_FOLDER/linux-socfpga/arch/arm/boot/dts/socfpga_arria10_socdk_sdmmc.dtb
$TOP_FOLDER/linux-socfpga/arch/arm/boot/dts/socfpga_arria10_socdk_qspi.dtb
$TOP_FOLDER/linux-socfpga/arch/arm/boot/dts/socfpga_arria10_socdk_nand.dtb
$TOP_FOLDER/linux-socfpga/modules_install/lib/modules

Build Rootfs

cd $TOP_FOLDER
rm -rf yocto && mkdir yocto && cd yocto
git clone -b walnascar https://git.yoctoproject.org/poky
git clone -b walnascar https://git.yoctoproject.org/meta-intel-fpga
source poky/oe-init-build-env ./build
echo 'MACHINE = "arria10"' >> conf/local.conf
echo 'BBLAYERS += " ${TOPDIR}/../meta-intel-fpga "' >> conf/bblayers.conf
echo 'CORE_IMAGE_EXTRA_INSTALL += "openssh gdbserver"' >> conf/local.conf
bitbake core-image-minimal

Link all the relevant files to $LINUX_BIN

cd $TOP_FOLDER
rm -rf linux-bin && mkdir linux-bin
export set LINUX_BIN=`pwd`/linux-bin
ln -s $TOP_FOLDER/linux-socfpga/arch/arm/boot/zImage $LINUX_BIN
ln -s $TOP_FOLDER/linux-socfpga/arch/arm/boot/Image $LINUX_BIN
ln -s $TOP_FOLDER/linux-socfpga/arch/arm/boot/dts/intel/socfpga/socfpga_arria10_socdk_sdmmc.dtb $LINUX_BIN
ln -s $TOP_FOLDER/linux-socfpga/arch/arm/boot/dts/intel/socfpga/socfpga_arria10_socdk_qspi.dtb $LINUX_BIN
ln -s $TOP_FOLDER/linux-socfpga/arch/arm/boot/dts/intel/socfpga/socfpga_arria10_socdk_nand.dtb $LINUX_BIN
ln -s $TOP_FOLDER/linux-socfpga/modules_install/lib/modules $LINUX_BIN
ln -s $TOP_FOLDER/yocto/build/tmp/deploy/images/arria10/core-image-minimal-arria10.tar.gz $LINUX_BIN

The following items are copied in the $LINUX_BIN folder:

File	Description
zImage	compressed kernel image
Image	uncompressed kernel image
socfpga_arria10_socdk_sdmmc.dtb	arria 10 device tree blob for sdmmc boot
socfpga_arria10_socdk_qspi.dtb	arria 10 device tree blob for qspi boot
socfpga_arria10_socdk_nand.dtb	arria 10 device tree blob for nand boot
modules	kernel loadable modules
core-image-minimal-arria10.tar.gz	rootfs

Create SD Card Image

Create SD card folder and the folder for the FAT partition and gather the files:

cd $TOP_FOLDER
sudo rm -rf sd_card && mkdir sd_card && cd sd_card
wget https://releases.rocketboards.org/release/2020.11/gsrd/tools/make_sdimage_p3.py
sed -i 's/\"\-F 32\",//g' make_sdimage_p3.py
chmod +x make_sdimage_p3.py
mkdir fatfs &&  cd fatfs
cp $TOP_FOLDER/linux-socfpga/arch/arm/boot/zImage .
cp $TOP_FOLDER/linux-socfpga/arch/arm/boot/dts/intel/socfpga/socfpga_arria10_socdk_sdmmc.dtb .
cp $TOP_FOLDER/u-boot-socfpga/fit_spl_fpga.itb .
cp $TOP_FOLDER/u-boot-socfpga/u-boot.img .
mkdir extlinux
echo "LABEL Arria10 SOCDK SDMMC" > extlinux/extlinux.conf
echo "    KERNEL ../zImage" >> extlinux/extlinux.conf
echo "    FDT ../socfpga_arria10_socdk_sdmmc.dtb" >> extlinux/extlinux.conf
echo "    APPEND root=/dev/mmcblk0p2 rw rootwait earlyprintk console=ttyS0,115200n8" >> extlinux/extlinux.conf

Create the folder for the rootfs partition:

cd $TOP_FOLDER/sd_card
mkdir rootfs && cd rootfs
sudo tar xf $TOP_FOLDER/yocto/build/tmp/deploy/images/arria10/core-image-minimal-arria10.tar.gz
sudo rm -rf lib/modules/*

Bring over the SPL binary:

cd $TOP_FOLDER/sd_card
cp $TOP_FOLDER/u-boot-socfpga/spl/u-boot-splx4.sfp .

Create the SD card image:

cd $TOP_FOLDER/sd_card
sudo python3 ./make_sdimage_p3.py -f \
-P u-boot-splx4.sfp,num=3,format=raw,size=10M,type=A2  \
-P sdfs/*,num=1,format=fat32,size=32M \
-P rootfs/*,num=2,format=ext3,size=32M \
-s 80M \
-n sdcard_a10.img

The following file is created:

$TOP_FOLDER/sd_card/sdcard_a10.img

Write SD Card

Write the SD card image sd_card/sdcard_a10.img to the micro SD card using the included USB writer:

On Linux, use the dd utility as shown next:

    # Determine the device asociated with the SD card on the host computer.
    cat /proc/partitions
    # This will return for example /dev/sdx
    # Use dd to write the image in the corresponding device
    sudo dd if=sdcard.img of=/dev/sdx bs=1M
    # Flush the changes to the SD card
    sync

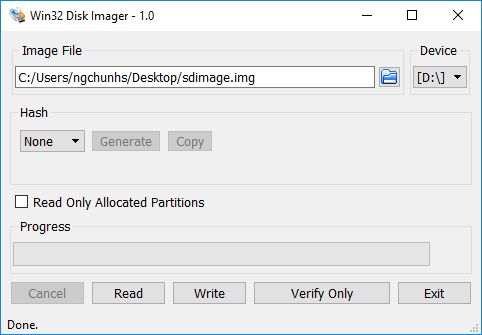

On Windows, use the Win32DiskImager program, available at https://sourceforge.net/projects/win32diskimager. Write the image as shown in the next figure:

Boot Linux

1. Power cycle the board

2. Wait for Linux to boot, use root as user name, and no password wil be requested.

Boot from QSPI¶

This section demonstrates how to build Linux system from separate components, which boots from QSPI.

NOTE: This section assumes that the Boot from SD Card section has been already built and the environment setup in that section is still available.

1. Create top folder:

sudo rm -rf a10_example.qspi
mkdir $TOP_FOLDER/a10_example.qspi
cd $TOP_FOLDER/a10_example.qspi

2. Build GHRD for QSPI:

rm -rf arria10-ed-gsrd
git clone -b QPDS25.1.1_REL_GSRD_PR https://github.com/altera-fpga/arria10-ed-gsrd.git
cd arria10-ed-gsrd
make a10-soc-devkit-qspi-baseline-all
cd ..

The following files are created:

$TOP_FOLDER/arria10-ed-gsrd/hps_isw_handoff/hps.xml
$TOP_FOLDER/arria10-ed-gsrd/output_files/ghrd_10as066n2.sof

3. Build U-Boot for QSPI:

rm -rf u-boot-socfpga
git clone -b QPDS25.1.1_REL_GSRD_PR https://github.com/altera-fpga/u-boot-socfpga
cd u-boot-socfpga

Convert hps.xml handoff file to include file to be used by the device tree:

./arch/arm/mach-socfpga/qts-filter-a10.sh \
$TOP_FOLDER/a10_example.qspi/arria10-ed-gsrd/a10_soc_devkit_ghrd_pro/hps_isw_handoff/hps.xml \
arch/arm/dts/socfpga_arria10_socdk_qspi_handoff.h

Configure and build U-Boot:

make socfpga_arria10_qspi_defconfig
make -j 48

The following files are created:

File	Description
$TOP_FOLDER/a10_example.qspi/u-boot-socfpga/spl/u-boot-splx4.sfp	Bootable image, with four SPL binaries, in the format required by BootROM
$TOP_FOLDER/a10_example.qspi/u-boot-socfpga/u-boot.img	U-Boot image

Create the FIT image with the FPGA programming files, used by SPL to configure FPGA:

cd $TOP_FOLDER/a10_example.qspi/u-boot-socfpga/
cp $TOP_FOLDER/a10_example.qspi/arria10-ed-gsrd/a10_soc_devkit_ghrd_pro/output_files/ghrd_10as066n2.core.rbf .
cp $TOP_FOLDER/a10_example.qspi/arria10-ed-gsrd/a10_soc_devkit_ghrd_pro/output_files/ghrd_10as066n2.periph.rbf .
tools/mkimage -E -f board/altera/arria10-socdk/fit_spl_fpga.its fit_spl_fpga.itb

The following file is created:

$TOP_FOLDER/a10_example.qspi/u-boot-socfpga/fit_spl_fpga.itb

Create FIT image for the U-Boot:

cd $TOP_FOLDER/a10_example.qspi/u-boot-socfpga/
tools/mkimage -E -f board/altera/arria10-socdk/fit_uboot.its  fit_uboot.itb

4. Create FIT image for the Linux kernel and device tree:

cd $TOP_FOLDER/a10_example.qspi/u-boot-socfpga/
cp $TOP_FOLDER/linux-socfpga/arch/arm/boot/Image .
cp $TOP_FOLDER/linux-socfpga/arch/arm/boot/dts/intel/socfpga/socfpga_arria10_socdk_qspi.dtb .
tools/mkimage -f  board/altera/arria10-socdk/fit_kernel_qspi.its kernel.itb

The following file is created:

$TOP_FOLDER/a10_example.qspi/u-boot-socfpga/kernel.itb

Create qspi_bin folder and bring all the files:

cd $TOP_FOLDER/a10_example.qspi/
rm -rf qspi_bin && mkdir qspi_bin && cd qspi_bin
cp $TOP_FOLDER/a10_example.qspi/u-boot-socfpga/spl/u-boot-splx4.sfp .
cp $TOP_FOLDER/a10_example.qspi/u-boot-socfpga/fit_uboot.itb .
cp $TOP_FOLDER/a10_example.qspi/u-boot-socfpga/fit_spl_fpga.itb .
cp $TOP_FOLDER/a10_example.qspi/u-boot-socfpga/kernel.itb .

5. Prepare JFFS2 rootfs image for booting Linux from QSPI:

cd $TOP_FOLDER/a10_example.qspi/qspi_bin/
mkdir core-image-minimal-arria10-rootfs
cd core-image-minimal-arria10-rootfs
sudo tar xf $TOP_FOLDER/yocto/build/tmp/deploy/images/arria10/core-image-minimal-arria10.tar.gz
sudo rm -rf lib/modules/*
cd ..
sudo mkfs.jffs2 -r core-image-minimal-arria10-rootfs -s 256 -e 64KiB --squash -o core-image-minimal-arria10-rootfs.jffs2
sudo chown $USER:$USER core-image-minimal-arria10-rootfs.jffs2
sudo rm -rf core-image-minimal-arria10-rootfs

At this point the following binaries are available in the $TOP_FOLDER/qspi_bin:

File	Description
$TOP_FOLDER/a10_example.qspi/qspi_bin/u-boot-splx4.sfp	Four SPL binaries, with BootROM header
$TOP_FOLDER/a10_example.qspi/qspi_bin/fit_uboot.itb	U-Boot image
$TOP_FOLDER/a10_example.qspi/qspi_bin/fit_spl_fpga.itb	FPGA configuration files
$TOP_FOLDER/a10_example.qspi/qspi_bin/kernel.itb	Linux kerned and device tree
$TOP_FOLDER/a10_example.qspi/qspi_bin/core-image-minimal-arria10-rootfs.jffs2	Linux rootfs

Write QSPI Flash

Program QSPI flash with all the binaries:

cd $TOP_FOLDER/a10_example.qspi/qspi_bin/
quartus_hps -c 1 -o e
quartus_hps -c 1 -o pv -a 0x0000000 u-boot-splx4.sfp
quartus_hps -c 1 -o pv -a 0x0100000 fit_uboot.itb
quartus_hps -c 1 -o pv -a 0x0300000 fit_spl_fpga.itb
quartus_hps -c 1 -o pv -a 0x1200000 kernel.itb
quartus_hps -c 1 -o pv -a 0x2720000 core-image-minimal-arria10-rootfs.jffs2

Write QSPI Flash via TFTP

Note that quartus_hps is slow, and a better alternative is to load U-Boot through debugger, download the files through TFTP and write them with U-Boot

1. Erase the QSPI flash using quartus_hps, as that is faster than U-Boot:

quartus_hps -c 1 -o E

2. Copy the binaries to the TFTP folder on your host machine. Run U-Boot from the debugger as shown in Arria 10 SoC Run U-Boot from Debugger

3. Connnect your U-Boot to the network, and specify the IP address of you host machine:

setenv autoload no
dhcp
setenv serverip <your_server_ip>

4. In U-Boot, download binaries over TFTP, and write the to QSPI:

sf probe
Erase QSPI if not done with quartus_hps::sf erase 0 8000000
tftp ${loadaddr} u-boot-splx4.sfp;sf write ${loadaddr} 0x0000000  ${filesize}
tftp ${loadaddr} fit_uboot.itb; sf write ${loadaddr} 0x0100000 ${filesize}
tftp ${loadaddr} fit_spl_fpga.itb; sf write ${loadaddr} 0x0300000 ${filesize}
tftp ${loadaddr} kernel.itb; sf write ${loadaddr} 0x1200000 ${filesize}
tftp ${loadaddr} core-image-minimal-arria10-rootfs.jffs2 ;sf write ${loadaddr} 0x2720000 ${filesize}

Boot Linux

1. Power cycle the board

2. Wait for Linux to boot, use root as user name, and no password wil be requested.

Boot from NAND¶

The instructions in this section assume the standard 1Gb NAND part is used (part number: MT29F1G08ABBEAH4:E, marking: NW360). Newer dev kits may be using a 8Gb part (part number: MT29F8G08ABBCAH4-IT:C, marking: NQ299).

The following changes will be needed if the newer 8Gb part number is used:

Make sure that all items in flash are aligned to the new erase block size (256KB)
Make sure the JFFS2 image uses the new parameters (256KB block erase size, 2048 page size)
Increase the size of the rootfs partition, to use the rest of the flash

1. Create a top folder:

sudo rm -rf a10_example.nand
mkdir a10_example.nand
cd a10_example.nand

2. Build the GHRD for NAND boot:

rm -rf arria10-ed-gsrd
git clone -b QPDS25.1.1_REL_GSRD_PR https://github.com/altera-fpga/arria10-ed-gsrd.git
cd arria10-ed-gsrd
make a10-soc-devkit-nand-baseline-all

3. Build U-Boot for NAND:

cd $TOP_FOLDER/a10_example.nand
rm -rf u-boot-socfpga
git clone -b QPDS25.1.1_REL_GSRD_PR https://github.com/altera-fpga/u-boot-socfpga
cd u-boot-socfpga

Convert hps.xml handoff file to include file to be used by the device tree:

./arch/arm/mach-socfpga/qts-filter-a10.sh \
$TOP_FOLDER/a10_example.nand/arria10-ed-gsrd/a10_soc_devkit_ghrd_pro/hps_isw_handoff/hps.xml \
arch/arm/dts/socfpga_arria10_socdk_nand_handoff.h

Configure and build U-Boot:

make socfpga_arria10_nand_defconfig
make -j 48

Create the FIT image with the FPGA programming files, used by SPL to configure FPGA:

cd $TOP_FOLDER/a10_example.nand/u-boot-socfpga
cp $TOP_FOLDER/a10_example.nand/arria10-ed-gsrd/a10_soc_devkit_ghrd_pro/output_files/ghrd_10as066n2.core.rbf .
cp -s $TOP_FOLDER/a10_example.nand/arria10-ed-gsrd/a10_soc_devkit_ghrd_pro/output_files/ghrd_10as066n2.periph.rbf .
tools/mkimage -E -f board/altera/arria10-socdk/fit_spl_fpga.its fit_spl_fpga.itb

The following file is created:

$TOP_FOLDER/a10_example.nand/u-boot-socfpga/fit_spl_fpga.itb

Create FIT image for the U-Boot:

cd $TOP_FOLDER/a10_example.nand/u-boot-socfpga
tools/mkimage -E -f board/altera/arria10-socdk/fit_uboot.its  fit_uboot.itb

The following file is created:

$TOP_FOLDER/a10_example.nand/u-boot-socfpga/fit_uboot.itb

Create FIT image for the Linux kernel and device tree:

cd $TOP_FOLDER/a10_example.nand/u-boot-socfpga
cp $TOP_FOLDER/linux-socfpga/arch/arm/boot/Image .
cp $TOP_FOLDER/linux-socfpga/arch/arm/boot/dts/intel/socfpga/socfpga_arria10_socdk_nand.dtb .
tools/mkimage -f  board/altera/arria10-socdk/fit_kernel_nand.its kernel.itb

The following file is created:

$TOP_FOLDER/a10_example.nand/u-boot-socfpga/fit_kernel.itb

Create nand_bin folder and bring all the files:

cd $TOP_FOLDER/a10_example.nand/
rm -rf nand_bin && mkdir nand_bin && cd nand_bin
cp $TOP_FOLDER/a10_example.nand/u-boot-socfpga/spl/u-boot-splx4.sfp .
cp $TOP_FOLDER/a10_example.nand/u-boot-socfpga/fit_uboot.itb .
cp $TOP_FOLDER/a10_example.nand/u-boot-socfpga/fit_spl_fpga.itb .
cp $TOP_FOLDER/a10_example.nand/u-boot-socfpga/kernel.itb .

Prepare JFFS2 rootfs image for booting Linux from NAND:

cd $TOP_FOLDER/a10_example.nand/nand_bin
sudo rm -rf rootfs
mkdir rootfs
cd rootfs
sudo tar xf $TOP_FOLDER/yocto/build/tmp/deploy/images/arria10/core-image-minimal-arria10.tar.gz
sudo rm -rf lib/modules
cd ..
mkfs.jffs2 -r rootfs -n -p --faketime --output=rootfs.jffs2 --squash -s 2048 -e 128KiB
rm -rf rootfs

At this point the following binaries are available in the $TOP_FOLDER/nand_bin:

File	Description
u-boot-splx4.sfp	Four SPL binaries, with BootROM header
fit_uboot.itb	U-Boot image
fit_spl_fpga.itb	FPGA configuration files
kernel.itb	Linux kerned and device tree
rootfs.jffs2	Linux rootfs

Write NAND Flash

NAND Flash Layout:

Address	Size	File	Description
0x0000000	0x00100000	u-boot-splx4.sfp	Four SPL binaries, with BootROM header
0x0100000	0x00100000	fit_uboot.itb	U-Boot image
0x0200000	0x00100000	n/a	U-Boot environment
0x0300000	0x00F00000	fit_spl_fpga.itb	FPGA configuration files
0x1200000	0x00E00000	kernel.itb	Linux kerned and device tree
0x0200000	0x06000000	rootfs.jffs2	Linux rootfs

Program NAND flash with all the binaries, by doing the following:

Copy the binaries to the TFTP folder on your host machine
Run U-Boot from the debugger as shown in Arria 10 SoC - Run U-Boot from Debugger
Connnect your U-Boot to the network, and specify the IP address of you host machine:

setenv autoload no
dhcp
setenv serverip <your_server_ip>

In U-Boot, download binaries over TFTP, and write the to NAND:

nand erase clean 0x02000000 0x06000000; tftp ${loadaddr} rootfs.jffs2; nand write.trimffs ${loadaddr} 0x02000000 ${filesize}
nand erase 0x01200000 0x00E00000; tftp ${loadaddr} kernel.itb; nand write ${loadaddr} 0x01200000 ${filesize}
nand erase 0x00300000 0x00F00000; tftp ${loadaddr} fit_spl_fpga.itb; nand write ${loadaddr} 0x00300000 ${filesize}
nand erase 0x00100000 0x00100000; tftp ${loadaddr} fit_uboot.itb; nand write ${loadaddr} 0x00100000 ${filesize}
nand erase 0x00000000 0x00100000; tftp ${loadaddr} u-boot-splx4.sfp; nand write ${loadaddr} 0x00000000 ${filesize}

Boot Linux

1. Power cycle the board

2. Wait for Linux to boot, use root as user name, and no password wil be requested.

Last update: October 6, 2025
Created: October 6, 2025
