USB 3.1 Driver for Hard Processor System

Last updated: October 02, 2025

Upstream Status: Upstreamed

Devices supported: Agilex3, Agilex 5

Introduction

The HPS provides a single instance of a USB 3.1 Gen 1 controller that supports both device and host functions for high-speed applications. The general use cases of USB 3.1 are for the HPS system to support all USB devices such as:

  • Portable electronic devices
  • High-bandwidth applications like audio and video.
  • Debug trace applications

For More information please refer to the following link:

Agilex 5 Hard Processor System Technical Reference Manual

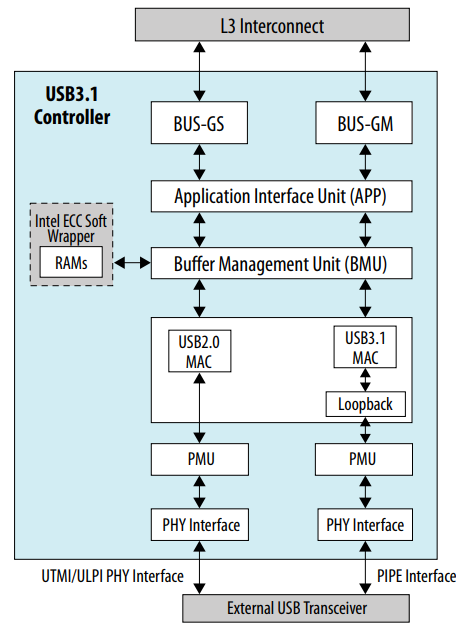

usb3_1_diagram

USB 3.1 Glue Driver

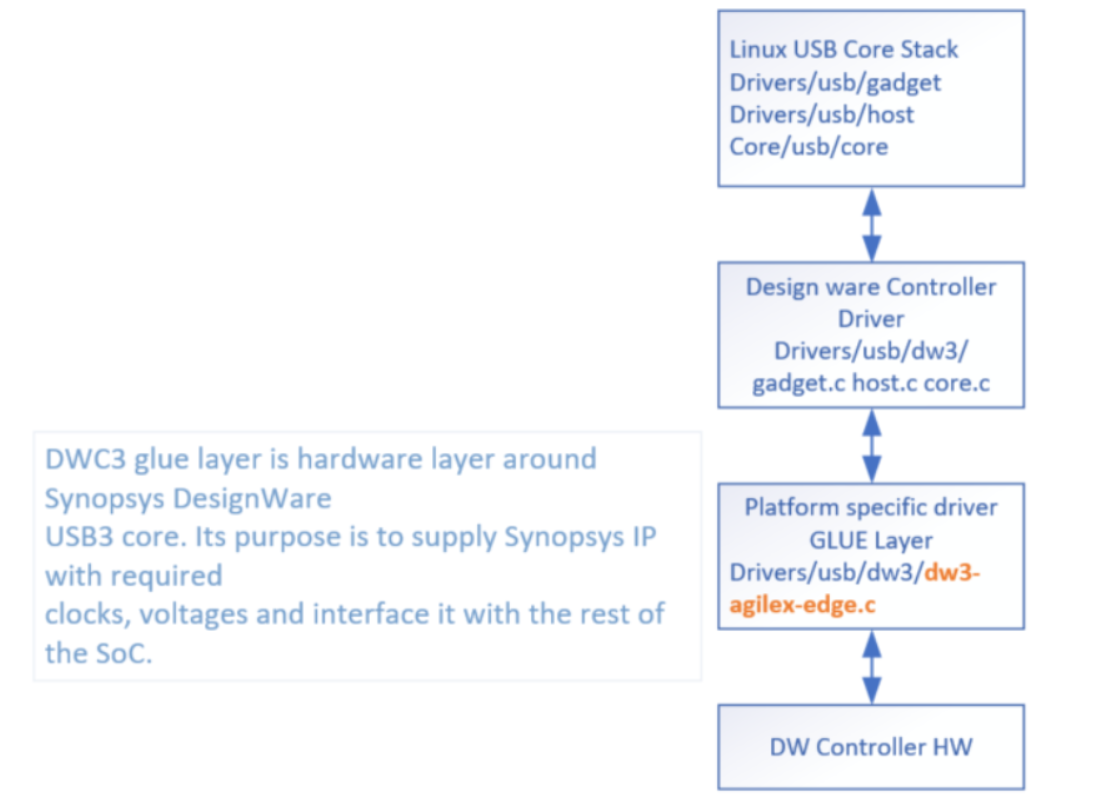

drivers/usb/dwc3/dwc3-of-simple.c is a USB glue driver for the dw3-agilex-edge.c component depicted in the diagram below. This glue driver is used to control dynamic mode switching.

usb3_1_driver

Driver Sources

The source code for this driver can be found at:

https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/tree/drivers/usb/dwc3

Driver Capabilities

  • It provides a reference to the Clock which is required by the rest of the interfaces.

Kernel Configurations

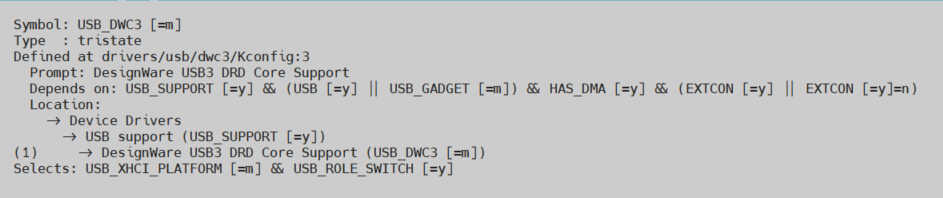

CONFIG_USB_DWC3

usb_3_config_path

Note: CONFIG_USB_DWC3_HOST or CONFIG_USB_DWC3_GADGET should be enabled only if the user wants to explicitly turn on Host or Device mode. If CONFIG_USB_DWC3_DUAL_ROLE is enabled, both Host mode and Device mode drivers will be built.

Device Tree

Example Device tree location to configure the usb3_1:

1. The default Device Tree configures the USB3_1 in Host Mode: (dr_mode = "host";)

https://github.com/altera-opensource/linux-socfpga/blob/socfpga-6.1.55-lts/arch/arm64/boot/dts/intel/socfpga_agilex5.dtsi

        usb31: usb1@11000000 {
            compatible = "intel,agilex5-dwc3";
            reg = <0x11000000 0x100000>;
            ranges;
            #address-cells = <1>;
            #size-cells = <1>;
            clocks = <&clkmgr AGILEX5_USB31_SUSPEND_CLK>,
                 <&clkmgr AGILEX5_USB31_BUS_CLK_EARLY>;
            resets = <&rst USB1_RESET>, <&rst USB1_OCP_RESET>;
            reset-names = "dwc3", "dwc3-ecc";
            status = "disabled";

            usb@11000000{
                compatible = "snps,dwc3";
                reg = <0x11000000 0x100000>;
                interrupts = <GIC_SPI 94 IRQ_TYPE_LEVEL_HIGH>;
                phys = <&usbphy0>, <&usbphy0>;
                phy-names = "usb2-phy", "usb3-phy";
                dr_mode = "host";
                maximum-speed = "super-speed-plus";
                snps,dis_u2_sysphy-quirk;
                snps,dma_set_40_bit_mask_quirk;
            };
        };

2. To enable the USB3_1 in Device Mode, the "dr_mode" must be changed to "peripheral" in the Device Tree File:

        usb31: usb1@11000000 {
            compatible = "intel,agilex5-dwc3";
            reg = <0x11000000 0x100000>;
            ranges;
            #address-cells = <1>;
            #size-cells = <1>;
            clocks = <&clkmgr AGILEX5_USB31_SUSPEND_CLK>,
                 <&clkmgr AGILEX5_USB31_BUS_CLK_EARLY>;
            resets = <&rst USB1_RESET>, <&rst USB1_OCP_RESET>;
            reset-names = "dwc3", "dwc3-ecc";
            status = "disabled";

            usb@11000000{
                compatible = "snps,dwc3";
                reg = <0x11000000 0x100000>;
                interrupts = <GIC_SPI 94 IRQ_TYPE_LEVEL_HIGH>;
                phys = <&usbphy0>, <&usbphy0>;
                phy-names = "usb2-phy", "usb3-phy";
                dr_mode = "peripheral";
                maximum-speed = "super-speed-plus";
                snps,dis_u2_sysphy-quirk;
                snps,dma_set_40_bit_mask_quirk;
            };
        };

3. To enable the USB3_1 in Dual-Role Device (DRD) Mode.

a. The "dr_mode" must be changed to "otg" in the Device Tree File

        usb31: usb1@11000000 {
            compatible = "intel,agilex5-dwc3";
            reg = <0x11000000 0x100000>;
            ranges;
            #address-cells = <1>;
            #size-cells = <1>;
            clocks = <&clkmgr AGILEX5_USB31_SUSPEND_CLK>,
                 <&clkmgr AGILEX5_USB31_BUS_CLK_EARLY>;
            resets = <&rst USB1_RESET>, <&rst USB1_OCP_RESET>;
            reset-names = "dwc3", "dwc3-ecc";
            status = "disabled";

            usb@11000000{
                compatible = "snps,dwc3";
                reg = <0x11000000 0x100000>;
                interrupts = <GIC_SPI 94 IRQ_TYPE_LEVEL_HIGH>;
                phys = <&usbphy0>, <&usbphy0>;
                phy-names = "usb2-phy", "usb3-phy";
                dr_mode = "otg";
                maximum-speed = "super-speed-plus";
                snps,dis_u2_sysphy-quirk;
                snps,dma_set_40_bit_mask_quirk;
            };
        };

b. Two extra nodes are to be added to the Device Tree File:

(User may add to gsrd-socfpga//meta-intel-fpga-refdes/recipes-bsp/device-tree/files/socfpga_agilex5_ghrd.dtsi)

        usb_pio: gpio@20010090 {
                compatible = "altr,pio-1.0";
                reg = <0x20010090 0x10>;
                interrupts = <GIC_SPI 20 IRQ_TYPE_EDGE_RISING>;
                altr,gpio-bank-width = <4>;
                altr,interrupt-type = <3>;
                #gpio-cells = <2>;
                gpio-controller;
        };

        extcon_usb: extcon-usb {
                compatible = "linux,extcon-usb-gpio";
                id-gpio = <&usb_pio 0 GPIO_ACTIVE_HIGH>;
                vbus-gpio = <&usb_pio 1 GPIO_ACTIVE_HIGH>;
        };

Important Note: For the full instructions to enable USB3.1 in Device mode and Dual-Role Device mode, please refer to the Example Design tutorial https://altera-fpga.github.io/latest/embedded-designs/agilex-5/e-series/premium/usb3p1/ug-usb3p1-dev-drd-modes/

Test Procedure

The procedure to test USB3.1 in Host mode, Device mode and Dual-Role Device mode are included in the Example Design tutorial https://altera-fpga.github.io/latest/embedded-designs/agilex-5/e-series/premium/usb3p1/ug-usb3p1-dev-drd-modes/

Known Issues

None Known
