General Purpose Timer Driver for Hard Processor System

Upstream Status: Upstreamed

Devices supported: Agilex 5

Introduction

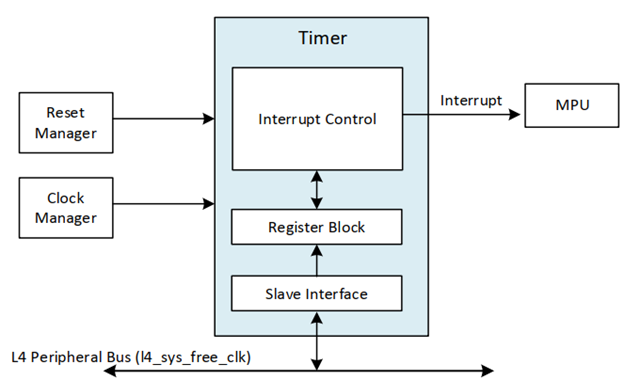

The hard processor system (HPS) provides four 32-bit general-purpose timers. The timer generates an interrupt when the 32-bit binary count-down timer reaches zero.

Each timer can operate in one-shot mode (alarm mode) or periodic mode.

For more information, please refer to the following link: Agilex 5 Hard Processor System Technical Reference Manual

Driver Sources

The source code for this driver can be found at https://github.com/zephyrproject-rtos/zephyr/blob/main/drivers/counter/counter_dw_timer.c.

Driver Capabilities

• The timer can be configured to run as a one-shot timer(alarm).
• The timer can be configured to run as a periodic timer.
• Run timer in free running mode.
• Stop Timer.

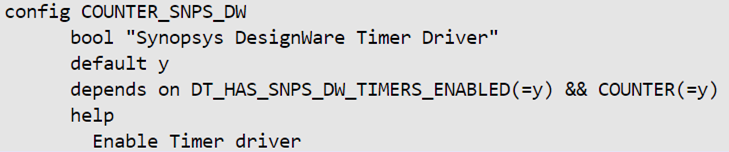

Kernel Configurations

CONFIG_COUNTER_SNPS_DW

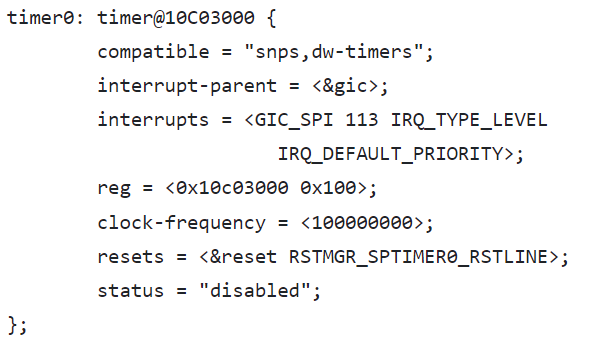

Device Tree

Device tree location to configure the timer:https://github.com/zephyrproject-rtos/zephyr/blob/main/dts/arm64/intel/intel_socfpga_agilex5.dtsi

Driver Sample

The source code for the driver sample can be found at: https://github.com/altera-opensource/zephyr-socfpga/blob/socfpga_rel_23.4/samples/drivers/counter/alarm.

The most relevant files are: 1. Project yml -> sample.yml:

 1 sample:
 2   name: Counter RTC Driver Sample
 3 tests:
 4   sample.drivers.counter.alarm:
 5     tags:
 6       - drivers
 7       - counter
 8     harness: console
 9     platform_allow:
10       - nucleo_f746zg
       .....
27       - stm32h573i_dk
28     integration_platforms:
29       - nucleo_f746zg
30     harness_config:
31       type: multi_line
32       ordered: true
33       regex:
34         - "Counter alarm sample"
35         - "Set alarm in 2 sec"
36         - "!!! Alarm !!!"
37         - "Now: [2|3]"
38     depends_on: counter

1. Config overlay -> prj.conf:

 1 CONFIG_PRINTK=y
 2 CONFIG_COUNTER=y

1. Device tree overlay -> intel_socfpga_agilex5_socdk.overlay:

  1 /*
  2  * Copyright (C) 2023 Intel Corporation
  3  *
  4  * SPDX-License-Identifier: Apache-2.0
  5  */
  6
  7 &timer0 {
  8         status = "okay";
  9 };

4. Source code: https://github.com/altera-opensource/zephyr-socfpga/blob/socfpga_rel_23.4/samples/drivers/counter/alarm/src/main.c.

Steps to build

1. Execute the following commands:

   rm -rf agilex5
   west build -b intel_socfpga_agilex5_socdk samples/drivers/counter/alarm  -d agilex5


Output

NOTICE:  mmc_clk = 200000000 Hz
NOTICE:  SDMMC boot
NOTICE:  BL2: v2.9.1(release):QPDS23.4_REL_GSRD_PR
NOTICE:  BL2: Built : 18:22:43, Jul  2 2024
NOTICE:  BL2: Booting BL31
NOTICE:  BL31: Boot Core = 0
NOTICE:  BL31: CPU ID = 81000000
NOTICE:  BL31: v2.9.1(release):QPDS23.4_REL_GSRD_PR
NOTICE:  BL31: Built : 18:22:43, Jul  2 2024
*** Booting Zephyr OS build 33d4a115fbed ***
Secondary CPU core 1 (MPID:0x100) is up
Secondary CPU core 2 (MPID:0x200) is up
Secondary CPU core 3 (MPID:0x300) is up
Counter alarm sample

Set alarm in 2 sec (200000000 ticks)
!!! Alarm !!!
Now: 1
Set alarm in 4 sec (400000000 ticks)

Known Issues

None known

---
