ROS Consolidated Robot Controller Example Design for Agilex™ 5 Devices

Overview

This example design demonstrates:

  • ROS 2 running on the Hard Processor System (HPS) in a Docker container.
  • Embedded real-time 6-Axis motor control in the FPGA fabric.
  • Robot control leveraging ROS 2, MoveIt2 and integration with Drive-on-Chip FPGA IP.


The Robot Operating System (ROS) is a set of software libraries and tools that help you build robot applications. In this example design we demonstrate a ROS 2 based, 6-axis robot controller running on the Agilex™ 5 FPGA E-Series Modular Development Kit. Motor drives and control is handled by a 6-axis Drive-on-Chip design integrated with ROS 2 through a ROS Control hardware interface. MoveIt2 is used to provide path planning capabilities along with collision avoidance and scene mapping. A basic MoveIt client is provided which employs a simulated UFACTORY Lite 6 robot arm.

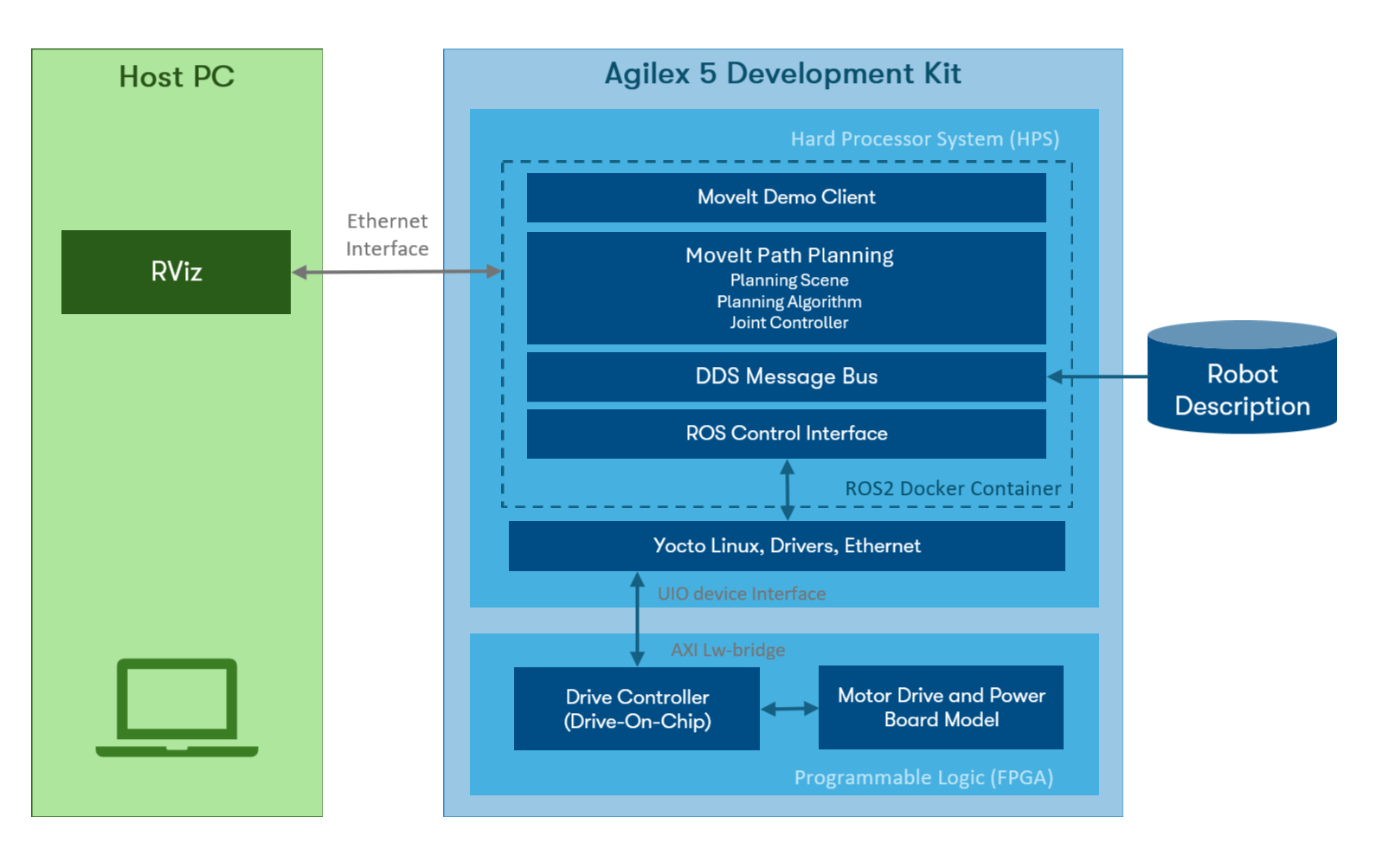

arch_diagram

Pre-requisites

Hardware Requirements

Note

A separate PC running Linux with display out is required to setup the Agilex™ 5 development kit and run the ROS Visualizer (RViz).

Software Requirements

  • Host PC
    • Linux OS
    • Serial terminal
    • Docker
    • Altera® Quartus® Prime Pro Edition Version 25.1 Programmer and Tools

Getting Started

There are 3 main components to this example design which are described below.

FPGA Drive-on-Chip Design

This example uses the 6-axis Drive-on-Chip design variant for FPGA based motor control. See HERE for more information on the design.

Hard Processor System (HPS) Linux Image

A custom Linux image is provided to support the Drive-on-Chip FPGA design which includes Docker and other dependencies for successfully deploying this example. The FPGA bitstream is included in the Linux image and flashed by the first-stage bootloader on boot. The Yocto layers and configuration files used to build the image can be found HERE.

ROS 2 Docker Image

A Docker build script is provided in the Altera ROS 2 repository in order to build a Docker image with the required software components to run this example. The Docker image is run on the HPS and also the host PC if visualizing the robot arm.

Prebuilt Binaries

Prebuilt binaries are provided to help get the example design running quickly. You can find links to the required binaries below.

Description Links
Linux Image wic.gz, wic.bmap
QSPI Image top.hps.jic

Setting Up your Development Board

  • Configure the board switches: The following provides the default configuration for all the switches in the board.

board-1

Development Board switch position


Main configurations used in this example design

JTAG: SOM SW4[2:1]=OFF:OFF
ASx4 (QSPI): SOM SW4[2:1]=ON:ON


  • Connect micro USB cable from bottom left of the carrier board to PC (J35). This will be used for JTAG communication (see figure below).
  • Connect micro USB cable from bottom right of the SOM board to PC (J2, HSP_UART). This will be used for HPS UART communication. Look at what ports are enumerated on your host computer, there should be a series of four. Use the 3rd one in the list as the HPS serial port (see figure below).
  • If ethernet capabilities or remote connection via ssh is required connect an ethernet cable to the ethernet port on the SOM board (J6, ETH 1G HPS) and make sure your device is in the same network as your intended host device. After Linux boots, check the IP address of the end2 ethernet interface using the ip addr command.

Agx-MDK-Conn

USB connections to the board


SD Card Image Flashing

  • Download SD card image (.wic or .wic.gz) from the prebuilt binary links above.
  • Write the .wic or .wic.gz SD card image to the micro SD card using one of the options below.
  • Turn off the board and insert the SD card in the micro SD card slot on the SOM board.

USBImager (Windows, Linux, Mac OS)

  • Open USBImager and click the ... button in the top right.
  • Select the image you downloaded earlier and click Open.
  • Next select the device associated with your SD card reader from the drop-down list.
  • Click Write to start flashing.

bmaptool (Linux)

Note

You will require a .wic.bmap file in addition to the .wic or .wic.gz in order to use bmaptool. If this is not available use USBImager.

On many distributions bmap-tools can be installed using your distros package manager (e.g. sudo apt install bmap-tools).

For more information see the Yocto documentation for bmaptool.

First of all determine the device logical name associated with the SD card on your host:

sudo lshw -class disk

Use bmaptool to copy the image to the SD card. Make sure the wic image file and bmap file are in the same directory.

sudo bmaptool copy ${IMAGE} ${DEVICE}

For example:

sudo bmaptool copy core-image-minimal-agilex5_mk_a5e065bb32aes1.wic.gz /dev/sda

Flash The QSPI

  • Download the .jic image from the prebuilt binary links above.
  • Power down the board.
  • Set MSEL dipswitch S4 on SOM to JTAG: OFF-OFF
  • Power up the board.
  • Program the QSPI with the following command.
    quartus_pgm -c 1 -m jtag -o "pvi;top.hps.jic"

  • (Optional) Use the Quartus® Programmer GUI

    • Launch the Quartus® Programmer and Configure the "Hardware Setup..." settings as follows:

    hw-setup-set


    • Click "Auto Detect", select the device A5EC065BB32AR0 and press "Change File.."

    programmer-agx5


    • Select the .jic file you downloaded earlier. The MT25QU02G device should now show. Select the "Program/Configure" box, and press "Start". Wait until completed (It could take several minutes).

    programmer-agx5-2


  • Power down the board. Set MSEL dip switch S4 on SOM to ASX4 (QSPI): ON-ON


Build Docker Image

The following steps will need to be run on both the Agilex™ 5 development kit HPS and the host PC if you wish to run the ROS Visualizer.

Note

An internet connection is required to run the following commands.

git clone https://github.com/altera-fpga/altera-ros2.git
cd altera-ros2
docker buildx build -f .docker/Dockerfile -t altera-ros2 .

The Docker image should now be available.

docker image ls

REPOSITORY                      TAG              IMAGE ID       CREATED         SIZE
altera-ros2                     latest           92816d4b0459   6 weeks ago     3.8GB

The resulting Docker image includes the Altera® ROS 2 packages and examples pre-installed and ready to use.

Run The Example MoveIt Client

We will now deploy an instance of the example MoveIt client in a container on the HPS using the image we built previously. The MoveIt client is written in C++ and simply generates random pose goals for a given robot description before attempting to plan and execute a trajectory using the relevant MoveGroup. The client makes use of the MoveGroupInterface class making it compatible with various robot arms. In this example we will be launching an instance to control a simulated UFACTORY Lite 6 robot arm.

ROS uses Python based launch files to bring up the necessary services and nodes for a given use-case. In this case we will be using the lite6_moveit_demo.launch.py launch file which intializes the required controllers, publishers and move groups along with our client application. The result is a fully simulated robot controller implementation with low-level drives handled by the FPGA through the Altera® Drive-on-Chip IP and high-level functionality provided by ROS and MoveIt running on the HPS.

Run the following command on the HPS to start a container passing through the Drive-on-Chip UIO devices used for motor control:

docker run -it --rm --network host --device /dev/uio0 --device /dev/uio1 --device /dev/uio2 altera-ros2
Next run the following command to launch the example:

ros2 launch moveit_demo_client lite6_moveit_demo.launch.py random:=true mode:=doc use_rviz:=false

Upon successful initialization you should see a stream of messages similar to that below indicating planning requests are being received by the MoveGroup and trajectories are being executed by the relevant controllers.

[move_group-3] [INFO]: Motion plan was computed successfully.
[moveit_demo_client-5] [INFO]: Planning request complete!
[moveit_demo_client-5] [INFO]: time taken to generate plan: 0.0128849 seconds
[moveit_demo_client-5] [INFO]: Execute request accepted
[move_group-3] [INFO]: Execution request received
[move_group-3] [INFO]: Starting trajectory execution ...
[move_group-3] [INFO]: sending trajectory to lite6_traj_controller
[ros2_control_node-4] [INFO]: Received new action goal
[ros2_control_node-4] [INFO]: Accepted new action goal
[move_group-3] [INFO]: lite6_traj_controller started execution
[move_group-3] [INFO]: Goal request accepted!

ROS Visualizer (RViz)

In order to visualize what is happening behind the scenes you can use a tool called RViz on your host PC.

For the purposes of this example we will be running RViz in a Docker container using the altera-ros2 image built earlier. For this we need our Docker container to have access to the display server on the host in order to load a graphical application. To make this easier it is recommended to use Rocker.

rocker --x11 --devices /dev/dri --network host altera-ros2 rviz2

Note

If you are using a Nvidia graphics card in your host you will need to follow these additional steps and include the --nvidia flag in the command above.

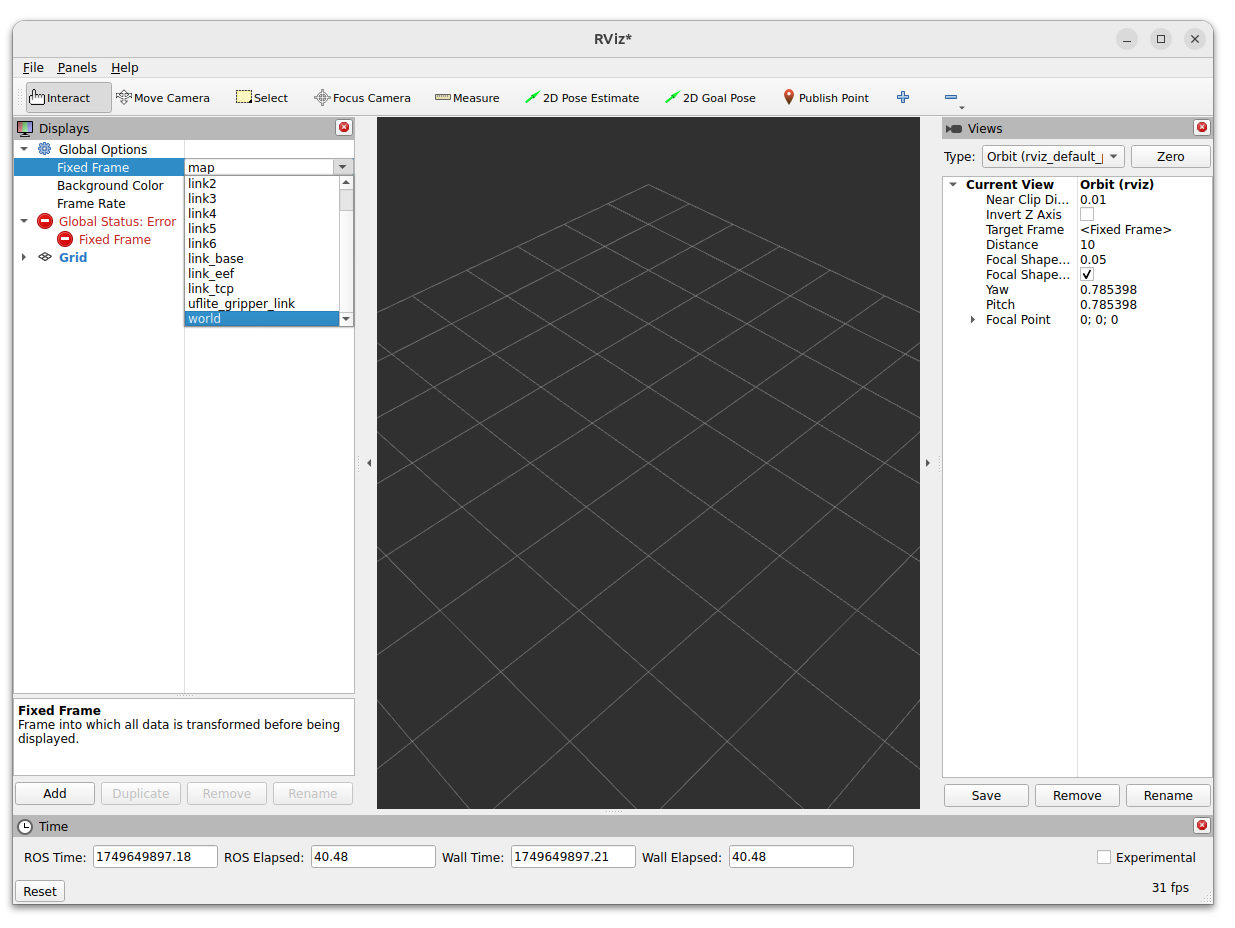

  • Once RViz has loaded go to the left-hand panel and find Fixed Frame under Global Options. Select world from the drop-down list as in the screenshot below.

rviz_fixed_frame

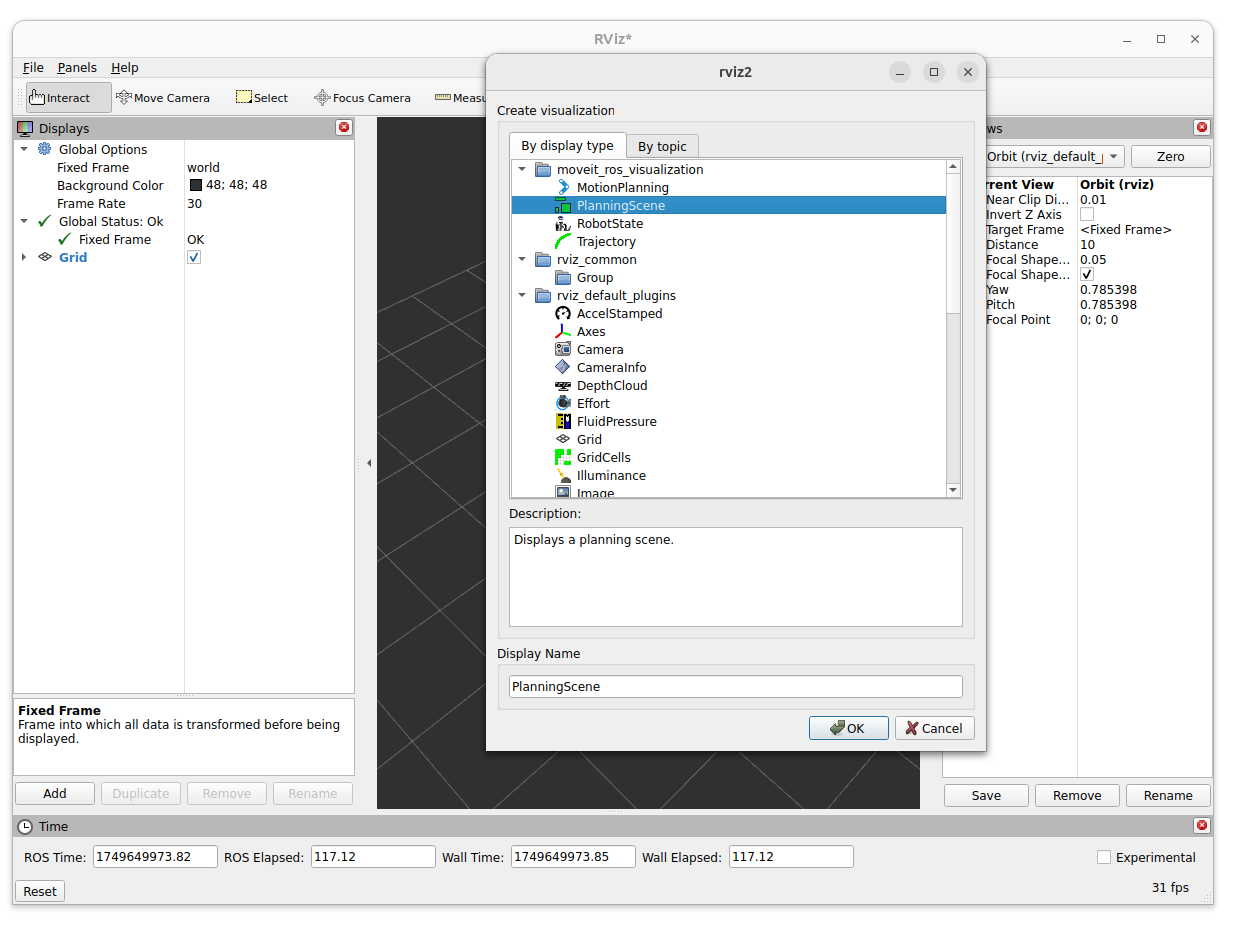

  • Next click the Add button at the bottom of the left-hand panel and select PlanningScene in the popup window before finally clicking OK.

rviz_fixed_frame

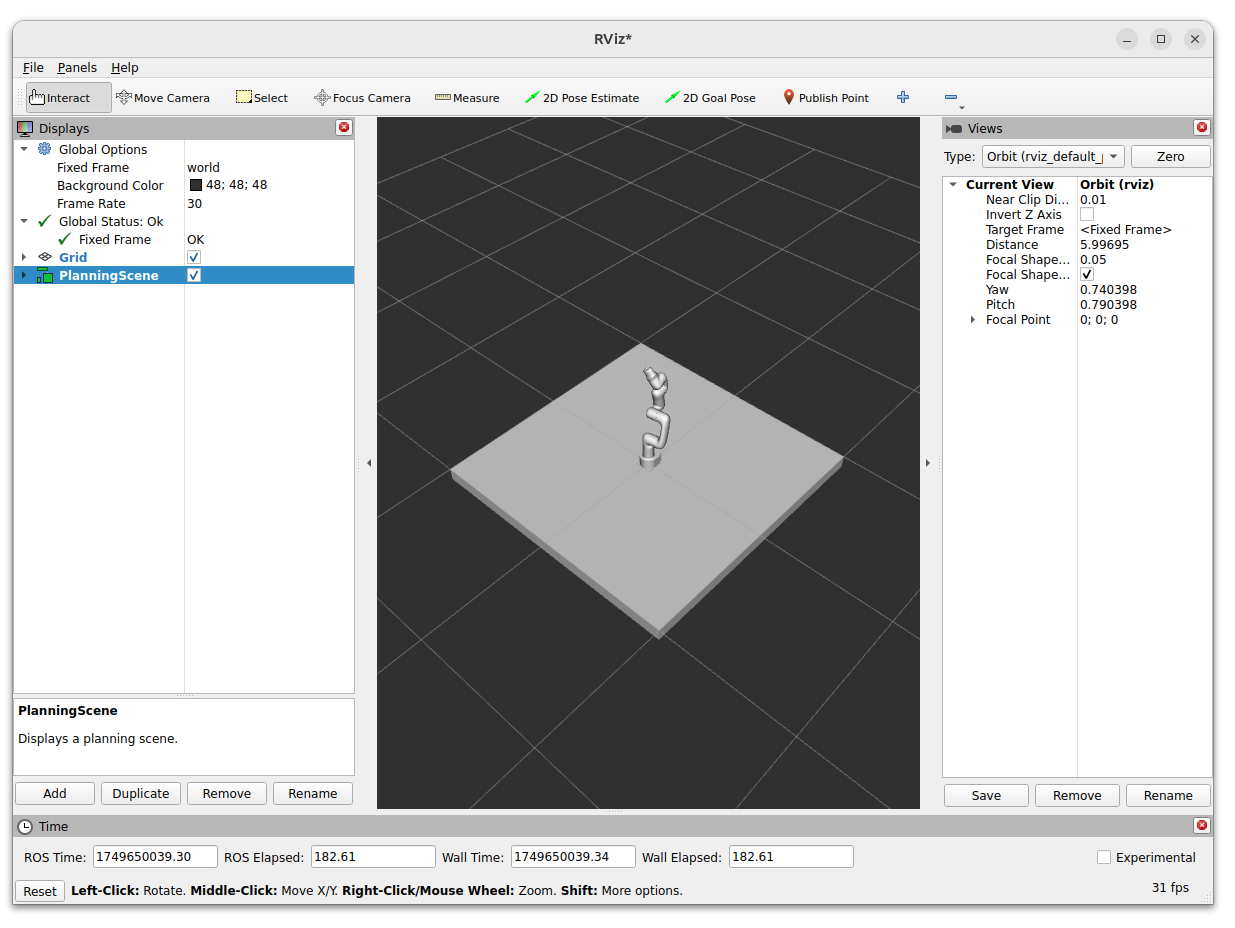

At this point you should see a live visualization of the robot arm moving from pose to pose. The planning scene includes a table with the robot arm on top.

rviz_fixed_frame
