Agilex™ 5 FPGA E-Series Modular Development Kit 1x10G Ethernet System Example Design¶

Introduction¶

This page presents Agilex™ 5 FPGA E-Series Modular Development Kit 1x10G Ethernet System Example Design showcasing Ethernet functionality for applications that handle traffic up to 10G Ethernet speed/bandwidth using Agilex™ 5 Device on Agilex™ 5 FPGA E-Series Modular Development Kit. This design was created using Quartus IPs from Agilex™ 5 Device, facilitating the data and control paths between the Linux software stack running on HPS and the Hard Ethernet MAC with GTS Transceiver on Agilex™ 5 devices. This example design assists customers in leveraging and incorporating Ethernet solutions into their designs aimed at high-speed (10G data rate) Ethernet applications. The system example design is targeted to the Agilex™ 5 FPGA E-Series Modular Development Kit for demonstration purposes.

Overview¶

The Agilex™ 5 FPGA E-Series Modular Development Kit 1x10G Ethernet System Example Design developed using Altera® Quartus® Prime Pro Edition version 25.1. The design targets the Agilex™ 5 FPGA E-Series Modular Development Kit and leverages the GTS Ethernet Hard IP and Hard Processing System (HPS). It runs on a Linux OS based on kernel version 6.12.19lts. The design features a configurable L2 Packet Switch service that parses incoming Ethernet packets and routes them either to internal User Logic port(Packet client) or to a set of priority queues designated for the HPS through DMA. A priority-based arbitration mechanism manages egress port access, granting it based on the packet's source.

This System example design demonstrates Ethernet functionality of the Altera® Agilex™ 5 FPGA supporting GTS transceivers. It provides a 1-Port, 10GbE design leveraging the GTS Ethernet IP

The primary components in the design are:

Hard Processor Subsystem (HPS).

Channelized Modular scatter-Gather Direct Memory Access (MSGDMA) Subsystem.

L2 Packet Switch module.

User Logic (Packet Client).

GTS Ethernet Hard IP.

Figure 1. System Example Design high-level architecture diagram.

Important features of the design include,

Single Ethernet port working at 10G speed.
Configurable L2 Packet Switch supporting multiple source streams to Ethernet port and packet rerouting from Ethernet port to multiple destinations like HPS or User Logic(Packet client).
Separate DMA channel per direction for HPS system memory accesses.
Performance achievability matching the lane rate (10G) using User Logic (Packet Client) through the L2 Packet Switch.

Glossary¶

Term	Description
HPS	Hard Processor System
mSGDMA	Modular Scatter-Gather Direct Memory Access
EHIP	Ethernet Hard IP
MDK	Modular Development Kit
FSM	Finite State Machine
TCAM	Ternary Content Addressable Memory
SOM	System-on-Module
AVMM	Avalon® Memory Mapped Interface
AVST	Avalon® Streaming Interface
AXI	Advanced eXtensible Interface
HSSI	High-Speed Serial Interface

Prerequisites¶

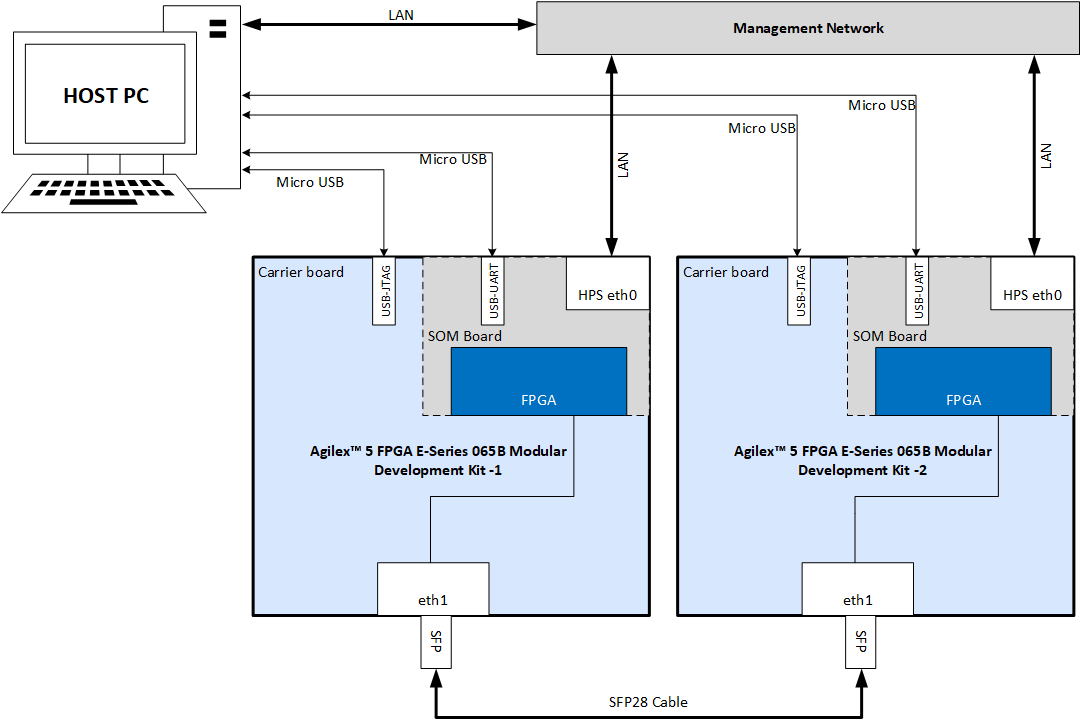

The following are required to fully exercise the Agilex™ 5 FPGA E-Series Modular Development Kit 1x10G Ethernet System Example Design:

2 Nos of Altera® Agilex™ 5 FPGA E-Series Modular Development Kit, ordering code MK-A5E065BB32AES1. Refer to board documentation for more information about the development kit.
- Power supply.
- 2 x Micro USB Cable.
- Ethernet Cable.
- Micro SD card and USB card writer.
SFP28 passive copper (DAC) cable with 3 Meter length. [Part Number: SFP-25G-PC03, Mfr: FS].
Host PC with
- 64 GB of RAM recommended. (Less memory works only for exercising the binaries).
- Linux OS installed. Ubuntu 22.04LTS recommended.
- Serial terminal (for example GtkTerm or Minicom on Linux and TeraTerm or PuTTY on Windows).
- Altera® Quartus® Prime Pro Edition Version 25.1.
- Local Ethernet network, with DHCP server Internet connection. For downloading GitHub source package and rebuilding the Design.

NOTE: For UVM Simulation, additional 3^rd Party tools and IPs are required as mentioned in Section Tools/IP Pre-requisites.

Release Contents¶

Binaries¶

Release notes and pre-built binaries can be found in the GitHub repository.

Directory Structure used in this example design:

|--- a5e065b-mod-devkit-exp-es
  |   |--- src
  |   |   |--- hw
  |   |   |--- sw

Clone the repository to get the source files as below.

git clone https://github.com/altera-fpga/agilex5-ed-ethernet.git
cd agilex5-ed-ethernet/
git checkout SED-1x10GE-a5e065b-mdk-Q25.1-Rel-1.1
cd a5e065b-mod-devkit-exp-es/
export TOP_FOLDER=`pwd`
mkdir bin

The Pre-built Binaries (Images.zip and sdcard Image sdimage.tar.gz) are available in assets. Please extract and copy all files to $TOP_FOLDER/bin folder to exercise hardware testing on Development kit.

Sources¶

Component	Location	Branch	Commit ID/Tag
GHRD	https://github.com/altera-fpga/agilex5-ed-ethernet/tree/rel/25.1/a5e065b-mod-devkit-exp-es/src/hw	rel/25.1	SED-1x10GE-a5e065b-mdk-Q25.1-Rel-1.1
Linux	https://github.com/altera-fpga/linux-socfpga	socfpga-6.12.19-lts-ethernet-sed	SED-1x10GE-a5e065b-mdk-Q25.1-Rel-1.1
Arm Trusted Firmware	https://github.com/altera-fpga/arm-trusted-firmware	socfpga_v2.11.0	QPDS24.3_REL_GSRD_PR
U-Boot	https://github.com/altera-fpga/u-boot-socfpga	socfpga_v2024.04	QPDS24.3_REL_GSRD_PR
Yocto Project: poky	https://git.yoctoproject.org/poky/	Scarthgap	d1c25a3ce446a23e453e40ac2ba8f22b0e7ccefd
Yocto Project: meta-intel-fpga	https://git.yoctoproject.org/meta-intel-fpga/	scarthgap	9714ae1ef8f22302bac60b7d2081bbdf3199ca70
Yocto Project: meta-intel-fpga-refdes	https://github.com/altera-fpga/meta-intel-fpga-refdes/	scarthgap	bffc5bc012f1653beb58878b54b44e74b0f27404
Yocto Project: meta-agilex5-sed	https://github.com/altera-fpga/agilex5-ed-ethernet/tree/rel/25.1/a5e065b-mod-devkit-exp-es/src/sw/yocto/meta-agilex5-sed	scarthgap	SED-1x10GE-a5e065b-mdk-Q25.1-Rel-1.1
GSRD Build Script: gsrd-socfpga	https://github.com/altera-fpga/agilex5-ed-ethernet/blob/rel/25.1/a5e065b-mod-devkit-exp-es/src/sw/yocto/build.sh	rel/25.1	SED-1x10GE-a5e065b-mdk-Q25.1-Rel-1.1

Release Notes¶

Refer to this link for Known Issues.

Agilex™ 5E-Series MDK 1x10G Ethernet Design Architecture¶

The Agilex™ 5 FPGA E-Series Modular Development Kit features 1x10G Ethernet system example design that incorporates a single 10G Ethernet port, targeting the GTS Ethernet Hard IP (EHIP) and GTS Transceiver, integrated Agilex™ 5 Hard Processor System (HPS) running Linux software stack.

Hardware Architecture¶

The system's main components include:

HPS Subsystem.
Channelized mSGDMA Subsystem.
Packet Switch Subsystem.
User Logic (Packet Client Generator/Checker).
Ethernet (HSSI) Subsystem.

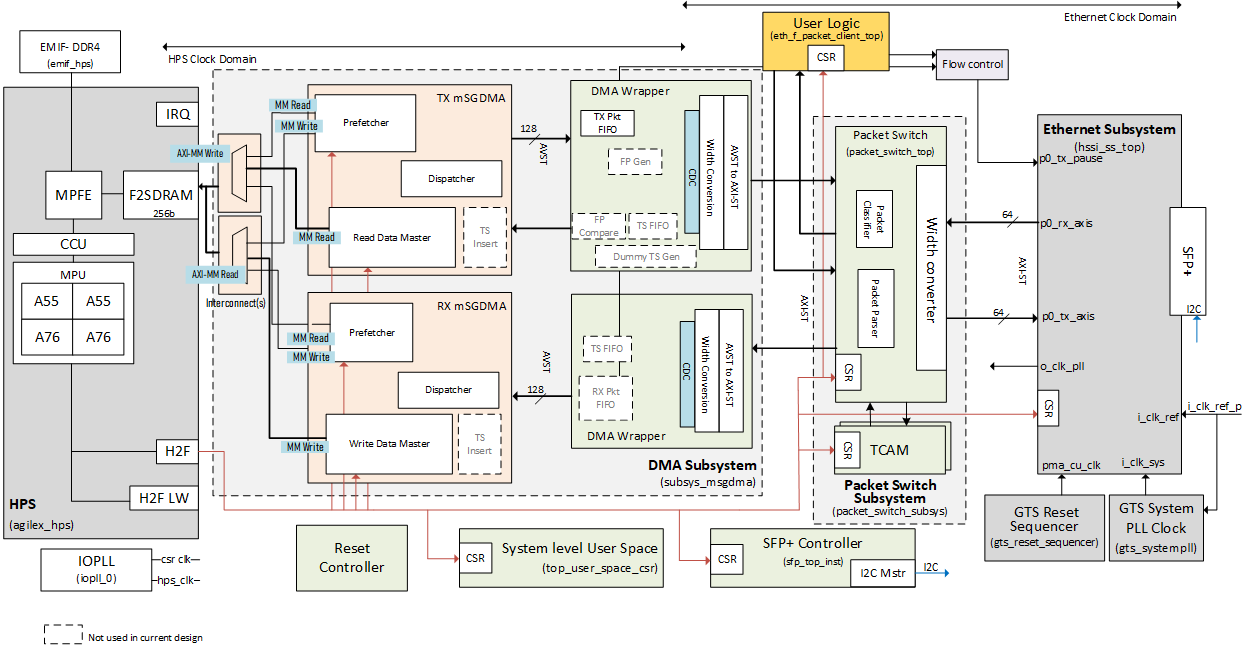

Figure 2. System Example Design high-level architecture diagram.

HPS Subsystem¶

The HPS Subsystem (agilex_hps) comprises the Agilex™ 5 Hard Processor System (HPS) and its supporting logic, functioning as the central hub that executes the Ethernet software stack on the Linux OS. It configures the full system on Power ON and additionally offers access to status and control registers for other system components used in the design. The HPS Subsystem uses Light Weight HPS to FPGA Manager (H2F) interface to communicate with FPGA fabric IP components.

Refer Hard Processor System Technical Reference Manual: Agilex™ 5 SoCs for more information.

DMA subsystem¶

The DMA Subsystem (subsys_msgdma) deploys mSGDMA engines that efficiently transfer data between the HPS Subsystem and the Ethernet (HSSI) Subsystem. It incorporates two DMA channels each per direction that handle TX and RX traffic. These channels optimize seamless Ethernet packet processing and ensure efficient data handling accurately. Additionally, users can configure individual DMA ports with either a single TX (transmit) or RX (receive) channel, which enables customized solutions for specific application requirements. Beyond facilitating data transfers, the DMA Subsystem executes protocol translation between its native Avalon® Streaming interfaces and the AXI-Stream* (AXI-ST) interfaces of the Ethernet Subsystem. This module also manages clock domain crossing between the clock domains of the Ethernet Subsystem and the DMA Subsystem (HPS Clock).

The mSGDMA subsystem is formed using different components available in Platform Designer IP catalog like: Prefetcher, Read/Write Data Master, Dispatcher etc. per each direction. Each direction's mSGDMA subsystem exposes 3 independent AVMM interfaces as shown in Figure 2.

The mSGDMA Subsystem's user data width is fixed at 128b to ease timing constraints and the clock frequency is fixed across all the Ethernet data rates that design can support now (10G) and in future (25G). The current design scope is limited to 10G Ethernet which requires a user interface of 64 bits running at ~161 MHz. The HPS and mSGDMA subsystem can run at half the frequency of Ethernet as the width gets double to match the data rate. We chose 100MHz as HPS and DMA subsystem clock frequency, considering the descriptor fetch overhead of DMA channels.

Packet Switch Subsystem¶

The Packet Switch Subsystem (packet_switch_subsys) is L2 Packet Switch that processes incoming Ethernet packets. It routes packets based on user-defined rules in TCAM, allowing configuration to prioritize and direct specific data types to designated ports. The two source streams which are HPS (Hard Processor System) and User logic(Packet Client Generator/checker) can send and receive traffic via the Ethernet(HSSI) Subsystem.

Since the HPS processes packets at approximately 1.3 Gbps maximum bandwidth, the software processing in HPS cannot support the maximum bandwidth of Ethernet IP data rates, which reach speed of 10G. The Packet Switch Subsystem operates as a channelizable component, and users only need to instantiate it N-times for an N-port design.

Packets from Ethernet SS port RX path: The system routes these packets either to HPS or to User logic (Packet Client) based on the Destination MAC address in L2 packets.
Packets from HPS: The system routes these packets to the Ethernet SS port TX path.
Packets from User logic: The system routes these packets to the Ethernet SS port TX path.

Users can use it as a reference and modify filtering schemes according to their needs. This solution proposes a filtering scheme based on Destination MAC address (DA) in received L2 packets, which the HPS configures into the packet filtering logic.

The Packet Switch Subsystem's functionality is divided into two components: the TX (Transmit) and RX (Receive) datapaths.

The TX datapath arbitrates between packet requests from DMA Port in the DMA Subsystem and User Logic. This arbitration is priority based and can be configured via software. Notably, the TX datapath arbitration does not evaluate the Ethernet packet type; instead, it employs a priority round-robin scheme to manage requests from different sources.

The RX datapath processes all packets arriving from the HSSI Subsystem. An internal parser extracts L2 header field information to generate a lookup key for the Content Addressable Memory (TCAM) IP. The TCAM returns routing instructions for the current packet.

By default, packets without a matching entry in the TCAM are dropped. For matched entries, the TCAM determines whether the packet should be routed to DMA Port within the DMA Subsystem or to a User Logic(Packet Client-Generator/Checker). The TCAM is fully programmable through software, allowing dynamic updates to routing rules.

It is important to note that the RX datapath does not implement priority-based arbitration. Instead, the priority for incoming traffic to the HPS (Hard Processor System) is defined in software, where users can assign priority levels to each source port.

NOTE: The word ptpbridge will be used interchangeably with L2 Packet Switch and vice versa in this page.

User Logic (Packet Client)¶

The User Logic (Packet Client) serves as a placeholder for custom user logic(eth_f_packet_client_top) designed to handle Ethernet traffic or other packets not destined for the HPS (Hard Processor System). In this system example design, the User Logic is equipped with generic Packet Generator, which is used to test and saturate the Ethernet port bandwidth. These Packet Generators are fully configurable through software. The User Logic (Packet Client) module generates client-side Ethernet traffic with the control on Inter frame gap, Number of packets and features like dynamic payload size increment between the minimum packet size and maximum packet size.

Supports the standard AXI-ST interface along with compatible additional Sideband TUSER signals.

Includes a traffic generator and checker or monitor.

Provides pause signals to Ethernet Subsystem for XON and XOFF generation.

Path between Ethernet and Packet client works in a single clock domain and with the same data bus width matching the Ethernet data rate. Connections between both the modules are more of 1:1 mapping. Packet clients are maintained in HW itself and software functions do not implement data plane termination and sourcing at/from a Host. Also, Ethernet use cases are not limited to NIC where the packets to terminate at TCP port. It could be a L2, L3 function or a switch.

Packet client contains internal FSMs that generate packet data based on Control from CSR interface. Applications running on Host VMs can customize the design’s data traffic by programming the packet client registers. Host applications may also need to pause/stop the packet transfers during SA retire. It produces AVST data streams which need to be converted to AXI-ST* using bridge adaptors. Below is an example sequence of CSR access needed to enable packet client. Please note that below sequence does not cover all the available CSR options.

Start Packet client Tx by setting CFG_PKT_CL_CTRL[0] to ‘1’ (offset 0x0, value 0x01).
Wait for Data traffic to complete & counters to update.
Set Status Snapshot capture bit by setting CFG_PKT_CL_CTRL[6] to ‘1’ (offset 0x0, value 0x41).
Read Status counters (offsets 0x20 to 0x4C) & verify.
Clear Status Snapshot capture bit by setting CFG_PKT_CL_CTRL[6] to ‘0’ (offset 0x0, value 0x1).
Set CSR Status Clear bit by setting CFG_PKT_CL_CTRL[7] to ‘1’ (offset 0x0, value 0x81).
Clear CSR Status Clear bit by setting CFG_PKT_CL_CTRL[7] to ‘0’ (offset 0x0, value 0x1).
Stop Packet client & clear all internal counters (offset 0x0, value 0x100).

Ethernet (HSSI) Subsystem¶

The Ethernet (HSSI) Subsystem(hssi_ss_top) consists of GTS Ethernet QHIP along with dependent IPs such as GTS System PLL Clock , GTS Reset Sequencer and the AXI Bridges for system level interfacing with Packet switch Subsystem which runs on AXI-ST* protocol. Each QHIP comes with a separate reconfiguration interface space and the remapping of the same to system level register map is handled within Ethernet subsystem to maintain modularity for number of ports enabled.

The Ethernet (HSSI) Subsystem needs to be connected to SFP28 PHY connector at board level. Ethernet Subsystem provides packet network access. It includes Ethernet layer 1 and layer 2 components including MAC, PCS, FEC, and PMA which interface to external Ethernet PHY.

The Ethernet Subsystem can be easily scaled up to N-port by regenerating it in IP GUI with instances of GTS reset sequencer and System PLL as clocks can spread into multiple neighboring Quads.

The Ethernet (HSSI) Subsystem is an implementation of the GTS Ethernet Hard IP. It is responsible for configuring and managing the system's Ethernet interface. In this design, the Ethernet Subsystem is configured to support 1X10GE port, enabling high-speed data transmission and network connectivity.

SFP28 PHY Controller¶

On the development kit, the system example design uses 1C Bank's XCVR Channel 3 as data path for the Ethernet port with external connectivity through SFP28 PHY. Control path of SFP28 PHY is controlled through I2C lane from FPGA fabric. The solution uses AXI-MM/AVMM to I2C Master to communicate with I2C slave in PHY from HPS along with additional CSR space for driving TX_DISABLE which should be 0 for data transfers. It also maintains additional CSR space for status on TX_FAULT (TX path), LOS (RX path) and MOD_DET.

SFP28 Controller (sfp_top_inst) follows SFF-8472 for management interface which supports two I2C address spaces 0xA0 and 0xA2.

Figure 3. SFP28 PHY Controller

FPGA Clocking Architecture¶

The component and signal identifiers used in this section follow the naming convention from The Agilex™ 5 FPGA E-Series Modular Development Kit 1x10G Ethernet system example design Quartus® Prime project.

A high-level FPGA system-level clock architecture is shown in the figure below.

Figure 4. System high-level clocking diagram.

For the clock frequencies associated with the Ethernet Subsystem IP ports i_clk_ref_p (PLL Reference clock), i_clk_sys (system PLL reference clock), the system example design follows the guidelines provided in the GTS Ethernet Hard IP User Guide: Implement Required Clocking.

Clock	Frequency	Reference Clock	Description
hps_clk	100 MHz	fpga_clk_100 (100 MHz)	Reference clock for HPS F2H/HPS data path along with mSGDMA subsystem.
csr_clk	125 MHz	fpga_clk_100 (100 MHz)	For driving clocks for `csr_clk`(125MHz) and H2F interfaces.
syspll_ref_clk_i	156.25MHz	i_clk_ref	System PLL reference clock .
tx_pll_ref_clk_i	156.25 MHz	i_clk_ref	TX Transceiver reference clock. This can be same as `syspll_ref_clk_i`.
tx_clk_i	161.132 MHz	o_clk_pll	For TX and RX user data path in Ethernet domain (Per Port). Derived from `o_clk_pll`.
rx_clk_i	161.132 MHz	o_clk_pll	For TX and RX user data path in Ethernet domain (Per Port). Derived from `o_clk_pll`.

Table 1. General clock signals for the system example design datapath.

FPGA Reset Architecture¶

This example design triggers partial or full resets under three different scenarios:

Power-on Reset (NINIT_DONE): The system resets the entire mSGDMA subsystem for all Ethernet ports and all glue logic, including the L2 Packet Switch, User logic packet generators, and Ethernet subsystem during power-on.
Peer Link Down: The system resets the Ethernet subsystem and glue logic for a specific port per direction when the peer on the LAN goes down. The mSGDMA subsystem for that particular port remains functional along with other ports in this partial reset scenario.
Local Link Down: The local system brings down the link, which resets both the mSGDMA subsystem and the glue logic for the Ethernet port. The system limits this reset to the particular port being targeted while keeping the rest of the ports functional.

The system can assert and de-assert reset domains independently of each other. However, due to the Host-centric nature of the design, the system must convey different conditions to the host, and the host must drive decisions as described below.

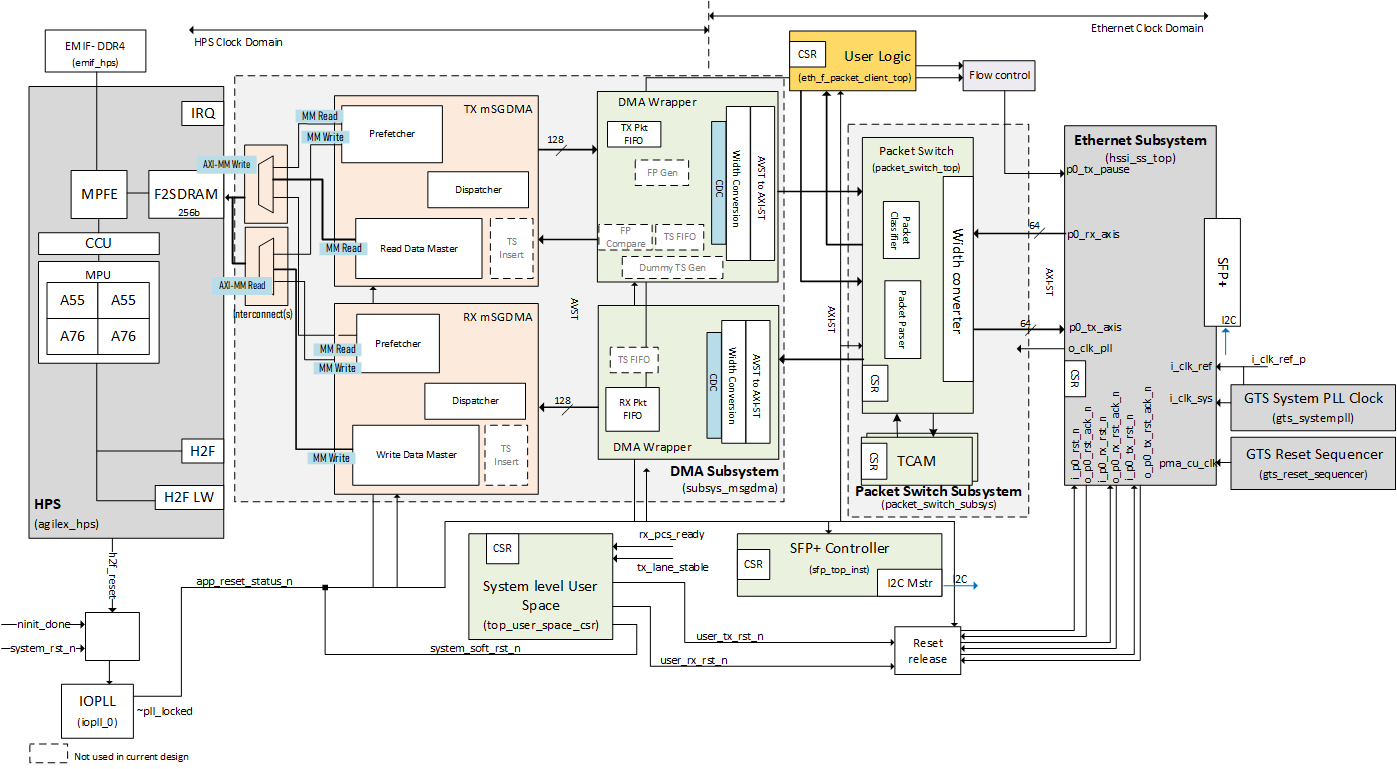

Figure 5 . System high-level Reset Architecture.

Software Architecture¶

The Software Archtecture of the Design described in the following sections.

Architecture Overview¶

The Agilex™ 5 1x10G Ethernet System Example Design follows an HPS-first design approach. This section provides an overview of the design approach, Ethernet Subsystem IP control, L2 Switching and specific rules for packet handling.

The default priorities set in the arbiter is

HPS DMA-0 is highest priority – This is traffic being routed to the HPS
User traffic is the 2^nd priority – This would probably take all the user traffic

HPS-First Design Approach¶

The Hard Processor System (HPS) initializes first and then configures the FPGA fabric. The HPS loads the uBoot image from SPI flash. The secondary boot loader loads the final kernel and FPGA configuration bitstream. The uBoot secondary boot loader activates the HPS bridges and programs the FPGA through its connection to the SDM. Once the FPGA is programmed, the HPS proceeds to boot the Linux operating system.

Ethernet Subsystem¶

The Ethernet Subsystem is controlled by the HPS as the primary system CPU. The SFP module is connected to the HPS through SFP Controller. The control pins of the SFP, including MODSEL, Presence, interrupt, and LP_MODE, are connected to the HPS using SFP Controller IP in FPGA. The design leverages mSGDMA IP for a single port. The mSGDMA IPs are connected to a L2 Packet Switch that provides ingress Packet switching functionality. This approach ensures effective prioritization and management of packets, reducing the likelihood of high-priority packet drops and enhancing overall system performance.

HPS Ethernet driver identifies all available DMA channels linked to the Ethernet physical port using information from the device tree. For each DMA channel, it sets up a dedicated Tx/Rx buffer ring and advertises these channels as independent hardware queues for the network interface (netdev). The driver manages each queue independently, handling tasks such as memory allocation, queue start/stop, and wake operations.

Egress Switching¶

Egress Switching is managed by Linux software using open-source libraries like Traffic Class (tc) and qDisc. The Traffic Class (tc), provided by the network stack, enables different priority-based scheduling of packets. Integration of the TC library with netfilter and iptables allows for the prioritization of packets to different mSGDMA ports. Once the packet enters the mSGDMA ports, the FPGA implementation schedules the egress of the packet according to the priority rules set.

Ingress Switching¶

Ingress Switching is handled by the L2 Packet Switch along with the packet-Arbiter. All ingress packets are deeply inspected and matched with TCAM rules that can be dynamically programmed by the host. The L2 Packet Switch sorts and segregates packets according to their priorities and sends them to different DMA ports. Once in the DMA port, the DMA prefetchers/dispatchers send the data to the CPU to be handled by the OS. In this design example as there is only one single DMA to the HPS all the packets that are sent towards the HPS need to take the same port. All the packets destined towards the User Logic (Packet Client) module need to be routed to the user port.

Agilex™ 5 SoC-FPGA Drivers¶

HSSI Subsystem Drivers¶

The HSSI Subsystem driver acts as a bridge between the software operating in the HPS and Ethernet subsystem which consists of GTS Ethernet Hard IP with associate IPs and sw glue logic. It provides various levels of abstraction to simplify communication with the underlying GTS Ethernet Hard IP. The HSSI Subsystem driver exposes APIs used by Ethernet netdev driver that higher-level software layers can utilize to interact with the Ethernet IP. Some of the abstractions offered by the HSSI Subsystem driver include:

Get Link state.
Get MAC stats.

These abstractions are used by the HSSI Ethernet netdev driver to provide Ethernet functionality to the above layers.

HSSI Ethernet and Associated Driver¶

The HSSI Ethernet netdev driver offers a network device interface (Linux netdev interface) to the Linux kernel. It registers all the necessary interfaces to enable the corresponding functionalities provided by the system like:

mSGDMA support for data movement.
PTP functionality support.
ToD driver functionality support.

SFP Driver Interface¶

The SFP driver is responsible for accessing the SFP+ controller module in Fabric to configure, control and status operations of SFP28 PHY module over I2C bus. SFP driver is responsible for reading Shadow CSR Register space A0 and A2 from SFP+ controller module.It configures the A0 CSR space therefore trigger the SFP+ controller to initialize and execute functions for SFP28 PHY module over I2C bus.

During power on, SFP+ controller can read all the 0xA0 page into shadow register space meant for 0xA0. Same can be requested through CSR by driver also during driver initialization. Once this page is read, SFP+ controller updates a register field that indicates that 0xA0 is read. driver to poll this bit, once asserted, it can assess whether additional pages with address 0xA2 implemented or not as indicated below for few important fields. Use of the paging system is optional so check before enabling polling for 0xA2 addresses.

Based on 0xA0 response data (read from SFP controller in shadow register space), if 0xA2 pages are implemented, then SW driver can enable poll_en. Post this, controller will repeatedly read the Pages of 0xA2 until poll_en is de-asserted by SW driver.

Figure 6. SFP memory space

User Space Applications¶

ethtool¶

ethtool is a well-known open-source utility used to query network driver and hardware settings. For more information on ethtool, please refer to the ethtool man page.

packetgenerator¶

The packetgenerator application is a Linux-based utility designed to configure the User Logic (Packet Client) module integrated with Ethernet-based system example designs. This application is particularly useful for testing and validating the data pipeline and line rate of an FPGA by generating L2 packets.

The application configures the User Logic (Packet Client) IP core in the FPGA, which is responsible for generating test packets.
It generates test L2 packets that can be used to test the FPGA data pipeline and measure the line rate.
The application supports multiple options to create a variety of traffic patterns, including:
- Different destination and source MAC addresses.
- Various frame sizes.
- Configurable idle packet gaps.

Usage:

packetgenerator [--device] [/dev/uioX] [options]

Options:

--help: Print this help contents
--device: UIO device name
--dump: Dump all register contents
--register-offset <offset>: 32-bit aligned register offset to do direct register read/write
--register-value <value>: 32-bit value to be written to the register
--dest-mac: Destination MAC address in the packet
--src-mac: Source MAC address in the packet
--traffic <bool>: Enable or disable traffic
--one-shot <bool>: Enable or disable one-shot mode
--soft-reset: Trigger a soft reset
--dyn-pkt-mode <bool>: Enable or disable dynamic packet mode
--packet-checker <bool>: Enable or disable packet checker
--cntr-snapshot <bool>: Take a counter snapshot
--cntr-clear <bool>: Clear all counter CSRs
--cntr-internal-clear <bool>: Clear all internal counters
--fixed-gap <bool>: Enable or disable fixed gap between packets
--pkt-len-mode <value>: Set packet generation length mode (Fixed/Incremental) [1,2]
--num-idle-cycles <value>: Number of idle cycles to insert [0...255]
--tx-pkt-size <value>: TX packet size [64...9216]
--tx-max-pkt-size <value>: Maximum TX packet size [64...9216]
--num-packets <value>: Number of packets to generate [0...0xFFFFFFFF]

Example Usage:

Configure Packet Generation

This command configures the User Logic (Packet Client) i.e., packetgenerator with specific parameters such as dynamic packet mode, fixed gap, packet length mode, idle cycles, packet checker, one-shot mode, and packet sizes before starting the traffic generation.
```
packetgenerator --device /dev/uio0 --traffic false --dyn-pkt-mode true --fixed-gap true --pkt-len-mode 0x01 --num-idle-cycles 22 --packet-checker true --one-shot false --tx-pkt-size 1024 --tx-max-pkt-size 1024
```

Generate Packets

This command starts the traffic generation based on the previously configured settings.
```
packetgenerator --device /dev/uio0 --traffic 1
```

Check the Dump from Traffic Generation

This command dumps all register contents.
```
packetgenerator --device /dev/uio0 --dump
```

The Source Code (Driver) Package can be located in below path.

$TOP_FOLDER/src/sw/yocto/meta-agilex5-sed/recipes-devtools/packetgenerator/files

L2 Packet Switch (ptpbridge)¶

The L2 Packet Switch (ptpbridge) application is a Linux-based utility designed to configure and set up the L2 Packet Switch (PTP Bridge) IP used in Ethernet system example designs. This application is particularly useful for managing ingress Quality of Service (QoS) functionalities and routing packets to the network stack running on the Hard Processor System (HPS) or other entities connected through user ports.

The application configures the L2 Packet Switch (PTPBridge) IP core in the FPGA, which is responsible for handling ingress QoS and packet routing.
It provides functionalities to manage the quality of service for incoming packets, ensuring that network traffic is handled efficiently and according to specified priorities.

Usage:

ptpbridge [--device] [/dev/uioX] [Options]

Options:

help: Print this help contents
device: UIO device name
dump: Dump all register contents
set-key: Set Key. Requires Key fields to be provided
remove-key: Remove Key using key-index
flush-all-keys: Flush all Key entries from the system
flush-all-counters: Flush all debug counters value to 0
show-key: Search for Keys fulfilling a search criteria for a port
register-rw: Do a direct register read write
key-index: Key index to work on
dest-mac: Key - Destination MAC
src-mac: Key - Source MAC
dest-ip: Key - Destination IP Address
src-ip: Key - Source IP address
dest-port: Key - Destination L4 port
src-port: Key - Source L4 port
vlanb: Key - VALNB
vlana: Key - VLANA
ethtype: Key - Ethernet type
protocol: Key - IP Protocol type
message: Key - IP Message type
flag: Key - Flag field
result: Result
port: Ethernet port index eth1-0 eth2-1 etc
register-offset: Register offset to read/write to.
register-value: Register value to write. Can be comma separated to write multiple values.
length: Number of registers to read
mask: Set Mask properties for fields manually

Example Usage:

Programming the L2 Packet Switch (PTP Bridge) Generic Rule:
This command sets a generic rule for the L2 Packet Switch (PTP Bridge) on port 0 with a specific key index and destination MAC address.
```
ptpbridge --port 0 --set-key --key-index 0 --dest-mac "eth1" --result 0x2
```

Source Code (Driver) Package can be found in below path:

$TOP_FOLDER/src/sw/yocto/meta-agilex5-sed/recipes-devtools/ptpbridge/files

Hardware Setup¶

Refer this Section for hardware pre-requisites required to setup the Hardware.

The Board-to-Board hardware setup connection details are captured in the image below.

Figure 7. Board level connection between Development kits

Configure Boards¶

Leave all jumpers and switches in their default configuration. Please refer Development kit default switch settings.
Connect micro USB cable from bottom left of the carrier board to PC. This will be used for JTAG communication.
Connect micro USB cable from bottom right of the SOM board to PC. This will be used for HPS UART communication.
Connect Ethernet cable from SOM board to an Ethernet switch connected to local network.
Connect two Agilex™ 5 FPGA E-Series Modular Development Kits using a SFP cable via the SFP0 port.
Power ON the boards. Please refer section Powering Up the Development Kit for Powering ON process.

NOTE: Local network with DCHP server is must if you are opting for TFTP Booting.

Address Map Details¶

Address Map¶

Subordinate Name	Component	Agilex™ HPS H2F AXI Master	Register Description
top.hssi_ss_top	Ethernet (HSSI) Subsystem CSR	0x4030_0000 - 0x406f_ffff
top.top_user_space_csr	User Space CSR	0x4020_0000 - 0x4020_0fff
top.hssi_top.u0	GTS Ethernet Hard IP	0x4030_0000 - 0x403f_ffff	Register Map
top.hssi_top.u0	GTS Ethernet Hard IP - PLD Interface	0x4032_0000 - 0x4032_02ff
top.hssi_top.u0	GTS Ethernet Hard IP - deskew	0x4033_0000 - 0x4033_00ff
top.hssi_top.u0	GTS Ethernet Hard IP - MAC	0x4035_0000 - 0x4035_0f7f
top.hssi_top.u0	GTS Ethernet Hard IP - PCS,FEC	0x4035_1000 - 0x4037_ffff
top.hssi_top.u0	GTS Ethernet Hard IP - xcvr FIFO	0x4038_0000 - 0x4038_ffff
top.hssi_top.u0	GTS Ethernet Hard IP - xcvr PMA	0x4039_0000 - 0x403c_ffff
top.sfp_top_inst	SFP Controller	0x4404_0000 - 0x4404_ffff
top.soc_inst.subsys_msgdma	mSGDMA subsystem	0x4500_0000 - 0x4500_00ff	Register Map
top.soc_inst.subsys_msgdma.tx_msgdma_prefetcher	mSGDMA TX 0 Prefetcher	0x4500_0000 - 0x4500_001f
top.soc_inst.subsys_msgdma.tx_msgdma_dispatcher	mSGDMA TX 0 Dispatcher	0x4500_0020 - 0x4500_003f
top.soc_inst.subsys_msgdma.tx_dma_fifo_0	mSGDMA TX 0 FIFO	0x4500_0040 - 0x4500_005f
top.soc_inst.subsys_msgdma.rx_msgdma_prefetcher	mSGDMA RX 0 Prefetcher	0x4500_0080 - 0x4500_009f
top.soc_inst.subsys_msgdma.rx_msgdma_dispatcher	mSGDMA RX 0 Dispatcher	0x4500_00a0 - 0x4500_00bf
top.soc_inst.subsys_msgdma.rx_gdma_fifo_0	mSGDMA RX 0 FIFO	0x4500_00c0 - 0x4500_00cf
top.eth_f_packet_client_top	User Port(Packet Client)	0x5000_0000 - 0x5000_ffff
top.ptp_bridge_subsys	L2 Packet Switch	0x5001_0000 - 0x5001_ffff

Table 2. system address map.

Interrupt Map¶

Interrupts to be implemented in:

mSGDMA subsystem (per port TX/RX) to indicate HPS that, packet has been transmitted/received from any of the Prefetcher.

Interrupt	F2H IRQ
mSGDMA 0 TX	2
mSGDMA 0 RX	3

Table 3. Interrupt map.

User Flow¶

There are two ways to test the design based on use case.

User Flow 1: Testing with Prebuild Binaries.

User Flow 2: Testing Complete Flow.

User Flow	Description	Required for User Flow 1	Required for User Flow 2
Environment Setup	Tools Download and Installation	Yes	Yes
	Install dependency packages for SW compilation	No	Yes
	Package Download	Yes	Yes
Compilation	HW compilation	No	Yes
	SW compilation	No	Yes
	Custom SW compilation	No	Yes
Programming	Programming the HW binary	Yes	Yes
	Programming the SW binary	Yes	Yes
	Linux boot	Yes	Yes
	Ethernet Status	Yes	Yes
	Configuring Design	Yes	Yes
Testing	Run Ping Test	Yes	Yes
	Run iPerf3 Test	Yes	Yes
	Run User Logic (Packet client) Test	Yes	Yes
Simulation	Simulating Test cases	No	Yes

Environment Setup¶

Tools Download and Installation¶

Altera® Quartus® Prime Pro

Download the Quartus® Prime Pro Edition software version 25.1 from the FPGA Software Download Center webpage of the Intel website. Follow the on-screen instructions to complete the installation process. Choose an installation directory that is relative to the Quartus® Prime Pro Edition software installation directory. Set up the Altera® Quartus® tools in the PATH, so they are accessible without full path. Enable Altera® Quartus® tools to be called from command line:
```
export QUARTUS_ROOTDIR=~/altera_pro/25.1/quartus/
export PATH=$QUARTUS_ROOTDIR/bin:$QUARTUS_ROOTDIR/linux64:$QUARTUS_ROOTDIR/../qsys/bin:$PATH
```
Win32 Disk Imager

Download and install the latest Win32 Disk Imager. This tool will used for loading SD card image.

Installing Dependency Packages for SW Compilation¶

Download the compiler toolchain, add it to the PATH variable, to be used by the GHRD makefile to build the HPS Debug FSBL:

wget https://developer.arm.com/-/media/Files/downloads/gnu/11.2-2022.02/binrel/\
gcc-arm-11.2-2022.02-x86_64-aarch64-none-linux-gnu.tar.xz
tar xf gcc-arm-11.2-2022.02-x86_64-aarch64-none-linux-gnu.tar.xz
rm -f gcc-arm-11.2-2022.02-x86_64-aarch64-none-linux-gnu.tar.xz
export PATH=`pwd`/gcc-arm-11.2-2022.02-x86_64-aarch64-none-linux-gnu/bin:$PATH
export ARCH=arm64
export CROSS_COMPILE=aarch64-none-linux-gnu-

Yocto Build Prerequisites /Setup Environment¶

Make sure you have Yocto system requirements met: https://docs.yoctoproject.org/3.4.1/ref-manual/system-requirements.html#supported-linux-distributions.

The command to install the required packages on Ubuntu 22.04-LTS is:

sudo apt-get update
sudo apt-get upgrade
sudo apt-get install openssh-server mc libgmp3-dev libmpc-dev gawk wget git diffstat unzip texinfo gcc \
build-essential chrpath socat cpio python3 python3-pip python3-pexpect xz-utils debianutils iputils-ping \
python3-git python3-jinja2 libegl1-mesa libsdl1.2-dev pylint xterm python3-subunit mesa-common-dev zstd \
liblz4-tool git fakeroot build-essential ncurses-dev xz-utils libssl-dev bc flex libelf-dev bison xinetd \
tftpd tftp nfs-kernel-server libncurses5 libc6-i386 libstdc++6:i386 libgcc++1:i386 lib32z1 \
device-tree-compiler curl mtd-utils u-boot-tools net-tools swig -y
export LC_ALL="en_US.UTF-8"
export LC_CTYPE="en_US.UTF-8"
export LC_NUMERIC="en_US.UTF-8"
export LANG=en_US.UTF-8
export LANGUAGE=en_US.UTF-8

On Ubuntu 22.04 you will also need to point the /bin/sh to /bin/bash, as the default is a link to /bin/dash:

sudo ln -sf /bin/bash /bin/sh

Note: You can also use a Docker container to build the Yocto recipes, refer to https://rocketboards.org/foswiki/Documentation/DockerYoctoBuild for details. When using a Docker container, it does not matter what Linux distribution or packages you have installed on your host, as all dependencies are provided by the Docker container.

Package Download¶

Clone the repository to get the source package for the System Example Design

git clone https://github.com/altera-fpga/agilex5-ed-ethernet.git
cd agilex5-ed-ethernet/
git checkout SED-1x10GE-a5e065b-mdk-Q25.1-Rel-1.1
cd a5e065b-mod-devkit-exp-es/
export TOP_FOLDER=`pwd`
mkdir bin

Compile the Design¶

Below section provides the steps to build both Hardware (hw) and Software (sw) files:

Compiling the Hardware Design¶

The next section presents the steps to Compile the Hardware design using Altera® Quartus® Prime Pro 25.1 version.

Hardware Compilation¶

The synth folder contains a Makefile and the Altera® Quartus® Project.The Makefile support various compile options such as,

make compile - runs the compile stage of Altera® Quartus®
make synth - runs synthesis stage of Altera® Quartus®
make all - runs a full Altera® Quartus® compile including the Assembler

cd $TOP_FOLDER/src/hw/synth/
make all

Alternatively, if using the GUI is preferred, the top.qpf file can be opened in Altera® Quartus® and compile option can be executed.

The following file will be generated:

$TOP_FOLDER/src/hw/output_files/top.sof

Build HPS and CORE RBF file¶

The configuration bitstream generated after an Altera® Quartus® Prime compilation contains both the FPGA core and I/O sections, as well as the HPS First-Stage Bootloader (FSBL). Once the system example design is recompiled, you must integrate the .hex file containing the U-Boot FSBL into the new bitstream u-boot-spl-dtb.hex

To integrate the .hex file into the new bitstream execute the following command:

cd $TOP_FOLDER
quartus_pfg -c -o hps=on -o hps_path=src/sw/artifacts/u-boot-spl-dtb.hex src/hw/synth/output_files/top.sof bin/top.rbf

The following files are generated:

$TOP_FOLDER/bin/top.hps.rbf - HPS First configuration bitstream, phase 1 (HPS and DDR)
$TOP_FOLDER/bin/top.core.rbf- HPS First configuration bitstream, phase 2 (FPGA fabric)

Build QSPI Image¶

This step will generate the QSPI Flash Image for on-board QSPI Flash.

cd $TOP_FOLDER
rm -f bin/top.hps.jic bin/top.core.rbf

# Note : If user doing compilation first time, download the prebuilt u-boot-spl-dtb.hex  file and create the following path $TOP_FOLDER/src/sw/agilex5_modular-gsrd-images/u-boot-agilex5-socdk-gsrd-atf/ and copy the u boot file here.

quartus_pfg \
-c src/hw/synth/output_files/top.sof bin/top.jic \
-o device=MT25QU128 \
-o flash_loader=A5ED065BB32AE6SR0 \
-o hps_path=src/sw/artifacts/u-boot-spl-dtb.hex \
-o mode=ASX4 \
-o hps=1

The following file will be created:

$TOP_FOLDER/bin/top.hps.jic

Software Compilation¶

Build Yocto¶

the Yocto builds everything required for a boot of the devkit with the design. To start building please use the devkit specific build script

cd $TOP_FOLDER/src/sw/yocto/
. agilex5_modular-ETH_1P10G-build.sh
build_default

All the required images are captured in the agilex5_modular-gsrd-images directory after a successful build. The build process time depends on the resource specifications of the Host being used to build the software. After a successful compilation process for the 10G system example design. The following files are created:

$TOP_FOLDER/src/sw/yocto/agilex5_modular-gsrd-images/u-boot-agilex5-socdk-gsrd-atf/u-boot-spl-dtb.hex
$TOP_FOLDER/src/sw/yocto/agilex5_modular-gsrd-images/u-boot.itb
$TOP_FOLDER/src/sw/yocto/agilex5_modular-gsrd-images/kernel_sed.itb
$TOP_FOLDER/src/sw/yocto/agilex5_modular-gsrd-images/sdimage.tar.gz

Copy the sdimage.tar.gz and kernel_sed.itb to bin folder.

cp -rf $TOP_FOLDER/src/sw/yocto/agilex5_modular-gsrd-images/sdimage.tar.gz $TOP_FOLDER/bin/sdimage.tar.gz
cp -rf $TOP_FOLDER/src/sw/yocto/agilex5_modular-gsrd-images/kernel_sed.itb $TOP_FOLDER/bin/kernel_sed.itb

Customize Yocto¶

If changes are made to the Hardware Design project, for example adding Signal Tap , you must rebuild the HPS software. The HPS second stage bootloader have the FPGA core bitstream SHA signature embedded in the compile process, with an bitstream update the SHA calculation change and needs to be updated in the second stage bootloader. Follow the next steps to update the FPGA core bitstream used in the HPS second stage bootloader:

Save the top.core.rbf as $TOP_FOLDER/src/sw/yocto/meta-agilex5-sed/recipes-bsp/ghrd/files/agilex5_modular_gsrd_ghrd_ETH_1P10G.core.rbf
Update the recipe $TOP_FOLDER/src/sw/yocto/meta-agilex5-sed/recipes-bsp/ghrd/hw-ref-design.bb from below commands:

cd $TOP_FOLDER
CORE_RBF=src/sw/yocto/meta-agilex5-sed/recipes-bsp/ghrd/files/agilex5_modular_gsrd_ghrd_ETH_1P10G.core.rbf
rm -rf $CORE_RBF
cp -f bin/top.core.rbf $CORE_RBF
FILE=src/sw/yocto/meta-agilex5-sed/recipes-bsp/ghrd/hw-ref-design.bbappend
CORE_SHA=$(sha256sum $CORE_RBF | cut -f1 -d" ")
OLD_SHA=".*sha256sum_ETH_1P10G.*"
NEW_SHA="sha256sum_ETH_1P10G = \"$CORE_SHA\""
sed -i "s/$OLD_SHA/$NEW_SHA/" "$FILE"

After executing above step please proceed for rebuilding the design as mention Build Yocto.

Programming¶

Note:

Please download Prebuilt Binaries, if you are leveraging User Flow 1.
Leave all jumpers and switches in their default configuration.

The Embedded Linux operating system running on the Agilex™ 5 FPGA E-Series Modular Development Kit can be accessed using a Serial Communication program such as Mincom or Putty. Start by identifying the assigned ID for each of your serial connections between the host and the development kits. Please make sure to POWER ON the boards.

Programming Software Image¶

The SD card image file sdimage.tar.gz is provided in Release package, you may refer to Release Content for more details.

Follow the instructions under "Write SD Card" from the HPS GSRD User Guide for the Agilex™ 5 E-Series Modular Dev Kit to create a boot-able SD card with this image file.

Programming Hardware binary¶

Users can choose either to flash the QSPI flash using top.hps.jic file or to program the FPGA with top.hps.rbf file. Below two section provide the details for both process. Flashing QSPI provides default Power-ON booting of the design where as the FPGA programming with hps.rbf needs to be carried out on every power cycle.

Write QSPI Flash¶

Refer to the Documentation for detailed steps. Identify the FPGA device position in the JTAG chain by using jtagconfig and program flash using quartus_pgm.

cd $TOP_FOLDER
jtagconfig
quartus_pgm -c 1 -m jtag -o "pvi;./bin/top.hps.jic@2"
#  If FPGA device in position #1 no need to mention the position number, by default it will take position

Please execute above command for both the development kits to update QSPI flash with new binaries.

Program FPGA¶

Using the Intel® Quartus® Programmer Tool Version 25.1, configure the onboard Agilex™ 5 device with top.hps.rbf. Alternatively, you can achieve the same goal through command line with the following steps: Verify that all devices from the development kit are recognized and check the JTAG cable number assigned to the development kit with

Command:

jtagconfig

Output :

mbk@bapvedev135t:~$ jtagconfig
1) Agilex_5E MDK Carrier on 10.244.193.249 [USB-1]
  4BA06477   ARM_CORESIGHT_SOC_600
  0364F0DD   A5E(C065BB32AR0|D065BB32AR0)
  020D10DD   VTAP10

2) Agilex_5E MDK Carrier on 10.244.193.249 [USB-2]
  4BA06477   ARM_CORESIGHT_SOC_600
  0364F0DD   A5E(C065BB32AR0|D065BB32AR0)
  020D10DD   VTAP10
# Here, FPGA device in position #2

From the previous output, you can see that two Agilex™ 5 FPGA E-Series Modular Development Kit are visible, both of them have all their devices identified correctly and that they have been assigned to cable 1) and 2). Now you can configure the development kits from your host with the following command:

Command:

cd $TOP_FOLDER
quartus_pgm -c 1 -m jtag -o "p;./bin/top.hps.rbf@2" && quartus_pgm -c 2 -m jtag -o "p;./bin/top.hps.rbf@2"

Output :

mbk@bapvedev135t:~$ quartus_pgm -c 1 -m jtag -o "p;./bin/top.hps.rbf@2" && quartus_pgm -c 2 -m jtag -o "p;./bin/top.hps.rbf@2"
Info: *******************************************************************
Info: Running Quartus Prime Programmer
    Info: Version 25.1.0 Build 129 03/26/2025 SC Pro Edition
    Info: Copyright (C) 2025  Altera Corporation. All rights reserved.
    Info: Your use of Altera Corporation design tools, logic functions
    Info: and other software and tools, and any partner logic
    Info: functions, and any output files from any of the foregoing
    Info: (including device programming or simulation files), and any
    Info: associated documentation or information are expressly subject
    Info: to the terms and conditions of the Altera Program License
    Info: Subscription Agreement, the Altera Quartus Prime License Agreement,
    Info: the Altera IP License Agreement, or other applicable license
    Info: agreement, including, without limitation, that your use is for
    Info: the sole purpose of programming logic devices manufactured by
    Info: Altera and sold by Altera or its authorized distributors.  Please
    Info: refer to the Altera Software License Subscription Agreements
    Info: on the Quartus Prime software download page.
    Info: Processing started: Thu Aug 28 18:11:52 2025
    Info: System process ID: 1414995
Info: Command: quartus_pgm -c 1 -m jtag -o p;./bin/top.hps.rbf@2
Info (213046): Using programming cable "Agilex_5E MDK Carrier on 10.244.193.249 [USB-1]"
Info (213011): Using programming file top.hps.rbf with checksum 0x1D4E6273 for device A5ED065BB32AR0@2
Info (209060): Started Programmer operation at Thu Aug 28 18:11:58 2025
Info (18942): Configuring device index 2
Info (18943): Configuration succeeded at device index 2
Info (209011): Successfully performed operation(s)
Info (209061): Ended Programmer operation at Thu Aug 28 18:12:03 2025
Info: Quartus Prime Programmer was successful. 0 errors, 0 warnings
    Info: Peak virtual memory: 1762 megabytes
    Info: Processing ended: Thu Aug 28 18:12:03 2025
    Info: Elapsed time: 00:00:11
    Info: System process ID: 1414995
Info: *******************************************************************
Info: Running Quartus Prime Programmer
    Info: Version 25.1.0 Build 129 03/26/2025 SC Pro Edition
    Info: Copyright (C) 2025  Altera Corporation. All rights reserved.
    Info: Your use of Altera Corporation design tools, logic functions
    Info: and other software and tools, and any partner logic
    Info: functions, and any output files from any of the foregoing
    Info: (including device programming or simulation files), and any
    Info: associated documentation or information are expressly subject
    Info: to the terms and conditions of the Altera Program License
    Info: Subscription Agreement, the Altera Quartus Prime License Agreement,
    Info: the Altera IP License Agreement, or other applicable license
    Info: agreement, including, without limitation, that your use is for
    Info: the sole purpose of programming logic devices manufactured by
    Info: Altera and sold by Altera or its authorized distributors.  Please
    Info: refer to the Altera Software License Subscription Agreements
    Info: on the Quartus Prime software download page.
    Info: Processing started: Thu Aug 28 18:12:04 2025
    Info: System process ID: 1420280
Info: Command: quartus_pgm -c 2 -m jtag -o p;./bin/top.hps.rbf@2
Info (213046): Using programming cable "Agilex_5E MDK Carrier on 10.244.193.249 [USB-2]"
Info (213011): Using programming file top.hps.rbf with checksum 0x1D4E6273 for device A5ED065BB32AR0@2
Info (209060): Started Programmer operation at Thu Aug 28 18:12:10 2025
Info (18942): Configuring device index 2
Info (18943): Configuration succeeded at device index 2
Info (209011): Successfully performed operation(s)
Info (209061): Ended Programmer operation at Thu Aug 28 18:12:14 2025
Info: Quartus Prime Programmer was successful. 0 errors, 0 warnings
    Info: Peak virtual memory: 1762 megabytes
    Info: Processing ended: Thu Aug 28 18:12:14 2025
    Info: Elapsed time: 00:00:10
    Info: System process ID: 1420280

wait for the HPS to come up.

Linux Boot¶

On the HPS UART (minicom connection) you will notice the HPS booting up.

HPS will boot up from the SD card to get the whole design up. Once the HPS is up, please login using root, no password is required. your system is ready to get configured.

If everything went as expected, each Minicom terminal shows the messages from the HPS booting Linux OS.

To login into the system use root as your login credentials with no password. You can execute uname -a and cat /etc/os-release commands to print current version of package as shown in below commands.

agilex5modular login: root

WARNING: Poky is a reference Yocto Project distribution that should be used for
testing and development purposes only. It is recommended that you create your
own distribution for production use.

root@agilex5modular:~# uname -a
Linux agilex5modular 6.12.19-altera-eth-sed-release-R1.1 #1 SMP PREEMPT Mon Sep  8 06:33:56 UTC 2025 aarch64 GNU/Linux
root@agilex5modular:~# cat /etc/os-release
ID=poky
NAME="Poky (Yocto Project Reference Distro)"
VERSION="5.0.5 (scarthgap)"
VERSION_ID=5.0.5
VERSION_CODENAME="scarthgap"
PRETTY_NAME="Poky (Yocto Project Reference Distro) 5.0.5 (scarthgap)"
CPE_NAME="cpe:/o:openembedded:poky:5.0.5"

Repeat the same steps for the second Agilex™ 5 FPGA E-Series Modular Development Kit.

Ethernet Link status¶

Start by checking the network status on each Agilex™ 5 FPGA E-Series Modular Development Kit with the 'ip' command:

Command:

ip addr

Output:

root@agilex5modular:~# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host noprefixroute
       valid_lft forever preferred_lft forever
2: eth1: <BROADCAST,MULTICAST,DYNAMIC,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 6e:09:8c:a5:25:60 brd ff:ff:ff:ff:ff:ff
    inet 169.254.206.191/16 brd 169.254.255.255 scope global eth1
       valid_lft forever preferred_lft forever
    inet6 fe80::6c09:8cff:fea5:2560/64 scope link proto kernel_ll
       valid_lft forever preferred_lft forever
3: eth0: <BROADCAST,MULTICAST,DYNAMIC,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 2e:62:eb:74:1d:b5 brd ff:ff:ff:ff:ff:ff
    inet 10.244.194.75/22 metric 10 brd 10.244.195.255 scope global dynamic eth0
       valid_lft 3509sec preferred_lft 3509sec
    inet 169.254.207.6/16 brd 169.254.255.255 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::2c62:ebff:fe74:1db5/64 scope link proto kernel_ll
       valid_lft forever preferred_lft forever
4: teql0: <NOARP> mtu 1500 qdisc noop state DOWN group default qlen 100
    link/void
5: sit0@NONE: <NOARP> mtu 1480 qdisc noop state DOWN group default qlen 1000
    link/sit 0.0.0.0 brd 0.0.0.0

Please note There are Three Ethernet Links available.

eth0 : HPS Ethernet Link(1Gbps)
eth1 : 10G Ethernet Port(10Gbps)

Ethernet interfaces need to be in 'UP' state as shown in the previous transcript. The interfaces also have an assigned IP4 and IP6 address assigned to them.

Configuring Design¶

The System Example design once booted in to Development Kits, its components needs to initialized with startup configuration. the Components include DMA subsystem, User Logic (Packet Client), L2 Packet Switch, Ethernet configurations-switching, IPV6 Routing, Egress QoS-TC and Iperf configuration. There are two methods of configuring system design.

One-shot configuration via Automated script.
Step-by-Step configuration of each interface.

User can proceed to run the script which contains full start-up configuration or choose to execute each config commands as described below,

Configuring Design by Automated script¶

For Step-by-Step Configuration, skip this section and move to Configure Ethernet Link.

The 1Port.sh script is included with the yocto rootfs image (in /root/scripts/ folder). The script contains all the commands that were described above in a concise format so that it can be executed easily.

Please run the script with the devkit number [. scripts/1Port.sh <devkit number>] so that the correct details can be set.

Development Kit 1¶

Command:

. scripts/1Port.sh 1

Output:

root@agilex5modular:~#. scripts/1Port.sh 1
Programming the Basic IP address...
Clearing old PTPBridge rules Port - 0...
UIO device file found. Using /dev/uio2
Key Flush successful...
Clearing old TC rules Port - 0...
Error: Parent Qdisc doesn't exists.
We have an error talking to the kernel
Error: Cannot find specified qdisc on specified device.
Flushing old IPv4 and IPv6 addresses and routes
Setting DEVKIT to 1.
Running script for Devkit 1.
    link/ether 96:86:3e:f7:84:48 brd ff:ff:ff:ff:ff:ff
    link/ether 36:6d:dc:04:db:1c brd ff:ff:ff:ff:ff:ff
Programming the PTP Bridge Port - 0...
Programming the PTP Bridge Generic rule...
eth1 - 96:86:3e:f7:84:48
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 0 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
Programming the PTP Bridge - Low priority rules...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 1 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 2 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
Programming the PTP Bridge - IPERF 540X to DMA0...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 3 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 4 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 5 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 6 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
Programming the PTP Bridge - PTP Packets to DMA0...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 15 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 16 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 17 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 18 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
Programming the PTP Bridge - Port 0 User packets to User port...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 19 Success
Setting Result Register: 8. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
Programming the Packet Generator - Port 0
Tx traffic state set: Disabled
Dynamic Packet Mode set: Enabled
Fixed Gap set: Enabled
Packet length mode set: 1
Number of Idle Cycles set: 22
Pkt Checker set: Enabled
One Shot mode set: Disabled
Tx Packet Size set: 1024
Max Tx Packet Size set: 1024
Programming the IPV6 rules - Port 0
Setting IPv6 local addresses
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 20 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 21 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
Traffic Class Egress QOS programming - Port - eth1
Create QDisc...
Create Filters - PTP packets to DMA0...
Create Filters - IPERF 540X packets to DMA0...
Create Filters - IPERF 530X packets to DMA1...
Create Filters - IPERF 520X packets to DMA2...
Create Filters - ICMP packets to DMA2...
Configuration for Devkit 1 set

Development Kit 2¶

Command:

root@agilex5modular:~# . scripts/1Port.sh 2

Output:

root@agilex5modular:~#. scripts/1Port.sh 2
Programming the Basic IP address...
Clearing old PTPBridge rules Port - 0...
UIO device file found. Using /dev/uio2
Key Flush successful...
Clearing old TC rules Port - 0...
Error: Parent Qdisc doesn't exists.
We have an error talking to the kernel
Error: Cannot find specified qdisc on specified device.
Flushing old IPv4 and IPv6 addresses and routes
Setting DEVKIT to 2.
Running script for Devkit 2.
    link/ether 1a:6f:32:74:80:2f brd ff:ff:ff:ff:ff:ff
    link/ether a6:41:f7:35:1d:51 brd ff:ff:ff:ff:ff:ff
Programming the PTP Bridge Port - 0...
Programming the PTP Bridge Generic rule...
eth1 - 1a:6f:32:74:80:2f
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 0 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
Programming the PTP Bridge - Low priority rules...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 1 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 2 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
Programming the PTP Bridge - IPERF 540X to DMA0...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 3 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 4 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 5 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 6 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
Programming the PTP Bridge - PTP Packets to DMA0...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 15 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 16 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 17 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 18 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
Programming the PTP Bridge - Port 0 User packets to User port...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 19 Success
Setting Result Register: 8. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
Programming the Packet Generator - Port 0
Tx traffic state set: Disabled
Dynamic Packet Mode set: Enabled
Fixed Gap set: Enabled
Packet length mode set: 1
Number of Idle Cycles set: 22
Pkt Checker set: Enabled
One Shot mode set: Disabled
Tx Packet Size set: 1024
Max Tx Packet Size set: 1024
Programming the IPV6 rules - Port 0
Setting IPv6 local addresses
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 20 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 21 Success
Setting Result Register: 0. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
Traffic Class Egress QOS programming - Port - eth1
Create QDisc...
Create Filters - PTP packets to DMA0...
Create Filters - IPERF 540X packets to DMA0...
Create Filters - IPERF 530X packets to DMA1...
Create Filters - IPERF 520X packets to DMA2...
Create Filters - ICMP packets to DMA2...
Configuration for Devkit 2 set

Configure Ethernet Interface¶

Note: If you executed Configuring Design by Automated script please skip to the section Testing The Agilex™ 5 1x10G Ethernet System Example Design.

Configure IP address on these ports using the ip addr commands. Also setup smp affinity for the interrupts so as to distribute the interrupt handling to different CPUs of the system.

Please execute following commands to respective development kits to configure the Ethernet links (eth1 & eth2).

Development Kit 1¶

Command:

echo "8" > /proc/irq/24/smp_affinity && echo "8" > /proc/irq/23/smp_affinity
date --set "2025-06-10 13:46:00"
ip link set eth1 up && ip addr add 192.168.121.1 dev eth1 && ip route add 192.168.121.0/24 dev eth1 src 192.168.121.1
ip -6 addr add 2001:db8:abcd:0012::1/64 dev eth1 && ip link set dev eth1 up
sleep 2
ip -6 route add 2001:db8:abcd:0012::1/64 dev eth1 src 2001:db8:abcd:0012::1

Development Kit 2¶

Command:

echo "8" > /proc/irq/24/smp_affinity && echo "8" > /proc/irq/23/smp_affinity
date --set "2025-06-10 13:46:00"
ip link set eth1 up && ip addr add 192.168.121.2 dev eth1 && ip route add 192.168.121.0/24 dev eth1 src 192.168.121.2
ip -6 addr add 2001:db8:abcd:0012::2/64 dev eth1 && ip link set dev eth1 up
sleep 2
ip -6 route add 2001:db8:abcd:0012::2/64 dev eth1 src 2001:db8:abcd:0012::2

The first command do interrupt routing to different CPUs to ensure they are balanced. Ethernet port has 2 interrupts – DMA having 1-Tx and 1-Rx Interrupts.

The second command configures the correct date and time.You need to change the date as required.

The 3^rd and the 4^th command sets the IP config parameters of the eth1. IP route is also set so that packets can be routed properly by the Linux networking stack.

Configure Ingress QOS - L2 Packet Switch¶

For all ingress packets the L2 Packet Switch needs to be setup properly. By default the L2 Packet Switch will drop any packets that does not pass the programmed rules. The priority of the rule is as per the index – Higher index is of higher priority. If a packet passes multiple rules, then the highest key index is returned. We need to ensure that the most generic rule is programmed in the first and the specific rules are programmed in the later key-indices.

There are multiple rules to be setup in the L2 Packet Switch (PTP bridge) to ensure that it can route packets to the correct entities. These rules can be divided into different groups according to the functionality they provide.

Configure DMA with Ping packets switching¶

We can also create rules to switch ping packets specifically to DMA-2 which is the lowest priority channel. Please execute the following commands to both the development kits.

Command:

echo -e "Programming the PTP Bridge Generic rule..."
ptpbridge --port 0 --set-key --key-index 0 --dest-mac "eth1"  --result 0x0
echo -e "Programming the PTP Bridge - Low priority rules..."
ptpbridge --port 0 --set-key --key-index 1 --ethtype 0x0806 --result 0x0
ptpbridge --port 0 --set-key --key-index 2 --ethtype 0x0800 --protocol 0x01 --result 0x0

Configure packets to Highest priority DMA¶

The first few rules provide the L2 Packet Switch (PTP Bridge) to route all packets to the highest priority DMA on both the Ethernet port. The below rules help the PTP Bridge to route the packets. Please execute the following commands to both the development kits.

Command:

echo -e "Programming the PTP Bridge Port - 0..."
echo -e "Programming the PTP Bridge - IPERF 540X to DMA0..."
ptpbridge --port 0 --set-key --key-index 3 --ethtype 0x0800 --dest-port 5401 --result 0x0
ptpbridge --port 0 --set-key --key-index 4 --ethtype 0x0800 --dest-port 5402 --result 0x0
ptpbridge --port 0 --set-key --key-index 5 --ethtype 0x0800 --src-port 5401 --result 0x0
ptpbridge --port 0 --set-key --key-index 6 --ethtype 0x0800 --src-port 5402 --result 0x0
echo -e "Programming the PTP Bridge - PTP Packets to DMA0..."
ptpbridge --port 0 --set-key --key-index 15 --dest-mac "01:80:C2:00:00:0E" --result 0x0
ptpbridge --port 0 --set-key --key-index 16 --dest-mac "01:1B:19:00:00:00" --result 0x0
ptpbridge --port 0 --set-key --key-index 17 --ethtype 0x88F7 --result 0x0
ptpbridge --port 0 --set-key --key-index 18 --ethtype 0x88F8 --result 0x0

The rules are pretty straight forward.

1) Port – 0 represents eth1. 2) Set-key is the command. 3) Key-index represents the index which needs to be programmed. 4) Result represents where the packet needs to be routed 0 -DMA0. 5) Others are the keys on which the search needs to be done.

Configure User Logic (Packet Client)¶

Packets which are generated for the User Logic (Packet Client) needs to be switched to the User Logic (Packet Client) so that they can be processed. Please execute following commands to respective development kits to configure the User Logic (Packet Client).

Development Kit 1¶

Command:

echo -e "Programming the PTP Bridge - Port 0 User packets to User port..."
packetgenerator --device /dev/uio0 --dest-mac "12:34:56:78:0A:2" --src-mac "12:34:56:78:0A:1"
ptpbridge --set-key --port 0 --key-index 19 --dest-mac "12:34:56:78:0A:1" --result 0x8

Development Kit 2¶

Command:

echo -e "Programming the PTP Bridge - Port 0 User packets to User port..."
packetgenerator --device /dev/uio0 --dest-mac "12:34:56:78:0A:1" --src-mac "12:34:56:78:0A:2"
ptpbridge --set-key --port 0 --key-index 19 --dest-mac "12:34:56:78:0A:2" --result 0x8

The first command sets the destination mac address and the source mac address that the packetgenerator uses to create L2 packets. The second command programs the ptpbridge to route the packets with these specific mac addresses to the correct user port (result = 0x8)

Configure DMA with IPV6 packets routing¶

The below rule setup the L2Bridge to route ipv6 packets for the HPS to the correct DMA.

Command:

ptpbridge --port 0 --set-key --key-index 20 --ethtype 0x86DD --result 0x0
ptpbridge --port 0 --set-key --key-index 21 --ethtype 0x86DD --protocol 0x3A  --result 0x0

Configure Egress QOS - TC¶

Egress QOS is provided by the Linux TC (traffic classification stack) along with the network stack. The below commands help us create an equivalent egress QOS rules on the system.

Creating TC- QDISC¶

For TC, we create a simple QDISC based TC that can be then attached with filters that can route egress packets to different DMA paths. Note that the design does packet routing to different DMA paths using the skb priority field which needs to be modified according to the requirements. Please execute the following commands to both the development kits.

Command:

tc qdisc add dev eth1 clsact

Configure Iperf packets switching to DMA¶

Command:

echo -e "Create Filters - IPERF 540X packets to DMA0..."
tc filter add dev eth1 egress prio 0 u32 match ip dport 5401 0xffff match ip protocol 6 0xff action skbedit priority 0
tc filter add dev eth1 egress prio 0 u32 match ip sport 5401 0xffff match ip protocol 6 0xff action skbedit priority 0

Ping packets switching to DMA¶

Ping packets can be switched to DMA-2 by looking at the protocol fields.

Command:

echo -e "Create Filters - ICMP packets to DMA0..."
tc filter add dev eth1 egress prio 0 u32 match ip protocol 1 0xff action skbedit priority 2

Once the setup is done, the setup can be tested using variety of tools like ping, iperf.

Testing¶

Link Testing - Ping¶

Use the ping command to verify the connectivity between both development kits. Start by getting the IP address of eth1 from both development kits:

Development kit 1, eth1 IP address: 192.168.121.1

Development kit 2, eth1 IP address: 192.168.121.2

Both IP addresses must belong to the same sub network in order to communicate between each other. Execute the following command to test the connectivity:

Development Kit 1¶

root@agilex5modular:~# ping -i 0.0001 -q -c 100000 -I eth1 192.168.121.2
PING 192.168.121.2 (192.168.121.2): 56 data bytes

--- 192.168.121.2 ping statistics ---
100000 packets transmitted, 100000 packets received, 0% packet loss
round-trip min/avg/max = 0.055/0.086/1.239 ms
root@agilex5modular:~# cat /proc/interrupts | grep eth1
 23:         51          0          0     100029     GICv3  51 Level     eth1
 24:          0          0          0      99985     GICv3  52 Level     eth1
root@agilex5modular:~#

Development Kit 2¶

root@agilex5modular:~# ping -i 0.0001 -q -c 100000 -I eth1 192.168.121.1
PING 192.168.121.1 (192.168.121.1): 56 data bytes

--- 192.168.121.1 ping statistics ---
100000 packets transmitted, 100000 packets received, 0% packet loss
round-trip min/avg/max = 0.054/0.086/1.361 ms
root@agilex5modular:~# cat /proc/interrupts | grep eth1
 23:         79          0          0     200032     GICv3  51 Level     eth1
 24:          0          0          0     199972     GICv3  52 Level     eth1
root@agilex5modular:~#

In the above example, we can see clearly that the ping packets have been routed to the DMA which is serviced by the last 2 interrupts.

iPerf3 Testing¶

Iperf can also be tested in the same way. Start the server on one devkit.

Development Kit 1¶

Command:

iperf3 -s -B 192.168.121.1 -p 5401 > /var/log/iperf.eth1.3 2>&1 &

Start iperf client on the other devkit to do Tx packet testing. Please note that due to the CPU architecture it is better to test iperf on CPU⅔ as they are better equipped to perform better. Please use taskset or other commands to pin the corresponding executables to the respective CPUs. The below command pins the iperf3 executables to CPU2.

Development Kit 2¶

Command:

iperf3 -M 1460 -c 192.168.121.1 -t 80000 -p 5401 --cport 5402 -w 102400 -A 2,2 -R

Output:

root@agilex5modular:~# iperf3 -M 1460 -c 192.168.121.1 -t 80000 -p 5401 --cport 5402 -w 102400 -A 2,2 -R
Connecting to host 192.168.121.1, port 5401
Reverse mode, remote host 192.168.121.1 is sending
[  5] local 192.168.121.2 port 5402 connected to 192.168.121.1 port 5401
[ ID] Interval           Transfer     Bitrate
[  5]   0.00-1.00   sec   114 MBytes   954 Mbits/sec
[  5]   1.00-2.00   sec   116 MBytes   970 Mbits/sec
[  5]   2.00-3.00   sec   115 MBytes   965 Mbits/sec
[  5]   3.00-4.00   sec   116 MBytes   973 Mbits/sec
[  5]   4.00-5.00   sec   113 MBytes   950 Mbits/sec
[  5]   5.00-6.00   sec   115 MBytes   967 Mbits/sec
[  5]   6.00-7.00   sec   116 MBytes   975 Mbits/sec
[  5]   7.00-8.00   sec   116 MBytes   972 Mbits/sec
[  5]   8.00-9.00   sec   114 MBytes   959 Mbits/sec
[  5]   9.00-10.00  sec   115 MBytes   965 Mbits/sec
[  5]  10.00-11.00  sec   115 MBytes   967 Mbits/sec
[  5]  11.00-12.00  sec   114 MBytes   954 Mbits/sec
[  5]  12.00-13.00  sec   116 MBytes   969 Mbits/sec
[  5]  13.00-14.00  sec   116 MBytes   971 Mbits/sec
[  5]  14.00-15.00  sec   116 MBytes   972 Mbits/sec
[  5]  15.00-16.00  sec   114 MBytes   955 Mbits/sec
[  5]  16.00-17.00  sec   115 MBytes   963 Mbits/sec
[  5]  17.00-18.00  sec   116 MBytes   975 Mbits/sec
[  5]  18.00-19.00  sec   115 MBytes   968 Mbits/sec
[  5]  19.00-20.00  sec   115 MBytes   964 Mbits/sec

From the above outputs we can clearly see that all iperf packets generated towards port 5401 is directed towards DMA-0. This is according to the rules set at the TC and the L2 Packet Switch (PTP Bridge).

User Logic (Packet client) Testing¶

User Logic Port (Packet client) can be started which pumps the user port with traffic. This traffic can go upto line rate which helps us to test the whole Architecture.

Command:

packetgenerator --device /dev/uio0 --traffic true --dyn-pkt-mode true --fixed-gap true --pkt-len-mode 0x01 --num-idle-cycles 8 --packet-checker true  --one-shot false --tx-pkt-size 512 --tx-max-pkt-size 512
packetgenerator --device /dev/uio0 --dump
packetgenerator --device /dev/uio0 --num-idle-cycles 16 --tx-pkt-size 1024 --tx-max-pkt-size 1024
packetgenerator --device /dev/uio0 --dump

Output:

root@agilex5modular:~# packetgenerator --device /dev/uio0 --traffic true --dyn-pkt-mode true --fixed-gap true --pkt-len-mode 0x01 --num-idle-cycles 8 --packet-checker true  --one-shot false --tx-pkt-size 512 --tx-max-pkt-size 512
Tx traffic state set: Enabled
Dynamic Packet Mode set: Enabled
Fixed Gap set: Enabled
Packet length mode set: 1
Number of Idle Cycles set: 8
Pkt Checker set: Enabled
One Shot mode set: Disabled
Tx Packet Size set: 512
Max Tx Packet Size set: 512
root@agilex5modular:~# packetgenerator --device /dev/uio0 --dump
Config Control: 0x8635
        Tx traffic: Enabled
        Packet Generation Mode: Continuous
        Soft Reset: Disabled
        Dynamic Mode: Enabled
        Pkt Checker: Enabled
        Counter Snapshot Status: Disabled
        Counter Clear Status: Disabled
        Internal Counter Clear Status: Disabled
        Fixed Gap: Enabled
        Packet Length Mode: Fixed
        Number of Idle Cycles: 8
Destination Mac Address: 12:34:56:78:0A:01
Source Mac Address: 12:34:56:78:0A:02
Number of Packets: 4294967295
Packet Size Config Control: 0x2000200
        Tx Packet Size: 512 Tx Max Packet Size: 512
Packet Generator Status: 0x1e
        SADB configuration status: Incomplete
        System Reset Sequence status: Complete
        HSSI SS tx_lanes_stable status: Asserted
        HSSI SS tx_pll_locked status: Asserted
        HSSI SS rx_pcs status: Asserted
Packet Checker Status: 0x0
        Data Mismatch status: Not seen
TX Start of Packet Count: 539935973
TX End of Packet Count: 539936120
TX Error Packet Count: 0
RX Start of Packet Count: 561194258
RX End of Packet Count: 561194326
RX Error Packet Count: 0
Pkt Checker Live Counter: 561194401
PKT TX Byte Count: 466666061288
PKT RX Byte Count: 446405608520
PKT TX Num Ticks Count: 58333275315
PKT RX Num Ticks Count: 61768849382
TX Bandwidth: 9166667008 bps
RX Bandwidth: 9166666368 bps
root@agilex5modular:~# packetgenerator --device /dev/uio0 --num-idle-cycles 16 --tx-pkt-size 1024 --tx-max-pkt-size 1024
Number of Idle Cycles set: 16
Tx Packet Size set: 1024
Max Tx Packet Size set: 1024
root@agilex5modular:~# packetgenerator --device /dev/uio0 --dump
Config Control: 0x10635
        Tx traffic: Enabled
        Packet Generation Mode: Continuous
        Soft Reset: Disabled
        Dynamic Mode: Enabled
        Pkt Checker: Enabled
        Counter Snapshot Status: Disabled
        Counter Clear Status: Disabled
        Internal Counter Clear Status: Disabled
        Fixed Gap: Enabled
        Packet Length Mode: Fixed
        Number of Idle Cycles: 16
Destination Mac Address: 12:34:56:78:0A:01
Source Mac Address: 12:34:56:78:0A:02
Number of Packets: 4294967295
Packet Size Config Control: 0x4000400
        Tx Packet Size: 1024 Tx Max Packet Size: 1024
Packet Generator Status: 0x1e
        SADB configuration status: Incomplete
        System Reset Sequence status: Complete
        HSSI SS tx_lanes_stable status: Asserted
        HSSI SS tx_pll_locked status: Asserted
        HSSI SS rx_pcs status: Asserted
Packet Checker Status: 0x0
        Data Mismatch status: Not seen
TX Start of Packet Count: 568783278
TX End of Packet Count: 568783350
TX Error Packet Count: 0
RX Start of Packet Count: 576930886
RX End of Packet Count: 576930954
RX Error Packet Count: 0
Pkt Checker Live Counter: 576931028
PKT TX Byte Count: 482780342520
PKT RX Byte Count: 462519915312
PKT TX Num Ticks Count: 60347560438
PKT RX Num Ticks Count: 64034923782
TX Bandwidth: 9166666496 bps
RX Bandwidth: 9166667328 bps
root@agilex5modular:~#

Number of idle cycles num-idle-cycles and tx packet length tx-pkt-size can be changed as required to get the target bandwidth. Please note that packetgenerator can also be started on the other devkit to generate Rx Traffic on the user port.

root@agilex5modular:~# packetgenerator --device /dev/uio0 --num-idle-cycles 6 --tx-pkt-size 1024 --tx-max-pkt-size 102
4
Number of Idle Cycles set: 6
Tx Packet Size set: 1024
Max Tx Packet Size set: 1024
root@agilex5modular:~# packetgenerator --device /dev/uio0 --dump
Config Control: 0x6635
        Tx traffic: Enabled
        Packet Generation Mode: Continuous
        Soft Reset: Disabled
        Dynamic Mode: Enabled
        Pkt Checker: Enabled
        Counter Snapshot Status: Disabled
        Counter Clear Status: Disabled
        Internal Counter Clear Status: Disabled
        Fixed Gap: Enabled
        Packet Length Mode: Fixed
        Number of Idle Cycles: 6
Destination Mac Address: 12:34:56:78:0A:01
Source Mac Address: 12:34:56:78:0A:02
Number of Packets: 4294967295
Packet Size Config Control: 0x4000400
        Tx Packet Size: 1024 Tx Max Packet Size: 1024
Packet Generator Status: 0x1e
        SADB configuration status: Incomplete
        System Reset Sequence status: Complete
        HSSI SS tx_lanes_stable status: Asserted
        HSSI SS tx_pll_locked status: Asserted
        HSSI SS rx_pcs status: Asserted
Packet Checker Status: 0x0
        Data Mismatch status: Not seen
TX Start of Packet Count: 665621143
TX End of Packet Count: 665621221
TX Error Packet Count: 0
RX Start of Packet Count: 675105489
RX End of Packet Count: 675105562
RX Error Packet Count: 0
Pkt Checker Live Counter: 675105641
PKT TX Byte Count: 581951256920
PKT RX Byte Count: 563050728328
PKT TX Num Ticks Count: 72743926111
PKT RX Num Ticks Count: 77961399687
TX Bandwidth: 9852729856 bps
RX Bandwidth: 9808429056 bps
root@agilex5modular:~#

Simulation¶

The Agilex™ 5 FPGA E-Series Modular Development Kit 1x10G Ethernet System Example Design includes a comprehensive suite of standalone hardware design UVM simulation tests. These tests enable verification of the Quartus® Design project within a UVM (Universal Verification Methodology) environment, providing thorough validation of the system's functionality and performance characteristics.

The UVM test suite offers a structured approach to hardware verification, allowing users to execute comprehensive simulation scenarios that validate the design's behavior under various operating conditions and use cases.

Tools/IP Pre-requisites¶

Following 3^rd Party tools and dependent 3^rd Party Verification IPs with thier valid licenses are required to execute Design UVM Simulation Test cases.

Design Tool /Verification IP	Version
Synopsys VCS* Tool	U-2023.03-SP2-1
Altera® Quartus® Prime Pro Tool	25.1
Synopsys Verdi* Tool	U-2023.03-SP2-1
AXI4 Synopsys Verification IP	U-2023.03

It is mandatory to define these parameter variables and their installation location by the user as shown in the Section Configuring UVM environment before proceeding to simulation.

Simulation Directory¶

$TOP_FOLDER/src/hw/verification

Simulation UVM Testing¶

This Design provides 4 test simulation cases to evaluate design functionality in UVM simulation environment.

HPS Ethernet Traffic Test.
User Logic (Packet Client) Ethernet Traffic Test.
HPS and User Logic (Packet Client) concurrent Ethernet Traffic Test.
SFP controller Test.

1. HPS Ethernet Traffic Test¶

This test validates the DMA-based data transfer path from the HPS host memory to the Ethernet subsystem. The test sequence initiates DMA operations to fetch data from HPS host memory and transmit it through the Ethernet subsystem. The DUT's internal loopback mechanism triggers the RX DMA to receive the transmitted data and write it back to host memory. The test configures payload lengths and descriptor counts to thoroughly exercise the TX/RX FIFO depth capabilities. This test case operates with descriptor polling disabled in the DMA path configuration.

Test Case Sequence identifier : sm_eth_h2d0_fifo_depth_cover_seq.sv

2. User Logic (Packet Client) Ethernet Traffic Test¶

This test validates traffic generation and reception through the user client (Packet Client) interface. The test sequence initiates traffic generation from the user client, which transmits data to the Ethernet subsystem. Through the DUT's loopback, the transmitted data returns to the user client (Packet Client) for reception verification.

Test Case Sequence identifier : sm_eth_user0_seq.sv

3. HPS and User Logic (Packet Client) concurrent Ethernet Traffic Test¶

This Ttest validates simultaneous operation of both User Logic (Packet Client) and HPS DMA paths. The test sequence generates concurrent traffic on both the user client interface and the DMA path, with each descriptor configured for 64-byte payloads. This test case operates with descriptor polling disabled in the DMA path configuration.

Test Case Sequence identifier : sm_eth_all_ports_64B_traffic_seq.sv

The following test cases validate DMA path functionality with descriptor polling enabled:

Test Case Sequence identifier : sm_eth_h2d0_path_poll_en_seq.sv

Test Case Sequence identifier : sm_eth_all_ports_dma_desc_poll_en_seq.sv

4. SFP controller Test¶

This test case validate the SFP controller's I2C communication functionality. The test sequences configure the I2C TFR_CMD register to initiate I2C read operations from the controller. The controller then retrieves the read data from the SFP controller CSR register space. The DMA path configuration operates with descriptor polling disabled for these test cases.

Test Case Sequence identifier : sm_eth_sfp_a0_fifo_read_seq

Test Case Sequence identifier : sm_eth_sfp_a2_fifo_read_seq

Enhanced SFP Controller Test with Polling

The following test case enables the poller FSM for both A0 and A2 pages. Upon simulation completion, the system retrieves the read data from the shadow register space.

Test Case Sequence identifier : sm_eth_sfp_a0_a2_poll_enable_seq

Configuring UVM environment¶

Set the environment variables for simulation these can be set by modifying setup.sh with values from user setup environment.This setup.sh can be found in below path.

$TOP_FOLDER/src/hw/verification/setup.sh

Paramater variable which are essential for simulation as list below.

export ROOTDIR=$TOP_FOLDER/src/hw
export WORKDIR=$ROOTDIR
export QUARTUS_HOME=$QUARTUS_ROOTDIR
export QUARTUS_INSTALL_DIR=$QUARTUS_ROOTDIR
export DESIGNWARE_HOME=<synopsys vip location>
export VERDIR=$WORKDIR/verification
export DESIGN=src
export DESIGN_DIR=$ROOTDIR/$DESIGN/
export VCS_HOME=<Synopsys VCS simulation installation dir>
export UVM_HOME=$VCS_HOME/etc/uvm-1.2

Simulating Test cases¶

This section outlines the step-by-step procedures for simulating each of the test cases listed above.

Pre-requisites¶

Navigate to the verification scripts directory:

cd $ROOTDIR/verification/scripts

Invoke Altera® Quartus®, Synopsys VCS* and Synopsys Verdi tool licenses.

Simulation Steps¶

Initial Compilation (One-time Setup)

Execute this command when compiling the DUT for the first time or after any IP changes:
```
make -f Makefile.mk cmplib
```
Note: This is a one-time operation required only during initial setup or when IP modifications occur.
Build DUT and Testbench

Compile and elaborate the Design Under Test (DUT) and testbench:
```
make -f Makefile.mk build
```

Execute Test Sequence

Run a specific test sequence using the following command:

make -f Makefile.mk run SEQNAME=<sequence_identifier>

EX:

make -f Makefile.mk run SEQNAME=sm_eth_all_ports_64B_traffic_seq

Combined Build and Run (Alternative)

Steps 2 and 3 can be combined into a single command for efficiency:
```
make -f Makefile.mk build run SEQNAME=sm_eth_all_ports_64B_traffic_seq
```

Waveform Generation¶

To enable waveform dumping, add the DUMP=1 option to the build and run commands.

Method 1: Separate Build and Run Commands

make -f Makefile.mk build DUMP=1
make -f Makefile.mk run SEQNAME=sm_eth_all_ports_64B_traffic_seq DUMP=1

Method 2: Combined Command

make -f Makefile.mk build run SEQNAME=sm_eth_all_ports_64B_traffic_seq DUMP=1

Command Reference Summary¶

Operation	Command
Initial compilation	`make -f Makefile.mk cmplib`
Build DUT/Testbench	`make -f Makefile.mk build`
Run Test sequence	`make -f Makefile.mk run SEQNAME=<sequence_identifier>`
Combined build/run	`make -f Makefile.mk build run SEQNAME=<sequence_identifier>`

Enable waveform dump Add DUMP=1 to any build/run command.

Replace <sequence_identifier> with the appropriate Test Case Sequence identifier for your specific test case.

Results¶

Simulation of each of the test cases listed above can be carried out from below steps.

cd $ROOTDIR/verification/scripts
Below is a one time run that needs to be given when compiling the DUT for the first time or if there is any change in the IP

make -f Makefile.mk cmplib
Run below make commands to compile and elaborate the DUT and TESTBENCH

make -f Makefile.mk build
Run below command to run a sequence

make -f Makefile.mk run SEQNAME=<sequence name>

Eg: make -f Makefile.mk run SEQNAME=sm_eth_all_ports_64B_traffic_seq
Steps 3 and 4 can be combined and run in a single step

make -f Makefile.mk build run SEQNAME=sm_eth_all_ports_64B_traffic_seq
Dumping a waveform Please add option DUMP=1 to steps 3 and 4 or step 5 to enable waveform dumping

Eg 1:

make -f Makefile.mk build DUMP=1

make -f Makefile.mk run SEQNAME=sm_eth_all_ports_64B_traffic_seq DUMP=1

Eg 2:

make -f Makefile.mk build run SEQNAME=sm_eth_all_ports_64B_traffic_seq DUMP=1

Output Directory Structure¶

The simulation framework stores test results in $ROOTDIR/verification/sim.

When the library compilation step (step 2) executes again, the system automatically renames the existing sim directory to sim.# where # represents an incremental number.

A fresh sim directory is then created for new results

The system saves logs and waveform files in $ROOTDIR/verification/sim/<sequence_identifier> directory

When running the same sequence multiple times, the system preserves previous results by renaming the existing sequence directory to $ROOTDIR/verification/sim/<sequence_identifier>.#.

A new $ROOTDIR/verification/sim/<sequence_identifier> directory is created for the current run.

This versioning system ensures that historical simulation data remains accessible while providing a clean workspace for new test executions.

References¶

Notices & Disclaimers¶

Altera® Corporation technologies may require enabled hardware, software or service activation. No product or component can be absolutely secure. Performance varies by use, configuration and other factors. Your costs and results may vary. You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Altera or Intel products described herein. You agree to grant Altera Corporation a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject matter disclosed herein. No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document, with the sole exception that you may publish an unmodified copy. You may create software implementations based on this document and in compliance with the foregoing that are intended to execute on the Altera or Intel product(s) referenced in this document. No rights are granted to create modifications or derivatives of this document. The products described may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request. Altera disclaims all express and implied warranties, including without limitation, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or usage in trade. You are responsible for safety of the overall system, including compliance with applicable safety-related requirements or standards. © Altera Corporation. Altera, the Altera logo, and other Altera marks are trademarks of Altera Corporation. Other names and brands may be claimed as the property of others.

OpenCL*and the OpenCL* logo are trademarks of Apple Inc. used by permission of the Khronos Group™.

Last update: September 16, 2025
Created: September 16, 2025
