Multi-Channel 25GbE Precision Time Protocol System Example Design

Introduction

The Precision Time Protocol (PTP) synchronizes clocks across networked devices to maintain a unified and precise time reference. In systems where components must coordinate actions —such as logging, data exchange, or event triggering— PTP ensures consistent timing, enabling deterministic operations and improving overall system integrity.

Agilex™ 7 I-Series is designed to operate as a PTP network node configured as an Ordinary Clock, Boundary Clock or Transparent Clock, as defined by IEEE 1588-2008 - Standard for a Precision Clock Synchronization Protocol for Networked Measurement and Control Systems.

The details of Precision Time Protocol are beyond the scope of this document. For comprehensive information, refer to the 1588-2008 - IEEE Standard for a Precision Clock Synchronization Protocol for Networked Measurement and Control Systems.

System Example Design Overview

The Multi-Channel 25GbE Precision Time Protocol System Example Design includes two Ethernet ports with built-in 2-step hardware PTP timestamping capabilities. The integrated Agilex™ 7 Hard Processor System (HPS) operates a PTP software stack that complements the hardware-based timestamping functionality.

The System Example Design (SED) provides the necessary drivers and user applications to support the Linux Network stack, the Linux PTP stack, and network Quality of Service (QoS) through the Linux kernel Traffic Control (TC) system. T-BC and T-TSC conformance test reports are available with the SED binaries.

The system's primary components include:

• Golden Hardware Reference Design (GHRD)
• Reference HPS software including:
  • Arm Trusted Firmware
  • U-Boot
  • Linux Kernel
  • Linux Drivers
  • User Space Applications

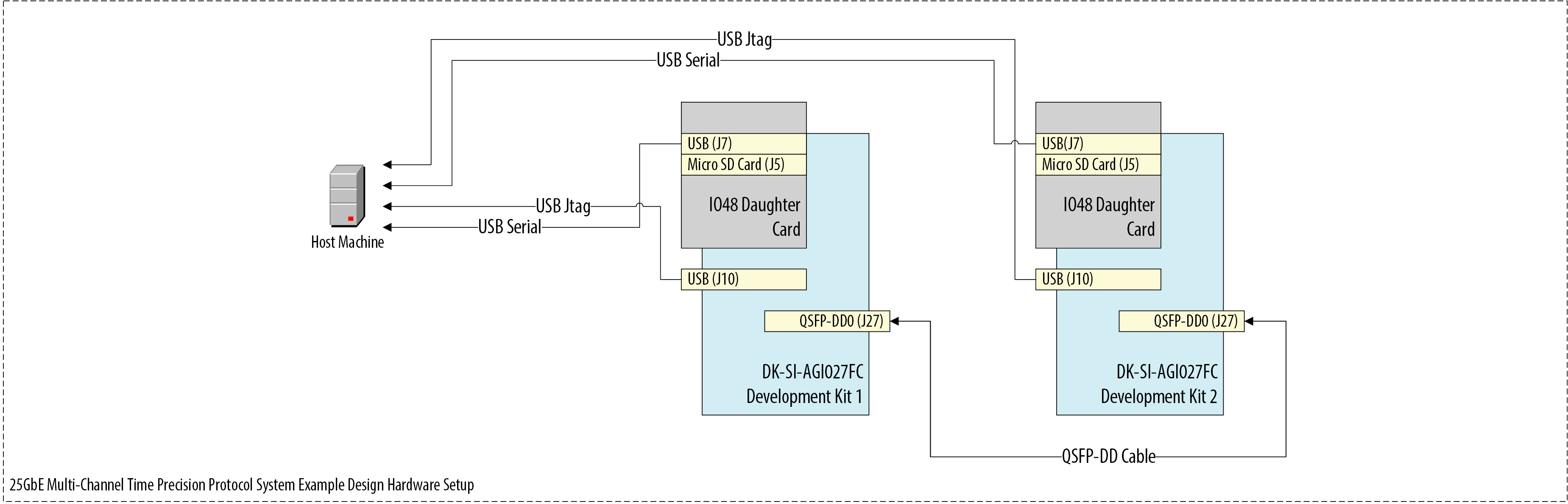

The high-level hardware setup for the system example design is shown below:

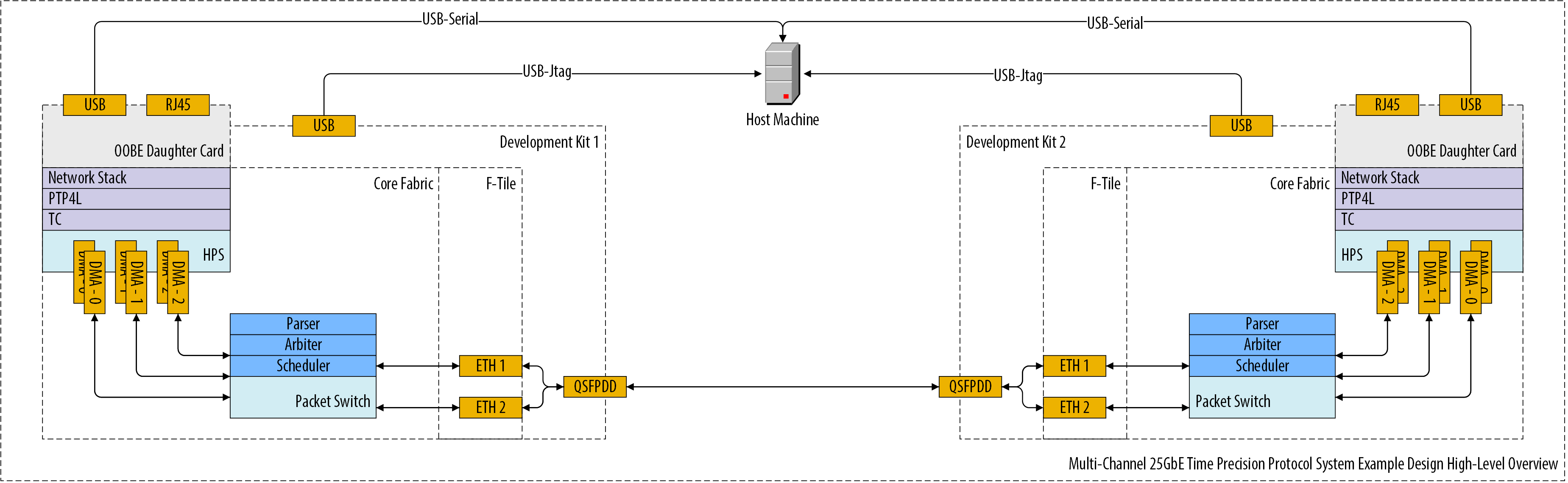

Figure 1. Multi-channel 25GbE Precision Time Protocol system example design hardware setup

Glossary

Acronym	Full Form
PTP	Precision Time Protocol
SED	System Example Design
ToD	Time of Day
mSGDMA	Modular Scatter-Gather DMA
QoS	Quality of Service
AVST	Avalon Streaming
AXI	Advanced eXtensible Interface
CDC	Clock Domain Crossing
ETS	Egress Timestamp
ITS	Ingress Timestamp
TS	Timestamp
FP	Fingerprint
NVM	Non Volatile Memory
GHRD	Golden Hardware Reference Design
GSRD	Golden Software Reference Design

Prerequisites

This system example design builds upon the Golden System Reference Design (GSRD) for the Agilex™ 7 I-Series Transceiver-SoC Development Kit (4x F-Tile). It is recommended to familiarize yourself with the GSRD development flow before proceeding with this document.

The following items are required to fully exercise the SED:

• Agilex™ I-Series Transceiver-SoC Development Kit (4x F-Tile) (DK-SI-AGI027FC) x 2.

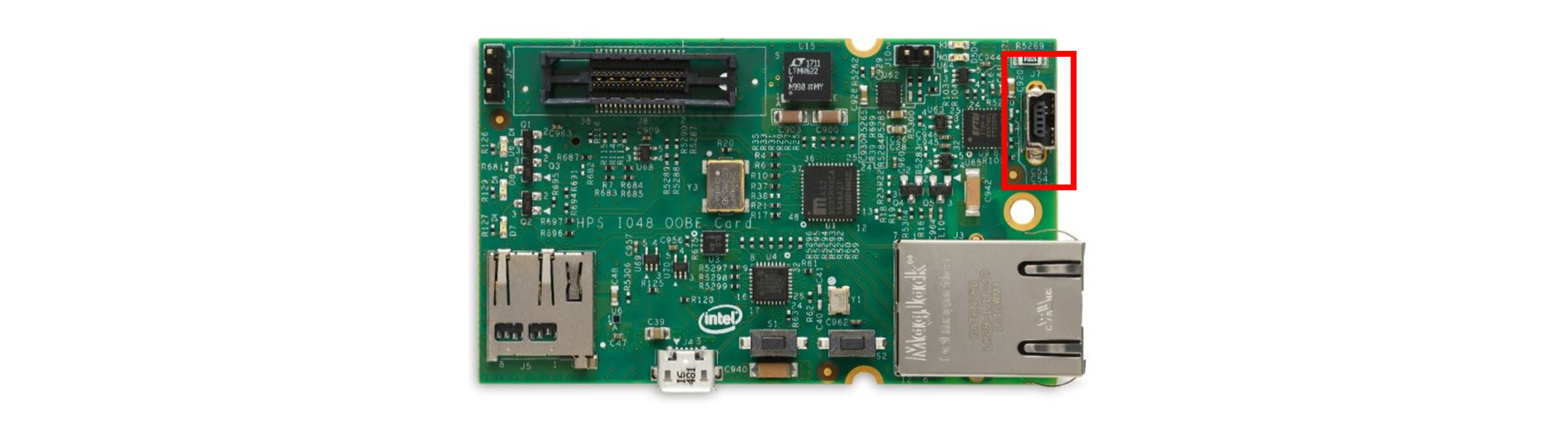

  • HPS IO48 OOBE daughter card x 2.
  • Micro USB cable for serial output x 2.
  • USB Type B cable for on-board FPGA Download Cable II x 2.
  • Micro SD card (4GB or greater) x 2.
  • Mini USB cable for OOBE daughter card serial port x 2.
  • 100G QSFP Cable. Design tested with:
    • FS (Q28-AO05) - 5m (16ft) 100G QSFP28 Active Optical Cable.
    • FS (Q28-PC01) - 1m (3ft) 100G QSFP28 Passive Direct Attach Copper Twinax Cable
• Host PC with:
  • OS Ubuntu 22.04 LTS. System example design source files were compiled using Ubuntu 22.04 LTS. Other versions and distributions may also be compatible.
  • Serial terminal software (e.g., Minicom on Linux, Tera Term or PuTTY on Windows) is required.
  • Micro SD card slot or Micro SD card writer/reader
  • Altera Quartus Prime Pro 25.1.1

U-Boot and Linux compilation, Yocto build, and SD card image creation require a Linux host PC. All other operations can be performed on either Windows or Linux.

Release Contents

Binaries

Release notes and pre-built binaries are available under the GitHub repository release.

File	Description
calnex_conformance_test_report_f-tile_25g.zip	T-BC and T-TSC conformance test reports
images.zip	Pre-compiled bitstream files for system example design devices.
sdimage.tar.gz	SD binary image containing Linux boot files.
Source code (zip)	System example design source files provided as a ZIP archive
Source code (tar.gz)	System example design source files provided as a TAR GZ archive

Sources

Component	Location	Branch	Commit ID/Tag
GHRD	https://github.com/altera-fpga/agilex7-ed-ptp-mcqos-25g/tree/main/agi027fc-si-devkit/src/hw		SED-2x25GE-1588PTP-MCQOS-agi027fc-si-devkit-Q25.1.1-Rel-1.1
Linux	https://github.com/altera-fpga/linux-socfpga	socfpga-6.12.19-lts-ethernet-sed	SED-2x25GE-1588PTP-MCQOS-agi027fc-si-devkit-Q25.1.1-Rel-1.1
Arm Trusted Firmware	https://github.com/altera-fpga/arm-trusted-firmware	socfpga_v2.11.0	9aee18305b73651b74301483510c29fef9ce23ce
U-Boot	https://github.com/altera-fpga/u-boot-socfpga	socfpga_v2024.04	135e53726d3dfbe55b4d61c2bf3fdf32cdc372e5
Yocto Project: poky	https://git.yoctoproject.org/poky/	scarthgap	d1c25a3ce446a23e453e40ac2ba8f22b0e7ccefd
Yocto Project: meta-intel-fpga	https://git.yoctoproject.org/meta-intel-fpga/	scarthgap	9714ae1ef8f22302bac60b7d2081bbdf3199ca70
Yocto Project: meta-intel-fpga-refdes	https://github.com/altera-fpga/meta-intel-fpga-refdes/	scarthgap	bffc5bc012f1653beb58878b54b44e74b0f27404
Yocto Project: meta-agilex7-sed	https://github.com/altera-fpga/agilex7-ed-ptp-mcqos-25g/tree/main/agi027fc-si-devkit/src/sw/yocto/meta-agilex7-sed	scarthgap	SED-2x25GE-1588PTP-MCQOS-agi027fc-si-devkit-Q25.1.1-Rel-1.1
GSRD Build Script: gsrd-socfpga	https://github.com/altera-fpga/agilex7-ed-ptp-mcqos-25g/tree/main/agi027fc-si-devkit/src/sw/yocto/build.sh		SED-2x25GE-1588PTP-MCQOS-agi027fc-si-devkit-Q25.1.1-Rel-1.1

Release Notes

Multi-Channel 25GbE Precision Time Protocol System Example Design Release Notes.

Multi-Channel 25GbE Precision Time Protocol System Example Design Architecture

Hardware Architecture

Figure 2 illustrates the high-level architecture of the system example design. The main components include:

• HPS Subsystem
• DMA Subsystem
• Packet Switch Subsystem (Also referred to as the PTP Bridge Subsystem)
• Ethernet Subsystem
• Main Time Of the Day Subsystem
• Subordinate Time Of the Day Subsystem
• Ethernet Packet Generators

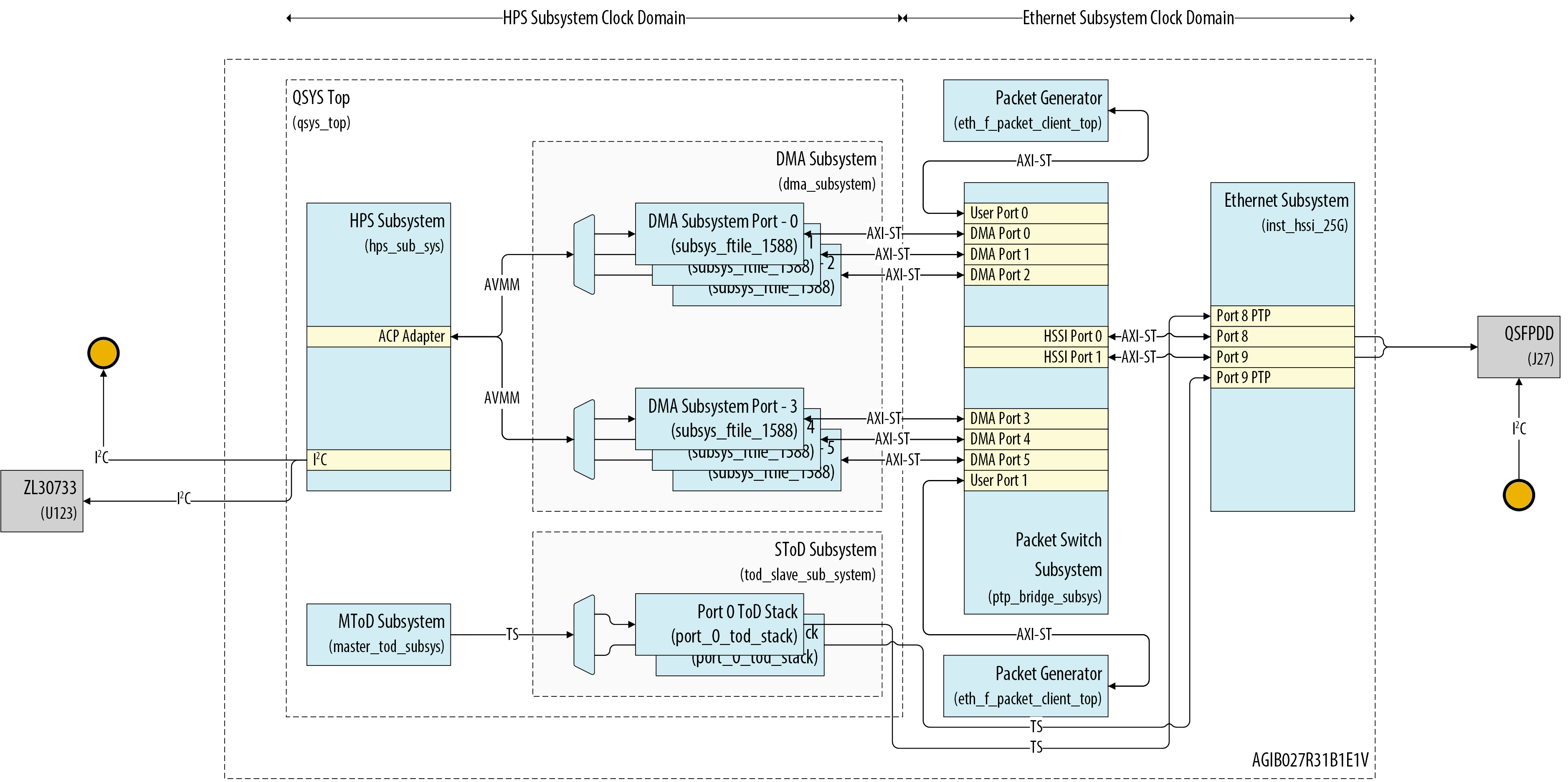

Figure 2. Multi-Channel 25GbE Precision Time Protocol SED High Level Hardware Architecture

HPS Subsystem

The HPS Subsystem, built around the Agilex™ 7 Hard Processor System (HPS) and supporting logic, manages PTP synchronization and handles Time of Day (ToD) adjustments. It also provides access to status and control registers for other system components.

The subsystem communicates with onboard components via its peripherals, using an I2C bus to monitor and configure the QSFP28 module. It also controls the Microchip Microchip ZL30733 PTP & SyncE Network Synchronizer over the same bus, performing phase and frequency adjustments to maintain system-wide timing accuracy.

Ethernet Subsystem

This module instantiates the Ethernet Subsystem FPGA IP. Refer to its user guide for details.

DMA Subsystem

The DMA Subsystem uses mSGDMA engines to transfer data between the HPS and the Ethernet Subsystem. It includes six DMA Ports, each with two Channels for transmit (TX) and receive (RX) traffic. These channels natively handle PTP timestamps and fingerprints.

The subsystem groups DMA Ports into sets of three, assigning each group to one Ethernet port in the Ethernet Subsystem. It also translates protocols between Avalon® Streaming (AVST) and AXI-Stream (AXI-ST) interfaces, and performs clock domain crossing between the HPS Subsystem and Ethernet Subsystem clock domains. Figure 3 shows a high level architecture diagram of one of the DMA Subsystem ports.

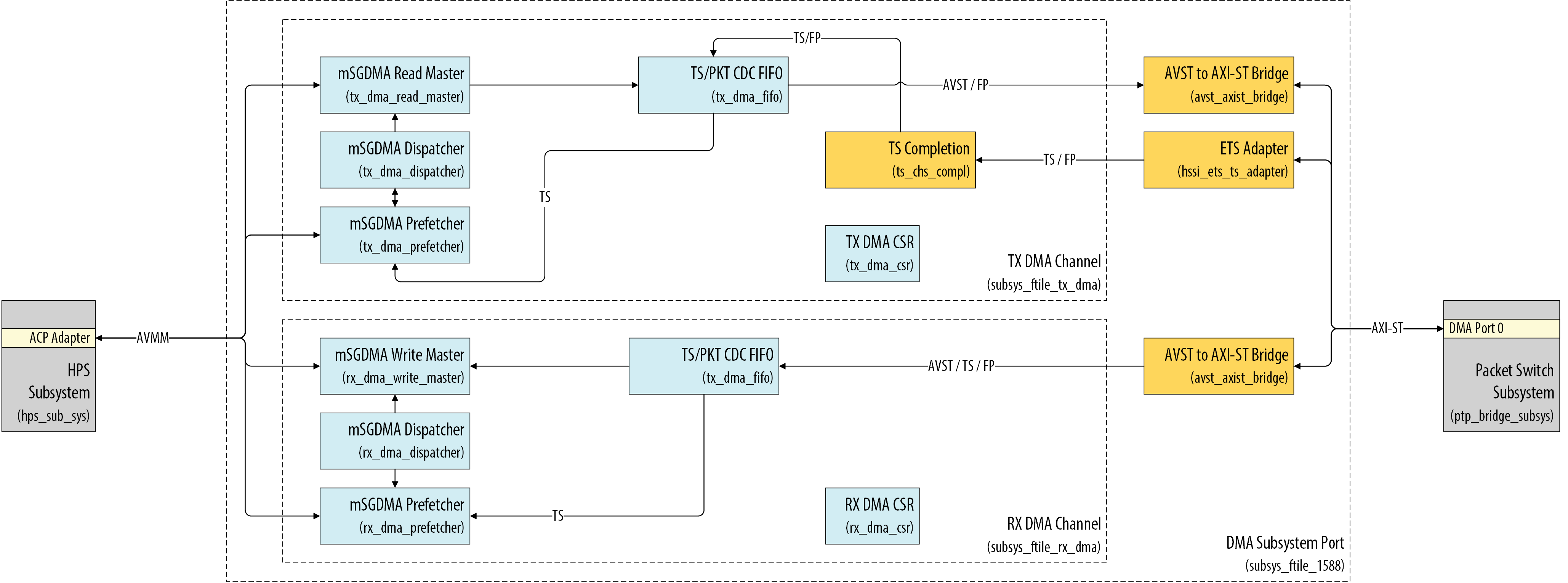

Figure 3. DMA Subsystem Port High Level Architecture

Packet Switch Subsystem

The Packet Switch Subsystem implements an L2–L4 Ethernet packet switch that arbitrates among four client interfaces per port, connecting three DMA engines and a traffic generator to the transmit path. On the receive path, packet routing between ports and clients is handled by a Ternary Content-Addressable Memory (TCAM), with rules dynamically configurable via software. By default, packets without a TCAM match are dropped for security reasons. For matched entries, the Packet Switch subsystem routes packets to either a DMA Port or a User Port (Traffic Generator).

The TX datapath arbitration ignores Ethernet packet type and uses a weighted priority round-robin scheme to manage requests from DMA and User Port. Figure 4 illustrates the high-level architecture of the Packet Switch transmitter path. On the transmit path, the Ethernet Subsystem returns the egress timestamp (ETS) for each packet along with its corresponding fingerprint for tracking.

The RX datapath does not implement priority-based arbitration. Instead, traffic priority to the HPS is software-defined, with each DMA Port represented as a queue and assigned a configurable priority level. Figure 5 illustrates the high-level architecture of the Packet Switch receiver path.

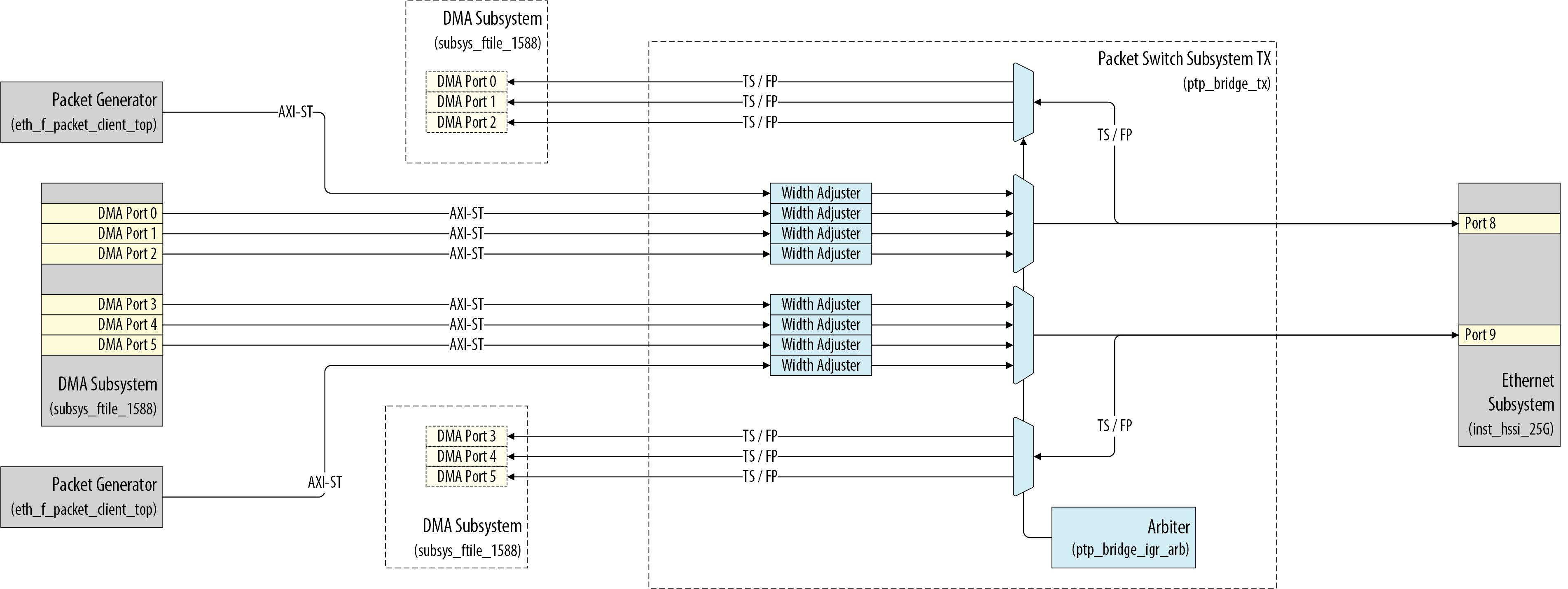

Figure 4. Packet Switch Subsystem TX Datapath High Level Architecture

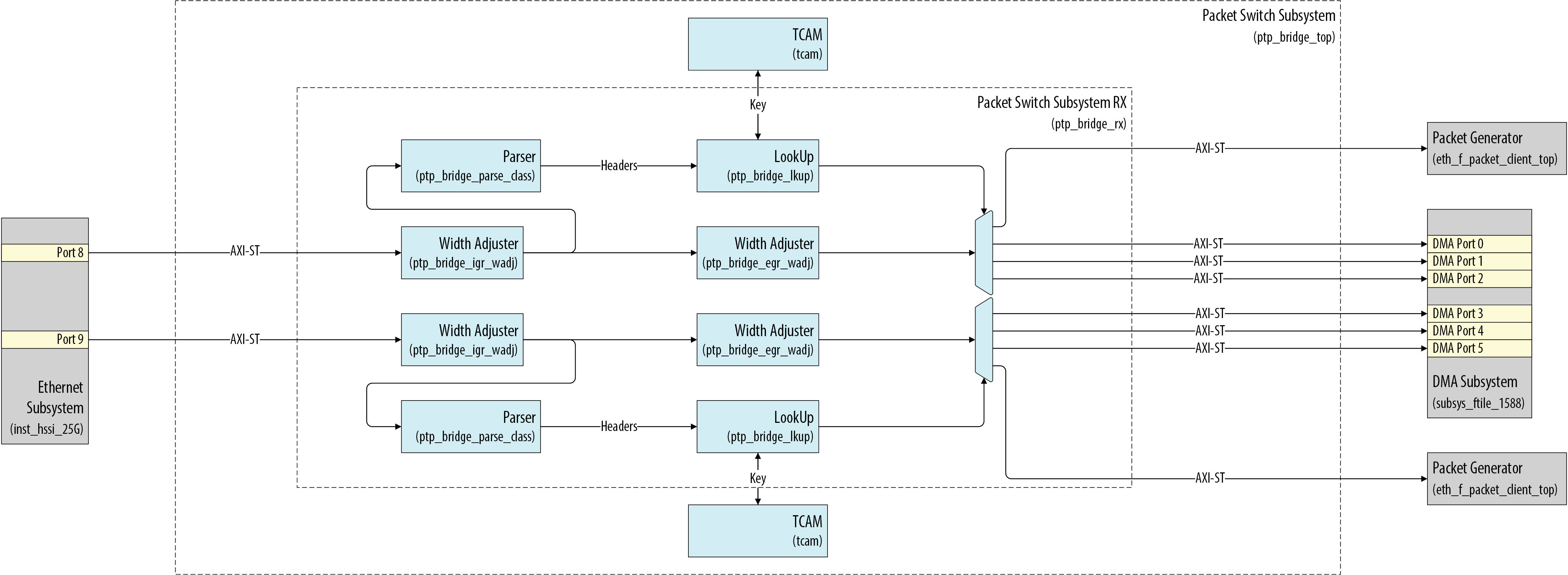

Figure 5. Packet Switch Subsystem RX Datapath High Level Architecture

TCAM Data Structure

The TCAM supports lookups using Ethernet frame headers, protocol headers, and IEEE 1588-specific fields.

The table below lists the 492-bit TCAM key fields. If a packet lacks a corresponding header field, the key field is set to 0. Otherwise, the Packet Switch parser populates the field with extracted data. Unused bits from shorter headers are also zeroed.

Field	Width (bits)	Description
rsvd	32	Reserved.
flagField	16	flagField field in PTP header.
messageType	4	messageType field in PTP header.
ip_protocol	8	IP header protocol field, defined as Protocol in IPv4 or next_header in IPv6.
ethtype	16	Ethernet header ethtype
		dot2q: (eth.{da,sa}) / (vlana.{tpid,tci}) / (vlanb.{tpid,tci}) / ethtype dot1q: (eth.{da,sa}) / (vlana.{tpid,tci}) / ethtype eth: (eth.{da,sa,ethtype}) - ethtype = ethtype
tci_vlana	16	TCI field for VLAN A in IEEE 802.1Q frames
		dot2q: (eth.{da,sa}) / (vlana.{tpid,tci}) / (vlanb.{tpid,tci}) / ethtype - tci_vlana = vlana.tci dot1q: (eth.{da,sa}) / (vlana.{tpid,tci}) / ethtype - tci_vlana = vlana.tci eth: (eth.{da,sa,ethtype}) - tci_vlana = '0
tci_vlanb	16	TCI field for VLAN B in IEEE 802.1Q frames
		dot2q: (eth.{da,sa}) / (vlana.{tpid,tci}) / (vlanb.{tpid,tci}) / ethtype - tci_vlanb = vlanb.tci dot1q: (eth.{da,sa}) / (vlana.{tpid,tci}) / ethtype - tci_vlanb = '0 eth: (eth.{da,sa,ethtype}) - tci_vlanb = '0
l4_src_port	16	L4 header source port.
		- l4_src_port = udp.sport - l4_src_port = tcp.sport
l4_dst_port	16	L4 header destination port.
		- l4_dst_port = udp.dport - l4_dst_port = tcp.dport
src_ip	128	L3 source address field.
		IPv4: - src_ip[31:0] = ipv4.src_ip, src_ip[127:32] = '0 IPv6: - src_ip[127:0] = ipv6.src_ip
dst_ip	128	L3 destination address field.
		IPv4: - dst_ip[31:0] = ipv4.dst_ip, dst_ip[127:32] = '0 IPv6: - dst_ip[127:0] = ipv6.dst_ip
src_mac	48	Ethernet header source MAC address.
		- src_mac = eth.sa
dst_mac	48	Ethernet header destination MAC address.
		- dst_mac = eth.da

Table 1. TCAM Key Fields

The Linux ptpbridge user application provides access to the TCAM key registers from the OS, removing the complexity of doing low level access to the Packet Switch IP.

The table below defines the structure of a TCAM query result. This data is used to route in-transit packets to the destination port specified by the matching TCAM rule.

Field	Width (bits)	Description
rsvd	27	Reserved.
drop	1	Drop packet.
egr_port	4	Selects which egress port to send traffic. 4’d0: MSGDMA Channel 0 4’d1: MSGDMA Channel 1 4’d2: MSGDMA Channel 2 4’d3 – 4’d7: reserved 4’d8: User 4’d8 – 4’d15: reserved

Table 2. TCAM Query Result Fields

Main Time Of the Day Subsystem & Subordinate Time Of the Day Subsystem

The Main ToD Subsystem wraps the IEEE 1588 Time of Day Clock FPGA IP and its support logic, serving as the system’s local ToD reference. The IP is configured for Accuracy Advanced mode and uses the IOPLL Reconfig FPGA IP, as described in the IOPLL and TOD Setup using IOPLL Reconfig IP chapter of the Ethernet Design Example Components User Guide.

The Subordinate ToD Subsystem instantiates a dedicated IEEE 1588 Time of Day Clock FPGA IP per Ethernet interface and integrates an IEEE 1588 TOD Synchronizer FPGA IP to present timestamps in the Ethernet clock domain, as described in the PTP Timestamp Accuracy in Advanced Mode chapter of the F-Tile Ethernet Hard IP User Guide.

Ethernet Packet Generators

Two system blocks can generate Ethernet packets. The HPS produces PTP packets when the ptp4l service is enabled and can optionally generate synthetic traffic via ping or iperf3. Additionally, two hardware traffic generators can saturate Ethernet bandwidth with synthetic traffic when enabled by HPS software.

SED Custom IP

Block	Entity Name	Description
AVST to AXI Bridge	avst_axist_bridge	AVST to AXI bridge facilitating data transfer between the DMA channels and the Ethernet Subsystem. The bridge operates bidirectionally, providing AXI to AVST translation for data flowing from the Ethernet Subsystem to the DMA channels. It is a single block servicing both TX and RX DMA channels.
TX DMA Fifo	tx_dma_fifo	Top-level wrapper for custom blocks in the TX DMA Datapath.
TX ETS Adapter	hssi_ets_ts_adapter	Adapts the egress timestamp and fingerprint from the Ethernet Subsystem to a format manageable by the TX DMA channel.
TX DMA PKT FIFO	cdc_packet_fifo	Dual clock FIFO for clock domain crossing of packet information from the DMA channel to the Ethernet Subsystem.
TX FP Generator	tx_dma_fifo	Sequential fingerprint generator. A fingerprint will be generated for all packet going out of the system. This is combinational logic inside the 'tx_dma_fifo' module.
TX TS Valid	tx_dma_fifo	Logic that inserts egress timestamps into the MSGDMA prefetcher. This is combinational logic inside the 'tx_dma_fifo' module.
TX TS/FP FIFO	fp_resp_fifo/ts_fifo	Two independent FIFOs to store the returned egress timestamp and its corresponding fingerprint.
TX Completion	ts_chs_compl	Timestamp completion follow-up module. Captures FP and TS from the HSSI subsystem and forwards them to the TX DMA FIFO module if they are valid.
FP Compare	ts_chs_compl	Combinational logic that tracks fingerprints returned by the HSSI Subsystem to validate and return the associated egress timestamp.
TX TS FIFO	ts_fifo	FIFO to store the returned egress timestamp.
RX DMA Fifo	rx_dma_fifo	Top-level wrapper for custom blocks in the RX DMA Datapath.
RX TS Valid	rx_dma_fifo	Logic that inserts ingress timestamps into the MSGDMA prefetcher. This is combinational logic inside the 'rx_dma_fifo' module.
RX DMA PKT FIFO	cdc_packet_fifo	Dual clock FIFO for clock domain crossing of packet information from the Ethernet Subsystem to the DMA channel.
RX TS FIFO	ts_fifo	Single clock FIFO to store ingress timestamps from the Ethernet Subsystem.
Main ToD	eth_f_mtod_top	Wrapper for the Ethernet IEEE 1588 Time of Day Clock FPGA IP. Includes a state machine that flags when the Main ToD Subsystem output is valid for the ToD Subordinate Subsystem to consume.
Packet Generator	eth_f_packet_client_top	Generic Ethernet packet generator/checker. Packet generation parameters are configurable at runtime via software.
Packet Generator Adaptor	eth_f_packet_client_top_axi_adaptor	Provides translation services between AVST and AXI-ST for the system Packet Generators.
Packet Switch	ptp_bridge_subsys	Top level wrapper for TCAM, arbitration and routing logic to handle the system TX/RX data path

Board Level Clocking Architecture

At the board level, the system clocking architecture includes the following components:

• Microchip ZL30733 PTP & SyncE Network Synchronizer (U123)
• Oven Controlled Crystal Oscillator (OCXO) (X2)
• Agilex™ 7 AGIB027R31B (U1)
• Si5332 Low-Jitter Clock Generator (U19)

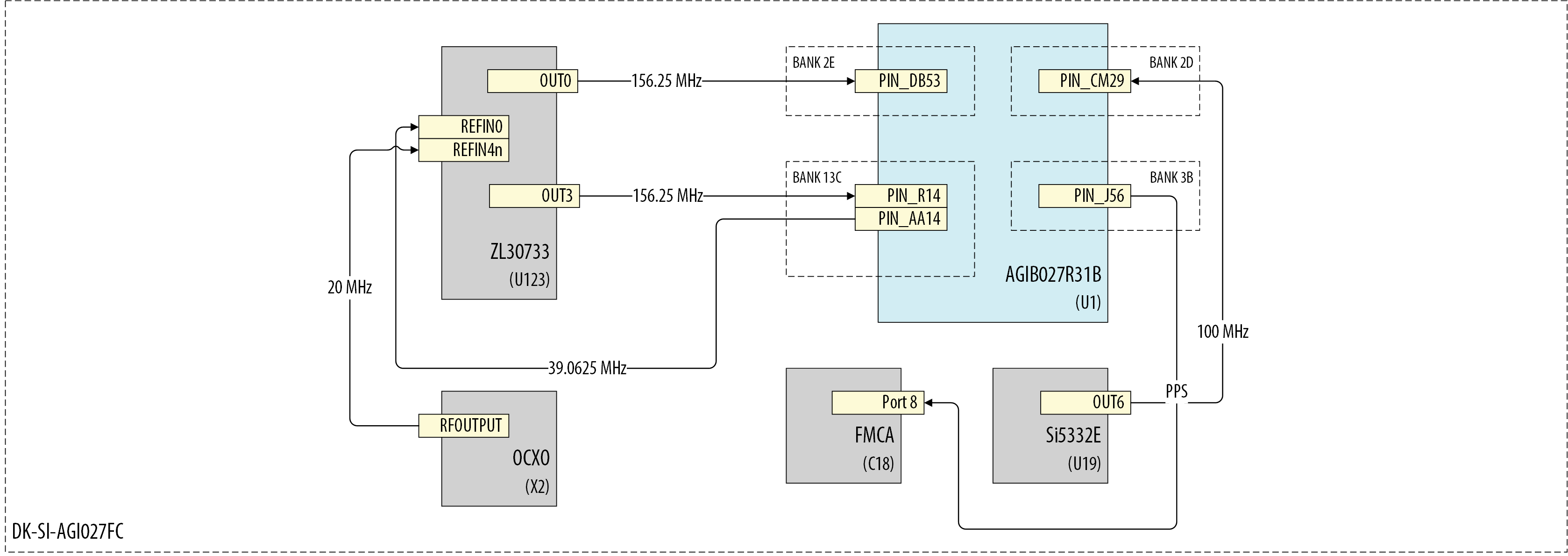

Figure 6. Board High Level Clocking Architecture

On power-up, the Microchip ZL30733 PTP & SyncE Network Synchronizer load its configuration profile from internal non-volatile memory (NVM). The default profile doesn't contain the correct configuration needed for the system example design components. At boot time, the HPS establishes access to the ZL30733 via I2C and proceeds to load the correct profile for the system.

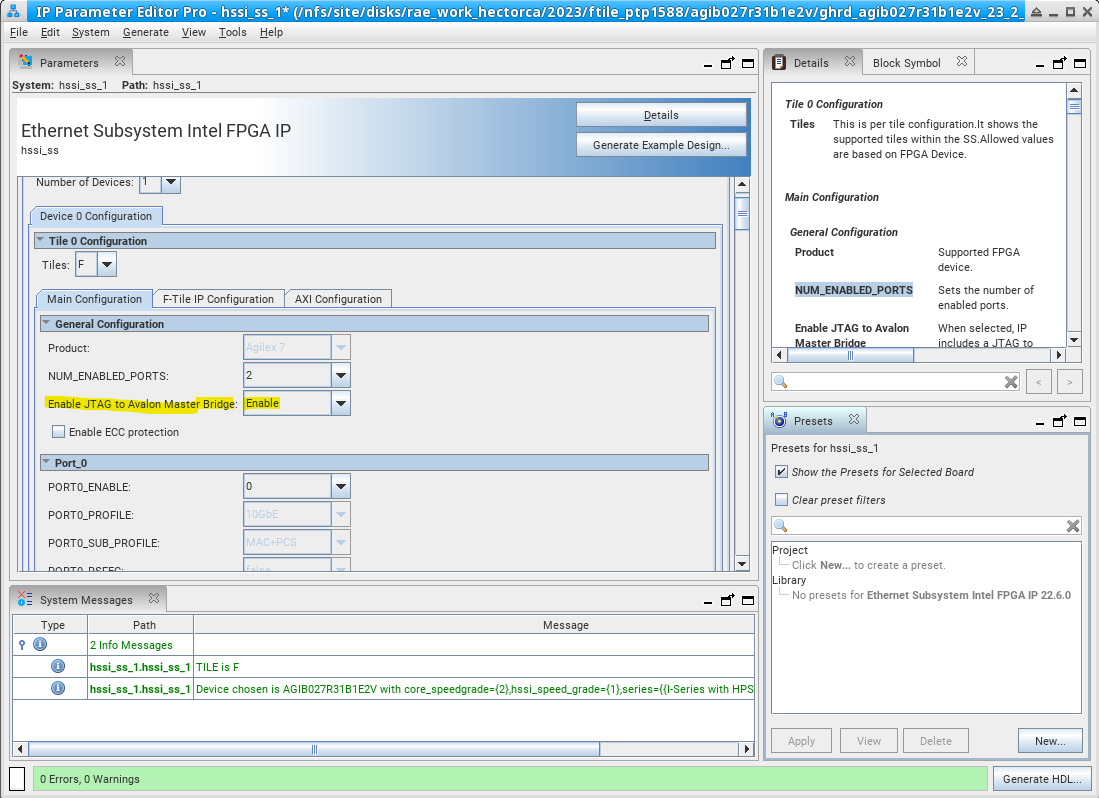

To enable HPS access to the onboard Microchip ZL30733, a custom bitstream must be loaded into the MAX10 device on the development kit. The required bitstream file, max10_system_0002aa4F.pof, is available as part of images.zip in the Binaries section.

FPGA Design Clocking Architecture

The clock frequencies for the Ethernet Subsystem IP ports i_p8_clk_tx_tod, i_p8_clk_rx_tod, i_p9_clk_tx_tod, i_p9_clk_rx_tod, i_p8_clk_ptp_sample, and i_p9_clk_ptp_sample follow the guidelines in the Ethernet Subsystem FPGA IP User Guide.

Figure 7 shows the high-level system clock distribution tree. For clarity, only one Ethernet port (P8) and one DMA Subsystem port are shown. All DMA ports share the same clock connections. Ports connected to Ethernet port 9 use its output clocks.

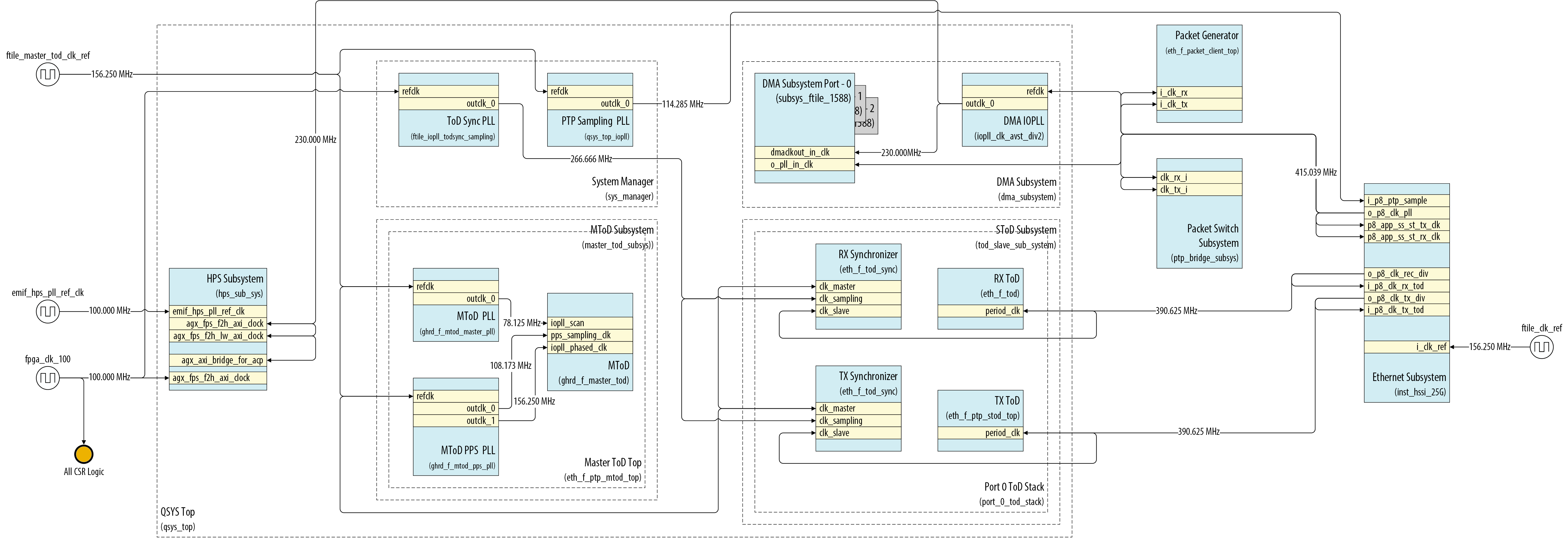

Figure 7. FPGA High Level Clocking Architecture Reduced Diagram

Software Architecture

The system example design uses a HPS-first boot flow, where the HPS initializes before configuring the FPGA fabric. U-Boot is loaded from SPI flash or via a partial RBF. The second-stage boot loader loads the Linux kernel and full FPGA bitstream from the SD card. U-Boot enables the HPS bridges and programs the FPGA via the SDM. Once configured, the HPS boots Linux.

The design includes drivers and user-space tools for the Linux network stack, PTP stack, and QoS via Traffic Control (TC). Ethernet Subsystem IP drivers support standard tools like ethtool. Drivers for the IEEE 1588 TOD Clock IP, Microchip ZL30733 synchronizer, and DMA ports interface are also provided.

Egress QoS is managed by the Linux kernel’s Traffic Control (TC) system. The Ethernet driver uses device tree data to enumerate DMA channels for each physical port. For each channel, it registers a TX buffer ring and exposes it as a separate hardware queue. TC applies queue disciplines (qdiscs) to control packet enqueue/dequeue behavior per queue. The driver integrates with TC to enable per-queue priority and flow control.

For each DMA ingress channel, the Ethernet driver registers an RX buffer. Ingress QoS is controlled by the Packet Switch IP and the ptpbridge application, which defines filtering and routing rules. Packets matching a rule are directed to a specific DMA RX channel, queue, or User Port; unmatched packets are dropped by default.

The HPS polls RX queues based on interrupt priority, with higher-priority channels mapped to higher-priority interrupts.

Intel Agilex™ 7 SoC FPGA F-Tile Drivers

Driver	Description	File
Ethernet Driver	The Ethernet driver exposes a standard netdev API to the kernel, enabling DMA channel discovery, hardware Time-of-Day (ToD) access, and ethtool enabling	drivers/net/ethernet/altera/intel_fpga_eth_main.c
ToD Driver	Provides access to the Ethernet Subsystem IP configuration and status registers of the Ethernet IEEE 1588 Time of Day Clock FPGA IP.	drivers/net/ethernet/altera/intel_fpga_tod.c
HSSI Subsystem Driver	Provides access to the Ethernet Subsystem IP configuration and status registers, as well as the Subsystem Abstraction Layer (SAL).	drivers/net/ethernet/altera/intel_fpga_hssiss.c
QSFP Driver	The QSFP driver interfaces with the onboard QSFP module, handling configuration registers reads and controlling power and interrupt pins.	drivers/net/phy/qsfp.c
ZL30733 Driver	The ZL30733 driver enables frequency steering for Time-of-Day (ToD) adjustment via the onboard ZL30733 SyncE & IEEE 1588 Network Synchronizer.	drivers/net/ethernet/altera/intel_freq_control_zl30793.c

User Space Applications

ptp4l

ptp4l is the IEEE 1588 PTP software implementation from the The Linux PTP Project, included in the HPS image. It offers extensive configuration options for system setup. Refer to the ptp4l man page for details

phc2sys

phc2sys is an open-source utility that synchronizes system clocks, typically aligning the system clock with a PTP Hardware Clock (PHC) managed by ptp4l. For configuration details, refer to the phc2sys man page.

ethtool

ethtool is an open-source utility for querying and configuring network driver and hardware settings. For usage details, refer to the ethtool man page.

packetgenerator

This application configures the Packet Generator IP core in the FPGA to generate synthetic Ethernet traffic for validating data path integrity and line rates. It can also modulate bandwidth to test system QoS policies.

Packet generation is customizable via parameters such as:

• Source and destination MAC addresses
• Frame sizes
• Idle packet gaps

Syntax

packetgenerator [--device] [/dev/uioX] [options]

Parameters

• --help: Print this help contents
• --device: UIO device name
• --dump: Dump all register contents
• --register-offset offset: 32-bit aligned register offset to do direct register read/write
• --register-value value: 32-bit value to be written to the register
• --dest-mac: Destination MAC address in the packet
• --src-mac: Source MAC address in the packet
• --traffic bool: Enable or disable traffic
• --one-shot bool: Enable or disable one-shot mode
• --soft-reset: Trigger a soft reset
• --dyn-pkt-mode bool: Enable or disable dynamic packet mode
• --packet-checker bool: Enable or disable packet checker
• --cntr-snapshot bool: Take a counter snapshot
• --cntr-clear bool: Clear all counter CSRs
• --cntr-internal-clear bool: Clear all internal counters
• --fixed-gap bool: Enable or disable fixed gap between packets
• --pkt-len-mode value: Set packet generation length mode (Fixed/Incremental) [1,2]
• --num-idle-cycles value: Number of idle cycles to insert [0...255]
• --tx-pkt-size value: TX packet size [64...9216]
• --tx-max-pkt-size value: Maximum TX packet size [64...9216]
• --num-packets value: Number of packets to generate [0...0xFFFFFFFF]

System example design packet generators are mapped to /dev/uio0 and /dev/uio1.

Basic Usage

Synthetic Traffic Configuration – The command below sets up the packet generator with parameters including dynamic packet mode, fixed gap, packet length mode, idle cycles, packet checker, one-shot mode, and packet sizes before initiating traffic generation.

packetgenerator --device /dev/uio0 --traffic false --dyn-pkt-mode true --fixed-gap true --pkt-len-mode 0x01 --num-idle-cycles 22 --packet-checker true --one-shot false --tx-pkt-size 1024 --tx-max-pkt-size 1024

Start Packet Generator – The command below initiates traffic generation based on the current configuration parameters.

packetgenerator --device /dev/uio0 --traffic 1

Configuration and Status Report – The command below captures a snapshot of all internal configuration and status registers in the packet generator hardware.

packetgenerator --device /dev/uio0 --dump

ptpbridge

The ptpbridge application configures the hardware Packet Switch IP, which routes incoming packets to one of three DMA channels per Ethernet interface based on user-defined QoS rules. Packets that do not match any rule are dropped by default.

Rule priority is determined by index number, higher index means higher priority. If multiple rules match, the rule with the highest index is applied. To ensure correct behavior, generic rules should be programmed first, followed by more specific rules at higher indices.

A maximum of 32 keys can be programmed (0-31).

Syntax

ptpbridge [--device] [/dev/uioX] [Options]

Parameters

• --help: Print this help contents
• --device: *UIO device name
• --dump: Dump all register contents
• --set-key: Set Key. Requires Key fields to be provided
• --remove-key: Remove Key using key-index
• --flush-all-keys: Flush all Key entries from the system
• --flush-all-counters: Flush all debug counters value to 0
• --show-key: Search for Keys fulfilling a search criteria for a port
• --register-rw: Do a direct register read write
• --key-index: Key index to work on
• --dest-mac: Key - Destination MAC. ptpbridge can resolve MAC addresses from Ethernet interface names, e.g. eth1.
• --src-mac: Key - Source MAC. ptpbridge can resolve MAC addresses from Ethernet interface names, e.g. eth1.
• --dest-ip: Key - Destination IP Address
• --src-ip: Key - Source IP address
• --dest-port: Key - Destination L4 port
• --src-port: Key - Source L4 port
• --vlanb: Key - VALNB
• --vlana: Key - VLANA
• --ethtype: Key - Ethernet type
• --protocol: Key - IP Protocol type
• --message: Key - IP Message type
• --flag: Key - Flag field
• --result: Defines the DMA or user port to which the Ethernet packet will be routed if the rule evaluation is true. The mapping for this parameter is as follows:
  • 0x0: route packet to DMA-0
  • 0x1: route packet to DMA-1
  • 0x2: route packet to DMA-2
  • 0x8: route packet to User Port (Packet Generator)
• port: Ethernet interface to which the rule will apply.
  • 0: Apply rule to eth1 Ethernet interface
  • 1: Apply rule to eth2 Ethernet interface
• register-offset: Register offset to read/write to. Refer to the PTP Bridge Register Map for direct registers base address and offsets.
• register-value: Register value to write. Can be comma separated to write multiple values.
• length: Number of registers to read
• mask: Set Mask properties for fields manually

System example design Packet Switch is mapped to /dev/uio2.

Basic Usage

Route all incoming traffic to DMA 0

ptpbridge --port 0 --set-key --key-index 0 --result 0x0

• --port 0: This rule applies to Ethernet interface eth1.
• --key-index 0: This rule is stored in key index 0, setting the lowest priority for the rule.
• --result 0x0: Packets fulfilling the rule will be routed to DMA-0.

The above command defines the following rule:

Route traffic based on destination MAC address

ptpbridge --port 0 --set-key --key-index 0 --dest-mac "eth1" --result 0x2

The above command defines the following rule:

• --port 0: This rule applies to Ethernet interface eth1.
• --key-index 0: This rule is stored in key index 0, setting the lowest priority for the rule.
• --dest-mac "eth1": This is the filter established by the rule. The rule will return a hit if the evaluated Ethernet frame has the eth1 interface MAC address in the MAC address destination field.
• --result 0x2: Packets fulfilling the rule will be routed to DMA-2.

Route traffic based on VLAN and DF flag

ptpbridge --port 0 --set-key --key-index 2 --ethtype 0x0800 --protocol 0x01 --vlana 100 --vlanb 200 --flag 0x2 --result 0x2

The above command defines the following rule:

• --port 0: This rule applies to Ethernet interface eth1.
• --key-index 2: This rule is stored in key index 2.
• --ethtype 0x0800: Ethernet Type is set to IPv4.
• --protocol 0x01: The IP protocol is set to ICMP.
• --vlana 100: The primary VLAN ID is 100.
• --vlanb 200: The secondary VLAN ID is 200.
• --flag 0x2: The fragment flag is set to 0x2.
• --result 0x2: Packets fulfilling the rule will be routed to DMA-2.

Address Map Details

Address Map

Subordinate Name	Component	Agilex™ HPS H2F AXI Manager	Register Description
axi4lite_hssi.s0	Ethernet Subsystem CSR	0x0000_0000 - 0x03ff_ffff	Link
axi4lite_pktcli_0.s0	Generic Packet Client	0x0406_0000 - 0x0406_ffff	Link
axi4lite_pktcli_1.s0	Generic Packet Client	0x0407_0000 - 0x0407_ffff	Link
axi4lite_ptpb.s0	Packet Switch	0x0405_0000 - 0x0405_ffff	Link
ftile_debug_status_pio_0.s1	F-Tile Status Register	0x0404_0060 - 0x0404_006f
qsfpdd_status_pio.s1	QSFP-DD Status PIO	0x0404_0050 - 0x0404_005f
sys_ctrl_pio_0.s1	QSDP-DD Control PIO	0x0404_0040 - 0x0404_004f
dma_subsys.dma_subsys_port0_csr	DMA Subsystem Port 0	0x0448_0000 - 0x0448_00ff	Link
dma_subsys.dma_subsys_port1_csr	DMA Subsystem Port 1	0x044c_0000 - 0x044c_00ff	Link
dma_subsys.dma_subsys_port2_csr	DMA Subsystem Port 2	0x0450_0000 - 0x0450_00ff	Link
dma_subsys.dma_subsys_port3_csr	DMA Subsystem Port 3	0x0454_0000 - 0x0454_00ff	Link
dma_subsys.dma_subsys_port4_csr	DMA Subsystem Port 4	0x0458_0000 - 0x0458_00ff	Link
dma_subsys.dma_subsys_port5_csr	DMA Subsystem Port 5	0x045c_0000 - 0x045c_00ff	Link
mtod_subsys.master_tod_top_0_csr	Main ToD Subsystem	0x0404_0000 - 0x0404_003f	Link
mtod_subsys.mtod_subsys_pps_load_tod_0_csr	Main ToD PPS Loader	0x0404_0100 - 0x0404_01ff

Table 3. Qsys_top Platform Designer system address map.

Packet Generator Register Description

Refer to section Packet Client Register Map from the MACsec FPGA System Design User Guide for the register description.

QSFPDD SPI Control PIO Register description

Address	Name	Bit Offset	Reset Value	Attribute	Description
0x0	qsfpdd_ctrl_pio	[0]	1'b1	RW	QSFPDD resetn
^	qsfpdd_ctrl_pio	[1]	1'b1	RW	QSFPDD initmode/lpmode
^	qsfpdd_ctrl_pio	[2]	1'b0	RW	QSFPDD modseln
0x1 - 0xF	Reserved

Table 4. QSFPDD SPI control PIO register description.

QSFPDD Status PIO Register description

Address	Name	Bit Offset	Attribute	Description
0x0	qsfpdd_status_pio	[0]	RO	QSFPDD modprsn
^	qsfpdd_status_pio	[1]	RO	QSFPDD intn
0x1 - 0xF	Reserved

Table 5. QSFPDD status PIO register description.

F-Tile Status Register Description

Bit	Ethernet Subsystem Port	Description
0	Port 8	Ethernet Subsystem 'o_p8_tx_lanes_stable' signal. For more information consult the following Link
1	^	Ethernet Subsystem 'o_p8_tx_pll_locked' signal. For more information consult the following Link
2	^	Ethernet Subsystem 'o_p8_rx_pcs_ready' signal. For more information consult the following Link
3	^	Ethernet Subsystem 'o_p8_tx_ptp_ready' signal. For more information consult the following Link
4	^	Ethernet Subsystem 'o_p8_rx_ptp_ready' signal. For more information consult the following Link
5	^	Ethernet Subsystem 'o_p8_rx_ptp_offset_data_valid' signal. For more information consult the following Link
6	^	Ethernet Subsystem 'o_p8_tx_ptp_offset_data_valid' signal. For more information consult the following Link
10	Port 9	Ethernet Subsystem 'o_p9_tx_lanes_stable' signal. For more information consult the following Link
11	^	Ethernet Subsystem 'o_p9_tx_pll_locked' signal. For more information consult the following Link
12	^	Ethernet Subsystem 'o_p9_rx_pcs_ready' signal. For more information consult the following Link
13	^	Ethernet Subsystem 'o_p9_tx_ptp_ready' signal. For more information consult the following Link
14	^	Ethernet Subsystem 'o_p9_rx_ptp_ready' signal. For more information consult the following Link
15	^	Ethernet Subsystem 'o_p9_rx_ptp_offset_data_valid' signal. For more information consult the following Link
16	^	Ethernet Subsystem 'o_p9_tx_ptp_offset_data_valid' signal. For more information consult the following Link

Table 6. F-Tile status register description.

DMA SubSystem Port Memory Map

Subordinate Name	Component	subsys_ftile_25gbe_1588_csr	Register Description
ftile_25gbe_rx_dma_ch1	RX DMA channel	0x0080 - 0x00bf	Link
ftile_25gbe_tx_dma_ch1	TX DMA channel	0x0000 - 0x003f	Link

Table 7. DMA Subsystem port memory map.

DMA SubSystem Channel Memory Map

Subordinate Name	Component	[rx/tx]_dma_csr	Register Description
[tx/rx]_dma_dispatcher	DMA dispatcher	0x0020 - 0x003f	Link
[tx/rx]_dma_prefetcher	DMA prefetcher	0x0000 - 0x001f	Link

Table 8. DMA Subsystem channel memory map.

Packet Switch Register Map

Module	Start Address	End Address
Ingress Arbiter 0	0x0	0x8
Ingress Arbiter 1	0xC	0x14
Egress RX Demux 0	0x60	0x70
Egress RX Demux 1	0x88	0x98
Ingress RX Width Adapter 0	0x1A0	0x1A8
Ingress RX Width Adapter 1	0x1AC	0x1B4
TCAM_0 (16KB)	0x200	0x41FC
TCAM_1 (16KB)	0x4200	0x81FC
Egress RX Width Adapter 0 (User port)	0x8200	0x8208
Egress RX Width Adapter 1 (User port)	0x820C	0x8214

Table 9. Packet Switch Register Description

Packet Switch Ingress Arbiter Register Description

Register Name	Offset	Field	Width (bits)	Type	HW Reset Value	Description
scratch_reg	0x00	scratch	32	RW	32'h0	Scratch Register.
cfg_priority_dma	0x04	reserved	[31:12]	RO	16'h0	Reserved.
		ch_2	[11:8]	RW	4'h3	Configured priority level for DMA channel 2. 0: highest priority, 3: lowest priority, other values are reserved. This register along with cfg_priority_user register (0x8) configures the ingress arbiter priority levels. Values across both registers must have unique priority values.
		ch_1	[7:4]	RW	4'h2	Configured priority level for DMA channel 1. 0: highest priority, 3: lowest priority, other values are reserved. This register along with cfg_priority_user register (0x8) configures the ingress arbiter priority levels. Values across both registers must have unique priority values.
		ch_0	[3:0]	RW	4'h0	Configured priority level for DMA channel 0. 0: highest priority, 3: lowest priority, other values are reserved. This register along with cfg_priority_user register (0x8) configures the ingress arbiter priority levels. Values across both registers must have unique priority values.
cfg_priority_user	0x08	reserved	[31:4]	RO	28'h0	Reserved.
		port_0	[3:0]	RW	4'h1	Configured priority level for User_0 port. 0: highest priority, 3: lowest priority, ‘d4-‘d15: reserved. This register along with cfg_priority_dma register (0x4) configures the ingress arbiter priority levels. Values across both registers must have unique priority values.

Table 10. Packet Switch Ingress Arbiter Register Description.

Packet Switch Egress RX Demux Register Description

Register Name	Offset	Field	Width (bits)	Type	HW Reset Value	Description
scratch_reg	0x00	scratch	[31:0]	RW	32'h0	Scratch Register.
control_reg	0x04	reserved	[31:3]	RO	29'h0	Reserved.
		dma_2_drop_en	[2]	RW	1'h0	Enable drop threshold to be used for DMA CH_2.
		dma_1_drop_en	[1]	RW	1'h0	Enable drop threshold to be used for DMA CH_1.
		dma_0_drop_en	[0]	RW	1'h0	Enable drop threshold to be used for DMA CH_0.
dma_0_drop_threshold_reg	0x08	reserved	[31:16]	RO	16'h0	Reserved.
		drop_threshold	[15:0]	RW	16'd496	Drop threshold for DMA CH_0.
dma_1_drop_threshold_reg	0x0C	reserved	[31:16]	RO	16'h0	Reserved.
		drop_threshold	[15:0]	RW	16'd496	Drop threshold for DMA CH_1.
dma_2_drop_threshold_reg	0x10	reserved	[31:16]	RO	16'h0	Reserved.
		drop_threshold	[15:0]	RW	16'd496	Drop threshold for DMA CH_2.

Table 11. Packet Switch Egress RX Demux Register Description.

Packet Switch Ingress RX Width Adjuster Register Description

Register Name	Offset	Field	Width (bits)	Type	HW Reset Value	Description
scratch_reg	0x00	scratch	[31:0]	RW	32'h0	Scratch Register.
control_reg	0x04	Reserved	[31:1]	RO	31'h0
		cfg_rx_pause_en	[0]	RW	1'h0	Enable RX pause.
cfg_threshold_reg	0x08	drop_threshold	[31:16]	RW	16'd1948	Configured threshold when packets are dropped.
		rx_pause_threshold	[15:0]	RW	16'd1024	Configured threshold when RX pause is asserted.

Table 12. Packet Switch Ingress RX Width Adjuster Register Description.

Packet Switch Egress RX Width Adjuster Register Description

Register Name	Offset	Field	Width (bits)	Type	HW Reset Value	Description
scratch_reg	0x00	scratch	[31:0]	RW	32'h0	Scratch Register.
control_reg	0x04	reserved	[31:1]	RO	31'h0	Reserved.
		drop_en	[0:0]	RW	1'h0	Enable drop threshold to be used for egress width adapter.
cfg_drop_threshold_reg	0x08	reserved	[31:16]	RO	16'h0	Reserved.
		drop_threshold	[15:0]	RW	16'd496	Drop threshold for egress width adapter.

Table 13. Packet Switch Egress RX Width Adjuster Register Description.

TCAM Key Register Map

Register Field	Register Offset	Register Bit	Key Field
Key_15	0x103C	[31:12]	reserved
Key_15	0x103C	[11:0]	rsvd[31:20]
Key_14	0x1038	[31:12]	rsvd[19:0]
Key_14	0x1038	[11:0]	flagField[15:4]
Key_13	0x1034	[31:28]	flagField[3:0]
Key_13	0x1034	[27:24]	messageType[3:0]
Key_13	0x1034	[23:16]	ip_protocol[7:0]
Key_13	0x1034	[15:0]	ethtype[15:0]
Key_12	0x1030	[31:16]	tci_vlana[15:0]
Key_12	0x1030	[15:0]	tci_vlanb[15:0]
Key_11	0x102C	[31:16]	l4_src_port[15:0]
Key_11	0x102C	[15:0]	l4_dst_port[15:0]
Key_10	0x1028	[31:0]	src_ip[127:96]
Key_9	0x1024	[31:0]	src_ip[95:64]
Key_8	0x1020	[31:0]	src_ip[63:32]
Key_7	0x101C	[31:0]	src_ip[31:0]
Key_6	0x1018	[31:0]	dst_ip[127:96]
Key_5	0x1014	[31:0]	dst_ip[95:64]
Key_4	0x1010	[31:0]	dst_ip[63:32]
Key_3	0x100C	[31:0]	dst_ip[31:0]
Key_2	0x1008	[31:0]	src_mac[47:16]
Key_1	0x1004	[31:16]	src_mac[15:0]
Key_1	0x1004	[15:0]	dst_mac[47:32]
Key_0	0x1000	[31:0]	dst_mac[31:0]

Table 14. TCAM key register map.

Interrupt Map

Interrupt	F2H IRQ	Linux Interrupt
dipsw_pio_irq	0
button_pio_irq	1
mtod_subsys_pps_load_tod_0_pps_irq	2
qsfpdd_status_pio	5
ftile_debug_status_pio	6
dma_subsys_port5_tx_dma_ch1_irq	13	36
dma_subsys_port5_rx_dma_ch1_irq	14	35
dma_subsys_port4_tx_dma_ch1_irq	15	34
dma_subsys_port4_rx_dma_ch1_irq	16	33
dma_subsys_port3_tx_dma_ch1_irq	17	32
dma_subsys_port3_rx_dma_ch1_irq	18	31
dma_subsys_port2_tx_dma_ch1_irq	19	30
dma_subsys_port2_rx_dma_ch1_irq	20	29
dma_subsys_port1_tx_dma_ch1_irq	21	28
dma_subsys_port1_rx_dma_ch1_irq	22	27
dma_subsys_port0_tx_dma_ch1_irq	23	26
dma_subsys_port0_rx_dma_ch1_irq	24	25

Table 15. Interrupt map.

Hardware Setup

Figure 8. Agilex™ I-Series Transceiver-SoC Development Kit (4 x F-Tile)

Set up the board default settings, as listed by the the Agilex™ I-Series Transceiver-SoC Development Kit User Guide, "Default Settings" section:

Switch	Default Position
S19 [1:4]	OFF/OFF/ON/ON
S20 [1:4]	ON/ON/ON/ON
S9 [1:4]	ON/OFF/OFF/X
S10 [1:4]	ON/ON/ON/ON
S15 [1:4]	ON/ON/ON/OFF
S1 [1:4]	OFF/OFF/OFF/OFF
S6 [1:4]	OFF/OFF/OFF/OFF
S22 [1:4]	ON/ON/ON/ON
S23 [1:4]	ON/ON/ON/ON
S4 [1:4]	ON/ON/ON/ON

Table 16. Factory Default Switch Settings

Connect the Type B USB cable from each development kit to the host for JTAG access.

Connect the two Agilex™ I-series Transceiver-SoC Development Kits with a QSFP-DD/28 cable via the QSFP-DD cage J27 (Highlighted in red figure 8).

Figure 9. IO48 OOBE daughter card

Connect the IO48 OOBE Daughter Card to J4 on each development kit.

Connect the mini-USB ports (J7) from each of the IO48 OOBE Daughter Card to your host machine. Both development kits OOBE Daughter Cards are connected to the same host.

Figure 10 shows a high level connectivity diagram for both development kits.

Figure 10. High level hardware connectivity diagram

Configure the Serial Connection

The Embedded Linux OS on the Agilex™ 7 Transceiver-SoC Development Kit can be accessed via a serial terminal such as Minicom or PuTTY. First, identify the serial connection IDs between your host and each development kit. On an Ubuntu host, list the most recently connected USB-to-Serial devices using:

admin@10.1.23.255:~$ dmesg | grep "ttyUSB*"
[    6.251435] usb 1-1.2: FTDI USB Serial Device converter now attached to ttyUSB1
[    6.255400] usb 1-1.3: FTDI USB Serial Device converter now attached to ttyUSB2

In this example, the two detected devices correspond to the serial connections for the Agilex™ 7 Transceiver-SoC Development Kits, as no other USB-to-Serial cables are connected to the host.

Start a serial session for each development kit using Minicom. Open separate terminal windows and launch a Minicom instance in each to monitor both kits concurrently.

Development Kit 1 terminal:

# Note: Device names may vary depending on your system. Adjust accordingly.
admin@10.1.23.255:~$ minicom -D /dev/ttyUSB1

Development Kit 2 terminal:

# Note: Device names may vary depending on your system. Adjust accordingly.
admin@10.1.23.255:~$ minicom -D /dev/ttyUSB2

Access the Minicom configuration screen using the following key combination:

• Ctrl + A, then press Z for the Command Summary menu
• SHIFT + O for the configuration menu

Configure each serial session with the following parameters:

• Bps/Par/Bits: 115200 8N1
• Hardware Flow Control: No
• Software Flow Control: No

Your 'Serial port setup' screen should resemble the following after adjusting the configuration parameters:

Welcome to minicom 2.7.1

OPTI+--------------------------------------------------------------------#
Comp| A -    Serial Device      : /dev/ttyUSB1                              |
Port| B - Lockfile Location     : /var/lock                                 |
    | C -   Callin Program      :                                           |
Pres| D -  Callout Program      :                                           |
    | E -    Bps/Par/Bits       : 115200 8N1                                |
    | F - Hardware Flow Control : No                                        |
    | G - Software Flow Control : No                                        |
    |                                                                       |
    |    Change which setting?                                              |
    +--------------------------------------------------------------------#
            | Screen and keyboard      |
            | Save setup as dfl        |
            | Save setup as..          |
            | Exit                     |
            +-----------------------#

Both terminal will remain inactive until the Agilex™ 7 device is configured.

User Flow

There are two ways to test the design based on use case.

• User Flow 1: Testing with Pre-build Binaries.

• User Flow 2: Testing Complete Flow.

User Flow	Description	Required for User Flow 1	Required for User Flow 2
Environment Setup	Tools Download and Installation	Yes	Yes
	Install dependency packages for SW compilation	No	Yes
	Package Download	Yes	Yes
Compilation	HW compilation	No	Yes
	SW compilation	No	Yes
Programming	Programming the SW binary	Yes	Yes
	Programming the HW binary	Yes	Yes
	Linux boot	Yes	Yes
Testing	Initial System Configuration	Yes	Yes
	Run Ping test	Yes	Yes
	Run iPerf3 test	Yes	Yes
	Run Packet Generator test	Yes	Yes
	Run ptp4l test	Yes	Yes

Table 17. User Test Flows.

Environment Setup

Tools Download and Installation

Altera Quartus Prime Pro

Download the Quartus® Prime Pro Edition software version 25.1.1 from the FPGA Software Download Center. Follow the on-screen instructions to complete the installation process.

Refer to Altera® FPGA Software Installation and Licensing for more information on the installation and licensing process.

Set up the Altera® Quartus® tools in the PATH enviormental variable.

# Adjust QUARTUS_ROOTDIR target to reflect your Quartus installation path
export QUARTUS_ROOTDIR=~/altera_pro/25.1.1/quartus/
export PATH=$QUARTUS_ROOTDIR/bin:$QUARTUS_ROOTDIR/linux64:$QUARTUS_ROOTDIR/../qsys/bin:$PATH

Install dependency packages for SW compilation

Arm GNU Toolchain 11.3.Rel1

Download the GCC ARM cross-compiler toolchain, add it to the PATH variable, to be used by the GHRD makefile to build the HPS Debug FSBL:

wget https://developer.arm.com/-/media/Files/downloads/gnu/11.3.rel1/binrel/\
arm-gnu-toolchain-11.3.rel1-x86_64-aarch64-none-linux-gnu.tar.xz
tar xf gcc-arm-11.3.rel1-x86_64-aarch64-none-linux-gnu.tar.xz
rm -f gcc-11.3.rel1-x86_64-aarch64-none-linux-gnu.tar.xz
export PATH=`pwd`/gcc-arm-11.3.rel1-x86_64-aarch64-none-linux-gnu/bin:$PATH
export ARCH=arm64
export CROSS_COMPILE=aarch64-none-linux-gnu-

Yocto Build Prerequisites

Before building the Yocto-based Linux image, ensure the host system meets the Yocto system requirements.

The command to install the required packages and set the environment on Ubuntu 22.04-LTS is:

sudo apt-get update
sudo apt-get upgrade
sudo apt-get install openssh-server mc libgmp3-dev libmpc-dev gawk wget git diffstat unzip texinfo gcc \
build-essential chrpath socat cpio python3 python3-pip python3-pexpect xz-utils debianutils iputils-ping \
python3-git python3-jinja2 libegl1-mesa libsdl1.2-dev pylint xterm python3-subunit mesa-common-dev zstd \
liblz4-tool git fakeroot build-essential ncurses-dev xz-utils libssl-dev bc flex libelf-dev bison xinetd \
tftpd tftp nfs-kernel-server libncurses5 libc6-i386 libstdc++6:i386 libgcc++1:i386 lib32z1 \
device-tree-compiler curl mtd-utils u-boot-tools net-tools swig -y
export LC_ALL="en_US.UTF-8"
export LC_CTYPE="en_US.UTF-8"
export LC_NUMERIC="en_US.UTF-8"
export LANG=en_US.UTF-8
export LANGUAGE=en_US.UTF-8

Bash as Default Command Interpreter

On Ubuntu 22.04, set Bash as the system default command interpreter:

sudo ln -sf /bin/bash /bin/sh

Package Download

Clone the GitHub repository to obtain the System Example Design source package.

git clone https://github.com/altera-fpga/agilex7-ed-ptp-mcqos-25g.git
cd agilex7-ed-ptp-mcqos-25g
git checkout SED-2x25GE-1588PTP-MCQOS-agi027fc-si-devkit-Q25.1.1-Rel-1.1
cd agi027fc-si-devkit
export TOP_FOLDER=`pwd`
mkdir bin

Directory Structure Used in This Example Design:

|--- agi027fc-si-devkit
  |   |--- src
  |   |   |--- hw
  |   |   |--- sw

Pre-built binaries are available under the GitHub repository releases. File descriptions are provided in the Binaries section.

Extract all files and copy them to $TOP_FOLDER/bin to run hardware tests on the development kit.

Compilation

The following steps outline the build process for both hardware (HW) and software (SW) components.

HW compilation

The src/hw/synth directory contains the Quartus project and a Makefile with the following build targets:

• make synth - Runs synthesis stage of Altera® Quartus®
• make compile - Runs the compile stage of Altera® Quartus®
• make all - Runs a full Altera® Quartus® compilation flow

Run the following command to compile the project:

cd $TOP_FOLDER/src/hw/synth/
make all

Alternatively, launch Altera® Quartus® in GUI mode, open top.qpf, and run the compile operation. This generates top.sof at $TOP_FOLDER/src/hw/output_files/.

Build HPS and CORE RBF file

The configuration bitstream generated by Altera® Quartus® Prime includes the FPGA core, I/O, and the HPS First-Stage Bootloader (FSBL). After compiling the project, you must integrate your current U-Boot FSBL (u-boot-spl-dtb.hex) into the bitstream.

To embed the .hex file into the bitstream, run the following command:

cd $TOP_FOLDER
quartus_pfg -c -o hps=on -o hps_path=src/sw/artifacts/u-boot-spl-dtb.hex src/hw/synth/output_files/top.sof bin/top.rbf

The following files are generated:

• $TOP_FOLDER/bin/top.hps.rbf - HPS First configuration bitstream, phase 1 (HPS and DDR)
• $TOP_FOLDER/bin/top.core.rbf - HPS First configuration bitstream, phase 2 (FPGA fabric)

Build QSPI Image

The QSPI image will contain the FPGA configuration data and the HPS FSBL and it can be built using the following command:

cd $TOP_FOLDER
quartus_pfg -c src/hw/synth/output_files/top.sof \
bin/top.jic \
-o hps_path=src/sw/artifacts/u-boot-spl-dtb.hex \
-o device=MT25QU02G \
-o flash_loader=AGIB027R31B1E1VB \
-o mode=ASX4 \
-o hps=1

The following files will be created:

• $TOP_FOLDER/bin/top.hps.jic - Flash image for HPS First configuration bitstream, phase 1 (HPS and DDR)
• $TOP_FOLDER//bin/top.core.rbf - HPS First configuration bitstream, phase 2 (FPGA fabric, discarded, as we already have it on the SD card)

SW Compilation

Build Yocto

Start the Yocto build process by executing the following command:

cd $TOP_FOLDER/src/sw/yocto
. agilex7_dk_si_agi027fc-PTP_2P25G_MCQ-build.sh
build_default

After a successful build, all required images are stored in the $TOP_FOLDER/src/sw/yocto/agilex7_dk_si_agi027fc-gsrd-images directory. Build time varies depending on the host system's resource specifications. Upon successful compilation of the 25GbE system example design, the following files are generated:

• $TOP_FOLDER/src/sw/yocto/agilex7_dk_si_agi027fc-gsrd-images/u-boot-agilex7_dk_si_agi027fc-socdk-gsrd-atf/u-boot-spl-dtb.hex
• $TOP_FOLDER/src/sw/yocto/agilex7_dk_si_agi027fc-gsrd-images/u-boot-agilex7_dk_si_agi027fc-socdk-gsrd-atf/u-boot.itb
• $TOP_FOLDER/src/sw/yocto/agilex7_dk_si_agi027fc-gsrd-images/kernel_sed.itb
• $TOP_FOLDER/src/sw/yocto/agilex7_dk_si_agi027fc-gsrd-images/sdimage.tar.gz

Copy sdimage.tar.gz and kernel_sed.itb to the bin folder.

cp -rf $TOP_FOLDER/src/sw/yocto/agilex7_dk_si_agi027fc-gsrd-images/sdimage.tar.gz $TOP_FOLDER/bin/sdimage.tar.gz
cp -rf $TOP_FOLDER/src/sw/yocto/agilex7_dk_si_agi027fc-gsrd-images/kernel_sed.itb $TOP_FOLDER/bin/kernel_sed.itb

Yocto Update

If the hardware project is modified, the software must be updated to match the new bitstream. The HPS second-stage bootloader embeds a SHA signature of the FPGA bitstream during compilation. Any change to the bitstream alters the SHA, requiring a bootloader update.

To update the FPGA bitstream SHA signature in the HPS second-stage bootloader, follow these steps:

1. Replace $TOP_FOLDER/src/sw/yocto/meta-agilex7-sed/recipes-bsp/ghrd/files/agilex7_dk_si_agi027fc_gsrd_ghrd_PTP_2P25G_MCQ.core.rbf with the updated top.core.rbf
2. Update the recipe at $TOP_FOLDER/src/sw/yocto/meta-agilex7-sed/recipes-bsp/ghrd/hw-ref-design.bb using the following commands

cd $TOP_FOLDER
CORE_RBF=src/sw/yocto/meta-agilex7-sed/recipes-bsp/ghrd/files/agilex7_dk_si_agi027fc_gsrd_ghrd_PTP_2P25G_MCQ.core.rbf
rm -rf $CORE_RBF
cp -f bin/top.core.rbf $CORE_RBF
FILE=src/sw/yocto/meta-agilex7-sed/recipes-bsp/ghrd/hw-ref-design.bbappend
CORE_SHA=$(sha256sum $CORE_RBF | cut -f1 -d" ")
OLD_SHA=".*sha256sum_PTP_2P25G_MCQ.*"
NEW_SHA="sha256sum_PTP_2P25G_MCQ = \"$CORE_SHA\""
sed -i "s/$OLD_SHA/$NEW_SHA/" "$FILE"

After completing the previous step, rebuild the design as described in Build Yocto.

Programming

If following User Flow 1, download the Prebuild Binaries. Ensure all steps under Hardware Setup are completed before proceeding.

Programming the SW binary

The SD card image file sdimage.tar.gz is provided in the as part of the Prebuild Binaries, you may refer to Release Content for more information.

Follow the instructions under "Write SD Card" in the HPS GSRD User Guide for the Agilex™ 7 FPGA I-Series Transceiver-SoC Development Kit (4x F-Tile) to create two bootable SD cards using the provided image file.

Insert the SD cards into each development kit.

Programming the HW binary

Program the onboard MAX10 device

Using Quartus® Programmer Tool version 25.1.1 GUI, configure the onboard MAX10 device with max10_system_0002aa4F.pof from the pre-build binaries files.

Alternatively, you can perform this operation via the command line. First, verify that all devices on the development kit are recognized and identify the JTAG cable number using the following command:

/home/user$ jtagconfig
1) Agilex I-Series SOC Dev Kit on 10.244.179.132 [USB-1]
  6BA00477   S10HPS/AGILEX_HPS/N5X_HPS
  0343B0DD   AGFB027R24C(.|B|C|R2|R0)/..
  031830DD   10M16S(A|C|L)

2) Agilex I-Series SOC Dev Kit on 10.244.179.132 [USB-2]
  6BA00477   S10HPS/AGILEX_HPS/N5X_HPS
  0343B0DD   AGFB027R24C(.|B|C|R2|R0)/..
  031830DD   10M16S(A|C|L)

From the jtagconfig output, two Agilex™ 7 Transceiver-SoC Development Kits are detected, with devices identified and assigned to cable 1 and cable 2.

Configure the development kits from your host using the following command:

cd $TOP_FOLDER/bin
# Update the -c parameter to match the JTAG cable numbers assigned to your development kits
quartus_pgm -c 1 -m jtag -o "p;./max10_system_0002aa4F.pof@3" && quartus_pgm -c 2 -m jtag -o "p;./max10_system_0002aa4F.pof@3"

Program the onboard Agilex™ 7 device

Using Quartus® Programmer Tool version 25.1.1 GUI, configure the onboard AGFB027R24C device with top.hps.rbf.

Alternatively, you can perform this operation via the command line. First, verify that all devices on the development kit are recognized and identify the JTAG cable number using the following command:

/home/user$ jtagconfig
1) Agilex I-Series SOC Dev Kit on 10.244.179.132 [USB-1]
  6BA00477   S10HPS/AGILEX_HPS/N5X_HPS
  0343B0DD   AGFB027R24C(.|B|C|R2|R0)/..
  031830DD   10M16S(A|C|L)

2) Agilex I-Series SOC Dev Kit on 10.244.179.132 [USB-2]
  6BA00477   S10HPS/AGILEX_HPS/N5X_HPS
  0343B0DD   AGFB027R24C(.|B|C|R2|R0)/..
  031830DD   10M16S(A|C|L)

From the jtagconfig output, two Agilex™ 7 Transceiver-SoC Development Kits are detected, with devices identified and assigned to cable 1 and cable 2.

Configure the development kits from your host using the following command:

cd $TOP_FOLDER/bin
# Update the -c parameter to match the JTAG cable numbers assigned to your development kits
# If the Agilex 7 FPGA is in position 1, update the parameter after @ to reflect the correct device index.
quartus_pgm -c 1 -m jtag -o "p;./bin/top.hps.rbf@2" && quartus_pgm -c 2 -m jtag -o "p;./bin/top.hps.rbf@2"

Linux Boot

On the HPS UART (Minicom connection), you’ll observe the HPS booting Linux from the SD card. Once booted, log in with username root and no password. The system is now ready for configuration.

If everything is functioning correctly, each Minicom terminal will display boot messages from the HPS running Linux.

agilex7dksiagi027fc login: root

WARNING: Poky is a reference Yocto Project distribution that should r
testing and development purposes only. It is recommended that you crr
own distribution for production use.

root@agilex7dksiagi027fc:~# uname -a
Linux agilex7dksiagi027fc 6.12.19-altera-ptp-sed-release-R1.1
root@agilex7dksiagi027fc:~/scripts# cat /etc/os-release
ID=poky
NAME="Poky (Yocto Project Reference Distro)"
VERSION="5.0.5 (scarthgap)"
VERSION_ID=5.0.5
VERSION_CODENAME="scarthgap"
PRETTY_NAME="Poky (Yocto Project Reference Distro) 5.0.5 (scarthgap)"
CPE_NAME="cpe:/o:openembedded:poky:5.0.5"
root@agilex7dksiagi027fc:~/scripts#

Repeat the same steps for the second Agilex™ 7 I-Series Transceiver-SoC Development Kit.

Ethernet Link Status

Check the network status on each Agilex™ 7 I-Series Transceiver-SoC Development Kit using the following command:

root@agilex7dksiagi027fc:~# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN 0
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host noprefixroute
       valid_lft forever preferred_lft forever
2: eth0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state0
    link/ether 66:68:45:23:2d:d3 brd ff:ff:ff:ff:ff:ff
3: teql0: <NOARP> mtu 1500 qdisc noop state DOWN group default qlen 0
    link/void
4: eth1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state U0
    link/ether 4a:e9:22:7c:86:00 brd ff:ff:ff:ff:ff:ff
    inet 169.254.167.23/16 brd 169.254.255.255 scope global eth1
       valid_lft forever preferred_lft forever
    inet6 fe80::48e9:22ff:fe7c:8600/64 scope link proto kernel_ll
       valid_lft forever preferred_lft forever
5: eth2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state U0
    link/ether ae:1b:b7:7c:16:d0 brd ff:ff:ff:ff:ff:ff
    inet 169.254.86.21/16 brd 169.254.255.255 scope global eth2
       valid_lft forever preferred_lft forever
    inet6 fe80::ac1b:b7ff:fe7c:16d0/64 scope link proto kernel_ll
       valid_lft forever preferred_lft forever
root@agilex7dksiagi027fc:~#

Three Ethernet interfaces will be listed in the output of ip addr:

1. eth0 : HPS dedicated Ethernet interface (1Gbps)
2. eth1 : 25G Ethernet Port (25Gbps)
3. eth2 : 25G Ethernet Port (25Gbps)

Initial System Configuration

After booting on both development kits, the System Example design requires initialization of key components: DMA subsystem, User Logic (Packet Generator), Packet Switch, Egress QoS-TC, and Iperf. Two configuration methods are supported.

1. One-step configuration via script
2. Step-by-Step configuration of each interface.

Configuration Via Script

For manual configuration, skip this section.

The 2PortMCQ.sh script is included in the Yocto rootfs image at /home/root/scripts/. It accepts a single numeric argument specifying the target development kit. Usage:

source ./2PortMCQ.sh <development kit number>

Valid argument values are 1 or 2.

Run the following command on Development Kit 1:

source ./2PortMCQ.sh 1

Expected output:

root@agilex7dksiagi027fc:~/scripts# source ./2PortMCQ.sh 1
Programming the Basic IP address...
Clearing old PTPBridge rules Port - 0...
UIO device file found. Using /dev/uio2
Key Flush successful...
Clearing old TC rules Port - 0...
Clearing old PTPBridge rules Port - 1...
UIO device file found. Using /dev/uio2
Key Flush successful...
Clearing old TC rules Port - 1...
Flushing old IPv4 and IPv6 addresses and routes
Setting DEVKIT to 1.
Running script for Devkit 1.
    link/ether 66:68:45:23:2d:d3 brd ff:ff:ff:ff:ff:ff
    link/ether 4a:e9:22:7c:86:00 brd ff:ff:ff:ff:ff:ff
    link/ether ae:1b:b7:7c:16:d0 brd ff:ff:ff:ff:ff:ff
Programming the PTP Bridge Port - 0...
Programming the PTP Bridge Generic rule...
eth1 - 4a:e9:22:7c:86:00
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 0 Success
Setting Result Register: 2. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
Programming the PTP Bridge - Low priority rules...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 0 Key index: 1 Success
Setting Result Register: 2. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success



<-- output truncated -->


Programming the IPV6 rules - Port 1
Setting IPv6 local addresses
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 1 Key index: 20 Success
Setting Result Register: 2. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
UIO device file found. Using /dev/uio2
Setting Entry: Success
Copying Keyfields: Port: 1 Key index: 21 Success
Setting Result Register: 2. Success
Setting Mask Register: Success
Setting Mgmt Cntrl Register: Success
Wait till operation is done: Key Insertion successful...
Traffic Class Egress QOS programming - Port - eth1
Create QDisc...
Create Filters - PTP packets to DMA0...
Create Filters - IPERF 540X packets to DMA0...
Create Filters - IPERF 530X packets to DMA1...
Create Filters - IPERF 520X packets to DMA2...
Create Filters - ICMP packets to DMA2...
Traffic Class Egress QOS programming - Port - eth2
Create QDisc...
Create Filters - PTP packets to DMA0...
Create Filters - IPERF 540X packets to DMA0...
Create Filters - IPERF 530X packets to DMA1...
Create Filters - IPERF 520X packets to DMA2...
Create Filters - ICMP packets to DMA2...
Configuration for Devkit 1 set
root@agilex7dksiagi027fc:~/scripts#

Configure Development Kit 2:

source ./2PortMCQ.sh 2

Manual Configuration

Define Interrupt Core Handling

Set up SMP affinity for Ethernet interrupts to distribute handling across different CPUs.

Execute the following commands on both development kits:

echo -e "Programming the Basic IP address..."
echo "2" > /proc/irq/25/smp_affinity && echo "2" > /proc/irq/26/smp_affinity && echo "4" > /proc/irq/27/smp_affinity && echo "4" > /proc/irq/28/smp_affinity && echo "8" > /proc/irq/29/smp_affinity && echo "8" > /proc/irq/30/smp_affinity
echo "1" > /proc/irq/31/smp_affinity && echo "1" > /proc/irq/32/smp_affinity && echo "2" > /proc/irq/33/smp_affinity && echo "2" > /proc/irq/34/smp_affinity && echo "4" > /proc/irq/35/smp_affinity && echo "4" > /proc/irq/36/smp_affinity

Clear Old Configurations

Clear existing Packet Switch TCAM keys, traffic class (TC) configurations, and any pre-existing IPv6 settings.

Execute the following commands on both development kits:

echo -e "Clearing old PTPBridge rules Port - 0..."
ptpbridge --port 0 --flush-all-keys
echo -e "Clearing old TC rules Port - 0..."
tc filter del dev eth1 egress
tc qdisc del dev eth1 clsact
echo -e "Clearing old PTPBridge rules Port - 1..."
ptpbridge --port 1 --flush-all-keys
echo -e "Clearing old TC rules Port - 1..."
tc filter del dev eth2 egress
tc qdisc del dev eth2 clsact

echo -e "Flushing old IPv4 and IPv6 addresses and routes"
ip addres flush eth1 && ip route flush dev eth1
ip -6 addres flush eth1 && ip -6 route flush dev eth1
ip addres flush eth2 && ip route flush dev eth2
ip -6 addres flush eth2 && ip -6 route flush dev eth2

If no configuration is stored, the commands may return error messages. These errors are safe to ignore.

Set IPv4 Addresses

eth1 and eth2 are the Linux interface names assigned to Ethernet Subsystem IP ports 8 and 9, respectively. Both interfaces must be in the UP state and have IP addresses assigned. Use the following commands to overwrite the IP addresses and bring the interfaces up.

Execute the following commands on development kit 1:

ip link set eth1 up && ip addr add 192.168.121.1 dev eth1 && ip route add 192.168.121.0/24 dev eth1 src 192.168.121.1
ip link set eth2 up && ip addr add 192.168.122.1 dev eth2 && ip route add 192.168.122.0/24 dev eth2 src 192.168.122.1

ip addr | grep ether

Execute the following commands on development kit 2:

ip link set eth1 up && ip addr add 192.168.121.2 dev eth1 && ip route add 192.168.121.0/24 dev eth1 src 192.168.121.2
ip link set eth2 up && ip addr add 192.168.122.2 dev eth2 && ip route add 192.168.122.0/24 dev eth2 src 192.168.122.2

ip addr | grep ether

Packet Switch Rules

Generic Traffic Rules

The following rules configure the Packet Switch to route ping requests to the lowest priority DMA (DMA-2) on both Ethernet interfaces.

echo -e "Programming the PTP Bridge Port - 0..."
echo -e "Programming the PTP Bridge Generic rule..."
ptpbridge --port 0 --set-key --key-index 0 --dest-mac "eth1"  --result 0x2
echo -e "Programming the PTP Bridge - Low priority rules..."
ptpbridge --port 0 --set-key --key-index 1 --ethtype 0x0806 --result 0x2
ptpbridge --port 0 --set-key --key-index 2 --ethtype 0x0800 --protocol 0x01 --result 0x2

echo -e "Programming the PTP Bridge Port - 1..."
echo -e "Programming the PTP Bridge Generic rule..."
ptpbridge --port 1 --set-key --key-index 0 --dest-mac "eth2"  --result 0x2
echo -e "Programming the PTP Bridge - Low priority rules..."
ptpbridge --port 1 --set-key --key-index 1 --ethtype 0x0806 --result 0x2
ptpbridge --port 1 --set-key --key-index 2 --ethtype 0x0800 --protocol 0x01 --result 0x2

The first rule matches packets with a destination MAC address equal to that of the Ethernet interface. The second rule filters Ethernet frames with Ethertype set to IPv4 and the IPv4 protocol field set to ICMP. The final rule filters frames with Ethertype set to ARP.

iPerf3 Synthetic Traffic Rules

iPerf3 is a tool for active measurement of maximum achievable bandwidth on IP networks. It can generate traffic between a client and server, with configurable parameters such as the network port used. The following rules assign a target DMA based on the network port of incoming Ethernet packets.

echo -e "Programming the PTP Bridge Port - 0..."
echo -e "Programming the PTP Bridge - IPERF 540X to DMA0..."
ptpbridge --port 0 --set-key --key-index 3 --ethtype 0x0800 --dest-port 5401 --result 0x0
ptpbridge --port 0 --set-key --key-index 4 --ethtype 0x0800 --dest-port 5402 --result 0x0
ptpbridge --port 0 --set-key --key-index 5 --ethtype 0x0800 --src-port 5401 --result 0x0
ptpbridge --port 0 --set-key --key-index 6 --ethtype 0x0800 --src-port 5402 --result 0x0
echo -e "Programming the PTP Bridge - IPERF 530X to DMA1..."
ptpbridge --port 0 --set-key --key-index 7 --ethtype 0x0800 --dest-port 5301 --result 0x1
ptpbridge --port 0 --set-key --key-index 8 --ethtype 0x0800 --dest-port 5302 --result 0x1
ptpbridge --port 0 --set-key --key-index 9 --ethtype 0x0800 --src-port 5301 --result 0x1
ptpbridge --port 0 --set-key --key-index 10 --ethtype 0x0800 --src-port 5302 --result 0x1
echo -e "Programming the PTP Bridge - IPERF 520X to DMA2..."
ptpbridge --port 0 --set-key --key-index 11 --ethtype 0x0800 --dest-port 5201 --result 0x2
ptpbridge --port 0 --set-key --key-index 12 --ethtype 0x0800 --dest-port 5202 --result 0x2
ptpbridge --port 0 --set-key --key-index 13 --ethtype 0x0800 --src-port 5201 --result 0x2
ptpbridge --port 0 --set-key --key-index 14 --ethtype 0x0800 --src-port 5202 --result 0x2

echo -e "Programming the PTP Bridge Port - 1..."
echo -e "Programming the PTP Bridge - IPERF 540X to DMA0..."
ptpbridge --port 1 --set-key --key-index 3 --ethtype 0x0800 --dest-port 5401 --result 0x0
ptpbridge --port 1 --set-key --key-index 4 --ethtype 0x0800 --dest-port 5402 --result 0x0
ptpbridge --port 1 --set-key --key-index 5 --ethtype 0x0800 --src-port 5401 --result 0x0
ptpbridge --port 1 --set-key --key-index 6 --ethtype 0x0800 --src-port 5402 --result 0x0
echo -e "Programming the PTP Bridge - IPERF 530X to DMA1..."
ptpbridge --port 1 --set-key --key-index 7 --ethtype 0x0800 --dest-port 5301 --result 0x1
ptpbridge --port 1 --set-key --key-index 8 --ethtype 0x0800 --dest-port 5302 --result 0x1
ptpbridge --port 1 --set-key --key-index 9 --ethtype 0x0800 --src-port 5301 --result 0x1
ptpbridge --port 1 --set-key --key-index 10 --ethtype 0x0800 --src-port 5302 --result 0x1
echo -e "Programming the PTP Bridge - IPERF 520X to DMA2..."
ptpbridge --port 1 --set-key --key-index 11 --ethtype 0x0800 --dest-port 5201 --result 0x2
ptpbridge --port 1 --set-key --key-index 12 --ethtype 0x0800 --dest-port 5202 --result 0x2
ptpbridge --port 1 --set-key --key-index 13 --ethtype 0x0800 --src-port 5201 --result 0x2
ptpbridge --port 1 --set-key --key-index 14 --ethtype 0x0800 --src-port 5202 --result 0x2

The commands above configure the Packet Switch to route all traffic using port 540X to DMA-0, 530X to DMA-1, and 520X to DMA-2.

PTP Traffic Rules

PTP Ethernet packets will be routed to the highest priority DMA (DMA-0) to keep the system time synchronized with the network time. Execute the following commands on both development kits to make both Ethernet interfaces prioritize the PTP traffic:

echo -e "Programming the PTP Bridge Port - 0..."
echo -e "Programming the PTP Bridge - PTP Packets to DMA0..."
ptpbridge --port 0 --set-key --key-index 15 --dest-mac "01:80:C2:00:00:0E" --result 0x0
ptpbridge --port 0 --set-key --key-index 16 --dest-mac "01:1B:19:00:00:00" --result 0x0
ptpbridge --port 0 --set-key --key-index 17 --ethtype 0x88F7 --result 0x0
ptpbridge --port 0 --set-key --key-index 18 --ethtype 0x88F8 --result 0x0

echo -e "Programming the PTP Bridge Port - 1..."
echo -e "Programming the PTP Bridge - PTP Packets to DMA0..."
ptpbridge --port 1 --set-key --key-index 15 --dest-mac "01:80:C2:00:00:0E" --result 0x0
ptpbridge --port 1 --set-key --key-index 16 --dest-mac "01:1B:19:00:00:00" --result 0x0
ptpbridge --port 1 --set-key --key-index 17 --ethtype 0x88F7 --result 0x0
ptpbridge --port 1 --set-key --key-index 18 --ethtype 0x88F8 --result 0x0

The commands above set rules to filter packets based on the destination address used for PTP broadcast messages and the protocol identifier encapsulated in the EtherType field of the Ethernet frame. The rules are applied to both Ethernet interfaces in this example, but there is an independent scheduler for each Ethernet interface, making it possible to have different rules for each one of them.

Packet Generator Traffic Rules

The following set of rules defines the routing to the client ports where the system example design packet generators are connected.

The packetgenerator commands set the source and destination MAC addresses to be used by each packet generator. Then, the ptpbridge is used to filter incoming Ethernet frames coming from the opposite development kit and route them to one of the user ports (user ports are represented by '0x8'). There are two additional commands to program the packet generator module with traffic configuration parameters.

Execute the following commands on development kit 1:

echo -e "Programming the PTP Bridge - Port 0 User packets to User port..."
packetgenerator --device /dev/uio0 --dest-mac "12:34:56:78:0A:2" --src-mac "12:34:56:78:0A:1"
ptpbridge --set-key --port 0 --key-index 19 --dest-mac "12:34:56:78:0A:1" --result 0x8
echo -e "Programming the PTP Bridge - Port 1 User packets to User port..."
packetgenerator --device /dev/uio1 --dest-mac "12:34:56:78:0A:4" --src-mac "12:34:56:78:0A:3"
ptpbridge --set-key --port 1 --key-index 19 --dest-mac "12:34:56:78:0A:3" --result 0x8

echo -e "Programming the Packet Generator - Port 0"
packetgenerator --device /dev/uio0 --traffic false --dyn-pkt-mode true --fixed-gap true --pkt-len-mode 0x01 --num-idle-cycles 22 --packet-checker true --num-packets 0xFFFFFFFF --one-shot false --tx-pkt-size 1024 --tx-max-pkt-size 1024
echo -e "Programming the Packet Generator - Port 1"
packetgenerator --device /dev/uio1 --traffic false --dyn-pkt-mode true --fixed-gap true --pkt-len-mode 0x01 --num-idle-cycles 22 --packet-checker true --num-packets 0xFFFFFFFF --one-shot false --tx-pkt-size 1024 --tx-max-pkt-size 1024

Execute the following commands on development kit 2:

echo -e "Programming the PTP Bridge - Port 0 User packets to User port..."
packetgenerator --device /dev/uio0 --dest-mac "12:34:56:78:0A:1" --src-mac "12:34:56:78:0A:2"
ptpbridge --set-key --port 0 --key-index 19 --dest-mac "12:34:56:78:0A:2" --result 0x8
echo -e "Programming the PTP Bridge - Port 1 User packets to User port..."
packetgenerator --device /dev/uio1 --dest-mac "12:34:56:78:0A:3" --src-mac "12:34:56:78:0A:4"
ptpbridge --set-key --port 1 --key-index 19 --dest-mac "12:34:56:78:0A:4" --result 0x8

echo -e "Programming the Packet Generator - Port 0"
packetgenerator --device /dev/uio0 --traffic false --dyn-pkt-mode true --fixed-gap true --pkt-len-mode 0x01 --num-idle-cycles 22 --packet-checker true --num-packets 0xFFFFFFFF --one-shot false --tx-pkt-size 1024 --tx-max-pkt-size 1024
echo -e "Programming the Packet Generator - Port 1"
packetgenerator --device /dev/uio1 --traffic false --dyn-pkt-mode true --fixed-gap true --pkt-len-mode 0x01 --num-idle-cycles 22 --packet-checker true --num-packets 0xFFFFFFFF --one-shot false --tx-pkt-size 1024 --tx-max-pkt-size 1024

IPv6 Traffic Rules

The next commands set set IPv6 addresses and update the routing table for both ethernet interfaces. Then, the ptpbridge rules define that that IPv6 ping requests needs to be channeled to the lowest-priority DMA (DMA-2) on both Ethernet interfaces.

Execute the following commands on development kit 1:

echo -e "Programming the IPV6 rules - Port 0"
echo -e "Setting IPv6 local addresses"
ip -6 addr add 2001:db8:abcd:0012::1/64 dev eth1 && ip link set dev eth1 up
sleep 2
ip -6 route add 2001:db8:abcd:0012::1/64 dev eth1 src 2001:db8:abcd:0012::1

ptpbridge --port 0 --set-key --key-index 20 --ethtype 0x86DD --result 0x2
ptpbridge --port 0 --set-key --key-index 21 --ethtype 0x86DD --protocol 0x3A  --result 0x2

echo -e "Programming the IPV6 rules - Port 1"
echo -e "Setting IPv6 local addresses"

ip -6 addr add 2001:db8:abcd:0013::1/64 dev eth2 && ip link set dev eth2 up
sleep 2
ip -6 route add 2001:db8:abcd:0013::1/64 dev eth2 src 2001:db8:abcd:0013::1

ptpbridge --port 1 --set-key --key-index 20 --ethtype 0x86DD --result 0x2
ptpbridge --port 1 --set-key --key-index 21 --ethtype 0x86DD --protocol 0x3A  --result 0x2

Execute the following commands on development kit 2:

echo -e "Programming the IPV6 rules - Port 0"
echo -e "Setting IPv6 local addresses"
ip -6 addr add 2001:db8:abcd:0012::2/64 dev eth1 && ip link set dev eth1 up
sleep 2
ip -6 route add 2001:db8:abcd:0012::2/64 dev eth1 src 2001:db8:abcd:0012::2

ptpbridge --port 0 --set-key --key-index 20 --ethtype 0x86DD --result 0x2
ptpbridge --port 0 --set-key --key-index 21 --ethtype 0x86DD --protocol 0x3A  --result 0x2

echo -e "Programming the IPV6 rules - Port 1"
echo -e "Setting IPv6 local addresses"

ip -6 addr add 2001:db8:abcd:0013::2/64 dev eth2 && ip link set dev eth2 up
sleep 2
ip -6 route add 2001:db8:abcd:0013::2/64 dev eth2 src 2001:db8:abcd:0013::2

ptpbridge --port 1 --set-key --key-index 20 --ethtype 0x86DD --result 0x2
ptpbridge --port 1 --set-key --key-index 21 --ethtype 0x86DD --protocol 0x3A  --result 0x2

Traffic Classes

Egress QoS is implemented using the Linux TC (Traffic Control) subsystem alongside the network stack.

The next steps define a qdisc-based TC configuration, which can be paired with filters to route egress packets to specific DMA paths. Packet routing is determined by the skb->priority field, which must be set according to test requirements. Execute the following commands on both development kits.

The tc filters define:

tc filters route traffic as follows:

• PTP and iPerf3 on port 540X → DMA 0
• iPerf3 on port 530X → DMA 1
• iPerf3 on port 520X and ICMP (ping) → DMA 2

echo -e "Traffic Class Egress QOS programming - Port - eth1"
echo -e "Create QDisc..."
tc qdisc add dev eth1 clsact
echo -e "Create Filters - PTP packets to DMA0..."
MAC1_ADDR="01:80:C2:00:00:0E"
MAC1_HEX=$(echo $MAC1_ADDR | sed 's/://g' | tr 'a-f' 'A-F')
MAC2_ADDR="01:1B:19:00:00:00"
MAC2_HEX=$(echo $MAC2_ADDR | sed 's/://g' | tr 'a-f' 'A-F')
tc filter add dev eth1 egress prio 0 u32 match ip dport 319 0xffff match ip protocol 17 0xff action skbedit priority 0
tc filter add dev eth1 egress prio 0 u32 match ip dport 320 0xffff match ip protocol 17 0xff action skbedit priority 0
tc filter add dev eth1 egress prio 0 u32 match u16 0x${MAC1_HEX:0:4} 0xFFFF at -14 match u32 0x${MAC1_HEX:4:8} 0xFFFFFFFF at -12 action skbedit priority 0
tc filter add dev eth1 egress prio 0 u32 match u16 0x${MAC2_HEX:0:4} 0xFFFF at -14 match u32 0x${MAC2_HEX:4:8} 0xFFFFFFFF at -12 action skbedit priority 0

echo -e "Create Filters - IPERF 540X packets to DMA0..."
tc filter add dev eth1 egress prio 0 u32 match ip dport 5401 0xffff match ip protocol 6 0xff action skbedit priority 0
tc filter add dev eth1 egress prio 0 u32 match ip sport 5401 0xffff match ip protocol 6 0xff action skbedit priority 0
echo -e "Create Filters - IPERF 530X packets to DMA1..."
tc filter add dev eth1 egress prio 0 u32 match ip dport 5301 0xffff match ip protocol 6 0xff action skbedit priority 1
tc filter add dev eth1 egress prio 0 u32 match ip sport 5301 0xffff match ip protocol 6 0xff action skbedit priority 1
echo -e "Create Filters - IPERF 520X packets to DMA2..."
tc filter add dev eth1 egress prio 0 u32 match ip dport 5201 0xffff match ip protocol 6 0xff action skbedit priority 2
tc filter add dev eth1 egress prio 0 u32 match ip sport 5201 0xffff match ip protocol 6 0xff action skbedit priority 2
echo -e "Create Filters - ICMP packets to DMA2..."
tc filter add dev eth1 egress prio 0 u32 match ip protocol 1 0xff action skbedit priority 2

echo -e "Traffic Class Egress QOS programming - Port - eth2"
echo -e "Create QDisc..."
tc qdisc add dev eth2 clsact
echo -e "Create Filters - PTP packets to DMA0..."
tc filter add dev eth2 egress prio 0 u32 match ip dport 319 0xffff match ip protocol 17 0xff action skbedit priority 0
tc filter add dev eth2 egress prio 0 u32 match ip dport 320 0xffff match ip protocol 17 0xff action skbedit priority 0
tc filter add dev eth2 egress prio 0 u32 match u16 0x${MAC1_HEX:0:4} 0xFFFF at -14 match u32 0x${MAC1_HEX:4:8} 0xFFFFFFFF at -12 action skbedit priority 0
tc filter add dev eth2 egress prio 0 u32 match u16 0x${MAC2_HEX:0:4} 0xFFFF at -14 match u32 0x${MAC2_HEX:4:8} 0xFFFFFFFF at -12 action skbedit priority 0

echo -e "Create Filters - IPERF 540X packets to DMA0..."
tc filter add dev eth2 egress prio 0 u32 match ip dport 5401 0xffff match ip protocol 6 0xff action skbedit priority 0
tc filter add dev eth2 egress prio 0 u32 match ip sport 5401 0xffff match ip protocol 6 0xff action skbedit priority 0
echo -e "Create Filters - IPERF 530X packets to DMA1..."
tc filter add dev eth2 egress prio 0 u32 match ip dport 5301 0xffff match ip protocol 6 0xff action skbedit priority 1
tc filter add dev eth2 egress prio 0 u32 match ip sport 5301 0xffff match ip protocol 6 0xff action skbedit priority 1
echo -e "Create Filters - IPERF 520X packets to DMA2..."
tc filter add dev eth2 egress prio 0 u32 match ip dport 5201 0xffff match ip protocol 6 0xff action skbedit priority 2
tc filter add dev eth2 egress prio 0 u32 match ip sport 5201 0xffff match ip protocol 6 0xff action skbedit priority 2
echo -e "Create Filters - ICMP packets to DMA2..."
tc filter add dev eth2 egress prio 0 u32 match ip protocol 1 0xff action skbedit priority 2

Ethernet Connectivity Test

After finishing the Initial System Configuration, verify the network connectivity between both development kits with the next steps.

Confirm both Ethernet interfaces are up in both development kits:

Execute the following commands on development kit 1:

root@agilex7dksiagi027fc:~# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host noprefixroute
       valid_lft forever preferred_lft forever
2: eth0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen0
    link/ether c2:15:53:59:8b:9f brd ff:ff:ff:ff:ff:ff
3: teql0: <NOARP> mtu 1500 qdisc noop state DOWN group default qlen 100
    link/void
4: eth1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether a2:0a:92:62:93:4c brd ff:ff:ff:ff:ff:ff
    inet 192.168.121.1/32 scope global eth1
       valid_lft forever preferred_lft forever
    inet6 2001:db8:abcd:12::1/64 scope global
       valid_lft forever preferred_lft forever
5: eth2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 86:28:4b:90:11:dd brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/32 scope global eth2
       valid_lft forever preferred_lft forever
    inet6 2001:db8:abcd:13::1/64 scope global
       valid_lft forever preferred_lft forever
root@agilex7dksiagi027fc:~#

Execute the following commands on development kit 2:

root@agilex7dksiagi027fc:~# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host noprefixroute
       valid_lft forever preferred_lft forever
2: eth0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen0
    link/ether fa:06:aa:f6:2b:48 brd ff:ff:ff:ff:ff:ff
3: teql0: <NOARP> mtu 1500 qdisc noop state DOWN group default qlen 100
    link/void
4: eth1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether be:3b:79:e1:0d:ac brd ff:ff:ff:ff:ff:ff
    inet 192.168.121.2/32 scope global eth1
       valid_lft forever preferred_lft forever
    inet6 2001:db8:abcd:12::2/64 scope global
       valid_lft forever preferred_lft forever
5: eth2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether e2:4c:47:71:75:4c brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.2/32 scope global eth2
       valid_lft forever preferred_lft forever
    inet6 2001:db8:abcd:13::2/64 scope global
       valid_lft forever preferred_lft forever
root@agilex7dksiagi027fc:~#

Verify connectivity between development kits using ping:

Execute the following commands on development kit 1:

root@agilex7dksiagi027fc:~# ping -c 3 192.168.121.2
PING 192.168.121.2 (192.168.121.2): 56 data bytes
64 bytes from 192.168.121.2: seq=0 ttl=64 time=0.298 ms
64 bytes from 192.168.121.2: seq=1 ttl=64 time=0.196 ms
64 bytes from 192.168.121.2: seq=2 ttl=64 time=0.102 ms

--- 192.168.121.2 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 0.102/0.198/0.298 ms
root@agilex7dksiagi027fc:~#

Execute the following commands on development kit 2:

root@agilex7dksiagi027fc:~# ping -c 3 192.168.121.1
PING 192.168.121.1 (192.168.121.1): 56 data bytes
64 bytes from 192.168.121.1: seq=0 ttl=64 time=0.421 ms
64 bytes from 192.168.121.1: seq=1 ttl=64 time=0.124 ms
64 bytes from 192.168.121.1: seq=2 ttl=64 time=0.117 ms

--- 192.168.121.1 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 0.117/0.220/0.421 ms
root@agilex7dksiagi027fc:~#

Testing

Before running a test, ensure the hardware setup matches the Hardware Setup section, and you have executed the steps listed in Initial System Configuration.

Run Ping Test

The transcript below shows a ping test from development kit 1 serial session. 100,000 pings are sent to development kit 2. DMA-2 handles egress traffic, verified by polling its interrupt count. As shown, all ping requests were correctly filtered to DMA-2.

Execute the following commands on development kit 1:

root@agilex7dksiagi027fc:~# ping -i 0.0001 -q -c 100000 -I eth1 192.168.121.2
PING 192.168.121.2 (192.168.121.2): 56 data bytes

--- 192.168.121.2 ping statistics ---
100000 packets transmitted, 99997 packets received, 3 duplicates, 0% packet loss
round-trip min/avg/max = 0.065/0.091/3.259 ms
root@agilex7dksiagi027fc:~# cat /proc/interrupts | grep eth1
25:         57          0          0          0     GICv2  72 Level     eth1
26:          0          0          0          0     GICv2  73 Level     eth1
27:          0          0          0          0     GICv2  70 Level     eth1
28:          0          0          0          0     GICv2  71 Level     eth1
29:         11          0     100005          0     GICv2  68 Level     eth1
30:          0          0     100008          0     GICv2  69 Level     eth1
root@agilex7dksiagi027fc:~#

Execute the following commands on development kit 2:

root@agilex7dksiagi027fc:~# ping -i 0.0001 -q -c 100000 -I eth1 192.168.121.1
PING 192.168.121.1 (192.168.121.1): 56 data bytes

--- 192.168.121.1 ping statistics ---
100000 packets transmitted, 99990 packets received, 10 duplicates, 0% packet loss
round-trip min/avg/max = 0.064/0.090/2.565 ms
root@agilex7dksiagi027fc:~# cat /proc/interrupts | grep eth1
 31:         36          0          0         44     GICv2  66 Level     eth1
 32:          0          0          0          0     GICv2  67 Level     eth1
 33:          0          0          0          0     GICv2  64 Level     eth1
 34:          0          0          0          0     GICv2  65 Level     eth1
 35:         11     100015          0          0     GICv2  62 Level     eth1
 36:          0     100007          0          0     GICv2  63 Level     eth1
root@agilex7dksiagi027fc:~#

Run iPerf3 Test

The iPerf3 test uses development kit 2 as the server and development kit 1 as the client. Start the iPerf3 server on kit 2 with parallel instances listening on ports 5201, 5301, and 5401.

Execute the following commands on development kit 2:

iperf3 -D -s -B 192.168.121.2 -p 5201 > /var/log/iperf.eth1.1 2>&1 &
iperf3 -D -s -B 192.168.121.2 -p 5301 > /var/log/iperf.eth1.2 2>&1 &
iperf3 -D -s -B 192.168.121.2 -p 5401 > /var/log/iperf.eth1.3 2>&1 &

iPerf traffic to DMA 0

The transcript below shows an iPerf3 test from development kit 1, targeting port 5401 on the server and using port 5402 locally. DMA-0 usage (highest priority) is confirmed by the interrupt count on its associated queue.

Execute the following commands on development kit 1:

root@agilex7dksiagi027fc:~# iperf3 -M 1460 -c 192.168.121.2 -t 80000 -p 5401 --cport 5402
Connecting to host 192.168.121.2, port 5401
[  5] local 192.168.121.1 port 5402 connected to 192.168.121.2 port 5401
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec  64.8 MBytes   543 Mbits/sec   32    158 KBytes
[  5]   1.00-2.00   sec  63.9 MBytes   536 Mbits/sec   38    119 KBytes
[  5]   2.00-3.00   sec  64.1 MBytes   537 Mbits/sec   29    153 KBytes
[  5]   3.00-4.00   sec  64.5 MBytes   541 Mbits/sec   35    144 KBytes
[  5]   4.00-5.00   sec  63.9 MBytes   536 Mbits/sec   25    146 KBytes
[  5]   5.00-6.00   sec  64.1 MBytes   538 Mbits/sec   26    120 KBytes
[  5]   6.00-7.00   sec  64.2 MBytes   539 Mbits/sec   36    150 KBytes
[  5]   7.00-8.00   sec  64.4 MBytes   540 Mbits/sec   23    148 KBytes
[  5]   8.00-9.00   sec  64.6 MBytes   542 Mbits/sec   39    120 KBytes
[  5]   9.00-10.00  sec  64.0 MBytes   537 Mbits/sec   37    148 KBytes
[  5]  10.00-11.00  sec  64.4 MBytes   540 Mbits/sec   56    154 KBytes
[  5]  11.00-11.38  sec  24.2 MBytes   534 Mbits/sec    8    141 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-11.38  sec   732 MBytes   539 Mbits/sec  384            sender
[  5]   0.00-11.38  sec  0.00 Bytes  0.00 bits/sec                  receiver
iperf3: interrupt - the client has terminated
root@agilex7dksiagi027fc:~#

iPerf traffic to DMA 1

The transcript below shows an iPerf3 test from development kit 1, targeting port 5301 on the server and using port 5302 locally. DMA-1 usage is confirmed by the interrupt count on its associated queue.

root@agilex7dksiagi027fc:~# iperf3 -M 1460 -c 192.168.121.2 -t 80000 -p 5301 --cport 5302
Connecting to host 192.168.121.2, port 5301
Connecting to host 192.168.121.2, port 5301
[  5] local 192.168.121.1 port 5302 connected to 192.168.121.2 port 5301
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec  65.0 MBytes   544 Mbits/sec   35    115 KBytes
[  5]   1.00-2.00   sec  65.2 MBytes   547 Mbits/sec   28    158 KBytes
[  5]   2.00-3.00   sec  64.2 MBytes   539 Mbits/sec   42    158 KBytes
[  5]   3.00-4.00   sec  64.5 MBytes   541 Mbits/sec   36    141 KBytes
[  5]   4.00-5.00   sec  64.4 MBytes   540 Mbits/sec   22    137 KBytes
[  5]   5.00-6.00   sec  63.6 MBytes   533 Mbits/sec   39    147 KBytes
[  5]   6.00-7.00   sec  63.9 MBytes   536 Mbits/sec   42    157 KBytes
[  5]   7.00-8.00   sec  63.8 MBytes   535 Mbits/sec   23    150 KBytes
[  5]   8.00-9.00   sec  64.1 MBytes   538 Mbits/sec   42    143 KBytes
[  5]   9.00-10.00  sec  64.8 MBytes   543 Mbits/sec   39    151 KBytes
[  5]  10.00-10.81  sec  51.0 MBytes   531 Mbits/sec   18    116 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.81  sec   695 MBytes   539 Mbits/sec  366            sender
[  5]   0.00-10.81  sec  0.00 Bytes  0.00 bits/sec                  receiver
iperf3: interrupt - the client has terminated

root@agilex7dksiagi027fc:~# cat /proc/interrupts | grep eth1
 25:     415767          0          0          0     GICv2  72 Level     eth1
 26:     365267          0          0          0     GICv2  73 Level     eth1
 27:          0     186195          0          0     GICv2  70 Level     eth1
 28:          0      38260          0          0     GICv2  71 Level     eth1
 29:         11          0     100011          0     GICv2  68 Level     eth1
 30:          0          0     100018          0     GICv2  69 Level     eth1
root@agilex7dksiagi027fc:~#

iPerf traffic to DMA 2

The transcript below shows an iPerf3 test from development kit 1 using port 5201 on the server and 5202 on the client. DMA-2 usage (lowest priority) is confirmed by the interrupt count on its associated queue.

root@agilex7dksiagi027fc:~# iperf3 -M 1460 -c 192.168.121.2 -t 80000 -p 5201 --cport 5202
Connecting to host 192.168.121.2, port 5201
[  5] local 192.168.121.1 port 5202 connected to 192.168.121.2 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec  66.1 MBytes   554 Mbits/sec   39    116 KBytes
[  5]   1.00-2.00   sec  64.4 MBytes   540 Mbits/sec   51    123 KBytes
[  5]   2.00-3.00   sec  64.6 MBytes   542 Mbits/sec   23    146 KBytes
[  5]   3.00-4.00   sec  64.0 MBytes   537 Mbits/sec   40    146 KBytes
[  5]   4.00-5.00   sec  63.9 MBytes   536 Mbits/sec   34    154 KBytes
[  5]   5.00-6.00   sec  64.8 MBytes   543 Mbits/sec   46    144 KBytes
[  5]   6.00-7.00   sec  64.4 MBytes   540 Mbits/sec   34    156 KBytes
[  5]   7.00-8.00   sec  63.4 MBytes   532 Mbits/sec   28    168 KBytes
[  5]   8.00-9.00   sec  63.9 MBytes   536 Mbits/sec   34    130 KBytes
[  5]   9.00-10.00  sec  64.2 MBytes   539 Mbits/sec   25    158 KBytes
[  5]  10.00-11.00  sec  64.2 MBytes   539 Mbits/sec   35    160 KBytes
[  5]  11.00-11.34  sec  22.0 MBytes   546 Mbits/sec   22    119 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-11.34  sec   730 MBytes   540 Mbits/sec  411            sender
[  5]   0.00-11.34  sec  0.00 Bytes  0.00 bits/sec                  receiver
iperf3: interrupt - the client has terminated

root@agilex7dksiagi027fc:~# cat /proc/interrupts | grep eth1
 25:     415790          0          0          0     GICv2  72 Level     eth1
 26:     365267          0          0          0     GICv2  73 Level     eth1
 27:          0     186195          0          0     GICv2  70 Level     eth1
 28:          0      38260          0          0     GICv2  71 Level     eth1
 29:         11          0     315979          0     GICv2  68 Level     eth1
 30:          0          0     133629          0     GICv2  69 Level     eth1
root@agilex7dksiagi027fc:~#

Run Packet Generator Test

System packet generators operate independently of the HPS and DMA engines. Their datapath traverses the Packet Switch and can saturate the 25GbE ports. No tc filters apply, as they are not HPS-connected and not software-controlled. Bandwidth allocation is managed solely by the Packet Switch arbiter.

Test execution involves configuring traffic parameters for the generators. The transcript below shows initial setup and traffic start. The --dump flag captures packet generator status registers, indicating TX bandwidth utilization of ~25.35 Gbps.

Execute the following commands on development kit 1:

root@agilex7dksiagi027fc:~# packetgenerator --device /dev/uio0 --traffic false --dyn-pkt-mode true --fixed-gap true --pkt-len-mode 0x01 --num-idle-cycles 8 --packet-checker true  --one-shot false --tx-pkt-size 1024 --tx-max-pkt-size 1024
Tx traffic state set: Disabled
Dynamic Packet Mode set: Enabled
Fixed Gap set: Enabled
Packet length mode set: 1
Number of Idle Cycles set: 8
Pkt Checker set: Enabled
One Shot mode set: Disabled
Tx Packet Size set: 1024
Max Tx Packet Size set: 1024
root@agilex7dksiagi027fc:~# packetgenerator --device /dev/uio0 --traffic 1
Tx traffic state set: Enabled
root@agilex7dksiagi027fc:~# packetgenerator --device /dev/uio0 --dump
Config Control: 0x8635
        Tx traffic: Enabled
        Packet Generation Mode: Continuous
        Soft Reset: Disabled
        Dynamic Mode: Enabled
        Pkt Checker: Enabled
        Counter Snapshot Status: Disabled
        Counter Clear Status: Disabled
        Internal Counter Clear Status: Disabled
        Fixed Gap: Enabled
        Packet Length Mode: Fixed
        Number of Idle Cycles: 8
Destination Mac Address: 12:34:56:78:0A:02
Source Mac Address: 12:34:56:78:0A:01
Number of Packets: 4294967295
Packet Size Config Control: 0x4000400
        Tx Packet Size: 1024 Tx Max Packet Size: 1024
Packet Generator Status: 0x1e
        SADB configuration status: Incomplete
        System Reset Sequence status: Complete
        HSSI SS tx_lanes_stable status: Asserted
        HSSI SS tx_pll_locked status: Asserted
        HSSI SS rx_pcs status: Asserted
Packet Checker Status: 0x0
        Data Mismatch status: Not seen
TX Start of Packet Count: 37451629
TX End of Packet Count: 37451846
TX Error Packet Count: 0
RX Start of Packet Count: 0
RX End of Packet Count: 0
RX Error Packet Count: 0
Pkt Checker Live Counter: 0
PKT TX Byte Count: 39656528320
PKT RX Byte Count: 0
PKT TX Num Ticks Count: 4957121724
PKT RX Num Ticks Count: 0
TX Bandwidth: 25358344768 bps
RX Bandwidth: 0 bps
root@agilex7dksiagi027fc:~#

TX bandwidth utilization can be tuned by adjusting packet length and idle cycles. The transcript below modifies the number of idle cycles between packets in flight. The change is verified via a read of the packet generator status registers, which shows a maximum bandwidth of ~23.61 Gbps.

root@agilex7dksiagi027fc:~# packetgenerator --device /dev/uio0 --num-idle-cycles 16 --tx-pkt-size 1024 --tx-max-pkt-size 1024
Number of Idle Cycles set: 16
Tx Packet Size set: 1024
Max Tx Packet Size set: 1024
root@agilex7dksiagi027fc:~# packetgenerator --device /dev/uio0 --dump
Config Control: 0x10635
        Tx traffic: Enabled
        Packet Generation Mode: Continuous
        Soft Reset: Disabled
        Dynamic Mode: Enabled
        Pkt Checker: Enabled
        Counter Snapshot Status: Disabled
        Counter Clear Status: Disabled
        Internal Counter Clear Status: Disabled
        Fixed Gap: Enabled
        Packet Length Mode: Fixed
        Number of Idle Cycles: 16
Destination Mac Address: 12:34:56:78:0A:02
Source Mac Address: 12:34:56:78:0A:01
Number of Packets: 4294967295
Packet Size Config Control: 0x4000400
        Tx Packet Size: 1024 Tx Max Packet Size: 1024
Packet Generator Status: 0x1e
        SADB configuration status: Incomplete
        System Reset Sequence status: Complete
        HSSI SS tx_lanes_stable status: Asserted
        HSSI SS tx_pll_locked status: Asserted
        HSSI SS rx_pcs status: Asserted
Packet Checker Status: 0x0
        Data Mismatch status: Not seen
TX Start of Packet Count: 559732907
TX End of Packet Count: 559733116
TX Error Packet Count: 0
RX Start of Packet Count: 0
RX End of Packet Count: 0
RX Error Packet Count: 0
Pkt Checker Live Counter: 0
PKT TX Byte Count: 591628496376
PKT RX Byte Count: 0
PKT TX Num Ticks Count: 73953613933
PKT RX Num Ticks Count: 0
TX Bandwidth: 23615146240 bps
RX Bandwidth: 0 bps
root@agilex7dksiagi027fc:~#

Enabling the packet generator on the second development kit starts the integrated packet checker and reports RX bandwidth. The transcript below shows the status change after activation.

Execute the following commands on development kit 1:

root@agilex7dksiagi027fc:~# packetgenerator --device /dev/uio0 --dump
Config Control: 0x16634
        Tx traffic: Disabled
        Packet Generation Mode: Continuous
        Soft Reset: Disabled
        Dynamic Mode: Enabled
        Pkt Checker: Enabled
        Counter Snapshot Status: Disabled
        Counter Clear Status: Disabled
        Internal Counter Clear Status: Disabled
        Fixed Gap: Enabled
        Packet Length Mode: Fixed
        Number of Idle Cycles: 22
Destination Mac Address: 12:34:56:78:0A:01
Source Mac Address: 12:34:56:78:0A:02
Number of Packets: 4294967295
Packet Size Config Control: 0x4000400
        Tx Packet Size: 1024 Tx Max Packet Size: 1024
Packet Generator Status: 0x1e
        SADB configuration status: Incomplete
        System Reset Sequence status: Complete
        HSSI SS tx_lanes_stable status: Asserted
        HSSI SS tx_pll_locked status: Asserted
        HSSI SS rx_pcs status: Asserted
Packet Checker Status: 0x0
        Data Mismatch status: Not seen
TX Start of Packet Count: 0
TX End of Packet Count: 0
TX Error Packet Count: 0
RX Start of Packet Count: 1136848921
RX End of Packet Count: 1136849121
RX Error Packet Count: 0
Pkt Checker Live Counter: 1136849343
PKT TX Byte Count: 0
PKT RX Byte Count: 0
PKT TX Num Ticks Count: 0
PKT RX Num Ticks Count: 0
TX Bandwidth: 0 bps
RX Bandwidth: 23615150848 bps
root@agilex7dksiagi027fc:~#

RX bandwidth is reported to be ~23.61 Gbps.

To fully saturate an Ethernet port, run the following commands on both development kits to enable their respective packet generators:

packetgenerator --device /dev/uio0 --num-idle-cycles 16 --tx-pkt-size 1024 --tx-max-pkt-size 1024
packetgenerator --device /dev/uio0 --traffic 1

Both development kits are now transmitting and receiving Ethernet traffic on port 1. Run a status dump on either kit to report bandwidth utilization:

root@agilex7dksiagi027fc:~/scripts# packetgenerator --device /dev/uio0 --dump
Config Control: 0x8635
        Tx traffic: Enabled
        Packet Generation Mode: Continuous
        Soft Reset: Disabled
        Dynamic Mode: Enabled
        Pkt Checker: Enabled
        Counter Snapshot Status: Disabled
        Counter Clear Status: Disabled
        Internal Counter Clear Status: Disabled
        Fixed Gap: Enabled
        Packet Length Mode: Fixed
        Number of Idle Cycles: 8
Destination Mac Address: 12:34:56:78:0A:02
Source Mac Address: 12:34:56:78:0A:01
Number of Packets: 4294967295
Packet Size Config Control: 0x4000400
        Tx Packet Size: 1024 Tx Max Packet Size: 1024
Packet Generator Status: 0x1e
        SADB configuration status: Incomplete
        System Reset Sequence status: Complete
        HSSI SS tx_lanes_stable status: Asserted
        HSSI SS tx_pll_locked status: Asserted
        HSSI SS rx_pcs status: Asserted
Packet Checker Status: 0x0
        Data Mismatch status: Not seen
TX Start of Packet Count: 249401806
TX End of Packet Count: 249402022
TX Error Packet Count: 0
RX Start of Packet Count: 43882945
RX End of Packet Count: 43883143
RX Error Packet Count: 0
Pkt Checker Live Counter: 43883467
PKT TX Byte Count: 264077193064
PKT RX Byte Count: 44937076872
PKT TX Num Ticks Count: 33009703937
PKT RX Num Ticks Count: 6319335403
TX Bandwidth: 25358377536 bps
RX Bandwidth: 23615140544 bps
root@agilex7dksiagi027fc:~/scripts#

Both TX and RX channels are now active.

Run ptp4l Test

Development kit 1 acts as the network master; development kit 2 is the subordinate. Both are configured as ordinary clocks using ptp4l. Configuration files provided by the system example design are located at /root/cfg/.

root@agilex7dksiagi027fc:~# ls /root/cfg/
boundary.cfg
master.cfg
slave.cfg

The transcript below configures development kit 1 as the network master.

Execute the following commands on development kit 1:

root@agilex7dksiagi027fc:~# ptp4l -i eth1 -m -f /root/cfg/master.cfg
option slaveOnly is deprecated, please use clientOnly instead
option masterOnly is deprecated, please use serverOnly instead
ptp4l[162.444]: selected /dev/ptp0 as PTP clock
ptp4l[162.504]: port 1 (eth1): INITIALIZING to LISTENING on INIT_COMPLETE
ptp4l[162.504]: port 0 (/var/run/ptp4l): INITIALIZING to LISTENING on INIT_COMPLETE
ptp4l[162.504]: port 0 (/var/run/ptp4lro): INITIALIZING to LISTENING on INIT_COMPLETE
ptp4l[162.904]: port 1 (eth1): LISTENING to MASTER on ANNOUNCE_RECEIPT_TIMEOUT_EXPIRES
ptp4l[162.904]: selected local clock 52c803.fffe.45f11c as best master
ptp4l[162.904]: port 1 (eth1): assuming the grand master role

Development kit 2 loads slave.cfg to operate as the network slave.

Execute the following commands on development kit 2:

root@agilex7dksiagi027fc:~# ptp4l -i eth1 -m -s -f /root/cfg/slave.cfg
option slaveOnly is deprecated, please use clientOnly instead
option masterOnly is deprecated, please use serverOnly instead
ptp4l[193.064]: selected /dev/ptp0 as PTP clock
ptp4l[193.124]: port 1 (eth1): INITIALIZING to LISTENING on INIT_COMPLETE
ptp4l[193.124]: port 0 (/var/run/ptp4l): INITIALIZING to LISTENING on INIT_COMPLETE
ptp4l[193.124]: port 0 (/var/run/ptp4lro): INITIALIZING to LISTENING on INIT_COMPLETE
ptp4l[193.246]: port 1 (eth1): new foreign master 52c803.fffe.45f11c-1
ptp4l[193.496]: selected best master clock 52c803.fffe.45f11c
ptp4l[193.496]: port 1 (eth1): LISTENING to UNCALIBRATED on RS_SLAVE
ptp4l[193.621]: master offset 2709964362 s0 freq      -0 path delay        10
ptp4l[193.684]: master offset 2709964348 s0 freq      -0 path delay        13
ptp4l[193.746]: master offset 2709964337 s0 freq      -0 path delay        12
ptp4l[193.809]: master offset 2709964326 s0 freq      -0 path delay        12
ptp4l[193.871]: master offset 2709964314 s0 freq      -0 path delay        13
ptp4l[193.934]: master offset 2709964306 s0 freq      -0 path delay         9
ptp4l[193.996]: master offset 2709964291 s0 freq      -0 path delay        12
ptp4l[194.059]: master offset 2709964281 s0 freq      -0 path delay        11
ptp4l[194.121]: master offset 2709964270 s0 freq      -0 path delay        10
ptp4l[194.184]: master offset 2709964257 s0 freq      -0 path delay        11

<-- output truncated -->

ptp4l[253.727]: master offset          1 s0 freq      -0 path delay         8
ptp4l[253.775]: master offset          0 s0 freq      -0 path delay         8
ptp4l[253.792]: master offset          1 s0 freq      -0 path delay         7
ptp4l[253.838]: master offset          1 s0 freq      -0 path delay         7
ptp4l[253.854]: master offset          0 s0 freq      -0 path delay         8
ptp4l[253.900]: master offset          0 s0 freq      -0 path delay         8
ptp4l[253.918]: master offset          0 s0 freq      -0 path delay         8
ptp4l[253.964]: master offset          0 s0 freq      -0 path delay         8
ptp4l[253.984]: master offset          0 s0 freq      -0 path delay         8
ptp4l[254.028]: master offset          1 s2 freq      +0 path delay         7
ptp4l[254.028]: port 1 (eth1): UNCALIBRATED to SLAVE on MASTER_CLOCK_SELECTED
ptp4l[254.044]: master offset          1 s2 freq      +1 path delay         7
ptp4l[254.110]: master offset          1 s2 freq      +1 path delay         7
ptp4l[254.155]: master offset          1 s2 freq      +1 path delay         7
ptp4l[254.171]: master offset          1 s2 freq      +1 path delay         7
ptp4l[254.248]: master offset          1 s2 freq      +1 path delay         7
ptp4l[254.249]: master offset          0 s2 freq      +0 path delay         7
ptp4l[254.280]: master offset          1 s2 freq      +1 path delay         7
ptp4l[254.295]: master offset          1 s2 freq      +1 path delay         7

To verify that both systems use DMA-0 for PTP traffic, inspect /proc/interrupts and confirm that the highest-priority interrupts are triggered for PTP TX/RX handling.

Execute the following commands on development kit 1:

root@agilex7dksiagi027fc:~# cat /proc/interrupts | grep eth1
 25:       1283          0          0          0     GICv2  72 Level     eth1
 26:        175          0          0          0     GICv2  73 Level     eth1
 27:          0          0          0          0     GICv2  70 Level     eth1
 28:          0          0          0          0     GICv2  71 Level     eth1
 29:          9          0         17          0     GICv2  68 Level     eth1
 30:          0          0         10          0     GICv2  69 Level     eth1
root@agilex7dksiagi027fc:~#

Execute the following commands on development kit 2:

root@agilex7dksiagi027fc:~# cat /proc/interrupts | grep eth1
 25:       1456          0          0          0     GICv2  72 Level     eth1
 26:       5841          0          0          0     GICv2  73 Level     eth1
 27:          0          0          0          0     GICv2  70 Level     eth1
 28:          0          0          0          0     GICv2  71 Level     eth1
 29:         10          0         10          0     GICv2  68 Level     eth1
 30:          0          0         11          0     GICv2  69 Level     eth1
root@agilex7dksiagi027fc:~#

Debug

This section outlines common issues and solutions encountered during system bring-up.

Ethernet Interfaces are Missing

After login into the HPS, the Ethernet ports are not listed by Linux as shown below.

root@agilex7dksiagi027fc:~# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host noprefixroute
       valid_lft forever preferred_lft forever
2: eth0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen0
    link/ether fa:06:aa:f6:2b:48 brd ff:ff:ff:ff:ff:ff
3: teql0: <NOARP> mtu 1500 qdisc noop state DOWN group default qlen 100
    link/void
root@agilex7dksiagi027fc:~#

A common cause of this error are listed below.

Incorrect onboard MAX10 bitstream

The custom MAX10 bitstream is not loaded, causing ZL30733 configuration to fail. Check the Linux boot log for the following message:

Loading fpga from 0x02840620 to 0x0a000000
.......FPGA reconfiguration OK!
 Initializing Clock Cleaner (ZL30733) via I2C
zl30733_i2c_init: Could not identify ZL30733 chip on I2C bus 0, address 0x70
.......FPGA reconfiguration OK!
Enable FPGA bridges

To solve this issue, load the max10_system_0002aa4F.pof as described in the Program the onboard MAX10 device section. Once the correct MAX10 bitstream is loaded, the boot log will show:

Loading fpga from 0x02840620 to 0x0a000000
.......FPGA reconfiguration OK!
 Initializing Clock Cleaner (ZL30733) via I2C
...Configuring PLL Done!
.......FPGA reconfiguration OK!
Enable FPGA bridges

Ethernet Interfaces are DOWN

After login into the HPS, the Ethernet ports are not listed by Linux as shown below.

root@agilex7dksiagi027fc:~# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host noprefixroute
       valid_lft forever preferred_lft forever
2: eth0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
    link/ether e2:06:d6:88:ef:23 brd ff:ff:ff:ff:ff:ff
3: teql0: <NOARP> mtu 1500 qdisc noop state DOWN group default qlen 100
    link/void
4: eth1: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
    link/ether fa:74:c3:a3:30:c1 brd ff:ff:ff:ff:ff:ff
    inet 192.168.121.1/32 scope global eth1
       valid_lft forever preferred_lft forever
5: eth2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
    link/ether 86:03:88:45:9a:f9 brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/32 scope global eth2
       valid_lft forever preferred_lft forever

A common cause of this error are listed below.

Suboptimal Link Quality

The System Example Design does not support auto-negotiation or link training, it uses fixed analog settings optimized for active optical cables (AOC). Validated with FS Q28-AO05 (5 m / 16 ft) 100G QSFP28 AOC and FS Q28-PC01 (1 m / 3 ft) 100G QSFP28 passive DAC. Longer DAC cables or different cable types (length, vendor, optical) may require manual tuning of the Ethernet interface analog settings.

Before debugging, ensure cables are properly connected to both development kits. Begin by assessing link health using the procedure in Reading the Ethernet Subsystem IP Configuration and Status Registers with the HPS. If a port shows degraded status and a DAC cable is used, adjust analog settings as described in Enabling Transceiver Tool Kit for the Ethernet Subsystem. Run BER and Eye Viewer tests; if results are suboptimal, follow the guidance in section 7.2.7 of the F-Tile Architecture and PMA and FEC Direct PHY IP User Guide.

System Debug Tools

Reading the Ethernet Subsystem IP Configuration and Status Registers with the HPS

The HPS exposes the Ethernet Subsystem IP Configuration and Status Registers (CSR) via the Linux file system, providing real-time visibility into Ethernet interface status. This data is useful for debugging link-related issues.

To capture a CSR snapshot, log into the HPS through a serial session and run the following command:

root@agilex7dksiagi027fc:~# cat /sys/kernel/debug/hssiss_dbg/dumpcsr

The output will resemble the following transcript:

Dumping device feature registers
        0: 10003015
        4: 30000000
        8: 18418b9d
        c: 99a078ad
        10: d9db4a9b
        14: 4118a7cb
        18: c0
        1c: 0
        20: 0
        24: 31c
Dumping other CSR registers
HSSISS_CSR_VER: 20000
HSSISS_CSR_COMMON_FEATURE_LIST: c005
Dumping port attributes
        0: 0
        1: 0
        2: 0
        3: 0
        4: 0
        5: 0
        6: 0
        7: 0
        8: a40415
        9: a40415
        a: 0
        b: 0
        c: 0
        d: 0
        e: 0
        10: 0
        11: 0
        12: 0
        13: 0
HSSISS_CSR_CMDSTS: 5
HSSISS_CSR_CTRLADDR: 50020c06
HSSISS_CSR_RD_DATA: f
HSSISS_CSR_WR_DATA: 9ee00d
HSSISS_CSR_GMII_TX_LATENCY: 0
HSSISS_CSR_GMII_RX_LATENCY: 0
Dumping port status
        0: 0
        1: 0
        2: 0
        3: 0
        4: 0
        5: 0
        6: 0
        7: 0
        8: e00094
        9: e00094
        a: 0
        b: 0
        c: 0
        d: 0
        e: 0
        10: 0
        11: 0
        12: 0
        13: 0
HSSISS_CSR_TSE_CTRL: 0
HSSISS_CSR_DBG_CTRL: 62000
HSSISS_CSR_HOTPLUG_DBG_CTRL: 9c400000
HSSISS_CSR_HOTPLUG_DBG_STS: 0
0
root@agilex7dksiagi027fc:~#

To interpret the output from dumpcsr, refer to section 7. Register Descriptions in the Ethernet Subsystem FPGA IP User Guide. Offsets listed under Dumping device feature registers correspond to section 7.1 Subsystem Registers.

For debugging, the most relevant data appears under Dumping port status. Registers with a read value of 0 indicate Ethernet Subsystem ports not used by the System Example Design.

Dumping port status
.
.
7: 0
8: a00180
9: e00194
a: 0
.
.

To decode status for ports 8 and 9, refer to section 7.1.14 HSSI Ethernet Port X Status in the Ethernet Subsystem FPGA IP User Guide.

Example

Port 8 status at offset 0xA00180:

Bit	Value	Description
31:27	0	Reserved
26	0	No parity errors detected
25:24	0	Not applicable for F-Tile
23	1	tx_pll_locked status bit
22	0	rx_pcs_ready status bit
21	1	tx_lanes_stable status bit
20	0	Not applicable for F-Tile
19	0	Not applicable for F-Tile
18	0	Reserved
17	0	Reserved
16	0	Reserved
15	0	Reserved
14:13	0	Reserved
12:11	0	Reserved
10	0	tx_unidir_control register bit 1 status - unidirectional remote fault disable
9	0	tx_unidir_control register bit 2 status - unidirectional force remote fault
8	1	Remote Fault status bit
7	1	Local Fault status bit
6	0	Unidiectional enable status bit (Clause 66)
5	0	Link Fault Generation Enable status bit (Clause 66)
4	0	rx_block_lock status bit
3	0	rx_am_lock status bit
2	0	o_cdr_lock status bit
1	0	o_rx_hi_ber status bit
0	0	Reserved

Table 18. Port 8 Offset 0xA00180 Decoding.

Port 9 status at offset E00194:

Bit	Value	Description
31:27	0	Reserved
26	0	No parity errors detected
25:24	0	Not applicable for F-Tile
23	1	tx_pll_locked status bit
22	1	rx_pcs_ready status bit
21	1	tx_lanes_stable status bit
20	0	Not applicable for F-Tile
19	0	Not applicable for F-Tile
18	0	Reserved
17	0	Reserved
16	0	Reserved
15	0	Reserved
14:13	0	Reserved
12:11	0	Reserved
10	0	tx_unidir_control register bit 1 status - unidirectional remote fault disable
9	0	tx_unidir_control register bit 2 status - unidirectional force remote fault
8	1	Remote Fault status bit (Only functional if feature is enabled)
7	1	Local Fault status bit (Only functional if feature is enabled)
6	0	Unidiectional enable status bit (Clause 66)
5	0	Link Fault Generation Enable status bit (Clause 66)
4	1	rx_block_lock status bit
3	0	rx_am_lock status bit
2	1	o_cdr_lock status bit
1	0	o_rx_hi_ber status bit
0	0	Reserved

Table 19. Port 9 Offset 0xA00180 Decoding.

From the decoded register values, Port 8 shows TX is operational (tx_pll_locked and tx_lanes_stable asserted), but RX is not ready — its CDR failed to recover a clock signal from the link partner. Port 9 shows no TX/RX issues; however, bits 8 (Remote Fault) and 9 (Local Fault) are asserted. These are latched fault indicators and must be cleared manually. In this case, the remote fault likely occurred during initialization and is not a concern if the link is stable.

Bits 23, 22, 21, 4, 5, 3, 2, and 1 reflect TX/RX status for each port and help isolate whether the issue is hardware or software-related, and whether it affects TX, RX, or both.

For detailed signal descriptions, refer to section 7.1 Status Interface in the F-Tile Ethernet FPGA Hard IP User Guide.

Access to the Ethernet Subsystem IP Configuration and Status Registers with the HPS

Access to the Ethernet Subsystem CSR is available through the HPS via the Linux file system. Use the following syntax to read or write CSR registers. These commands must be executed from the following path:

/sys/kernel/debug/hssiss_dbg

Write Operation Syntax – Use the following syntax to write to Ethernet Subsystem CSR registers.

echo "<base> <offset> <direct> <wr_value>" > direct_reg

Read Operation Syntax – Use the following syntax to read to Ethernet Subsystem CSR registers.

echo "<base> <offset> <direct> <wr_value>" > direct_reg
cat direct_reg

Where:

Parameter	Description
base	Base address from the Ethernet Subsystem IP. The Address map can be found in section 7.3. F-Tile Address Maps from the Ethernet Subsystem FPGA IP User Guide
offset	Register offset for access. See the F-Tile Ethernet FPGA Hard IP Register documentation for address and description of Ethernet Port registers within the Ethernet Subsystem IP.
direct	Set to '1' to access Ethernet port registers; set to '0' to access Ethernet Subsystem CSRs
wr_value	Data used for write operations

Table 20. direct_reg Fields.

Example

To trigger a soft global reset on Port 8 (eth1), set bit [0] of the eth_reset register at offset 0x108. See transcript below for expected output.

root@agilex7dksiagi027fc:~# cd /sys/kernel/debug/hssiss_dbg/
root@agilex7dksiagi027fc:/sys/kernel/debug/hssiss_dbg# echo "0x1200000 0x108 1 1" > direct_reg
[14012.863321] intel_fpga_eth soc:hssi_0_eth eth1: Link is Down

After the write, interface eth1 transitions to down state.

root@agilex7dksiagi027fc:/sys/kernel/debug/hssiss_dbg# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host noprefixroute
       valid_lft forever preferred_lft forever
2: eth0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
    link/ether e2:06:d6:88:ef:23 brd ff:ff:ff:ff:ff:ff
3: teql0: <NOARP> mtu 1500 qdisc noop state DOWN group default qlen 100
    link/void
4: eth1: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
    link/ether fa:74:c3:a3:30:c1 brd ff:ff:ff:ff:ff:ff
    inet 192.168.121.1/32 scope global eth1
       valid_lft forever preferred_lft forever
5: eth2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 86:03:88:45:9a:f9 brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/32 scope global eth2
       valid_lft forever preferred_lft forever
    inet6 2001:db8:abcd:13::1/64 scope global
       valid_lft forever preferred_lft forever
root@agilex7dksiagi027fc:/sys/kernel/debug/hssiss_dbg#

Read eth_reset_status (offset 0x10C) to confirm reset acknowledgment from the controller.

root@agilex7dksiagi027fc:/sys/kernel/debug/hssiss_dbg# echo "0x1200000 0x10C 1" > direct_reg
root@agilex7dksiagi027fc:/sys/kernel/debug/hssiss_dbg# cat direct_reg
5500

eth_reset_status (0x10C) returns a decimal value indicating the Ethernet interface is in a reset cycle. To exit global reset on Port 8, clear bit [0] of eth_reset (0x108).

root@agilex7dksiagi027fc:/sys/kernel/debug/hssiss_dbg# echo "0x1200000 0x108 1 0" > direct_reg
[14455.979357] intel_fpga_eth soc:hssi_0_eth: DBG: eth_ftile_tx_rx_user_flow speed=25000 num_vl=1 num_fl=1 num_pl=1
[14455.990799] intel_fpga_eth soc:hssi_0_eth: DBG: eth_ftile_tx_rx_user_flow ETH_TX_PTP_READY - tx_ref_pl:0 tx_extra_latency:0x00031072 tx_tam_adjust:-1711153
[14456.007504] intel_fpga_eth soc:hssi_0_eth: DBG: eth_ftile_tx_rx_user_flow ETH_RX_PTP_READY - rx_ref_pl:0 rx_extra_latency:0x800369d0 rx_tam_adjust:-1716888
[14456.021427] intel_fpga_eth soc:hssi_0_eth eth1: Link is Up - 25Gbps/Full - flow control rx/tx
root@agilex7dksiagi027fc:/sys/kernel/debug/hssiss_dbg#

Read eth_reset_status (0x10C) to verify reset cycle completion.

root@agilex7dksiagi027fc:/sys/kernel/debug/hssiss_dbg# echo "0x1200000 0x10C 1" > direct_reg
root@agilex7dksiagi027fc:/sys/kernel/debug/hssiss_dbg# cat direct_reg
6607

Verify that interface eth1 is in the UP state.

root@agilex7dksiagi027fc:/sys/kernel/debug/hssiss_dbg# ip addr
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host noprefixroute
       valid_lft forever preferred_lft forever
2: eth0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN group default qlen 1000
    link/ether e2:06:d6:88:ef:23 brd ff:ff:ff:ff:ff:ff
3: teql0: <NOARP> mtu 1500 qdisc noop state DOWN group default qlen 100
    link/void
4: eth1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether fa:74:c3:a3:30:c1 brd ff:ff:ff:ff:ff:ff
    inet 192.168.121.1/32 scope global eth1
       valid_lft forever preferred_lft forever
    inet 169.254.221.176/16 brd 169.254.255.255 scope global eth1
       valid_lft forever preferred_lft forever
    inet6 fe80::f874:c3ff:fea3:30c1/64 scope link proto kernel_ll
       valid_lft forever preferred_lft forever
5: eth2: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 86:03:88:45:9a:f9 brd ff:ff:ff:ff:ff:ff
    inet 192.168.122.1/32 scope global eth2
       valid_lft forever preferred_lft forever
    inet6 2001:db8:abcd:13::1/64 scope global
       valid_lft forever preferred_lft forever
root@agilex7dksiagi027fc:/sys/kernel/debug/hssiss_dbg#

Enabling Transceiver Tool Kit for the Ethernet Subsystem

The system example design supports the F-Tile Transceiver Toolkit for debugging potential link quality issues. Follow the next steps to enable the Transceiver Toolkit:

1. With Quartus® Prime Pro version 25.1.1, open the system example design project.
2. In 'Project Navigator' click on 'IP Components' Tab.
3. Double click on the entity 'inst_hssi_25G', the IP Parameter Editor will open the Ethernet Subsystem IP instance.
4. In the 'HSSI Subsystem' >> 'Device 0 Configuration' >> 'Main Configuration' tab, set to 'Enable' the 'Enable JTAG to Avalon Master Bridge' parameter. Refer to the screen shot below.
5. In the 'HSSI Subsystem' >> 'Device 0 Configuration' >> 'F-Tile IP Configuration' >> 'Port 8 Configuration' >> 'P8 IP' tab, click on the 'Enable debug endpoint for transceiver toolkit' parameter.
6. repeat step 5 for 'Port 9 Configuration' >> 'P9 IP' tab. Refer to the screen shot below.
7. Save and regenerate the IP.
8. Recompile the Altera Quartus Prime project.
9. Regenerate the software with the new generated 'core.rbf' file.

Refer to section '7.2. F-Tile Transceiver Debugging Flow Walkthrough' from the 'F-Tile Architecture and PMA and FEC Direct PHY IP User Guide' for more information on link quality related issues and their resolution. Sections '7.2.5. Running BER Tests' and '7.2.6. Running Eye Viewer Tests' are essential to qualify the Ethernet link health.

Figure 11. Set 'Enable JTAG to Avalon Master Bridge' for the Ethernet Subystem IP.

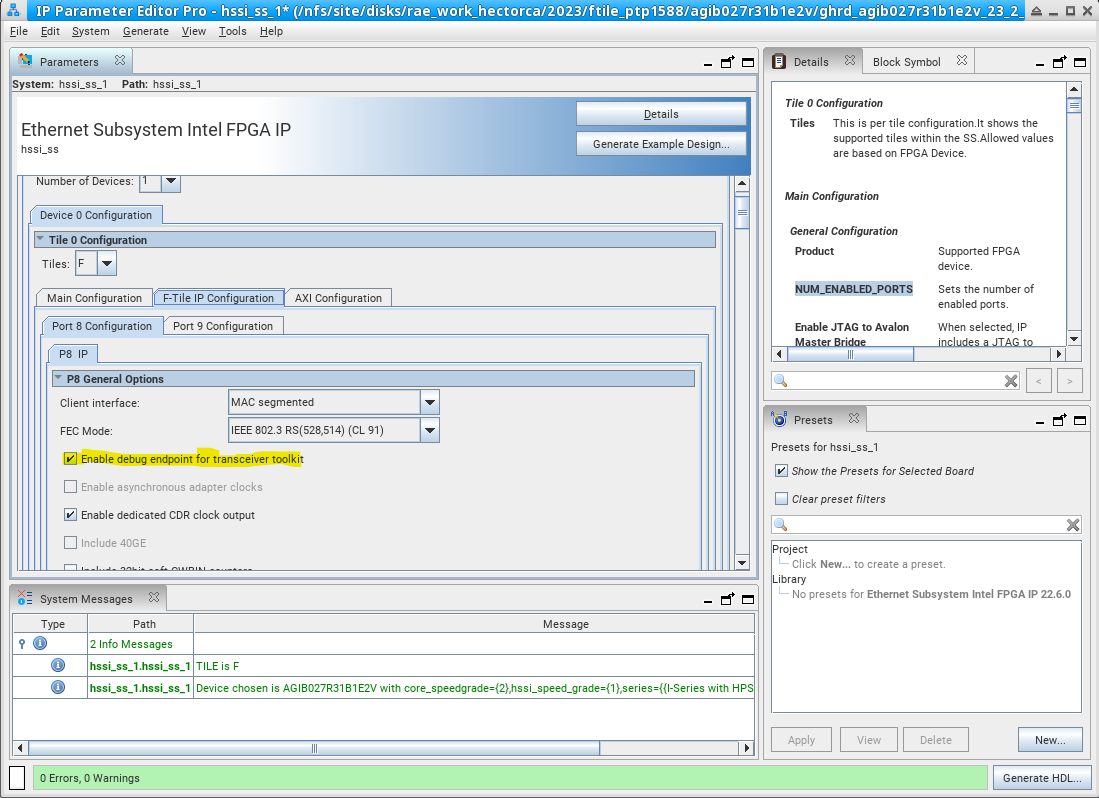

Figure 12. Set 'Enable debug endpoint for transceiver toolkit' for both Ethernet Subystem IP ports.

Simulation

The Multi-Channel 25GbE Precision Time Protocol System Example Design includes a suite of standalone UVM simulation tests for hardware verification. These tests validate the Quartus® project within a Universal Verification Methodology (UVM) environment, ensuring functional correctness.

The UVM suite provides a structured framework for simulating various operating conditions and use cases, enabling thorough validation of system behavior.

Simulation Environment Setup

The following third-party tools and associated verification IPs, along with valid licenses, are required to execute the UVM simulation test cases for the design:

Design Tool	Version
Synopsys VCS* Tool	V-2023.12-SP2-1
Altera® Quartus® Prime Pro Tool	25.1.1
Synopsys DesignWare VIP	W-2025.03C
Python	3.7.7
Perl	5.8.8
CMAKE	3.11.4
GCC	7.2.0

The system testbench instantiates two AXI Synopsys Verification IP (VIP) modules, requiring a separate license in addition to the Synopsys VCS simulation tool license.

Simulation Directory

Simulation source files and scripts are located at: $TOP_FOLDER/src/hw/verification/2P25G_DV

UVM Test Use Cases

The design includes three UVM test cases to validate the following functionality:

• Configuration and status register access
• DMA Subsystem <-> Ethernet Subsystem data path
• Packet Generator <-> Ethernet Subsystem data path

The test cases are:

1. CSR access test

The test exercises full configuration and status register access across the DMA Subsystem, Packet Switch Subsystem, and Ethernet Subsystem. After initial system configuration and Ethernet link bring-up, all registers are read and compared against expected default values. The test then performs write-read operations at target offsets to validate register accessibility.

Test Case: fptp_csr_test Test Case Sequence: fptp_csr_seq

2. Data path test - DMA base test -

This test exercises all DMA ports in the subsystem. The sequence starts with Ethernet link bring-up, followed by DMA Subsystem and Packet Switch configuration. Once initialized, packets are submitted to all DMA queues and looped back through the Ethernet Subsystem to validate end-to-end data path integrity.

Test Case: fptp_dma_base_test Test Case Sequence: fptp_dma_base_seq

3. Data path test - QoS user test -

This test exercises the Packet Switch user client port. The sequence begins with Ethernet link bring-up, followed by Packet Switch, Packet generator and DMA Subsystem configuration. Once initialized, the packet generator connected to the user client port starts transmitting traffic. Packets are looped back through the Ethernet Subsystem and routed back to the generator, validating the end-to-end path.

Test Case: fptp_qos_usr_test Test Case Sequence: fptp_qos_usr_seq

Configuring UVM Environment

Export the simulation folder path to the environment with the following command:

export PTP_ROOTDIR=$TOP_FOLDER/src/hw/verification/2P25G_DV

Update setup.sh with values from your local environment to configure simulation variables. The script is located at: $TOP_FOLDER/src/hw/verification/2P25G_DV/env/setup.sh

The following parameter variables are required for simulation:

export WORKDIR=$PTP_ROOTDIR
export DESIGN_DIR=$PTP_ROOTDIR/../../src
export QUARTUS_HOME=$QUARTUS_ROOTDIR
export QUARTUS_INSTALL_DIR=$QUARTUS_ROOTDIR
export QUARTUS_ROOTDIR_OVERRIDE=$QUARTUS_ROOTDIR
export DESIGNWARE_HOME= <synopsys vip location>
export VCS_HOME=<Synopsys VCS simulation installation dir>
export UVM_HOME=$VCS_HOME/etc/uvm-1.2
export SYNTH_DIR=$PTP_ROOTDIR/../../synth

QUARTUS_ROOTDIR and TOP_FOLDER must be defined as described in Environment Setup.

Test Flow

Users must define these parameter variables and their installation path as described in Configuring UVM Environment before running simulation.

1. Navigate to the verification script folder

cd $TOP_FOLDER/src/hw/verification/scripts

1. Generate IP RTL and compile simulation libraries.

gmake -f Makefile.mk cmplib HSSI_25G=1 | tee cmp.log

This step generates the system IP RTL and simulation libraries.

Execute this command when compiling the DUT for the first time or after any changes to project IPs. If errors occur, refer to cmp.log for details.

1. Build IP and testbench RTL. Compile and elaborate the Design Under Test (DUT) and testbench by executing the following command:

gmake -f Makefile.mk build HSSI_25G=1 DUMP=1

Set the DUMP variable to 1 to enable waveform database (VPD file) generation during simulation. This switch is optional.

Execute this command when compiling the DUT for the first time or after any changes to tesbench or RTL source files.

1. Run the test case using the following simulation syntax:

gmake -f Makefile.mk run TESTNAME=<test_case_name> SEQNAME=<test_sequence_name> SEED=<seed_number>

Where <test_case_name> can be:

• fptp_csr_test
• fptp_dma_base_test
• fptp_qos_usr_test

Each <test_case_name> corresponds to a <test_sequence_name> by replacing the _test suffix with _seq.

• fptp_csr_test -> fptp_csr_seq
• fptp_dma_base_test -> fptp_dma_base_seq
• fptp_qos_usr_test -> fptp_qos_usr_seq

The SEED parameter defines the value used to initialize the design state. Using the same SEED ensures identical test conditions across runs. This parameter is optional—if omitted, a random value is used.

For example, run the following command to execute the fptp_csr_test simulation:

gmake -f Makefile.mk run TESTNAME=fptp_csr_test SEQNAME=fptp_csr_seq DUMP=1

You can run multiple test cases without repeating steps 2 and 3. RTL generation and compilation results remain valid as long as the source files are unchanged.

Simulation Results

Simulation results are available under the $PTP_ROOTDIR/sim/<test_case_name> directory. If a test case is re-run, the previous results folder is renamed with a numeric sequence suffix, and a new folder is created to store the latest simulation results.

Simulation Command Summary

Simulation Step	Command
IP RTL generation and simulation libraries compilation	gmake -f Makefile.mk cmplib HSSI_25G=1 \| tee cmp.log
Build DUT and testbench RTL	gmake -f Makefile.mk build HSSI_25G=1
Run Simulation	gmake -f Makefile.mk run TESTNAME= SEQNAME= DUMP=1

Reference

• Ethernet Subsystem FPGA IP User Guide
• F-Tile Ethernet Hard IP User Guide
• Ethernet Design Example Components User Guide
• Embedded Peripherals IP User Guide
• F-Tile Architecture and PMA and FEC Direct PHY IP User Guide

Notices & Disclaimers

Altera® Corporation technologies may require enabled hardware, software or service activation. No product or component can be absolutely secure. Performance varies by use, configuration and other factors. Your costs and results may vary. You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Altera or Intel products described herein. You agree to grant Altera Corporation a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject matter disclosed herein. No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document, with the sole exception that you may publish an unmodified copy. You may create software implementations based on this document and in compliance with the foregoing that are intended to execute on the Altera or Intel product(s) referenced in this document. No rights are granted to create modifications or derivatives of this document. The products described may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request. Altera disclaims all express and implied warranties, including without limitation, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or usage in trade. You are responsible for safety of the overall system, including compliance with applicable safety-related requirements or standards. © Altera Corporation. Altera, the Altera logo, and other Altera marks are trademarks of Altera Corporation. Other names and brands may be claimed as the property of others.

OpenCL* and the OpenCL* logo are trademarks of Apple Inc. used by permission of the Khronos Group™.

---

Last update: January 23, 2026
Created: January 23, 2026
