QSPI Driver for Hard Processor System (HPS)¶

Last updated: July 15, 2025

Upstream Status: Not Upstreamed

Devices supported: Agilex 5

Introduction¶

The Quad Serial Peripheral Interface (QSPI) driver manages the QSPI controller in the HPS. The QSPI has the capability to access serial NOR Flash connected to the Secure Device Manager (SDM) QSPI. The QSPI controller supports standard SPI Flash devices as well as high-performance dual and quad SPI Flash devices. The QSPI controller module features are:

SPIx1, SPIx2, or SPIx4 (QSPI) serial NOR flash devices
Supported clock frequencies up to 166 MHz
Direct access and indirect access modes
Single I/O, dual I/O, or quad I/O instructions
Up to four chip selects
Configurable clock polarity and phase
Programmable write-protected regions
Programmable delays between transactions

To find out more about the QSPI controller within the HPS please refer to the Intel Agilex 5 Hard Processor System Technical Reference Manual.

Driver Capabilities¶

Initialize and configuration of the QSPI controller.
Handles data transfer and address.

Driver Sources¶

The source code for this driver can be found at https://github.com/altera-opensource/linux-socfpga/blob/socfpga-6.1.55-lts/drivers/spi/spi-cadence-quadspi.c.

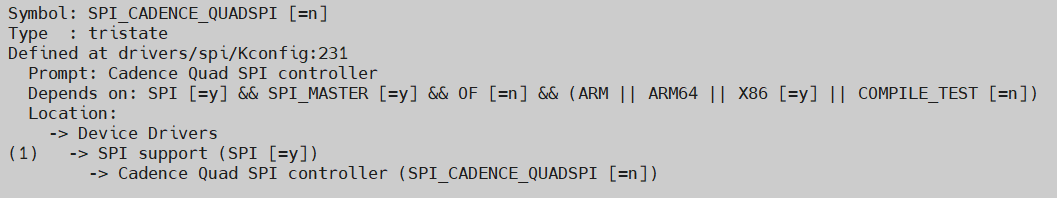

Kernel Configurations¶

CONFIG_SPI_CADENCE_QUADSPI

In Linux you can select the QSPI erase sector size to be 4 KB or 64 KB using CONFIG_MTD_SPI_NOR_USE_4K_SECTORS config:

CONFIG_MTD_SPI_NOR_USE_4K_SECTORS=Y indicates a Erase sector size of 4 KB.
CONFIG_MTD_SPI_NOR_USE_4K_SECTORS=N indicates a Erase sector size of 64 KB.

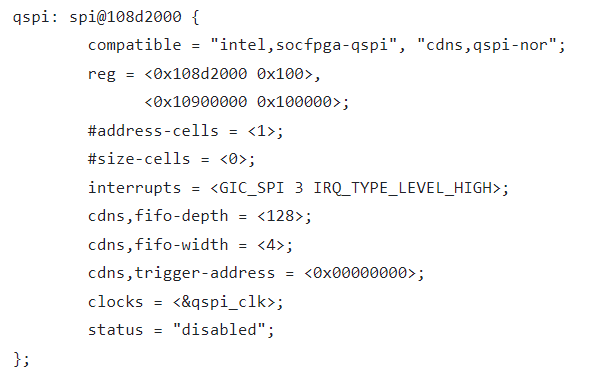

Device Tree¶

Example Device tree location:

https://github.com/altera-opensource/linux-socfpga/blob/socfpga-6.1.55-lts/arch/arm64/boot/dts/intel/socfpga_agilex5.dtsi

Test Procedure¶

The following test procedure consist on performing erase, write and read operations into the QSPI flash device using the mtd_debug Linux application, which is included as part of the GSRD.

Note: In the Bootloaders build flow (building the software components independently), the mtd_debug application is supported by including the mtd-utils package in CORE_IMAGE_EXTRA_INSTALL when building the file system. In this build flow, you also need to configure the Linux QSPI reference clock from U-Boot by running "run linux_qspi_enable" after that the Linux device tree has been loaded.

As additional pre-requisites to exercise this test procedure, you need to get enabled the QSPI controller enabled, Linux has booted and this has loaded the QSPI driver.

You can verify that the driver has been loaded by looking for messages from the QSPI driver in the boot log:

root@testsocfpga:~# dmesg | grep spi
[    1.540541] cadence-qspi 108d2000.spi: detected FIFO depth (1024) different from config (128)
[    1.550670] 2 fixed-partitions partitions found on MTD device 108d2000.spi.0
[    1.557731] Creating 2 MTD partitions on "108d2000.spi.0":

Observe that the 0x108d2000 address corresponds to the address of the QSPI controller in Agilex 5 device.

List the MTD partitions and verify these exist in the Linux file system:
```
root@testsocfpga:~# cat /proc/mtd
dev:    size   erasesize  name
mtd0: 04200000 00010000 "u-boot"
mtd1: 0be00000 00010000 "root"
root@testsocfpga:~# ls /dev/mtd**
/dev/mtd0  /dev/mtd0ro   /dev/mtd1  /dev/mtd1ro  /dev/mtdblock0   /dev/mtdblock1
```
Here you can see that 2 mtd partitions exists (these are defined in the device tree) and they have a 64KB erase sector size. The following table describes the memory regions of these partitions and the location of the last sector in these partitions. This test procedure will operate on the last sector of the mtd1 partition.

MTD Partition	Regions in Chip	Limits in Region	Last Sector Location in the partition
mtd0	0x0000_0000 - 0x041F_FFFF	0x0000_0000 - 0x041F_FFFF	0x041f_0000
mtd1	0x0420_0000 - 0x0FFE_FFFF	0x0000_0000 - 0x0BDF_FFFF	0x0BDF_0000

Back up the sector that will be erased and written, so it does not loose its original content. The sector size is 64 KB (0x10000). The original content is stored in the readBackup.img file.
```
root@testsocfpga:~# mtd_debug read /dev/mtd1 0x0BDF0000 0x10000 readBackup.img
Copied 65536 bytes from address 0x0bdf0000 in flash to readBackup.img
```

Erase Test. Erase the sector, so it can be written later:

root@testsocfpga:~# mtd_debug erase /dev/mtd1 0x0BDF0000 0x10000
Erased 65536 bytes from address 0x0bdf0000 in flash

Create one image with random content that later will be used to write in the QSPI sector selected. The image is stored in the empty.img file.

root@testsocfpga:~# dd if=/dev/urandom of=empty.img bs=1k count=64
64+0 records in
64+0 records out
65536 bytes (66 kB, 64 KiB) copied, 0.00205477 s, 31.9 MB/s

Write Test. Write the image with random data in the empty.img file to the sector selected.

root@testsocfpga:~# mtd_debug write /dev/mtd1 0x0BDF0000 0x10000 empty.img
Copied 65536 bytes from empty.img to address 0x0bdf0000 in flash

6. Read Test. Read back the data in the sector so it can later be compared against the original data. The data read is stored in the read.img file.

root@testsocfpga:~# mtd_debug read /dev/mtd1 0x0BDF0000 0x10000 read.img
Copied 65536 bytes from address 0x0bdf0000 in flash to read.img

Compare the data read in read.img file against the random data writen stored in the empty.img file. Observed that no output indicates that the files match.
```
root@testsocfpga:~# diff -q empty.img read.img
```
8. Restore the original data in the QSPI sector selected so this could be unaffected by the testing. For that you need to erase and then write the content in the readBackup.img file.
```
root@testsocfpga:~# mtd_debug erase /dev/mtd1 0x0BDF0000 0x10000
Erased 65536 bytes from address 0x0bdf0000 in flash
root@testsocfpga:~# mtd_debug write /dev/mtd1 0x0BDF0000 0x10000 readBackup.img
Copied 65536 bytes from readBackup.img to address 0x0bdf0000 in flash
```

At this point, you can power cycle the board and observe that the system is able to boot to Linux again.

Known Issues¶

None Known
