SPI Driver for Hard Processor System¶
Last updated: May 07, 2025
Upstream Status: Upstreamed
Devices supported: Agilex 5, Agilex 7
Introduction¶

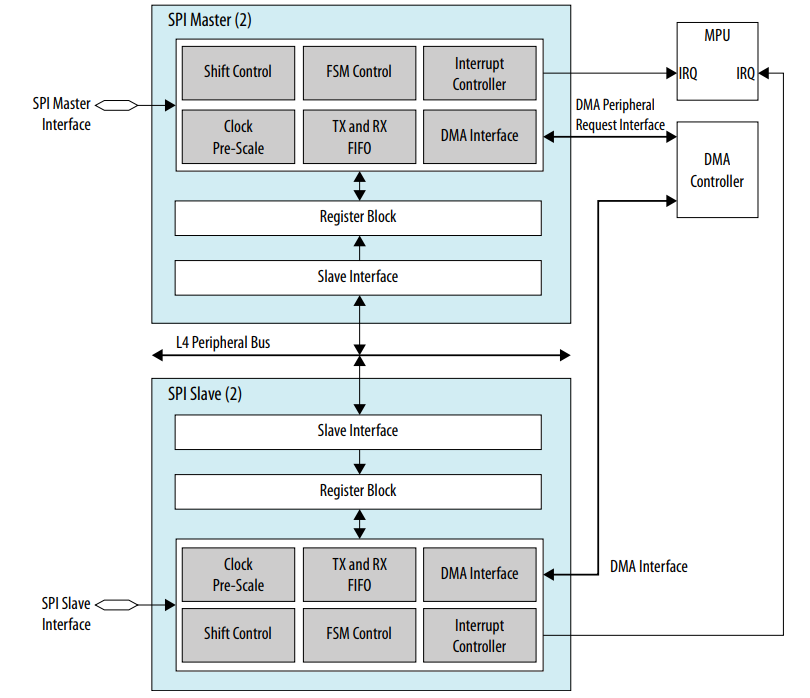

Serial master and serial slave controllers are instances of the Synopsys DesignWare Synchronous Serial Interface (SSI) controller. These enable serial communication with serial-master or serial-slave peripheral devices. Each SPI master has a maximum bit rate of 60 Mbps. Each SPI slave has a maximum bit rate of 33.33 Mbps. The DMA controller interface is integrated with the HPS DMA controller.
For More information please refer to the following link:
Agilex 5 Hard Processor System Technical Reference Manual
Driver Sources¶
The source code for this driver can be found at https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/tree/drivers/spi/spi-dw-mmio.c.
Driver Capabilities¶
- Handle the data transfer between connected devices over the SPI bus.
- Support the peripheral slave DMA.
Kernel Configurations¶
CONFIG_SPI_DW_MMIO
Symbol: SPI_DW_MMIO [=y]
Type : tristate
Defined at drivers/spi/Kconfig:313
Prompt: Memory-mapped io interface driver for DW SPI core
Depends on: SPI [=y] && SPI_MASTER [=y] && SPI_DESIGNWARE [=y] && \
HAS_IOMEM [=y]
Location:
-> Device Drivers
-> SPI support (SPI [=y])
-> DesignWare SPI controller core support (SPI_DESIGNWARE [=y])
-> Memory-mapped io interface driver for DW SPI core (SPI_DW_MMIO [=y])
SPI_DW_DMA
Symbol: SPI_DW_DMA [=y]
Type : bool
Defined at drivers/spi/Kconfig:306
Prompt: DMA support for DW SPI controller
Depends on: SPI [=y] && SPI_MASTER [=y] && SPI_DESIGNWARE [=y]
Location:
-> Device Drivers
-> SPI support (SPI [=y])
-> DesignWare SPI controller core support (SPI_DESIGNWARE [=y])
-> DMA support for DW SPI controller (SPI_DW_DMA [=y])
Note: The DMA feature in the SPI controller depends on the HPS DMA controller driver. This driver uses the CONFIG_DW_AXI_DMAC configuration which need to be set to y to be included in the kernel image.
Device Tree¶
An example of the device tree configuration of the SPI driver for the Synopsys DesignWare Synchronous Serial Interface (SSI) controller in the HPS is shown next:
spi0: spi@10da4000 {
compatible = "snps,dw-apb-ssi";
reg = <0x10da4000 0x1000>;
#address-cells = <1>;
#size-cells = <0>;
interrupts = <GIC_SPI 99 IRQ_TYPE_LEVEL_HIGH>;
resets = <&rst SPIM0_RESET>;
reset-names = "spi";
reg-io-width = <4>;
num-cs = <4>;
clocks = <&clkmgr AGILEX5_L4_MAIN_CLK>;
dmas = <&dmac0 16>, <&dmac0 17>;
dma-names ="tx", "rx";
status = "disable";
};
Note: This node is disabled by default in the socfpga_agilex5.dtsi. This is enabled in the arch/arm64/boot/dts/intel/socfpga_agilex5_socdk_debug.dts as shown in the Test procedure section.
Test Procedure¶
The spidev_test tool can be used to demonstrate the SPI capabilities on Linux. This application can be made available for Linux in any of the following ways:
- From GSRD build flow: Include this application during Customize Yocto stage by adding spidev-test to the list of tools in the packagegroup-dev-tools-essential.bb Yocto recipe.
- From the Linux Boot example build flow: Include this application during the Build Rootfs stage by adding spidev-test to the list of applications to be included in the file system defined with the CORE_IMAGE_EXTRA_INSTALL configuration.
The spidev-test application depends on the drivers/spi/spidev.c driver to access the SPI devices throught regular userspace I/O calls. This driver is built through the CONFIG_SPI_SPIDEV kernel configuration. This driver also must be enabled in the device tree through the spidev node as shown next. This is already done in the arch/arm64/boot/dts/intel/socfpga_agilex5_socdk_debug.dts file.
&spi0 {
status= "okay";
spidev@0{
compatible = "rohm,dh2228fv";
reg = <0>;
spi-max-frequency = <10000000>;
};
};
Note: When building binaries to exercise this test procedure using the Linux Boot example build flow, it is necessary to enable the drivers and their dependencies as indicated in Kernel Configurations section. In the case of the GSRB build flow, all the required drivers are already included either as part of the kernel image (included through kernel configuration) or including and loading the .ko driver file from the file system.
The following test procedure can be exercised using the Agilex 5 E-Series device using the DEBUG2 daughter card for the Premium development kit, in which the spidev-test application targets the built-in Microchip 25AA128 EEPROM device. The spidev driver is compatible with this device.
The test procedure consist on enabling the writing in the EEPROM device, then writing a byte (0xC6) to a memory location (0x68D) and then reading this back.
-
Send the 'Transmits the Write Enable' (WREN) instruction code (0x06).
root@testsocfpga# spidev_test -D /dev/spidev1.0 -v -p "\x06" spi mode: 0x0 bits per word: 8 max speed: 500000 Hz (500 kHz) TX | 06 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ |.| RX | FF __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ |.| -
Perform byte write (instruction code x02) with random value (xC6) and offset (MSB x06, LSB x8D)
root@testsocfpga# spidev_test -D /dev/spidev1.0 -v -p "\x02\x06\x8D\xC6" spi mode: 0x0 bits per word: 8 max speed: 500000 Hz (500 kHz) TX | 02 06 8D C6 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ |....| RX | FF FF FF FF __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ |....| -
Perform byte read (instruction code x03) on the previously written offset. xC6 will be received.
root@testsocfpga# spidev_test -D /dev/spidev1.0 -v -p "\x03\x06\x8D\x00" spi mode: 0x0 bits per word: 8 max speed: 500000 Hz (500 kHz) TX | 03 06 8D 00 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ |....| RX | FF FF FF C6 __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ |....|
Known Issues¶
None Known
