General Purpose I/O Driver for Hard Processor System

Last updated: January 05, 2026

Upstream Status: Not Upstreamed

Devices supported: Agilex 5

Introduction

General Purpose Input/Output (GPIO) Controller provides the low-level configuration through software or hardware to control the actual general purpose IO cells/pads present in the HPS. The below diagram represents block diagram of the GPIO controller connected with other components in the system.

gpio_diagram

Two GPIO module instances present in HPS and each having support of 24 GPIO ports. Only Port A of GPIO Controller is configured. All the design contained of this document is referred from “Synopsys GPIO Databook”.

Functional Modes:

  • Software Control Mode: In the software control mode, the port direction is set by writing to the corresponding port control register of a GPIO pin. These port control registers are memory mapped.
  • Hardware Control Mode : If a signal is configured for hardware control, an external auxiliary hardware-signal controls the direction of the port. For the SM, Auxiliary H/W support is not enabled.

For More information please refer to the following link: Agilex 5 Hard Processor System Technical Reference Manual

Features

  • Digital debounce
  • Configurable interrupt mode
  • Up to 48 dedicated I/O pins

Driver Sources

The source code for this driver can be found at https://github.com/altera-opensource/zephyr-socfpga/blob/socfpga_rel_23.4/drivers/gpio/gpio_intel_socfpga.c.

Driver Capabilities

  • GPIO Pin configure as input or output.
  • GPIO Port/Pin set value using mask.
  • GPIO Port/Pin get value using mask.
  • GPIO Port/Pin toggle using mask.

Kernel Configurations

No additional Kernel configurations needed to enable GPIO driver functionality.

Device Tree

Example Device tree location:

https://github.com/altera-opensource/zephyr-socfpga/blob/socfpga_rel_23.4/dts/arm64/intel/intel_socfpga_agilex5.dtsi

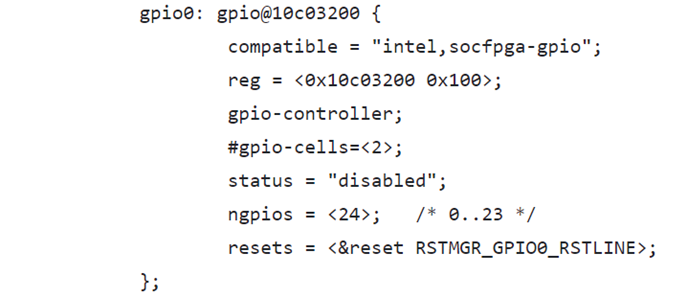

gpio_device_tree

Driver Sample

The source code for the driver sample can be found at: https://github.com/altera-opensource/zephyr-socfpga/blob/socfpga_rel_23.4/samples/basic/blinky.

The most relevant files are: 1. Project yml -> sample.yml:

 1 sample:
 2   name: Blinky Sample
 3 tests:
 4   sample.basic.blinky:
 5     tags:
 6       - LED
 7       - gpio
 8     filter: dt_enabled_alias_with_parent_compat("led0", "gpio-leds")
 9     depends_on: gpio
10     harness: led
11     integration_platforms:
12       - frdm_k64f
  1. Config overlay -> prj.conf:
CONFIG_GPIO=y
  1. Device tree overlay -> intel_socfpga_agilex5_socdk.overlay:

  1 /*
  2  * Copyright (C) 2023 Intel Corporation
  3  *
  4  * SPDX-License-Identifier: Apache-2.0
  5  */
  6
  7 #include <dt-bindings/gpio/gpio.h>
  8
  9 / {
 10         aliases {
 11                 led0 = &myled0;
 12         };
 13
 14         leds {
 15                 compatible = "gpio-leds";
 16                 myled0: led_0 {
 17                         gpios = <&gpio1 19 GPIO_ACTIVE_HIGH>;
 18                 };
 19         };
 20 };
 21
 22 &gpio1 {
 23         status = "okay";
 24 };
4. Agilex™ 5 specific board configuration -> intel_socfpga_agilex5_socdk.conf
  1 # Copyright (c) 2023, Intel Corporation.
  2 # SPDX-License-Identifier: Apache-2.0
  3
  4 CONFIG_STDOUT_CONSOLE=y
  5 CONFIG_PRINTK=y
5. Source code: https://github.com/altera-opensource/zephyr-socfpga/blob/socfpga_rel_23.4/samples/basic/blinky.

Steps to build

  1. Execute the following commands:
    rm -rf agilex5
west build -b intel_socfpga_agilex5_socdk samples/basic/blinky  -d agilex5

Output

NOTICE:  return = 0 Hz
NOTICE:  mmc_clk = 200000000 Hz
NOTICE:  SDMMC boot
NOTICE:  BL2: v2.9.1(release):QPDS23.4_REL_GSRD_PR
NOTICE:  BL2: Built : 18:22:43, Jul  2 2024
NOTICE:  BL2: Booting BL31
NOTICE:  BL31: Boot Core = 0
NOTICE:  BL31: CPU ID = 81000000
NOTICE:  BL31: v2.9.1(release):QPDS23.4_REL_GSRD_PR
NOTICE:  BL31: Built : 18:22:43, Jul  2 2024
*** Booting Zephyr OS build 33d4a115fbed ***
Secondary CPU core 1 (MPID:0x100) is up
Secondary CPU core 2 (MPID:0x200) is up
Secondary CPU core 3 (MPID:0x300) is up
GPIO blinky application started
GPIO toggle started for 10 times
GPIO blinky Application completed!!!

Known Issues

None known

Other Consideration

Pinmux configuration should be in GPIO mode to use respective IO functionality.
