Single Event Upset (SEU)
Single Error Upset (SEU) Driver for Hard Processor System
Last updated: January 05, 2026
Upstream Status: In Progress
Devices supported: Agilex 5
Introduction¶
The SEU driver is meticulously crafted to fulfill a dual purpose within its operational framework. Its primary function lies in promptly detecting and reporting single event upsets errors to users. Additionally, this subsystem offers a streamlined mechanism for the deliberate insertion of errors.
For more information, please refer to the Agilex5 SEU Mitigation.
Driver Sources¶
The source code for this driver can be found at https://github.com/zephyrproject-rtos/zephyr/pull/67097.
Driver Capabilities¶
- Supports user register/unregister callback
- Support inject ECC error
- Support injects single/multibit errors
Kernel Configurations¶

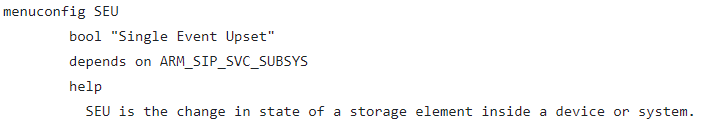

CONFIG_SEU

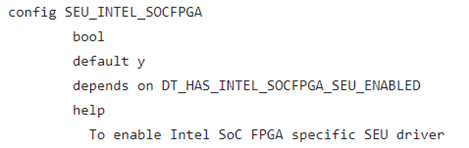

CONFIG_SEU_INTEL_SOCFPGA

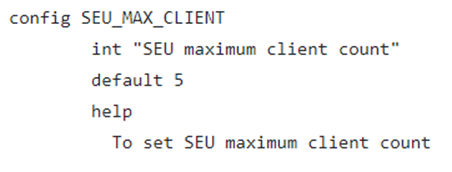

CONFIG_SEU_MAX_CLIENT

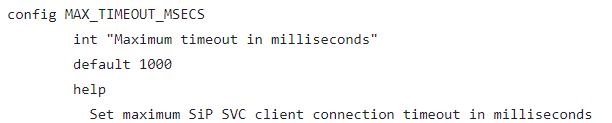

CONFIG_ MAX_TIMEOUT_MSECS

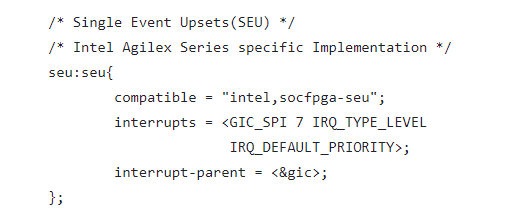

Device Tree¶
Example Device tree location to configure the SEU is at https://github.com/zephyrproject-rtos/zephyr/blob/main/dts/arm64/intel/intel_socfpga_agilex5.dtsi.
Known Issues¶
None Known
