UART Driver for Hard Processor System¶
Last updated: January 23, 2026
Upstream Status: Upstreamed
Devices supported: Agilex 5
Introduction¶
Universal Asynchronous Receiver/Transmitter (UART) that is part of the hardened Hard Processor System (HPS) of the FPGA performs parallel to serial data conversion from HPS CPU to device or serial-to-parallel data conversion from device to HPS CPU. The UART controllers are based on an industry standard 16550 UART controller.

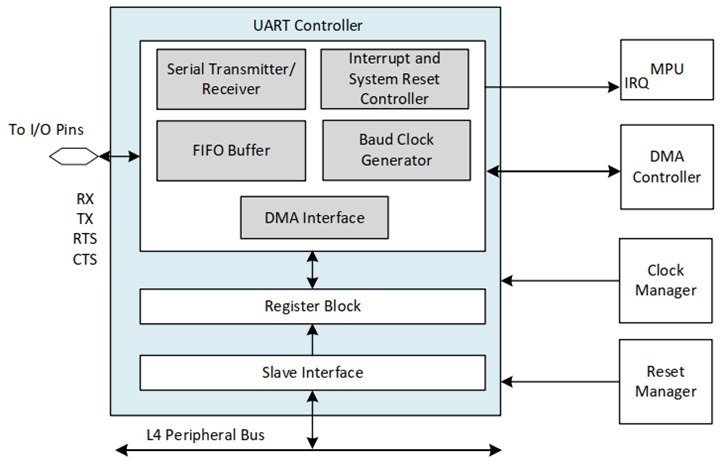

The below diagram represents block diagram of the UART controller connected with other components in the system.
Functional blocks:
- Slave interface: connects to APB bus.
- Register block: responsible for the main UART functionality including control, status, and interrupt generation.
- FIFO block: responsible for FIFO control and storage.
- Baud block generator: produces the transmitter and receiver baud clock along with the output reference clock signal.
- Serial transmitter: converts the parallel data-written to the UART-into serial form and adds all additional bits, as specified by the control register, for transmission. These serial data referred to as a character.
- Serial receiver: converts the serial data character-specified by the control register-receive in the UART to parallel form. This block controls, parity, framing and line break detection errors.
For More information please refer to the following link:
Agilex 5 Hard Processor System Technical Reference Manual
Features¶
- Programmable character properties, such as number of data bits per character, optional parity bits, and number of stop bits.
- Automatic hardware flow control as per the 16750 standards.
- 128-byte transmit and receive FIFO buffers.
- Transmit Holding Register Empty (THRE) interrupt mode.
- DMA controller handshaking interface.
- Parity error detection, Framing error detection and, Line break detection.
- Prioritized interrupt identification with different interrupt types.
Driver Sources¶
The source code for this driver can be found at https://github.com/zephyrproject-rtos/zephyr/commits/main/drivers/serial/uart_ns16550.c.
Driver Capabilities¶
- Manage the asynchronous communication between HPS CPU and device, and vice versa.
- Supports Full Duplex communication and Polling/Interrupt based mechanism for data transfer.
- Supports 16 bytes FIFO with automatic hardware flow control (RTS and CTS lines).
Kernel Configurations¶

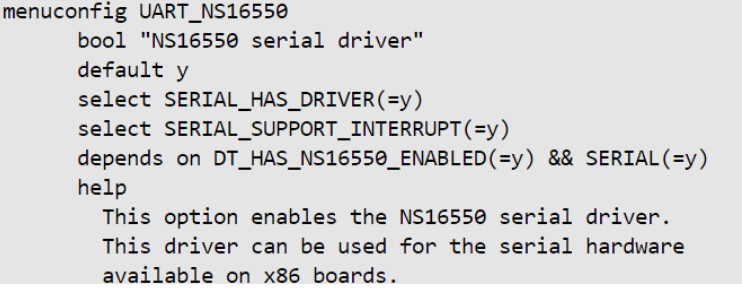

CONFIG_UART_NS16550

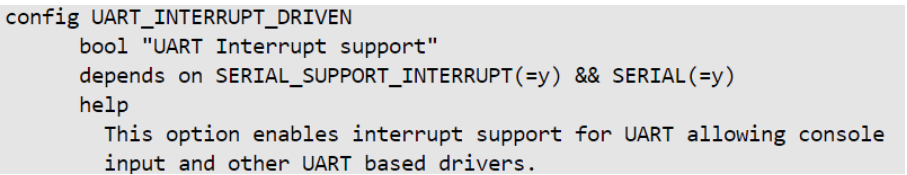

CONFIG_UART_INTERRUPT_DRIVEN

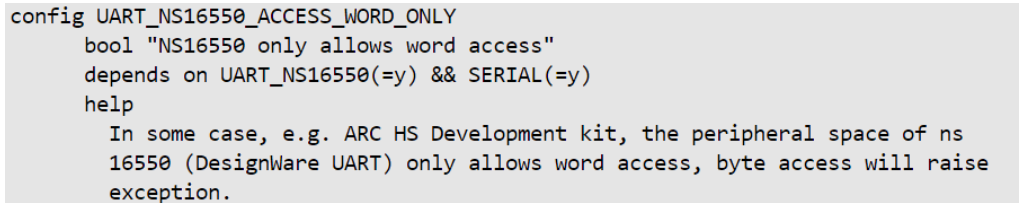

CONFIG_UART_NS16550_ACCESS_WORD_ONLY
Device Tree¶

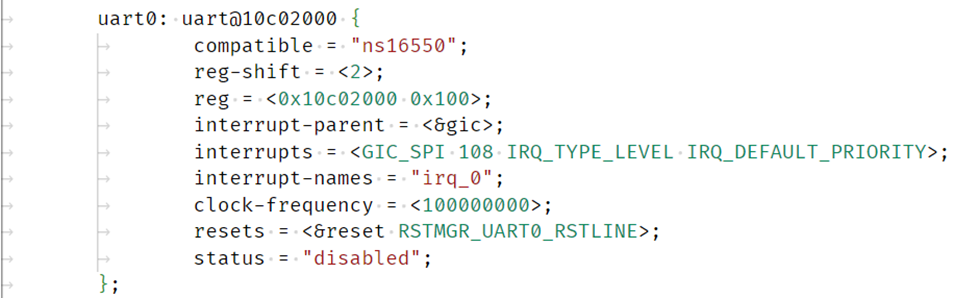

Example Device tree location to configure the uart:
https://github.com/zephyrproject-rtos/zephyr/blob/main/dts/arm64/intel/intel_socfpga_agilex5.dtsi
Driver Sample¶
The source code for the driver sample can be found at: https://github.com/altera-opensource/zephyr-socfpga/blob/socfpga_rel_23.4/samples/drivers/uart/echo_bot.
The most relevant files are: 1. Project yml -> sample.yml:
1 sample:
2 name: UART driver sample
3 tests:
4 sample.drivers.uart:
5 integration_platforms:
6 - qemu_x86
7 tags:
8 - serial
9 - uart
10 filter: CONFIG_SERIAL and
11 CONFIG_UART_INTERRUPT_DRIVEN and
12 dt_chosen_enabled("zephyr,shell-uart")
13 harness: keyboard
- Config overlay -> prj.conf:
- Source code: https://github.com/altera-opensource/zephyr-socfpga/blob/socfpga_rel_23.4/samples/drivers/uart/echo_bot/src/main.c.
Steps to build¶
- Execute the following commands:
Output¶
NOTICE: return = 0 Hz
NOTICE: mmc_clk = 200000000 Hz
NOTICE: SDMMC boot
NOTICE: BL2: v2.9.1(release):QPDS23.4_REL_GSRD_PR
NOTICE: BL2: Built : 18:22:43, Jul 2 2024
NOTICE: BL2: Booting BL31
NOTICE: BL31: Boot Core = 0
NOTICE: BL31: CPU ID = 81000000
NOTICE: BL31: v2.9.1(release):QPDS23.4_REL_GSRD_PR
NOTICE: BL31: Built : 18:22:43, Jul 2 2024
*** Booting Zephyr OS build 33d4a115fbed ***
Secondary CPU core 1 (MPID:0x100) is up
Secondary CPU core 2 (MPID:0x200) is up
Secondary CPU core 3 (MPID:0x300) is up
Hello! I'm your echo bot.
Tell me something and press enter:
Echo: hello there
Known Issues¶
None Known
