Nios® V/m Processor Baseline GHRD Design

Nios V Processor Header

Introduction

Nios® V/m Baseline Golden Hardware Reference Design (GHRD) Overview

This design demonstrates the baseline Golden Hardware Reference Design (GHRD) for a Nios® V/m processor in Agilex™ 5 FPGA E-Series 065B Premium Development Kit.
The design is built with basic peripherals required for simple application execution: - JTAG UART for serial output. - Parallel Input/Output for IO control.

Prerequisites

  • Agilex™ 5 FPGA E-Series 065B Premium Development Kit, ordering code DK- A5E065BB32AES1.
    Refer to the board documentation for more information about the development kit.
  • Mini and Micro USB Cable. Included with the development kit.
  • Host PC with 64 GB of RAM. Less will be fine for only exercising the prebuilt binaries, and not rebuilding the design.
  • Quartus® Prime Pro Edition Software version 25.1.1
  • Ashling* RiscFree* IDE for Altera® FPGAs

Release Contents

Every Nios V processor design example is maintained based on this folder structure.
Here is the Github link to root directory of this design example: Nios® V/m Baseline Golden Hardware Reference Design (GHRD) Github link

---
title: Release Contents File Structure
config:
  flowchart:
    curve: linear
---

graph LR
    A[niosv_m_baseline_ghrd] --> B[docs]
    A --> C[img]
    A --> D[ready_to_test]
    A --> E[sources]
    B -->|contains| F{{Design Example MD file}}
    C -->|contains| G{{Figures or Illustrations}}
    D -->|contains| H{{Prebuilt Binary Files}}
    E --> I[hw]
    E --> J[scripts]
    E --> K[sw]
    I -->|contains| M{{Custom Hardware Design Files}}
    J -->|contains| N{{Scripts to Generate Hardware Design}}
    K -->|contains| P{{Custom Software Source Code}}

Nios® V/m Baseline Golden Hardware Reference Design (GHRD) Architecture

This example design includes a Nios® V/m processor connected to the On-Chip RAM II, JTAG UART IP, Parallel-IO and System ID peripheral core.
The objective of the design is to accomplish data transfer between the processor and soft IP peripherals: - Read and Write operation with On-Chip RAM II - Toggle the Parallel-IO - Verify design identification with System ID

---
title: Design Block Diagram
config:
  flowchart:
    curve: linear
---

flowchart LR
subgraph top-level-subsystem
    Z[Clock Source]
    Y[Reset Source]
    X[IO Debounce Logic]
subgraph processor-subsystem
    A[Nios V/m Processor]
    A <--> B(Bus Interface : AXI / AvMM Interface)
    B <--> C[On-Chip RAM II]
    B <--> D[JTAG UART]
    B <---> E[Parallel IO]
    B ---> F[System ID]
end
end
Z --> processor-subsystem
Y --> processor-subsystem
E <--> X

Nios® V/m Processor IP

  • 32-bit Microcontroller to achieve balance between performance and logic area utilization.
  • Implements RV32I_Zicsr instruction set.
  • Supports five-stages pipelined or non-pipelined datapath.
  • It is a customizable soft-core processor, that can be tailored to meet specific application requirements, providing flexibility and scalability in embedded system designs.

Embedded Peripheral IP Cores

The following embedded peripheral IPs are used in this design: - On-Chip RAM II IP - JTAG UART IP - Parallel IO IP - System ID IP

System Components

The following components are used in this design: - Clock Source (Clock Bridge with IO PLL) - Reset Source (Reset Controller with Synchronizer) - IO Debounce Logic

Nios® V/m Processor Address Map Details

Address Offset Size (Bytes) Peripheral Description
0x0000_0000 1MB On-Chip RAM To store application
0x0011_0068 8 JTAG UART Communication between a host PC and the Nios V processor system
0x0011_0050 16 PIO 0 LED connections on board
0x0011_0040 16 PIO 1 LED connections on board
0x0011_0060 8 System ID Hardware configuration system ID (0xa5)

Development Kit Setup

Refer to Agilex™ 5 FPGA Premium Development Kit User Guide to setup the development kit.

Development Kit

Exercising Prebuilt Binaries

Program Hardware Binary SOF

  1. Connect the development kit to the host PC using USB Blaster II.
  2. Change the JTAG clock frequency to 6 MHz, and probe the JTAGServer to get the JTAG scan chain.
jtagconfig --setparam 1 JtagClock 6M
jtagconfig -d

For example:

 1) Agilex 5E065B Premium DK
  4BA06477   ARM_CORESIGHT_SOC_600 (IR=4)
  0364F0DD   A5E(C065BB32AR0|D065BB32AR0) (IR=10)
  020D10DD   VTAP10 (IR=10)
    Design hash    2696B57EB10A539DFB3F
    + Node 08586E00  (110:11) #0
    + Node 0C006E00  JTAG UART #0
    + Node 0C206E00  JTAG PHY #0
    + Node 19104600  Nios II #0
    + Node 30006E00  Signal Tap #0

  Captured DR after reset = (4BA064770364F0DD020D10DD) [96]
  Captured IR after reset = (100555) [24]
  Captured Bypass after reset = (0) [3]
  Captured Bypass chain = (0) [3]
  JTAG clock speed auto-adjustment is enabled. To disable, set JtagClockAutoAdjust parameter to 0
  JTAG clock speed 6 MHz

  1. Execute the following command to program the SOF file with the correct device number.
    Based on the JTAG scan chain earlier, the FPGA is at device number 2. You may require to provide a different device number if your JTAG chain is different from the given example.
quartus_pgm --cable=1 -m jtag -o 'p;ready_to_test/top.sof@2'

Program Software Image ELF

  1. Ensure that the development kit is successfully configured with the Hardware Binary SOF file.
  2. Launch the Nios V Command Shell. You may skip this if the shell is active.
  3. Execute the following command to download the ELF file.
niosv-shell
niosv-download -g ready_to_test/app.elf -c 1

Run Serial Console

You may proceed to to display the application printouts, and verify the design.

juart-terminal -d 1 -c 1 -i 0

For example, you should see similar display at the end of the application.

JTAG UART Display

Rebuilding the Design

Generate Hardware Binary SOF

Run the following command in the terminal from the source directory.
The script performs the following tasks, which generates the hardware binary SOF file of this design.

  1. Create a new project
  2. Create a new Platform Designer system
  3. Configure assignments and constraints
  4. Compile the project
  5. Generate a hardware binary SOF file
quartus_py ./scripts/build_sof.py

Generate Software Image ELF

After the hardware binary SOF file is ready, you may begin building the software design.
It consists of the following steps: 1. Create a board support package (BSP) project. 2. Create a Nios® V processor application project with Hello World source code. 3. Build the Hello World application. 4. Generate a software image ELF file.

Launch the Nios V Command Shell. You may skip this if the shell is active.
Run the following command in the shell from the source directory.

niosv-shell
niosv-bsp -c --quartus-project=hw/top.qpf --qsys=hw/qsys_top.qsys --type=hal sw/bsp/settings.bsp
niosv-app --bsp-dir=sw/bsp --app-dir=sw/app --srcs=sw/app/main.c
cmake -S ./sw/app -B sw/app/build -G "Unix Makefiles"
make -C sw/app/build

Program Hardware Binary SOF

  1. Connect the development kit to the host PC using USB Blaster II.
  2. Change the JTAG clock frequency to 6 MHz, and probe the JTAGServer to get the JTAG scan chain.
jtagconfig --setparam 1 JtagClock 6M
jtagconfig -d

For example:

 1) Agilex 5E065B Premium DK
  4BA06477   ARM_CORESIGHT_SOC_600 (IR=4)
  0364F0DD   A5E(C065BB32AR0|D065BB32AR0) (IR=10)
  020D10DD   VTAP10 (IR=10)
    Design hash    2696B57EB10A539DFB3F
    + Node 08586E00  (110:11) #0
    + Node 0C006E00  JTAG UART #0
    + Node 0C206E00  JTAG PHY #0
    + Node 19104600  Nios II #0
    + Node 30006E00  Signal Tap #0

  Captured DR after reset = (4BA064770364F0DD020D10DD) [96]
  Captured IR after reset = (100555) [24]
  Captured Bypass after reset = (0) [3]
  Captured Bypass chain = (0) [3]
  JTAG clock speed auto-adjustment is enabled. To disable, set JtagClockAutoAdjust parameter to 0
  JTAG clock speed 6 MHz

  1. Execute the following command to program the SOF file with the correct device number.
    Based on the JTAG scan chain earlier, the FPGA is at device number 2. You may require to provide a different device number if your JTAG chain is different from the given example.
quartus_pgm --cable=1 -m jtag -o 'p;hw/output_files/top.sof@2'

Program Software Image ELF

  1. Ensure that the development kit is successfully configured with the Hardware Binary SOF file.
  2. Launch the Nios V Command Shell. You may skip this if the shell is active.
  3. Execute the following command to download the ELF file.
niosv-shell
niosv-download -g sw/app/build/app.elf -c 1

Run Serial Console

You may proceed to to display the application printouts, and verify the design.

juart-terminal -d 1 -c 1 -i 0

For example, you should see similar display at the end of the application.

JTAG UART Display

Simulating the Design

Generate Hardware Design-Under-Test (DUT) and Testbench System

Run the following command in the terminal from the source directory.
The commands below perform the following tasks, which generates the hardware DUT and testbench system.

  1. Create a new project
  2. Create a new Platform Designer system
  3. Generate testbench system
quartus_py ./scripts/build_sof.py
qsys-generate hw/qsys_top.qsys --testbench=STANDARD --testbench-simulation=VERILOG

Generate Software Image HEX

After the hardware DUT and testbench are ready, you may begin building the software design.
It consists of the following steps: 1. Create a board support package (BSP) project. 2. Create a Nios® V processor application project with Hello World source code. 3. Build the Hello World application. 4. Generate a software image HEX file.

Launch the Nios V Command Shell. You may skip this if the shell is active.
Run the following command in the shell from the source directory.

niosv-shell
niosv-bsp -c --quartus-project=hw/top.qpf --qsys=hw/qsys_top.qsys --type=hal sw/bsp/settings.bsp
niosv-app --bsp-dir=sw/bsp --app-dir=sw/app --srcs=sw/app/main.c
cmake -S ./sw/app -B sw/app/build -G "Unix Makefiles"
make -C sw/app/build
elf2hex sw/app/build/app.elf -b 0x0 -w 32 -e 0xfffff hw/onchip_mem.hex -r4

Check Simulation Files

You have generated your system and created all the files necessary for simulation. | File | Description | | - | - | | Working Directory/hw/qsys_top_tb | Generated testbench system | | Working Directory/hw/qsys_top_tb/qsys_top_tb/sim/mentor/msim_setup.tcl | Questa simulation setup script | | Working Directory/hw/onchip_mem.hex | On-Chip RAM II memory initialization file |

Run Simulation

With all the necessary simulation files, you can start the simulation. 1. Copy the memory initialization file into mentor folder. 2. Change directory to the same mentor folder. 3. Open the Questa for Altera FPGA simulator using the command vsim.

cp hw/onchip_mem.hex hw/qsys_top_tb/qsys_top_tb/sim/mentor
cd hw/qsys_top_tb/qsys_top_tb/sim/mentor/
vsim
  1. In the Questa for Altera FPGA software, run the following commands in the Transcript.
source msim_setup.tcl
ld_debug
  1. Run the simulation with run -all command.

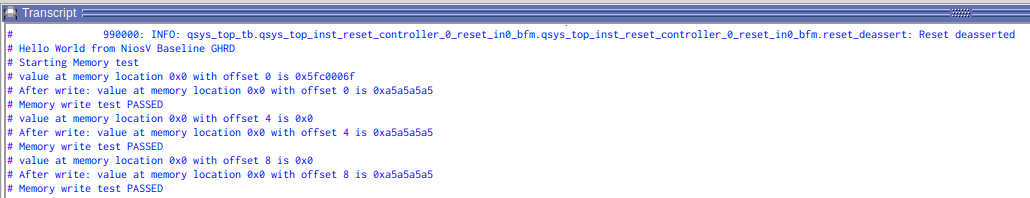

    For example, you should see similar display at the start of the simulation.

Simulation
