Nios V/g ECC Feature

Introduction

Nios® V/g ECC Feature Example Design Overview

This design demonstrates the ECC capabilities of Nios® V/g processor through simulation.
The design is paired with a testbench file to inject the ECC errors.

Prerequisites

• Host PC with 64 GB of RAM.
• Quartus® Prime Pro Edition Software version 25.1.1
• Questa* – Altera® FPGA Edition software version 25.1.1
• Ashling* RiscFree* IDE for Altera® FPGAs

Release Contents

Every Nios V processor design example is maintained based on this folder structure.
Here is the Github link to root directory of this design example: Nios® V/g ECC Feature Example Design Github link

---
title: Release Contents File Structure
config:
  flowchart:
    curve: linear
---

graph LR
    A[ecc_lite] --> B[docs]
    A --> C[img]
    A --> D[ready_to_test]
    A --> E[sources]
    B -->|contains| F{{Design Example MD file}}
    C -->|contains| G{{Figures or Illustrations}}
    D -->|contains| H{{Prebuilt Binary Files}}
    E --> I[hw]
    E --> J[scripts]
    E --> K[sw]
    I -->|contains| M{{Custom Hardware Design Files}}
    J -->|contains| N{{Scripts to Generate Hardware Design}}
    K -->|contains| P{{Custom Software Source Code}}

Nios® V/g ECC Feature Design Architecture

This example design includes a Nios® V/g processor connected to the On-Chip RAM II, JTAG UART IP and System ID peripheral core.
The objective of the design is to showcase the ECC capabilities of the processor upon an ECC error injection.

---
title: Design Block Diagram
config:
  flowchart:
    curve: linear
---

flowchart LR
subgraph top-level-subsystem
    Z[Clock Source]
    Y[Reset Source]
subgraph processor-subsystem
    A[Nios V/g Processor]
    A <--> C[On-Chip RAM II]
    A <--> D[JTAG UART]
    A ---> F[System ID]
end
end
Z --> processor-subsystem
Y --> processor-subsystem

Nios® V/g Processor IP

• General-purpose 32-bit CPU for high performance applications with larger logic area utilization.
• Implements RV32IMZicsr_Zicbom instruction set (optionally with “F” and "Smclic" extension) instruction set.
• Supports five-stages pipelined datapath.
• It is a customizable soft-core processor, that can be tailored to meet specific application requirements, providing flexibility and scalability in embedded system designs.

Embedded Peripheral IP Cores

The following embedded peripheral IPs are used in this design:

• On-Chip RAM II IP
• JTAG UART IP
• System ID IP

System Components

The following components are used in this design:

• Clock Source (Clock Bridge)
• Reset Source (Reset Release IP)

Nios® V Processor Address Map Details

Address Offset	Size (Bytes)	Peripheral	Description
0x0000_0000	640KB	On-Chip RAM	To store application
0x0011_0040	8	JTAG UART	Communication between a host PC and the Nios V processor system
0x0021_2040	8	System ID	Hardware configuration system ID (0x9)

Simulating the Design

Generate Hardware Design-Under-Test (DUT) and Testbench System

Run the following command in the terminal from the source directory.
The commands below perform the following tasks, which generates the hardware DUT and testbench system.

1. Create a new project
2. Create a new Platform Designer system
3. Generate testbench system.

quartus_py ./scripts/build_sof.py
qsys-generate hw/sys.qsys --testbench=STANDARD --testbench-simulation=VERILOG

Generate Software Image ELF

After the hardware DUT and testbench system is ready, you may begin building the software design.
It consists of the following steps:

1. Create a board support package (BSP) project.
2. Create a Nios® V processor application project with example source codes.
3. Build the application.
4. Generate a software image HEX file.

Launch the Nios V Command Shell. You may skip this if the shell is active.
Run the following command in the shell from the source directory.

niosv-shell

niosv-bsp -c --quartus-project=hw/top.qpf --qsys=hw/sys.qsys --type=hal sw/bsp/settings.bsp

niosv-app --bsp-dir=sw/bsp --app-dir=sw/app --srcs=sw/app/hello.c

cmake -S ./sw/app -B sw/app/build

make -C sw/app/build

elf2hex sw/app/build/app.elf -b 0x0 -w 32 -e 0xfffff ./hw/onchip_mem.hex

Check Simulation Files

You have generated your system and created all the files necessary for simulation.

File	Description
Working Directory/hw/sys_tb	Generated testbench system
Working Directory/hw/sys_tb/sys_tb/sim/mentor/msim_setup.tcl	Questa simulation setup script
Working Directory/hw/onchip_mem.hex	On-Chip RAM II memory initialization file

Start Simulator

With all the necessary simulation files, you can start the simulation.

1. Copy the memory initialization file into mentor folder.
2. Replace the default sys_tb.v with the custom sys_tb.v.
3. Change directory to the same mentor folder.
4. Open the Questa for Altera FPGA simulator using the command vsim.

cp hw/onchip_mem.hex hw/sys_tb/sys_tb/sim/mentor
cp -rf ./hw/sys_tb.v ./hw/sys_tb/sys_tb/sim
cd hw/sys_tb/sys_tb/sim/mentor/
vsim

Setup Simulator

In the Questa for Altera FPGA software, run the following commands in the Transcript.

source msim_setup.tcl
ld_debug

Run Simulation

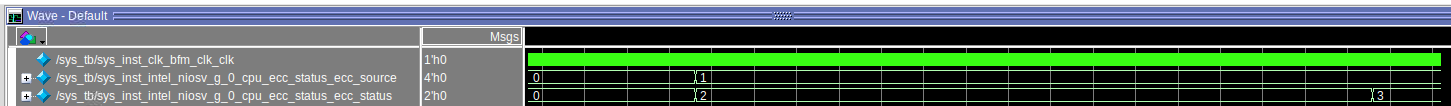

Add the relevant waveform, and run the simulation with run -all command.
For example, you should see similar display at the start of the simulation.

1^st injection - Correctable single-bit ECC error into General Purpose Register
2^nd injection - Uncorrectable single-bit ECC error into General Purpose Register

---
