Nios® V/g Processor Tightly Coupled Memory

Introduction¶

Nios® V/g Processor Tightly Coupled Memory Example Design Overview¶

This design measures the memory access speed of different memories connected to the Nios V/g processor, such as TCM, on-chip memory and external memory interface (EMIF).
In Agilex™ 7 FPGA F-Series Transceiver-SoC Development Kit (P-Tile and E-Tile), the design is built with basic peripherals required for simple application execution:

JTAG UART for serial output.

Prerequisites¶

Agilex™ 7 FPGA F-Series Transceiver-SoC Development Kit (P-Tile and E-Tile), ordering code DK-SI-AGF014EB.
Refer to the board documentation for more information about the development kit.
Mini and Micro USB Cable. Included with the development kit.
Host PC with 64 GB of RAM. Less will be fine for only exercising the prebuilt binaries, and not rebuilding the design.
Quartus® Prime Pro Edition Software version 25.1.1
Ashling* RiscFree* IDE for Altera® FPGAs

Release Contents¶

Every Nios V processor design example is maintained based on this folder structure.
Here is the Github link to root directory of this design example: Nios® V/g Processor Tightly Coupled Memory Example Design Github link

---
title: Release Contents File Structure
config:
  flowchart:
    curve: linear
---

graph LR
    A[tcm_mem_test] --> B[docs]
    A --> C[img]
    A --> D[ready_to_test]
    A --> E[sources]
    B -->|contains| F{{Design Example MD file}}
    C -->|contains| G{{Figures or Illustrations}}
    D -->|contains| H{{Prebuilt Binary Files}}
    E --> I[hw]
    E --> J[scripts]
    E --> K[sw]
    I -->|contains| M{{Custom Hardware Design Files}}
    J -->|contains| N{{Scripts to Generate Hardware Design}}
    K -->|contains| P{{Custom Software Source Code}}

Nios® V/g Processor Tightly Coupled Memory Design Architecture¶

This example design includes a Nios® V/g processor connected to:

Basic system peripherals (On-chip RAM II, Interval Timer IP, JTAG UART IP and System ID peripheral core)
Test memories (cached & uncached On-Chip RAM II, tightly coupled memories, cached & uncached DDR4 memory)

The objective of the design is to:

Measure data transfer between the processor and memories.
Prints the benchmark result thru JTAG UART IP.

---
title: Design Block Diagram
config:
  flowchart:
    curve: linear
---

flowchart LR
    X[DDR4 EMIF]
subgraph top-level-subsystem
    Z[Clock Source]
    Y[Reset Source]
subgraph processor-subsystem
    A[Nios V/g Processor]
    A <----> B[Cached On-Chip RAM II]
    A <--> C[On-Chip RAM II as system RAM]
    A <--> D[JTAG UART]
    A <--> F[System ID]
    A <--> G[Interval Timer]
    A <--> H[Performance Counter]
    A <----> I[Un-cached On-Chip RAM II]
    A <----> J[EMIF Controller]
end
end
Z --> processor-subsystem
Y --> processor-subsystem
J <--> X

Nios® V/g Processor IP¶

General-purpose 32-bit CPU for high performance applications with larger logic area utilization.
Implements RV32IMZicsr_Zicbom instruction set (optionally with “F” and "Smclic" extension) instruction set.
Supports five-stages pipelined datapath.
It is a customizable soft-core processor, that can be tailored to meet specific application requirements, providing flexibility and scalability in embedded system designs.

Embedded Peripheral IP Cores¶

The following embedded peripheral IPs are used in this design:

On-Chip RAM II IP
JTAG UART IP
System ID IP
Interval Timer IP
Performance Counter IP
EMIF Controller IP

System Components¶

The following components are used in this design:

Clock Source (100MHz Clock Source at PIN_U52)
Reset Source (Reset Release IP and FPGA Reset Pin at PIN_G52)

Nios® V Processor Address Map Details¶

Address Offset	Size (Bytes)	Peripheral	Description
0x0004_0000	256KB	Instruction TCM	Not used in this design
0x0008_0000	256KB	Data TCM	Test Memory 1
0x0010_0000	1MB	On-Chip RAM	To store application
0x0021_0040	64	Performance Counter IP	To count the clock cycles needed for each test memories
0x0021_00a0	32	Interval Timer	As system clock timer
0x0021_00d0	8	System ID	Hardware configuration system ID (0x0)
0x0021_00d8	8	JTAG UART	Communication between a host PC and the Nios V processor system
0x1000_0000	1MB	Cached On-Chip RAM	Test Memory 3
0x3000_0000	1MB	Uncached On-Chip RAM	Test Memory 2
0x8000_0000	2GB	DDR4 EMIF Controller	The 1^st 1GB space is cached, while the 2^nd 1GB space is uncached. Also refer as Test Memory 5 & 4 respectively

Development Kit Setup¶

Refer to Agilex™ 7 FPGA F-Series Transceiver-SoC Development Kit (P-Tile and E-Tile) User Guide to setup the development kit.

Exercising Prebuilt Binaries¶

Program Hardware Binary SOF¶

Connect the development kit to the host PC using USB Blaster II.
Change the JTAG clock frequency to 6 MHz, and probe the JTAGServer to get the JTAG scan chain.
Execute the quartus_pgm command to program the SOF file with the correct device number.
Based on the JTAG scan chain below, the FPGA is at device number 2. You may require to provide a different device number if your JTAG chain is different from the given example.

jtagconfig --setparam 1 JtagClock 6M
jtagconfig -d
quartus_pgm --cable=1 -m jtag -o 'p;ready_to_test/top.sof@2'

For example:

1) Agilex SI/SoC Dev Kit
  6BA00477   S10HPS/AGILEX_HPS/N5X_HPS
  C341A0DD   AGFB014R24AR(1|2)/..
  031830DD   10M16S(A|C|L)
    Design hash    F8794217DDC74E81896B
    + Node 08586E00  (110:11) #0
    + Node 0C206E00  JTAG PHY #0
    + Node 30006E00  Signal Tap #0

  Captured DR after reset = (C341A0DD031830DD) [64]
  Captured IR after reset = (00555) [20]
  Captured Bypass after reset = (0) [2]
  Captured Bypass chain = (0) [2]
  JTAG clock speed auto-adjustment is enabled. To disable, set JtagClockAutoAdjust parameter to 0
  JTAG clock speed 6 MHz

Program Software Image ELF¶

Ensure that the development kit is successfully configured with the Hardware Binary SOF file.
Launch the Nios V Command Shell. You may skip this if the shell is active.
Execute the following command to download the ELF file.

niosv-shell
niosv-download -g ready_to_test/app.elf -c 1

Run Serial Console¶

You may proceed to to display the application printouts, and verify the design.

juart-terminal -d 1 -c 1 -i 0

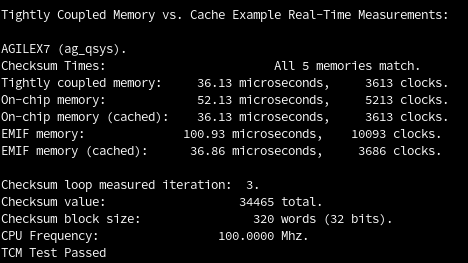

For example, you should see similar display at the start of the application.

Rebuilding the Design¶

Generate Hardware Binary SOF¶

Run the following command in the terminal from the source directory.
The script performs the following tasks, which generates the hardware binary SOF file of this design.

Create a new project
Create a new Platform Designer system
Configure assignments and constraints
Compile the project
Generate a hardware binary SOF file

quartus_py ./scripts/build_sof.py

Generate Software Image ELF¶

After the hardware binary SOF file is ready, you may begin building the software design.
It consists of the following steps:

Create a board support package (BSP) project.
Create a Nios® V processor application project with Linpack benchmark source codes.
Build the Linpack application.
Generate a software image ELF file.

Launch the Nios V Command Shell. You may skip this if the shell is active.
Run the following command in the shell from the source directory.

niosv-shell

niosv-bsp -c --quartus-project=hw/top.qpf --qsys=hw/ag_qsys.qsys --script=sw/bsp_linker_script.tcl --type=hal sw/bsp/settings.bsp

niosv-app --bsp-dir=sw/bsp --app-dir=sw/app --srcs=sw/app/tcm.c

cmake -S ./sw/app -G "Unix Makefiles" -B sw/app/build

make -C sw/app/build

Program Hardware Binary SOF¶

Connect the development kit to the host PC using USB Blaster II.
Change the JTAG clock frequency to 6 MHz, and probe the JTAGServer to get the JTAG scan chain.
Execute the quartus_pgm command to program the SOF file with the correct device number.
Based on the JTAG scan chain below, the FPGA is at device number 2. You may require to provide a different device number if your JTAG chain is different from the given example.

jtagconfig --setparam 1 JtagClock 6M
jtagconfig -d
quartus_pgm --cable=1 -m jtag -o 'p;hw/output_files/top.sof@2'

For example:

1) Agilex SI/SoC Dev Kit
  6BA00477   S10HPS/AGILEX_HPS/N5X_HPS
  C341A0DD   AGFB014R24AR(1|2)/..
  031830DD   10M16S(A|C|L)
    Design hash    F8794217DDC74E81896B
    + Node 08586E00  (110:11) #0
    + Node 0C206E00  JTAG PHY #0
    + Node 30006E00  Signal Tap #0

  Captured DR after reset = (C341A0DD031830DD) [64]
  Captured IR after reset = (00555) [20]
  Captured Bypass after reset = (0) [2]
  Captured Bypass chain = (0) [2]
  JTAG clock speed auto-adjustment is enabled. To disable, set JtagClockAutoAdjust parameter to 0
  JTAG clock speed 6 MHz

Program Software Image ELF¶

Ensure that the development kit is successfully configured with the Hardware Binary SOF file.
Launch the Nios V Command Shell. You may skip this if the shell is active.
Execute the following command to download the ELF file.

niosv-shell
niosv-download -g sw/app/build/app.elf -c 1

Run Serial Console¶

You may proceed to to display the application printouts, and verify the design.

juart-terminal -d 1 -c 1 -i 0

For example, you should see similar display at the start of the application.

Example Design Bugs¶

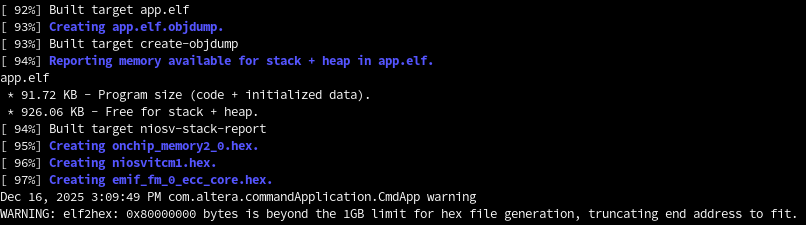

You might receive a warning about elf2hex when running the make command.
This issue is caused by the auto-generation of HEX file by the APP CMakeLists.txt.

You may ignore the warning, and force stop the truncating action.
The generated HEX files are not used in this design.
