Clock Manager Driver for Hard Processor System¶
Last updated: October 06, 2026
Upstream Status: No
Devices supported: Agilex3, Agilex 5
Introduction¶

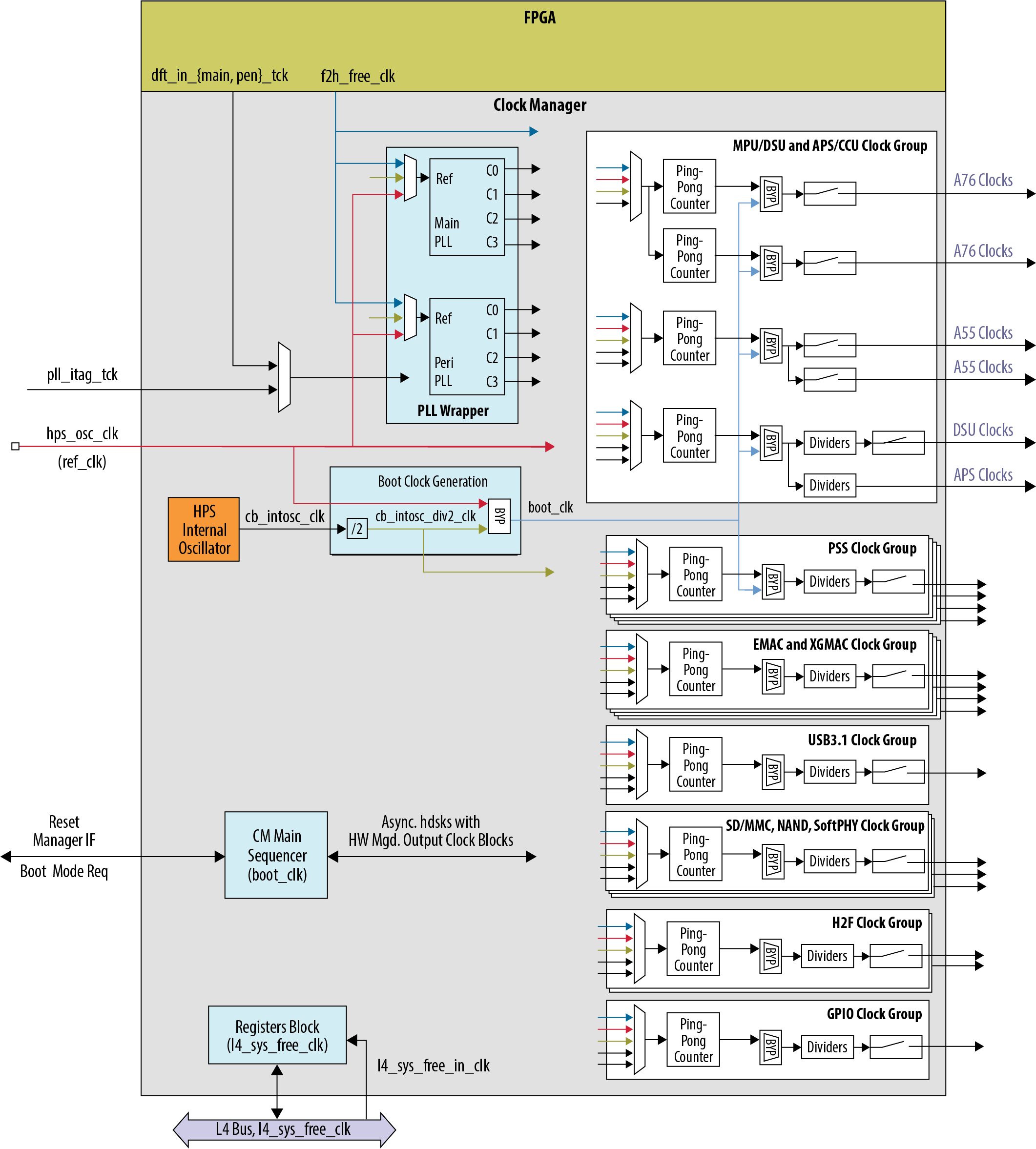

Hard Processor System (HPS) clock generation is centralized in the clock manager. The clock manager is responsible for providing software-programmable clock control to configure all clocks generated in the HPS. Clocks are organized into clock groups.
A clock group is a set of clock signals that originate from the same clock source which may be synchronous to each other. The Clock Manager has a two Phase-Locked Loop (PLL) clock group where the clock source is a common PLL voltage-controlled oscillator (VCO). A clock group which is independent and asynchronous to other clocks may only have a single clock, also known as clock slice. Peripheral clocks are a group of independent clock slices.
For more information please refer to the Altera® Agilex 5 Hard Processor System Technical Reference Manual.
Features¶
- Generates and manages clocks in the HPS.
- Contains two flexible PLL blocks Main PLL and Peripheral PLL.
- Generates clock gate controls for enabling and disabling most of the clocks.
- Allows software to program clock characteristics.
- Supports interrupting the Cortex-A53 MPCore on PLL-lock and loss-of-lock.
Driver Sources¶
The source code for this driver can be found at https://github.com/altera-opensource/linux-socfpga/blob/socfpga-6.1.55-lts/drivers/clk/socfpga/clk-agilex5.c.
Driver Capabilities¶
- Support to configure peripherals clock through common clock framework.
- Support to enable or disable software-managed clocks.
Kernel Configurations¶
CONFIG_CLK_INTEL_SOCFPGA64
Symbol: CLK_INTEL_SOCFPGA64 [=n]
Type : bool
Defined at drivers/clk/socfpga/Kconfig:15
Prompt: Altera® Stratix / Agilex / N5X clock / Agilex5 controller support
Depends on: COMMON_CLK [=y] && CLK_INTEL_SOCFPGA [=n]
Visible if: COMMON_CLK [=y] && CLK_INTEL_SOCFPGA [=n] && COMPILE_TEST [=n] && (!ARM64 || !ARCH_INTEL_SOCFPGA)
Location:
→ Device Drivers
(1) → Common Clock Framework (COMMON_CLK [=y])
→ Altera SoCFPGA family clock support (CLK_INTEL_SOCFPGA [=n])
→ Altera® Stratix / Agilex / N5X clock / Agilex5 controller support (CLK_INTEL_SOCFPGA64 [=n])
Device Tree¶
Example Device tree location:
clkmgr: clock-controller@10d10000 {
compatible = "intel,agilex5-clkmgr";
reg = <0x10d10000 0x1000>;
#clock-cells = <1>;
};
Also dt-bindings can be found at:
Using f2s_free_clk¶
When using the f2s_free_clk, you need to update the device tree to specify the frequency of the clock, as shown in the following example where 100MHz is specified:
f2s_free_clk: f2s-free-clk {
#clock-cells = <0>;
compatible = "fixed-clock";
clock-frequency = <100000000>;
};
If you do not change the frequency of the f2s_free_clk in the device tree, the default value of 0 will be used, which means there is no clock coming from the fabric.
Known Issues¶
None known
