Introduction

Nios® V/c Helloworld On-Chip Memory Memory Test Design Overview

This design demonstrates a simple Hello World message and performs a simple On-Chip Memory test with Nios® V/c processor in Agilex™ 5 FPGA E-Series 065B Premium Development Kit.
The design is built with basic peripherals required for simple application execution:

  • JTAG UART for serial output.

Prerequisites

  • Agilex™ 5 FPGA E-Series 065B Premium Development Kit, ordering code DK- A5E065BB32AES1.
    Refer to the board documentation for more information about the development kit.
  • Mini and Micro USB Cable. Included with the development kit.
  • Host PC with 64 GB of RAM. Less will be fine for only exercising the prebuilt binaries, and not rebuilding the design.
  • Quartus® Prime Pro Edition Software version 25.3
  • Ashling* RiscFree* IDE for Altera® FPGAs

Release Contents

Every Nios V processor design example is maintained based on this folder structure.
Here is the Github link to root directory of this design example: Nios® V/c Helloworld On-Chip Memory Memory Test Design Github link

---
title: Release Contents File Structure
config:
  flowchart:
    curve: linear
---

graph LR
    A[niosv_c_helloworld_ocm_mem_test] --> B[docs]
    A --> C[img]
    A --> D[ready_to_test]
    A --> E[sources]
    B -->|contains| F{{Design Example MD file}}
    C -->|contains| G{{Figures or Illustrations}}
    D -->|contains| H{{Prebuilt Binary Files}}
    E --> I[hw]
    E --> J[scripts]
    E --> K[sw]
    I -->|contains| M{{Custom Hardware Design Files}}
    J -->|contains| N{{Scripts to Generate Hardware Design}}
    K -->|contains| P{{Custom Software Source Code}}

Nios® V/c Helloworld On-Chip Memory Memory Test

This example design includes a Nios® V/c processor connected to the On-Chip RAM II, JTAG UART IP and System ID peripheral core.
The objective of the design is to accomplish data transfer between the processor and soft IP peripherals:

  • Prints a Hello World message and memory test result through JTAG UART IP.
---
title: Design Block Diagram
config:
  flowchart:
    curve: linear
---

flowchart LR
subgraph top-level-subsystem
    Z[Clock Source]
    Y[Reset Source]
subgraph processor-subsystem
    A[Nios V/c Processor]
    A <--> B(Bus Interface : AXI / AvMM Interface)
    B <--> C[On-Chip RAM II]
    B <--> D[JTAG UART]
    B ---> F[System ID]
end
end
Z --> processor-subsystem
Y --> processor-subsystem

Nios® V/c Processor IP

  • 32-bit Compact microcontroller focus on minimal logic area utilization.
  • Implements RV32I instruction set instruction set.
  • Supports non-pipelined datapath.
  • It is a customizable soft-core processor, that can be tailored to meet specific application requirements, providing flexibility and scalability in embedded system designs.

Embedded Peripheral IP Cores

The following embedded peripheral IPs are used in this design:

  • On-Chip RAM II IP
  • JTAG UART IP
  • System ID IP

System Components

The following components are used in this design:

  • Clock Source (Clock Bridge with IO PLL)
  • Reset Source (Reset Release IP)

Nios® V Processor Address Map Details

Address Offset Size (Bytes) Peripheral Description
0x0000_0000 1MB On-Chip RAM To store application
0x0010_0008 8 JTAG UART Communication between a host PC and the Nios V processor system
0x0010_0000 8 System ID Hardware configuration system ID (0xa5)

Development Kit Setup

Refer to Agilex™ 5 FPGA Premium Development Kit User Guide to setup the development kit.

Development Kit

Exercising Prebuilt Binaries

Program Hardware Binary SOF

  1. Connect the development kit to the host PC using USB Blaster II.
  2. Change the JTAG clock frequency to 6 MHz, and probe the JTAGServer to get the JTAG scan chain.
  3. Execute the quartus_pgm command to program the SOF file with the correct device number.
    Based on the JTAG scan chain below, the FPGA is at device number 2. You may require to provide a different device number if your JTAG chain is different from the given example.
jtagconfig --setparam 1 JtagClock 6M
jtagconfig -d
quartus_pgm --cable=1 -m jtag -o 'p;ready_to_test/top.sof@2'

Example of JTAG Scan Chain:

 1) Agilex 5E065B Premium DK
  4BA06477   ARM_CORESIGHT_SOC_600 (IR=4)
  0364F0DD   A5E(C065BB32AR0|D065BB32AR0) (IR=10)
  020D10DD   VTAP10 (IR=10)
    Design hash    2696B57EB10A539DFB3F
    + Node 08586E00  (110:11) #0
    + Node 0C006E00  JTAG UART #0
    + Node 0C206E00  JTAG PHY #0
    + Node 19104600  Nios II #0
    + Node 30006E00  Signal Tap #0

  Captured DR after reset = (4BA064770364F0DD020D10DD) [96]
  Captured IR after reset = (100555) [24]
  Captured Bypass after reset = (0) [3]
  Captured Bypass chain = (0) [3]
  JTAG clock speed auto-adjustment is enabled. To disable, set JtagClockAutoAdjust parameter to 0
  JTAG clock speed 6 MHz

Note: The Nios V/c processor does not support RISC-V Debug Module.
Thus, the software application ELF file is converted into a HEX file, and memory initialized into the SOF file during Quartus project compilation.

Run Serial Console

You may proceed to to display the application printouts, and verify the design.

juart-terminal -d 1 -c 1 -i 0

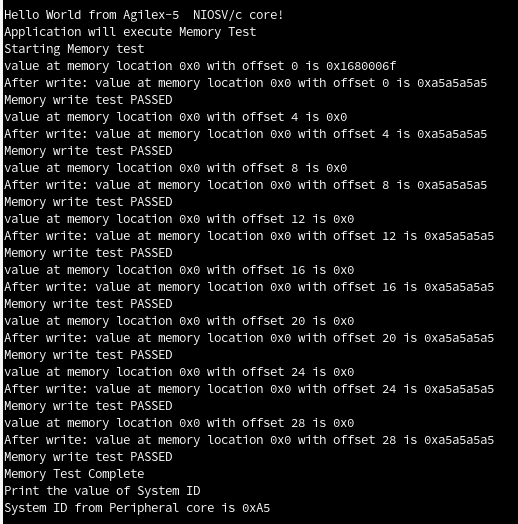

For example, you should see similar display at the end of the application.

JTAG UART Display

Rebuilding the Design

Generate Hardware Binary SOF, Software Image HEX and Memory Initialize the On-Chip RAM

Run the following command in the terminal from the source directory.
The script performs the following tasks, which generates the hardware binary SOF file of this design.

  1. Create a new project
  2. Create a new Platform Designer system
  3. Configure assignments and constraints
  4. Create a board support package (BSP) project.
  5. Create a Nios® V processor application project with Hello World source code.
  6. Build the Hello World application.
  7. Generate a software image HEX file.
  8. Compile the project to memory initialize the On-Chip RAM.
  9. Generate a hardware binary SOF file
quartus_py ./scripts/build_sof.py

Note: The Nios V/c processor does not support RISC-V Debug Module.
Thus, the software application ELF file is converted into a HEX file, and memory initialized into the On-Chip RAM during Quartus project compilation.

Program Hardware Binary SOF

  1. Connect the development kit to the host PC using USB Blaster II.
  2. Change the JTAG clock frequency to 6 MHz, and probe the JTAGServer to get the JTAG scan chain.
  3. Execute the quartus_pgm command to program the SOF file with the correct device number.
    Based on the JTAG scan chain below, the FPGA is at device number 2. You may require to provide a different device number if your JTAG chain is different from the given example.
jtagconfig --setparam 1 JtagClock 6M
jtagconfig -d
quartus_pgm --cable=1 -m jtag -o 'p;hw/output_files/top.sof@2'

Example of JTAG Scan Chain:

 1) Agilex 5E065B Premium DK
  4BA06477   ARM_CORESIGHT_SOC_600 (IR=4)
  0364F0DD   A5E(C065BB32AR0|D065BB32AR0) (IR=10)
  020D10DD   VTAP10 (IR=10)
    Design hash    2696B57EB10A539DFB3F
    + Node 08586E00  (110:11) #0
    + Node 0C006E00  JTAG UART #0
    + Node 0C206E00  JTAG PHY #0
    + Node 19104600  Nios II #0
    + Node 30006E00  Signal Tap #0

  Captured DR after reset = (4BA064770364F0DD020D10DD) [96]
  Captured IR after reset = (100555) [24]
  Captured Bypass after reset = (0) [3]
  Captured Bypass chain = (0) [3]
  JTAG clock speed auto-adjustment is enabled. To disable, set JtagClockAutoAdjust parameter to 0
  JTAG clock speed 6 MHz

Run Serial Console

You may proceed to to display the application printouts, and verify the design.

juart-terminal -d 1 -c 1 -i 0

For example, you should see similar display at the end of the application.

JTAG UART Display

Simulating the Design

Generate Hardware Design-Under-Test (DUT) and Testbench System

Run the following command in the terminal from the source directory.
The commands below perform the following tasks, which generates the hardware DUT and testbench system.

  1. Create a new project
  2. Create a new Platform Designer system
  3. Create a board support package (BSP) project.
  4. Create a Nios® V processor application project with Hello World source code.
  5. Build the Hello World application.
  6. Generate a software image HEX file.
  7. Generate testbench system.
quartus_py ./scripts/build_sof.py
qsys-generate hw/qsys_top.qsys --testbench=STANDARD --testbench-simulation=VERILOG

Check Simulation Files

You have generated your system and created all the files necessary for simulation.

File Description
Working Directory/hw/qsys_top_tb Generated testbench system
Working Directory/hw/qsys_top_tb/qsys_top_tb/sim/mentor/msim_setup.tcl Questa simulation setup script
Working Directory/hw/onchip_mem.hex On-Chip RAM II memory initialization file

Start Simulator

With all the necessary simulation files, you can start the simulation.

  1. Copy the memory initialization file into mentor folder.
  2. Change directory to the same mentor folder.
  3. Open the Questa for Altera FPGA simulator using the command vsim.
cp hw/onchip_mem.hex hw/qsys_top_tb/qsys_top_tb/sim/mentor
cd hw/qsys_top_tb/qsys_top_tb/sim/mentor/
vsim

Setup Simulator

In the Questa for Altera FPGA software, run the following commands in the Transcript.

source msim_setup.tcl
ld_debug

Run Simulation

Run the simulation with run -all command.

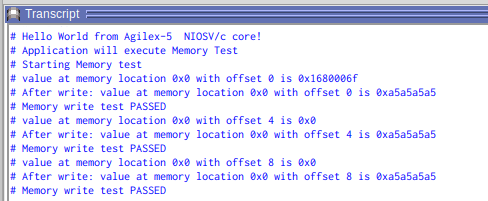

For example, you should see similar display at the start of the simulation.

Simulation
