Host Attach Memory Subsystem IP Driver¶
Last updated: July 11, 2024
Upstream Status: Upstreamed
Devices supported: Stratix 10, Agilex 7
Introduction¶
This driver is for the Memory Subsystem IP private feature implemented under FPGA Device Feature List (DFL) framework. It is used to expose memory interface status information as well as memory clearing control.
| Driver | Mapping | Source(s) | Required or Optional DFL Driver? |
|---|---|---|---|
| dfl-emif.ko | FPGA DFL EMIF Driver | drivers/memory/dfl-emif.c | Optional |
Agilex 7 F-Series and I-Series FPGA Memory Subsystem IP¶
The memory subsystem IP is a high-level solution on top of the External Memory Interfaces Agilex® 7 FPGA IP, providing an easy way to instantiate up to 8 external memory interfaces (EMIFs) with application-level optimizations. The memory subsystem IP provides the following components:
- Up to 8 lookup IP instances.
- Up to 8 EMIF instances.
- A memory controller that implements all the memory commands and protocol-level requirements.
- A soft logic adapter to boost memory throughput by traffic shaping.
The memory subsystem supports DDR4 and DIMMs. For more information about this IP, please refer to the Agilex 7 F-Series and I-Series FPGA Memory Subsystem IP User Guide.
Stratix 10 External Memory Interface¶
The External Memory Interfaces Stratix 10 FPGA IP provides an physical later interface which builds the data path and manages timing transfers between the FPGA and the memory device. It also includes a memory controller which implements all the memory commands and protocol level requirements. This IP supports a variety of memory types including DDR4, QDR-IV and DIMMs.
Driver Sources¶
The GitHub source code for this driver can be found at https://github.com/OFS/linux-dfl/blob/master/drivers/memory/dfl-emif.c#L4
The Upstream source code for this driver can be found at https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/tree/drivers/memory/dfl-emif.c?h=master.
Driver Capabilities¶
- Access status of memory calibration
- Memory clearing control

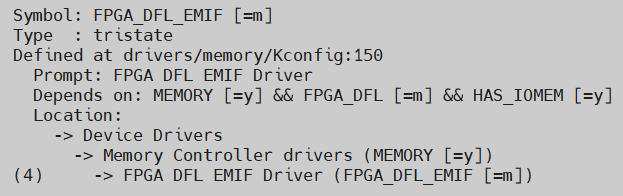

Kernel Configurations¶
FPGA_DFL_EMIF
Known Issues¶
None known
Example Designs¶
This driver is used in the PCIe Attach shell designs for Agilex 7 and in the PCIe Attach shell design for Stratix 10 FPGA. Please refer to the Open FPGA Documentation site for more information about these designs.
