Ethernet Media Access Controller (EMAC) Driver for Hard Processor System

Last updated: July 11, 2024

Upstream Status: Not Upstreamed

Devices supported: Agilex 5

Introduction

The Ethernet Media Access Controller (EMAC) Driver controls initialization, configuration and traffic shaping of the three EMACs in the Hard Processor System (HPS).

Driver Capability
/drivers/net/ethernet/stmicro/stmmac/dwmac-socfpga.c Sets PHY layer configuration such as GMII, RGMII, RMII and speed.
/drivers/net/ethernet/stmicro/stmmac/stmmac_platform.c Obtains the features EMAC features supported to main driver
/drivers/net/ethernet/stmicro/stmmac/stmmac_main.c Sets ethtool operations
Initializes hardware
Initializes traffic control
Calls networking API (NAPI)
Registers IP as netdev
Initialize PHY, DMA, MAC Transaction Layer, Management MAC counters, Precision Time Protocol, Watchdog Timer, Ring Length, PCS protocol and TCP Segmentation Offload
/drivers/net/ethernet/stmicro/stmmac/hwif.c Initializes hardware interface and obtains device ID and IP version
/drivers/net/ethernet/stmicro/stmmac/dwxgmac2_core.c Configures filters, link speed, MDIO/MII bus
/drivers/net/ethernet/stmicro/stmmac/stmmac_mdio.c Provides bus interface for MII registers

The following group of drivers is required to support EMAC functionality:

graph TD;
    A[dwmac-socfpga.c]-->B[stmmac_platform.c];
    B[stmmac_platform.c]-->C[stmmac_main.c];
    C[stmmac_main.c]-->D[hwif.c];
    D[hwif.c]-->E[dwxgmac2_core.c];
    E[dwxgmac2_core.c]-->F[stmmac_mdio.c];

EMAC IP

The hard processor system (HPS) provides three Ethernet media access controller (EMAC) peripherals. Each EMAC can be used to transmit and receive data at 10M/100M/1G/2.5G speeds over Ethernet connections in compliance with the IEEE 802.3-2018 specification and enable support for Time Sensitive Networking (TSN) applications.

The EMAC has an extensive memory-mapped Control and Status Register (CSR) set, which can be accessed by the on-board Arm processors.

The EMAC is an integration of the Synopsys Ethernet XGMAC IP with the SMTG hub and external memory. The EMAC can be accessed from HPS or FPGA fabric over an AXI interface. For more information please refer to the Agilex 5 Hard Processor System Technical Reference Manual.

  • IEEE 1588-2008 Advanced Timestamp: Precision Time Protocol (PTP), 2-steps, PTP offload and timestamping
  • IEEE 802.1AS: Timing and synchronization
  • IEEE 802.1Qav: Time-sensitive streams forwarding queuing
  • The XGMAC supports the following features
    • Full-duplex operation at 10M/100M/1G/2.5 Gbps (GMII)
    • Full-duplex RGMII support (10M/100M/1 G)
    • Half-duplex operation in 10/100 Mbps modes
    • Separate transmission, reception, and configuration (control and status register) interfaces to the application
    • MDIO interface for multiple PHY devices and their configuration and management
    • Programmable frame length, supporting standard or jumbo Ethernet frames up to 9 KB

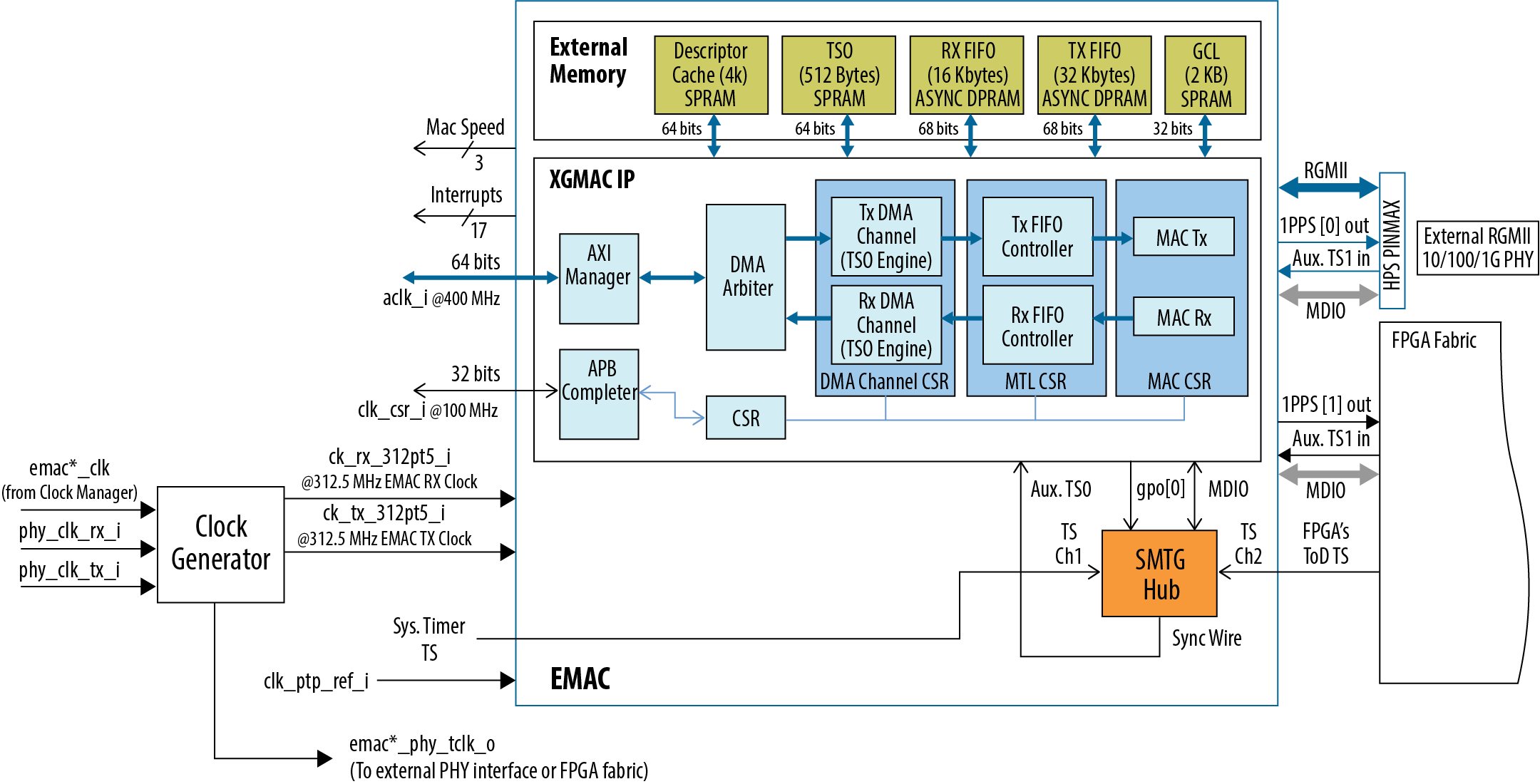

A5_emac_block_diagram

Driver Sources

The source code for this driver can be found at https://github.com/altera-opensource/linux-socfpga/blob/socfpga-6.1.55-lts/drivers/net/ethernet/stmicro/stmmac/.

Driver Capabilities

  • Set PHY layer configurations such as GMII, RGMII, RMII and speed.
  • Initializes hardware, traffic control, calls networking API (NAPI), registers IP as netdev, initializes PHY, DMA, MAC Transaction Layer, Management MAC Counters, Precision Time Protocol, Watchdog Timer, Ring Length, PCS Protocol, and TCP Segmentation Offload.
  • Initializes the hardware interface and obtains the device ID and IP version.
  • Configures filters, link speed, MDIO/MII bus.
  • Provides a bus interface for MII registers.

Kernel Configurations

CONFIG_STMMAC_ETH

stmmac_eth_config

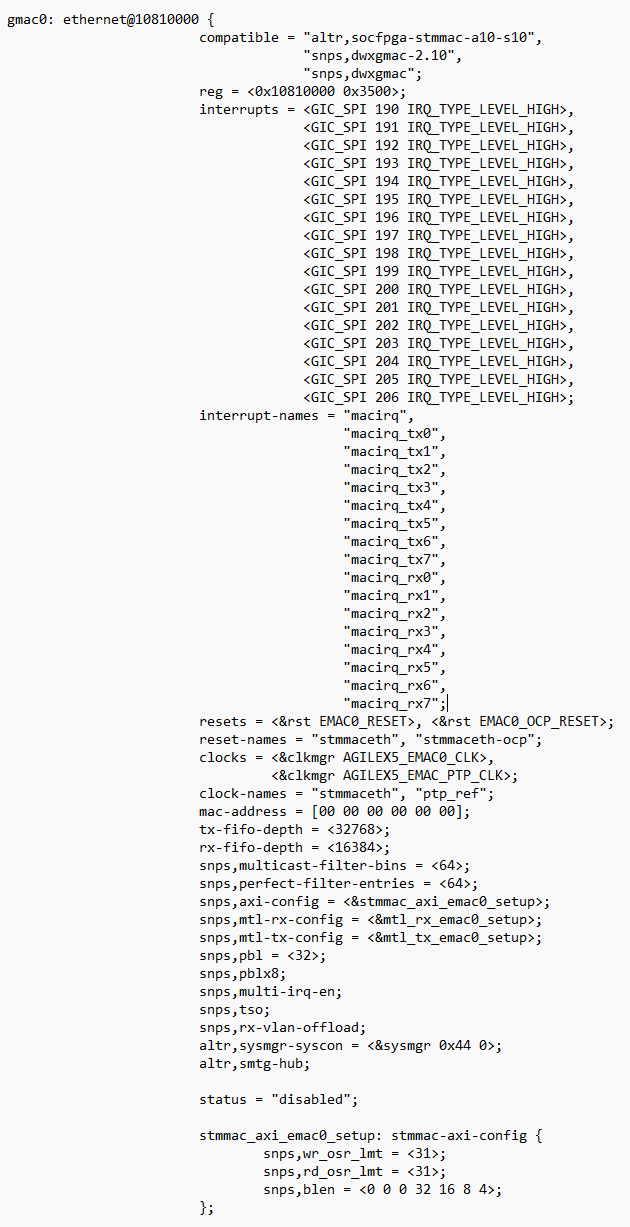

Device Tree

Example Device tree location: https://github.com/altera-opensource/linux-socfpga/blob/socfpga-6.1.55-lts/arch/arm64/boot/dts/intel/socfpga_agilex5.dtsi

gmac_device_tree

Known Issues

None known
