4K Multi-Sensor Fisheye Camera with AI Inference Solution System Example Design for Agilex™ 5 Devices¶
The design is compatible with Altera® Quartus® Prime Pro Edition version 26.1 Linux.
Overview¶
The 4K Multi-Sensor Fisheye Camera with AI Inference Solution System Example Design for Agilex™ 5 Devices demonstrates a practical glass-to-glass smart camera solution. The exclusive support for industry-standard MIPI (Mobile Industry Processor Interface) D-PHY and MIPI CSI-2 interface on Agilex™ 5 FPGAs, along with Altera®'s FPGA AI Suite, provides a powerful tool for smart camera product development.
 |
 |
|
 |
 |
The MIPI interface supports up to 2.5Gbps per lane and up to 8x lanes per MIPI interface, enabling seamless data reception from multiple 4K image sensors to the FPGA fabric for further processing. Each MIPI CSI-2 IP instance converts pixel data to AXI4-Streaming outputs, enabling connectivity to other IP cores within Altera®'s Video and Vision Processing (VVP) Suite.

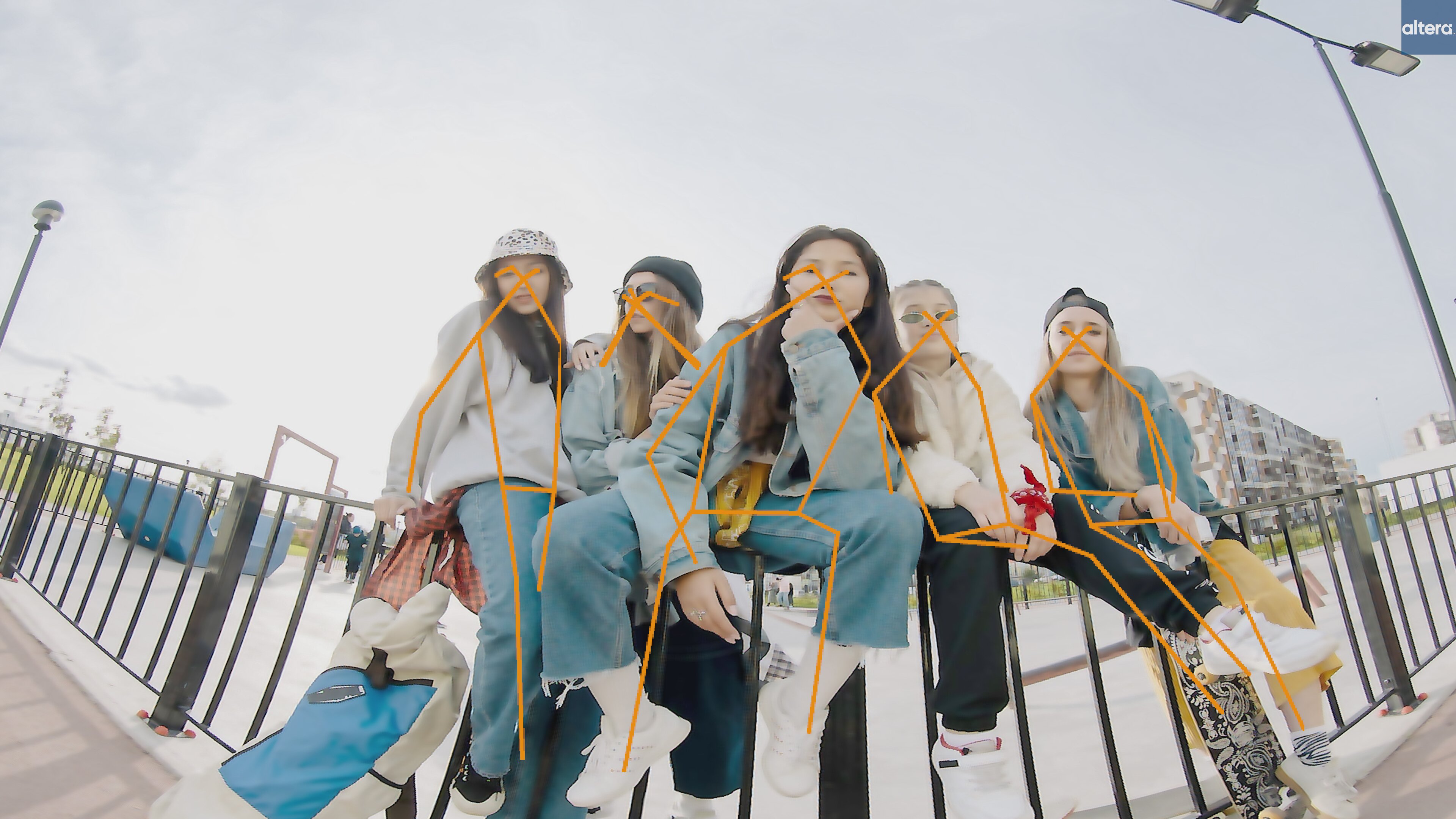

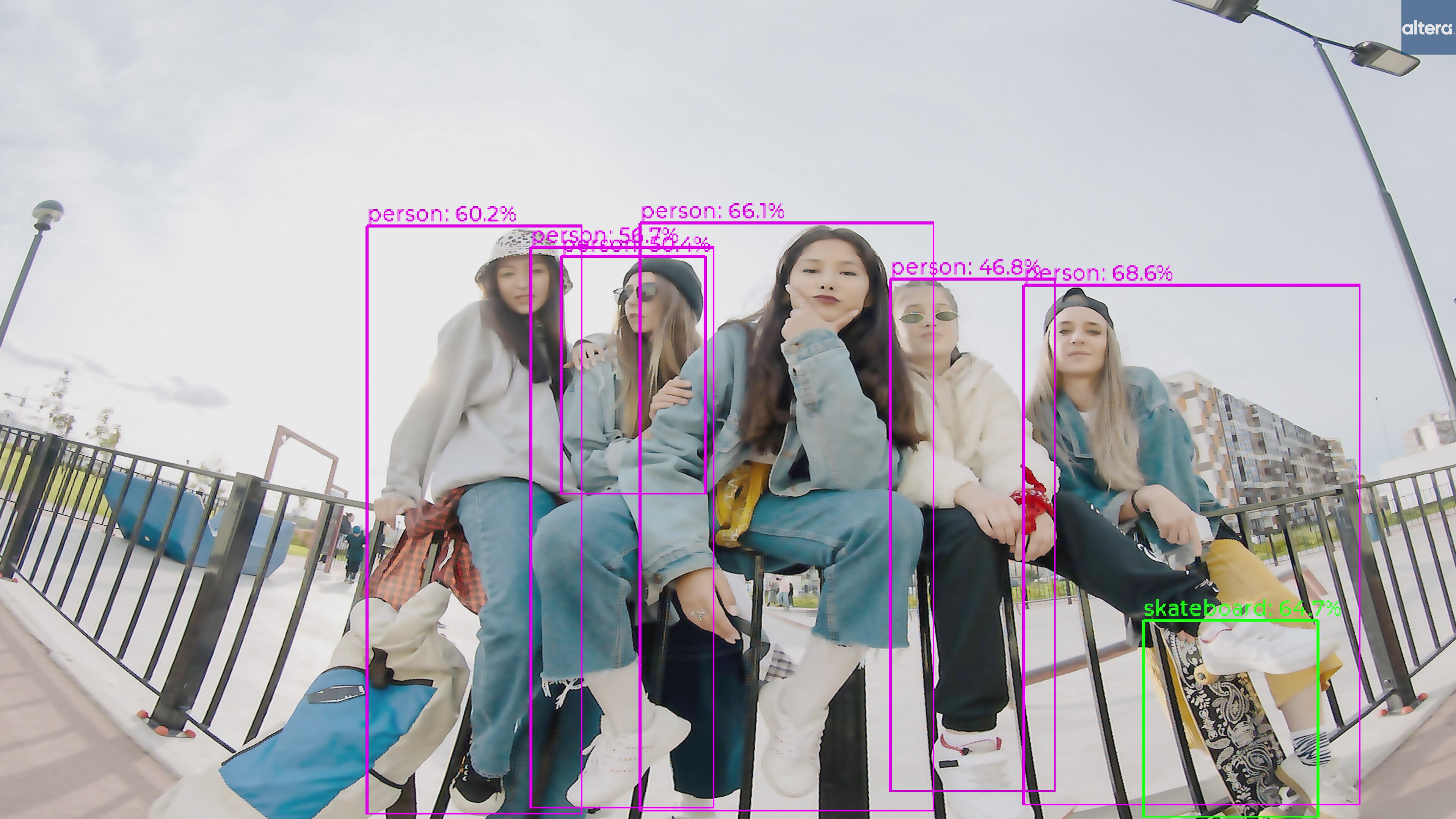

Altera®'s FPGA AI Suite is flexible and configurable for a variety of smart camera use cases. In the 4K Multi-Sensor Fisheye Camera with AI Inference Solution System Example Design, the FPGA AI Suite IP is optimized to run the Ultralytics YOLOv8 nano detection and pose inference models.
The design is a hardware-software co-design. The hardware component comprises an Image Signal Processor (ISP), various VVP IPs, Altera®'s FPGA AI Suite IP (AI IP), Hard Processor Subsystem (HPS) and various connectivity IPs. The software stack is Linux based and runs on the HPS. The software runs compiled YOLOv8 nano models from the microSD card. The End User must license and download the models directly from Ultralytics.

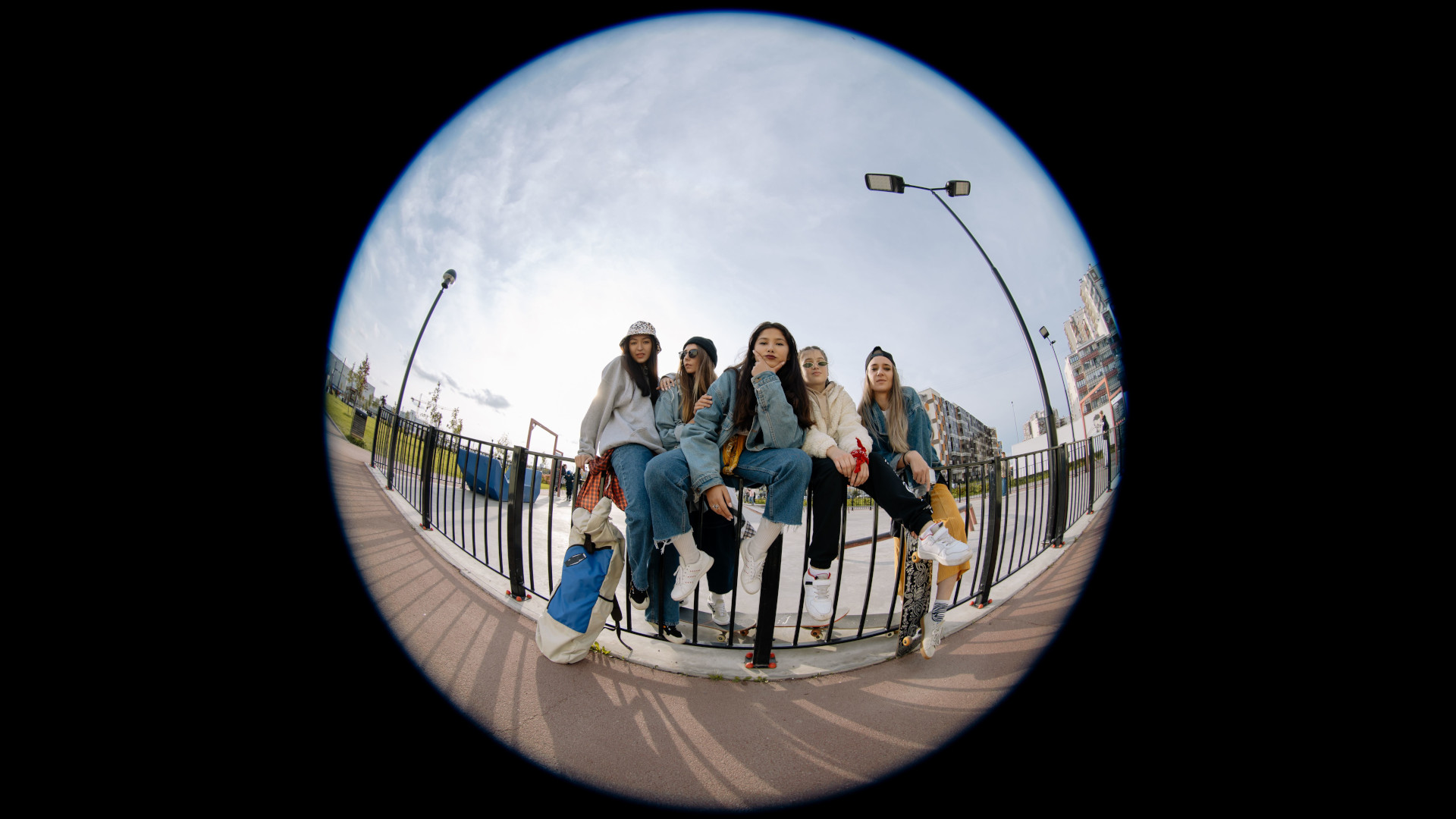

The hardware includes a multi-sensor input video switch feeding into an Image Signal Processing (ISP) subsystem. The ISP is a video processing pipeline incorporating many VVP IP cores such that the raw sensor image data can be processed into RGB video data. The backend of the ISP pipeline feeds a high performance Warp IP core for geometric distortion correction of extreme fisheye lens allowing for a near 360° field of view. The corrected output is passed to the AI pipeline which consists of many VVP IP cores to buffer, format, and scale the video suitable for AI processing. The backend of the AI pipeline drives the resulting 4K streaming video output data (complete with AI inference overlay) through an Altera® DisplayPort IP.
The software stack consists of an application software binary running on the Linux operating system with various layers of drivers. The backend part of the application software interrogates the hardware, dynamically discovers the IP components and configures them. The AI inference part of the application software schedules inference requests to Altera®'s FPGA AI Suite IP, and processes the inference results. The results are rendered as graphics in a frame buffer, which the hardware overlays on the video stream. Multiple feedback loops, in the application software, monitor the hardware and keep various hardware components in lockstep. Some of the notable feedback loops are Automatic White Balance (AWB), Auto Exposure (AE), and Adaptive Noise Reduction (ANR) algorithms, reading their relevant statistics and adjusting various coefficients and Look Up Tables (LUTs) in real time. The frontend of the software creates a web-based Graphical User Interface (GUI) and runs it over a web server.
Detailed Design¶
The detailed design can be found at camera_4k_ai_warp.md
The project GitHub repository can be found at https://github.com/altera-fpga/agilex5-ed-camera
