Introduction¶
RiscFree* is Ashling’s Eclipse* C/C++ Development Toolkit (CDT) based integrated development environment (IDE) for Altera® FPGAs Arm*-based HPS and RISC-V based Nios® V processors.
This page demonstrates how to use RiscFree* to debug a Linux application running on the Agilex 3 FPGA and SoC C-Series Development Kit. For further information about RiscFree*, visit The Ashling RiscFree IDE for Altera® FPGAs.
Architecture¶
The following diagram shows the overall architecture for debugging a Linux application running on the board, with Ashling RiscFree:
The components are:
- Development Board with Linux running on it
- Serial terminal on Host PC, connected over USB, showing the Linux Console
- Ashling RiscFree running on Host PC, communicating Linux over the network
Note: For debugging Linux applications, we do not use a JTAG connection. Instead the debugger connects to the GDB server running on the board, over Ethernet. Note: For the Linux terminal, SSH could also be used instead of serial over USB, provided the IP address of the board is identified first.
Prerequisites¶
The following are needed:
- Agilex 3 FPGA and SoC C-Series Development Kit, ordering code DK-A3W135BM16AEA. Other Agilex 3 development boards will also work in the same manner, just that other set HPS Baseline System Example Design binaries will be used.
- Host PC with Linux (Ubuntu 22.04 was used, but others should work too)
- Quartus Pro 26.1 (or just Quartus Pro standalone Programmer 26.1).
- Ashling RiscFree bundled with Quartus Pro 26.1 (can be installed and use with just the standalone Programmer)
- Network access, for downloading the sources while building the binaries
Instructions¶
Setup Environment¶
Create a folder to contain all the example files:
sudo rm -rf riscfree-linux-app-debug
mkdir riscfree-linux-app-debug
cd riscfree-linux-app-debug
export TOP_FOLDER=`pwd`
Download the compiler toolchain, add it to the PATH variable, to be used by the GHRD makefile to build the HPS Debug FSBL:
cd $TOP_FOLDER
wget https://developer.arm.com/-/media/Files/downloads/gnu/14.3.rel1/binrel/\
arm-gnu-toolchain-14.3.rel1-x86_64-aarch64-none-linux-gnu.tar.xz
tar xf arm-gnu-toolchain-14.3.rel1-x86_64-aarch64-none-linux-gnu.tar.xz
rm -f arm-gnu-toolchain-14.3.rel1-x86_64-aarch64-none-linux-gnu.tar.xz
export PATH=`pwd`/arm-gnu-toolchain-14.3.rel1-x86_64-aarch64-none-linux-gnu/bin/:$PATH
export ARCH=arm64
export CROSS_COMPILE=aarch64-none-linux-gnu-
Enable Quartus tools to be called from command line:
Sdd RiscFree to the system PATH:
Boot HPS Baseline System Example Design¶
Note: This design was formerly called "GSRD".
1. Download and extract the HPS Baseline System Example Design binaries:
cd $TOP_FOLDER
wget https://releases.rocketboards.org/2026.04/gsrd/agilex3_gsrd.baseline/sdimage.tar.gz
tar xf sdimage.tar.gz
wget https://releases.rocketboards.org/2026.04/gsrd/agilex3_gsrd.baseline/ghrd.hps.jic
2. Write SD card image $TOP_FOLDER/gsrd-console-image-agilex3.rootfs.wic to the micro SD card and insert it into the socket on the HPS Expansion Board.
3. Write QSPI image $TOP_FOLDER/ghrd.hps.jic to the board QSPI flash.
4. Power up the board. It will boot up to Linux prompt. Enter 'root' as username, no password will be requested:
[ 12.897701] arm-smmu-v3-pmcg 160e2000.pmu: Registered PMU @ 0x00000000160e2000 using 4 counters with Global(Counter0) filter settings
[ OK ] Listening on Load/Save RF Kill Switch Status /dev/rfkill Watch.
Starting Virtual Console Setup...
[ OK ] Finished Virtual Console Setup.
[ OK ] Finished OpenSSH Key Generation.
[ 16.477595] socfpga-dwmac 10830000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx
Poky (Yocto Project Reference Distro) 5.0.16 agilex3 ttyS0
agilex3 login: root
WARNING: Poky is a reference Yocto Project distribution that should be used for
testing and development purposes only. It is recommended that you create your
own distribution for production use.
root@agilex3:~#
Build Sample Application¶
For this example, we will use a very simple Linux C application. Follow the instructions to create the source code, compile the application and download it to the target board.
- Create the source code:
cd $TOP_FOLDER
cat << 'EOF' >> application.c
#include <stdio.h>
#include <string.h>
#define N 8
struct stats {
int sum;
int min;
int max;
double avg;
};
static int process_value(int x, int idx)
{
int squared = x * x;
int scaled = squared + idx;
return scaled;
}
static void compute_stats(const int *data, int n, struct stats *s)
{
s->sum = 0;
s->min = data[0];
s->max = data[0];
for (int i = 0; i < n; i++) {
int v = data[i];
s->sum += v;
if (v < s->min) s->min = v;
if (v > s->max) s->max = v;
}
s->avg = (double)s->sum / n;
}
int main(void)
{
int input[N] = { 3, 1, 4, 1, 5, 9, 2, 6 };
int output[N];
struct stats s;
memset(&s, 0, sizeof(s));
printf("input: ");
for (int i = 0; i < N; i++) printf("%d ", input[i]);
printf("\n");
for (int i = 0; i < N; i++)
output[i] = process_value(input[i], i);
printf("output: ");
for (int i = 0; i < N; i++) printf("%d ", output[i]);
printf("\n");
compute_stats(output, N, &s);
printf("sum=%d min=%d max=%d avg=%.2f\n",
s.sum, s.min, s.max, s.avg);
return 0;
}
EOF
2. Compile the application:
The following options are used:
| Option | Explanation |
|---|---|
| -g3 | Enable maximum debug information |
| -o0 | Disable optimizations |
| -static | Create a statically linked image, to avoid any incompatibilities between tool chain an target system |
Debug Sample Application¶
1. Run ifconfig to determine the IP address of your board:
root@agilex3:~# ifconfig
eth0: flags=-28605<UP,BROADCAST,RUNNING,MULTICAST,DYNAMIC> mtu 1500
inet 10.244.157.174 netmask 255.255.255.0 broadcast 10.244.157.255
inet6 fe80::c48b:28ff:fe6f:dde1 prefixlen 64 scopeid 0x20<link>
ether c6:8b:28:6f:dd:e1 txqueuelen 1000 (Ethernet)
RX packets 10031 bytes 799236 (780.5 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 330 bytes 33306 (32.5 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
device interrupt 22 base 0x8000
Note: In the above example the IP address was
10.244.157.174. But in your specific case you will more than likely get a different value.
2. Transfer the application binary to the board:
root@agilex3:~# scp radu@big-machine.local:/home/radu/riscfree-linux-app-debug/application .
The authenticity of host 'big-machine.local (10.244.157.123)' can't be established.
ED25519 key fingerprint is SHA256:dBidwUjHgxubKfiR0gM6piyTJek4QigISANpbR1SXBw.
This key is not known by any other names.
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added 'big-machine.local' (ED25519) to the list of known hosts.
radu@big-machine.local's password:
application 100% 2808KB 21.5MB/s 00:00
root@agilex3:~#
Adjust the command to match your system:
- Replace
raduwith your host username. - Replace
big-machine.localwith your host name or ip address. - Replace
/home/radu/riscfree-linux-app-debugwith the path for your$TOP_FOLDER
3. Make the application executable:
4. Start the GDB server debug session on the board:
root@agilex5e:~# gdbserver :1234 ./application
Process ./application created; pid = 331
Listening on port 1234
Note: For applications that accept command line parameters, you can add them to the line above, after application filename.
5. Start RiscFree on your host

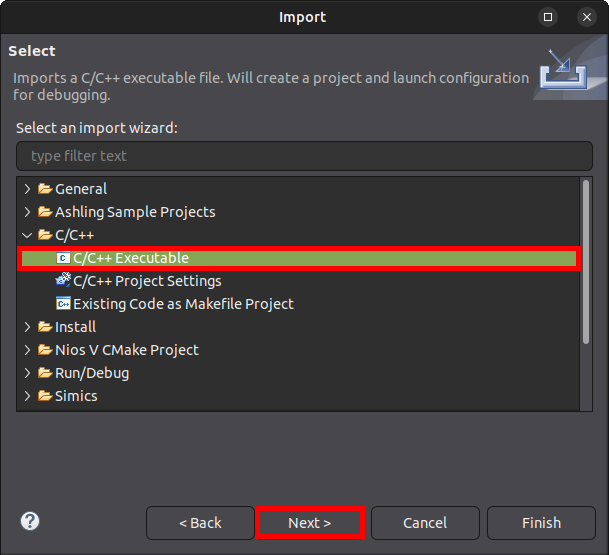

6. Once RiscFree has opened, go to File > Import... and in the Import window, select C/C++ > C/X++ Executable and click Next:

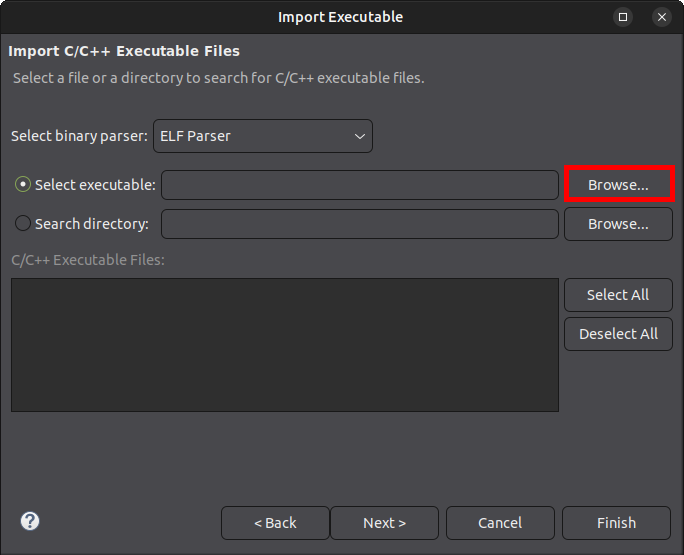

7. In the Import Executable window, click on Browse button near the Select Executable:

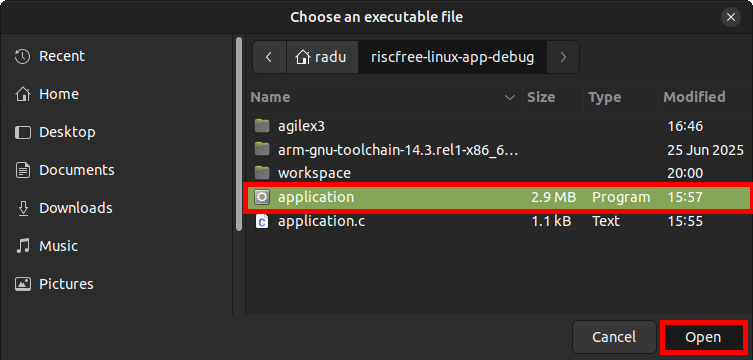

8. Navigate to the $TOP_FOLDER/application location, click on application to select it, then click Open:

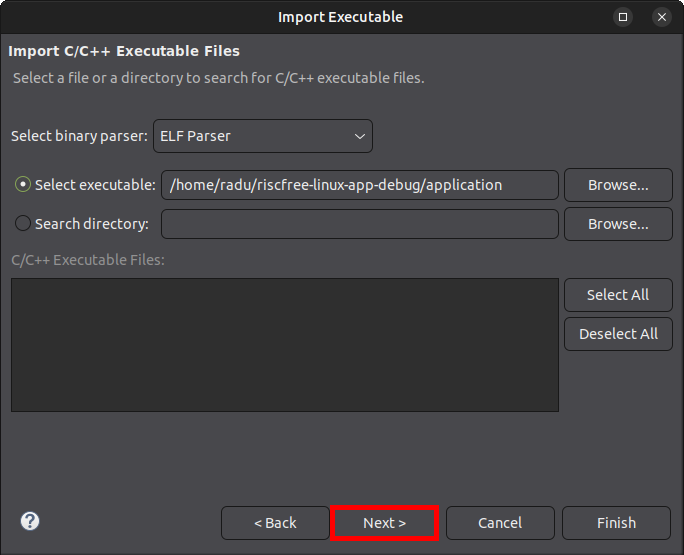

9. Click Next in the Import window:

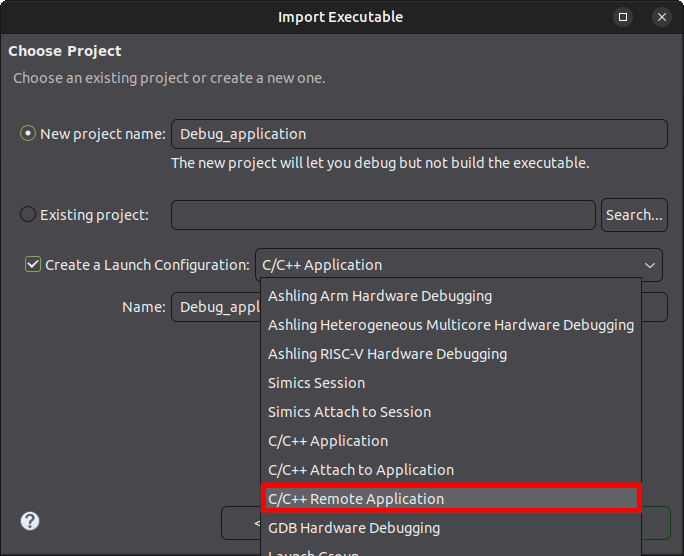

10. Change the Create a Launch Configuration type from C/C++ Application to C/C++ Remote Application:

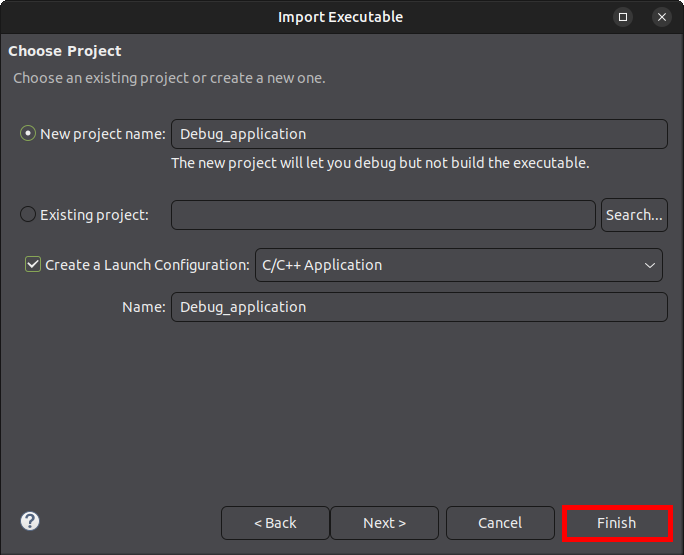

11. Click Finish

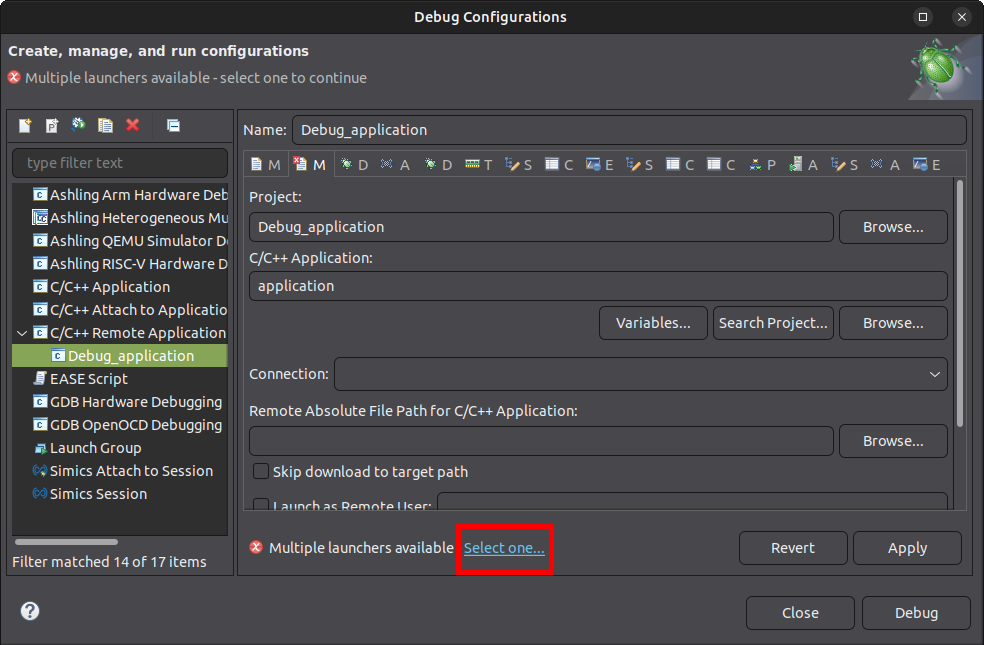

12. In the Debug Configurations:Main window, click the Select one... link at the bottom of the page, near the message Multiple launchers available:

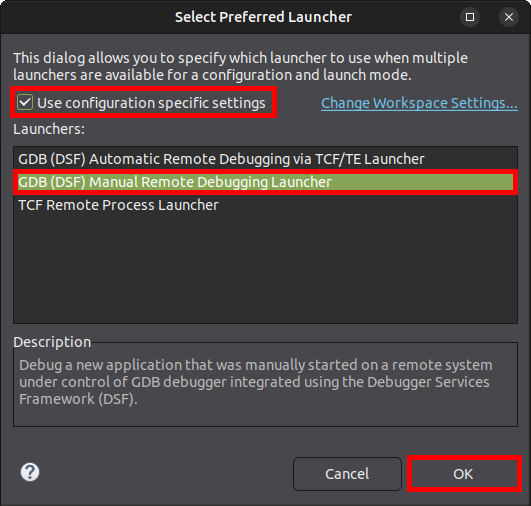

13. In the Select Preferred Launcher window, check Use configuration specific settings then select the GDB (DSF) Manual Remote Debugging Launcher and click OK:

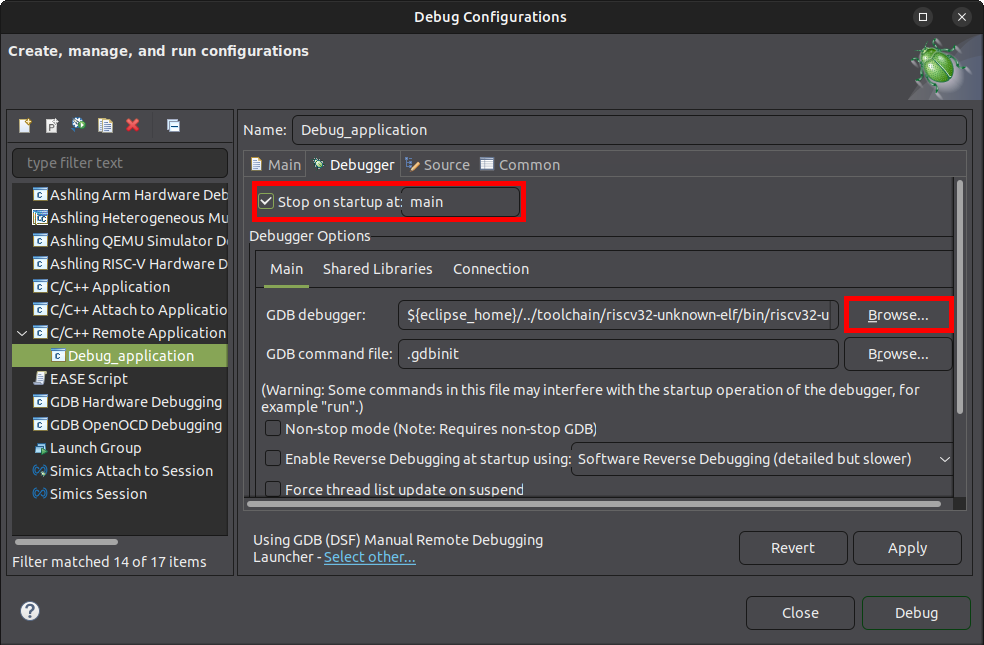

14. Go to the Debugger tab, check Stop on startup at main, then Click the Browse button for the GDB debugger field:

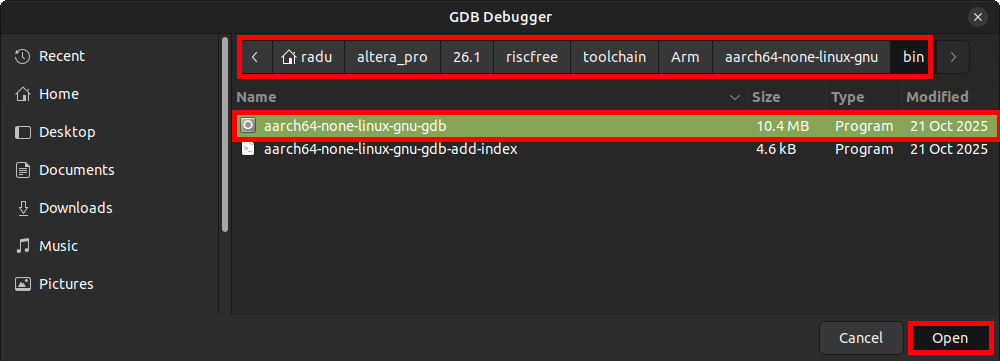

15. Browse to ~/altera_pro/26.1/riscfree/toolchain/Arm/aarch64-none-linux-gnu/bin/ then select aarch64-none-linux-gnu-gdb and click Open:

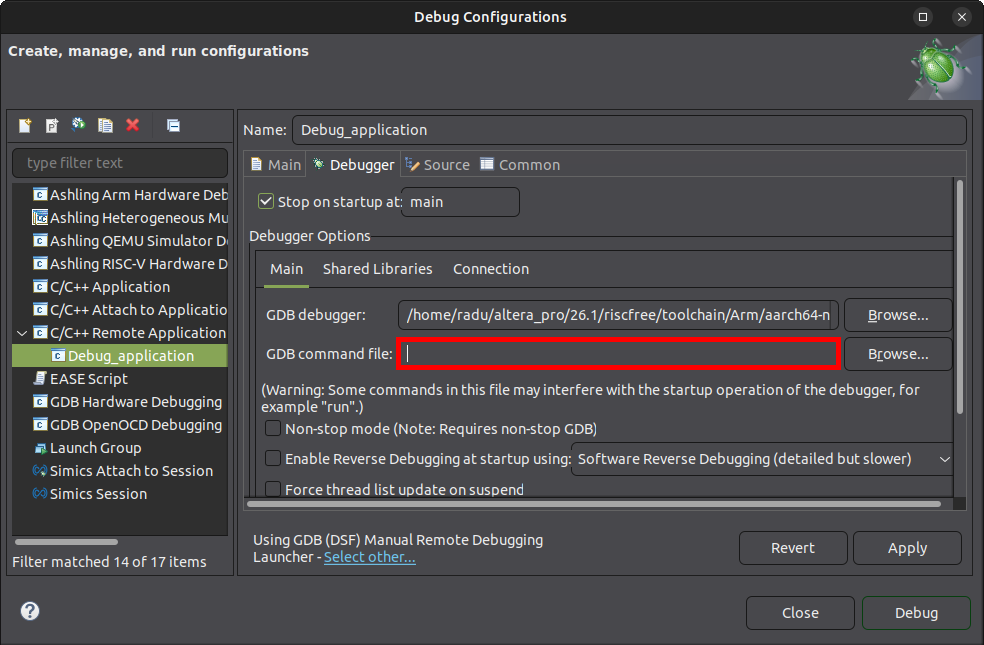

16. Clear the GDB command file field:

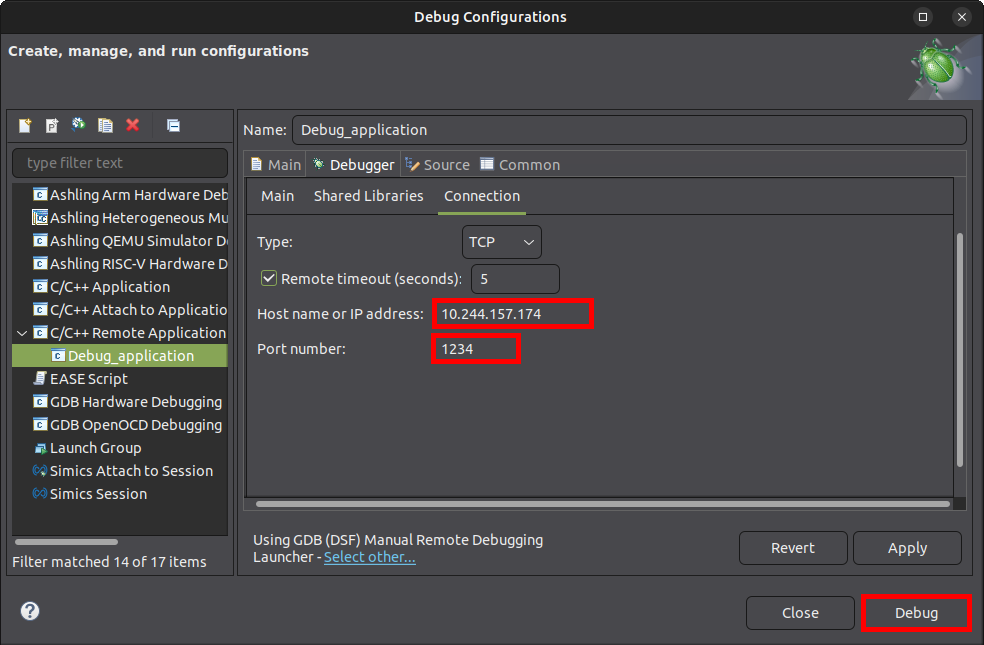

17. Click on the Debugger:Connection tab, and edit the Host name or IP address to be your-ip-address and the Port number to be 1234, then click the Debug button:

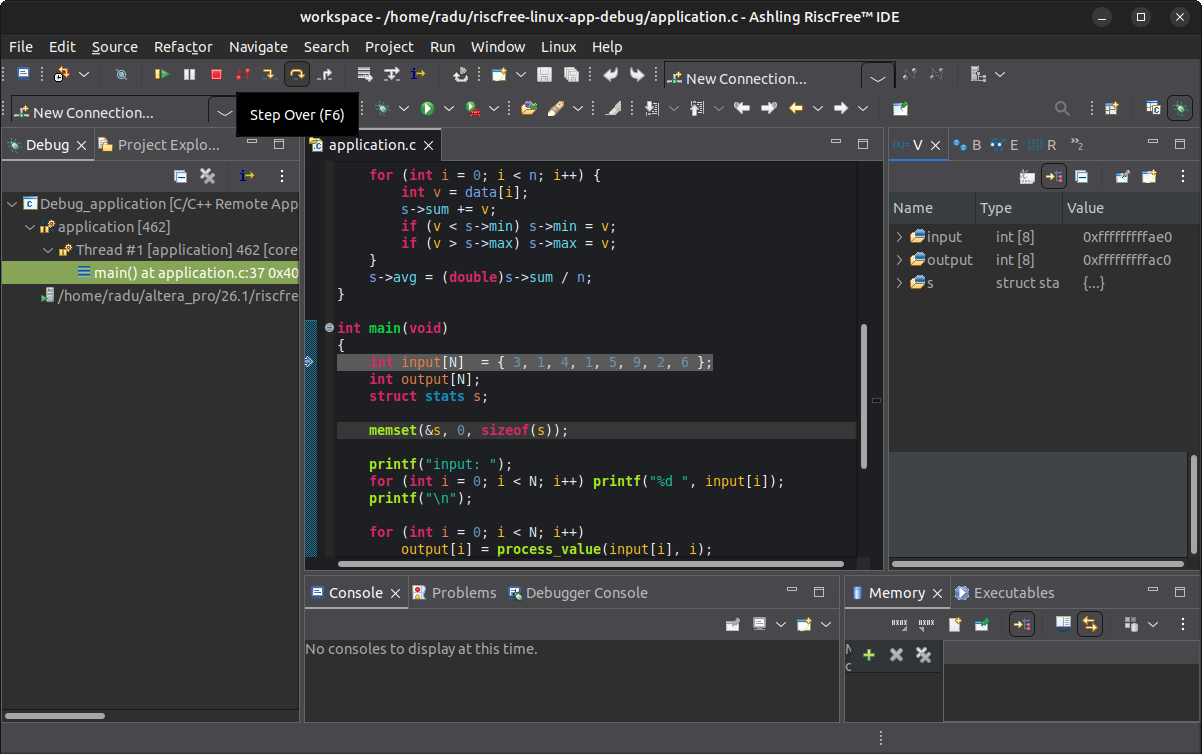

18. RiscFree will show the application stopped at entry to main function.
Also, the board Linux console will show a message from the GDB server:

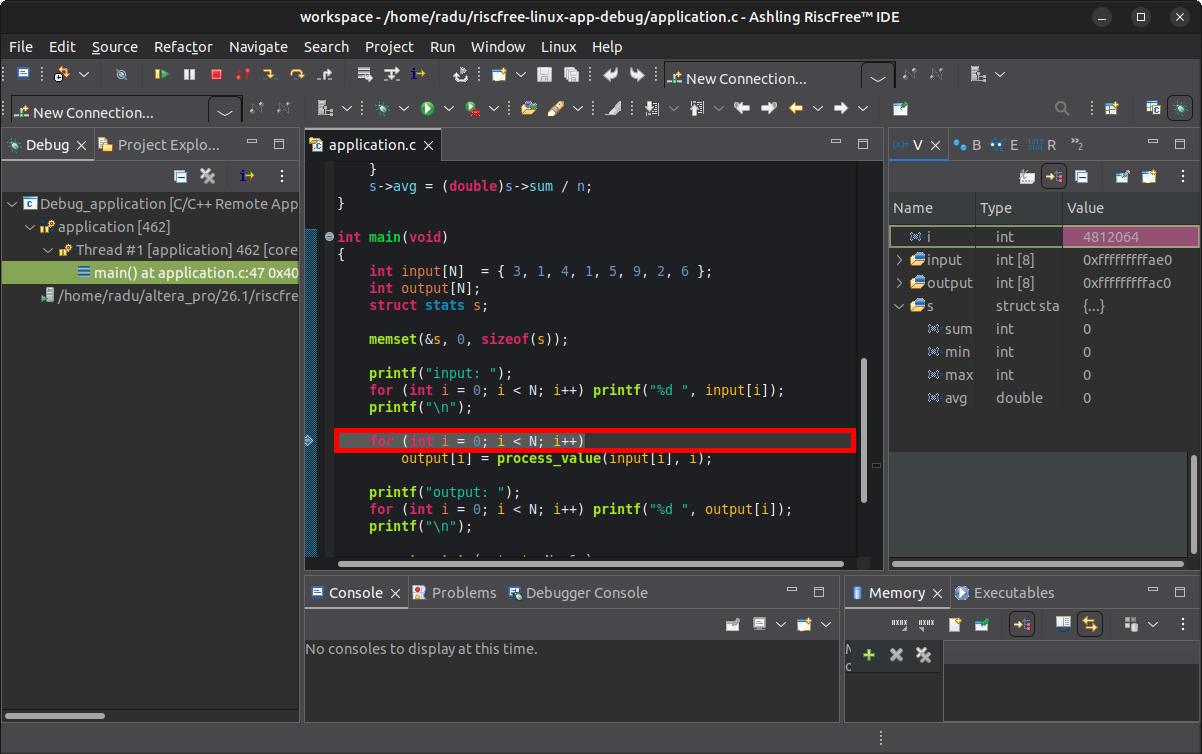

19. Press F6 (Step Over) a few times, to get past displaying the input array:
The board Linux console will show the messages printed by the application:

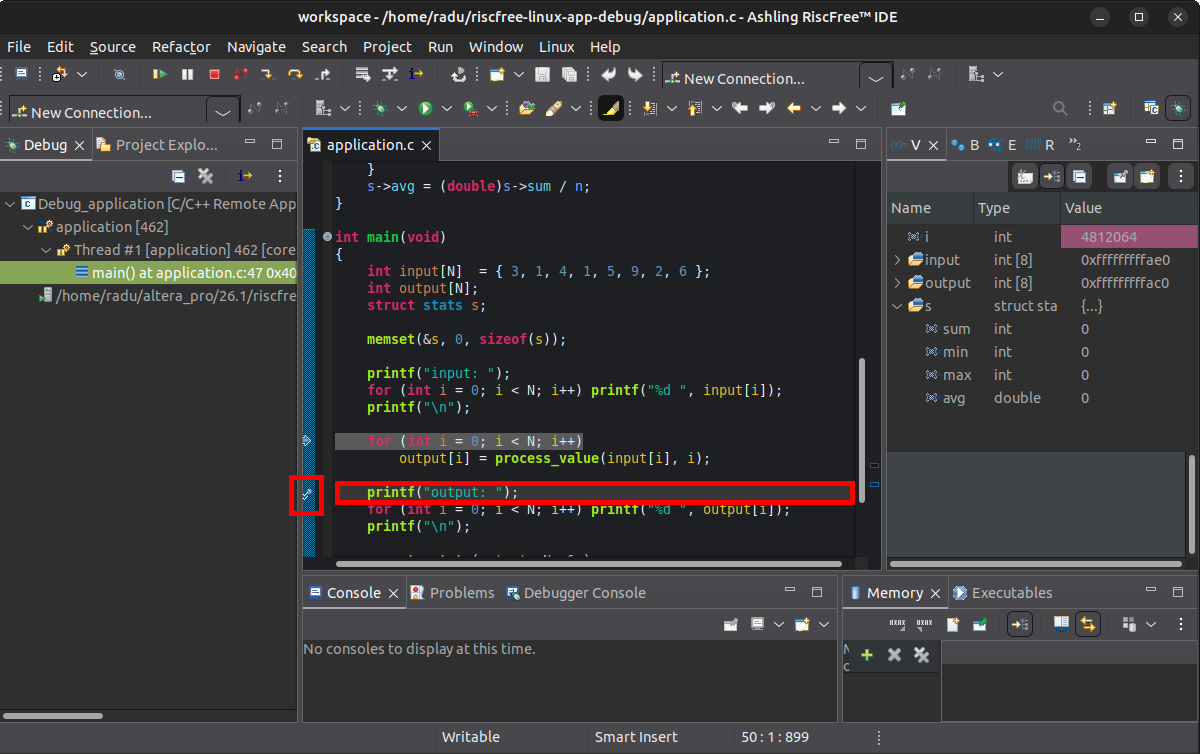

20. Put a breakpoint at the line printf("output: "); by double-clicking the left margin of the source code window at that line. Alternatively you can right-click the same left margin at that line, and set the breakpoint from the menu:

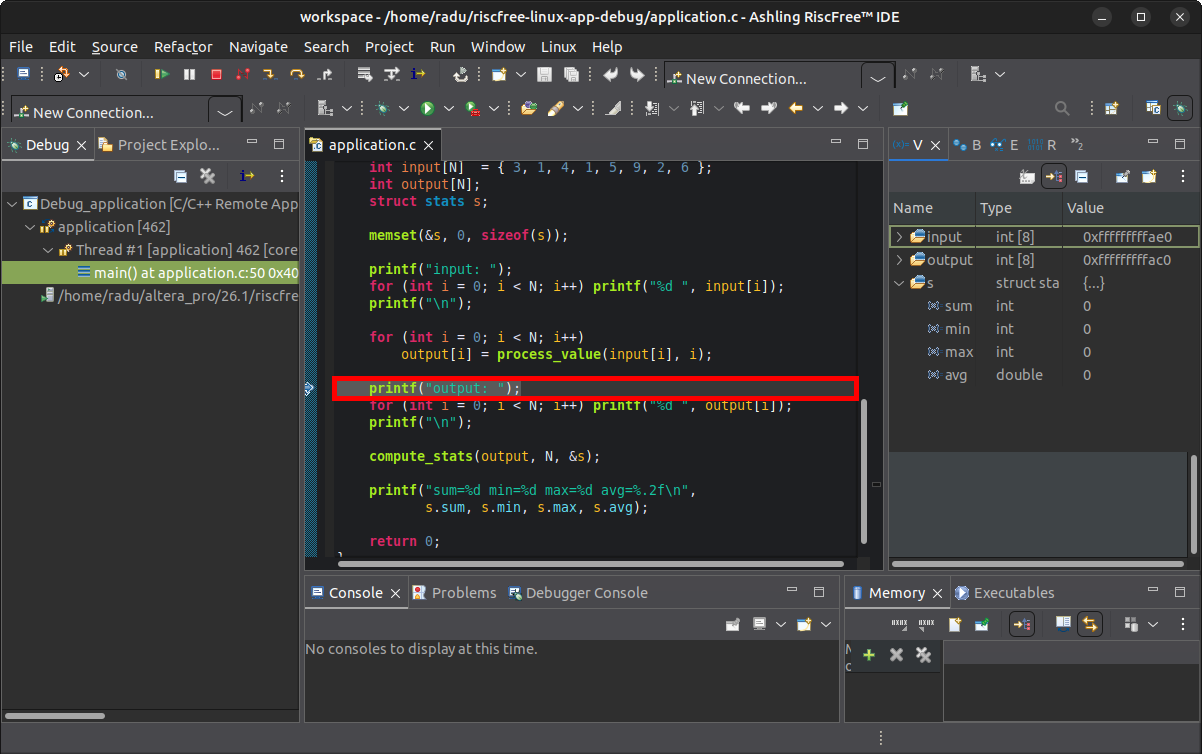

21. Press the Resume (F8) button. Execution will stop at the breakpoint:

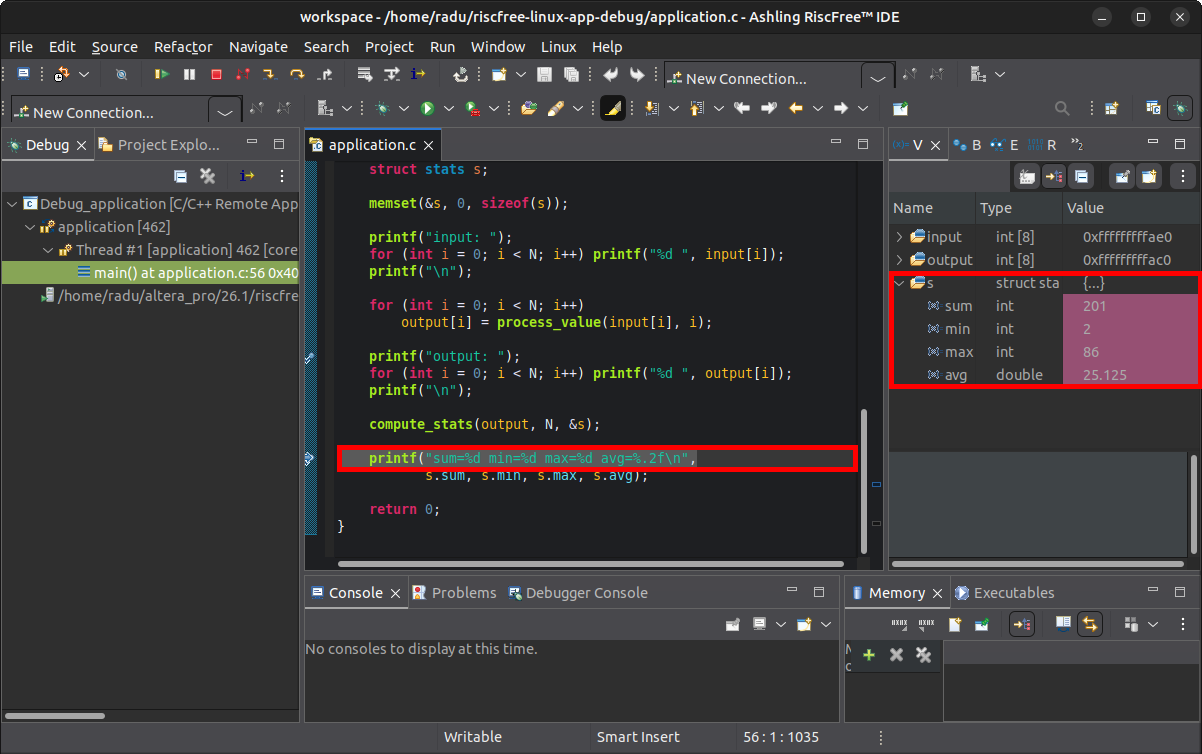

22. Run the code to after compute_stats was called, either by putting a breakpoint then let it run, or by running it step-by-step. Inspect the s variable on the right Variables panel:
23. Let the program execute to completion by clicking the Resume (F8) button.
Board Linux console will show this:
output: 9 2 18 4 29 86 10 43
sum=201 min=2 max=86 avg=25.12
Child exited with status 0
root@agilex3:~#

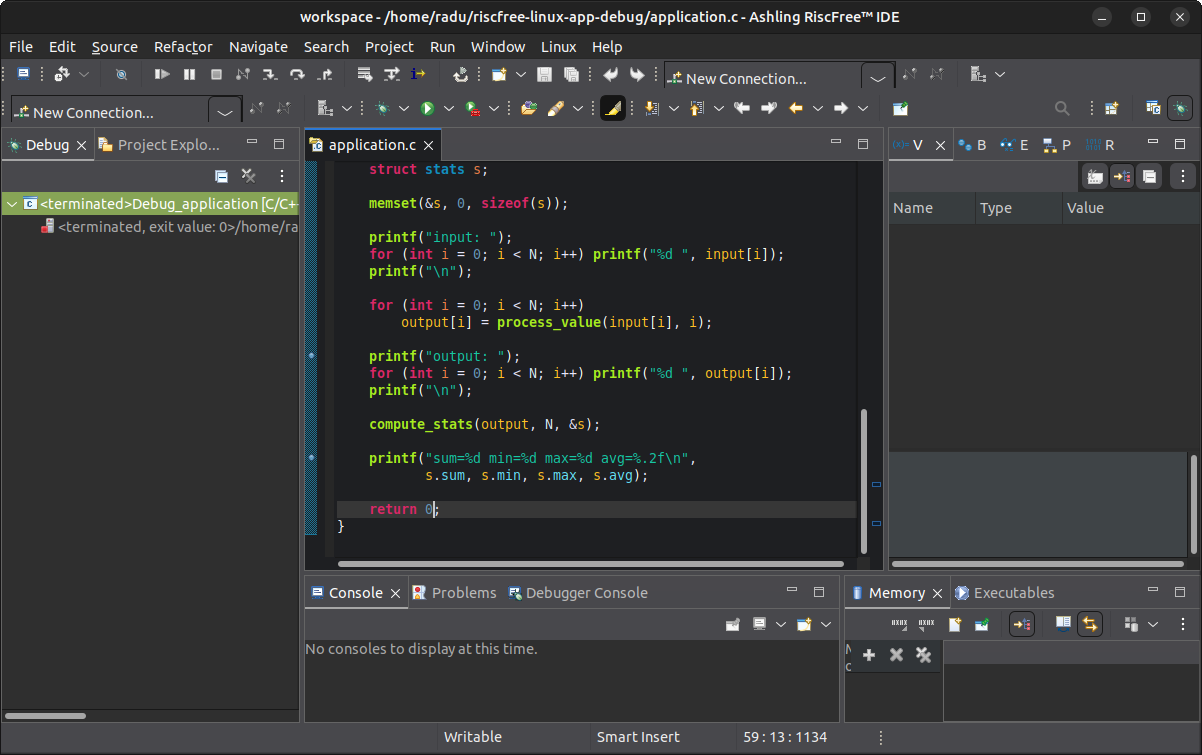

RiscFree will show the debug session ended:
There are more RiscFree features that can be used for a full Linux application debugging experience.
