Altera Error Detection and Correction (EDAC) Driver for Hard Processor System¶

Last updated: April 30, 2026

Upstream Status: Upstreamed

Devices supported: Agilex™ 3, Agilex™ 5, Agilex™ 7 and Stratix® 10

Introduction¶

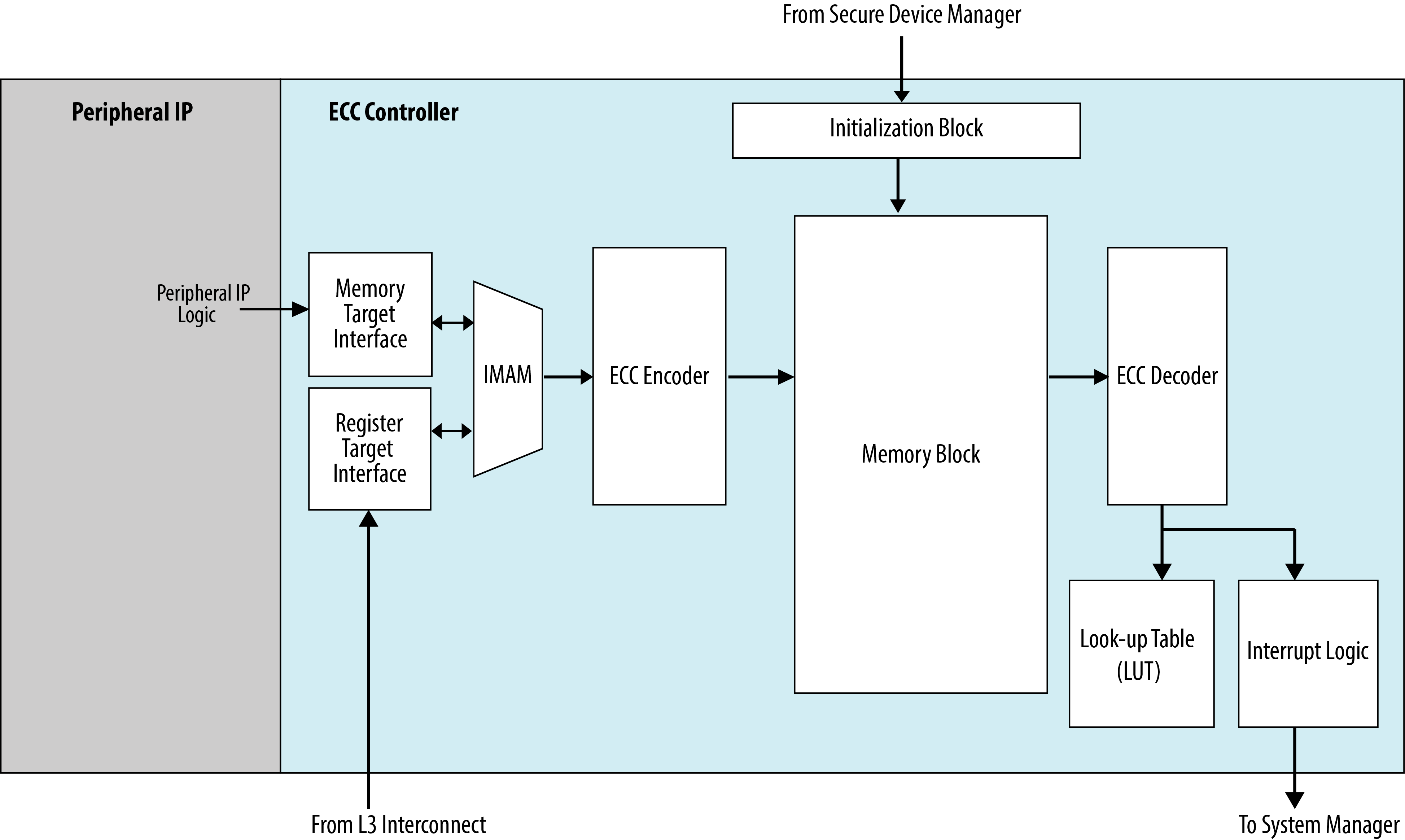

The Altera Error Detection and Correction (EDAC) driver supports use of the Error Checking and Correction (ECC) Controller in the HPS. The ECC controllers are implemented in different components in the HPS including on-chip RAM, USB OTG 2.0 and 3.1, SDM QSPI, SDRAM, IO96B, SDMMC and Ethernet MACs in the HPS. To find out more about the ECC controller please refer to the device specific Hard Processor Technical Reference Manual.

Driver Sources¶

The source code for the Altera EDAC driver can be found at https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/tree/drivers/edac/altera_edac.c.

Driver Capabilities¶

The Altera Error Detection and Correction (EDAC) driver comprises the ECC manager main component and sub-components of the supported EDAC SoC components.

The driver's main functions are to register the EDAC platform drivers in Linux, initialize the EDAC sub-components by performing initial setup of the IRQ interrupt handlers and soft-error handling for uncorrected error events, and to support debugging features like soft-error injections and reads of the error counters.

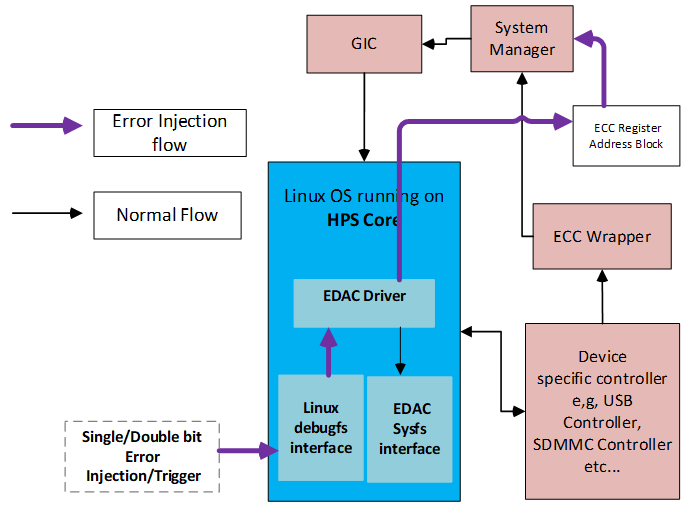

The data flow diagram of EDAC is shown below:

Kernel and Device Tree Configurations¶

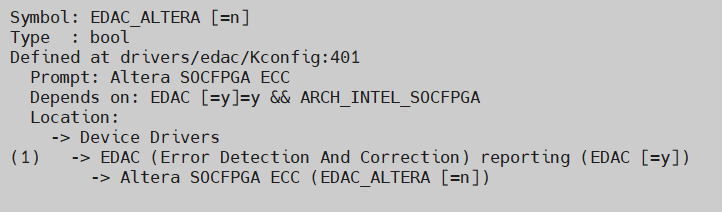

CONFIG_EDAC_ALTERA

For debug purposes, the CONFIG_EDAC_DEBUG Kernel configuration can be used.

There are independent Kernel configuration for each of the components in whcih the ECC controller can operate. Also there are some 'compatibles' that are related to these Kernel configuration that need to be used in the ECC Manager node in the device tree. The following table indicates what are the Kernel configs and 'compatibles' needed for each hardware component and if this is available in each one of the devices.

Component	Kernel Config	Compatible	Agilex™ 5/Agilex™ 3	Agilex™ 7	Stratix® 10
ECC Manager(1)	CONFIG_EDAC_ALTERA	altr,socfpga-a10-ecc-manager altr,socfpga-s10-ecc-manager	Yes No	Yes Yes	Yes Yes
OCRAM	CONFIG_EDAC_ALTERA_OCRAM	altr,socfpga-a10-ocram-ecc	Yes	Yes	Yes
ETHERNET	CONFIG_EDAC_ALTERA_ETHERNET	altr,socfpga-eth-mac-ecc	Yes	Yes	Yes
USB	CONFIG_EDAC_ALTERA_USB	altr,socfpga-usb-ecc altr,socfpga-agilex5-usb3-ecc	Yes Yes	Yes No	Yes No
SDM QSPI	CONFIG_EDAC_ALTERA_SDM_QSPI	altr,socfpga-sdm-qspi-ecc	Yes	No	No
SDMMC	CONFIG_EDAC_ALTERA_SDMMC	altr,socfpga-sdmmc-ecc	No	Yes	Yes
SDRAM	CONFIG_EDAC_ALTERA_SDRAM	altr,sdram-edac-s10	No	Yes	Yes
IO96B	CONFIG_EDAC_ALTERA_IO96B	altr,socfpga-io96b0-ecc altr,socfpga-io96b1-ecc	Yes	No	No
CRAM SEU(2)(3)	CONFIG_EDAC_ALTERA_CRAM_SEU	altr,socfpga-cram-seu	Yes	Yes	Yes

(1) Note: The ECC manager is always needed as this is part of the Altera EDAC driver.

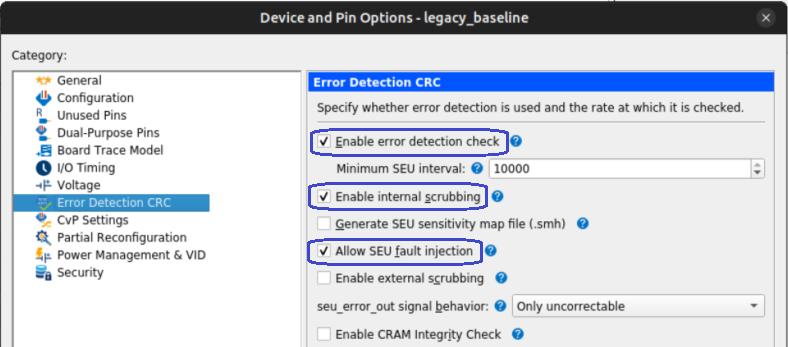

(2) Note: The CRAM SEU component requires a specific hardware design configuration as shown in the following capture from Quartus Device Configuration:

(3) Note: For Agilex™ 7 CRAM SEU Data Injection, please refer to 4.7. Fault Injection and Read EMQ via HPS. For Agilex™ 5 and Agilex™ 3 the similar documentation will be available soon.

The reference device tree for each one of the devices includes the configuration for the ECC manager and the supported components. This configuration is under the eccmgr node.

Agilex™ 5/Agilex™ 3: socfpga_agilex5.dtsi
Agilex™ 7: socfpga_agilex.dtsi
Stratix® 10: socfpga_stratix10.dtsi

Test Procedure¶

Note: The examples shown in this section correspond to exercise the the Altera EDAC driver in Agilex™ 5 device, but the same applies for other devices.

Error Injection¶

When the Kernel and Device tree are built with the configuration described in the table above, you can interact with the Altera EDAC driver to inject errors from the User Space using the devices created under /sys/kernel/debug/edac/ directory:

  root@agilex5_dk_a5e065bb32aes1:~# cd /sys/kernel/debug/edac/
  root@agilex5_dk_a5e065bb32aes1:/sys/kernel/debug/edac# ls
  cram-seu        emac2-tx-ecc    sdm-qspi-ecc    usb1-rx-ecc
  emac2-rx-ecc    io96b0-ecc      usb1-cache-ecc  usb1-tx-ecc

Each one of these includes a altr_trigger file. When writng U or C to this file, an Uncorrectable(U) or Correctable(C) error is triggered as shown next. By the time an error is injected into a component, a message is shown as consequence of the error detection. Next are shown some examples of the exercise of Error injection:

CRAM SEU

  root@agilex5_dk_a5e065bb32aes1:/sys/kernel/debug/edac# echo C > ./cram-seu/altr_trigger
  [   66.287002] EDAC Altera: SEU CE: Count=0x1, SecAddr=0x30000, ErrData=0x300700C8
  root@agilex5_dk_a5e065bb32aes1:/sys/kernel/debug/edac# echo U > ./cram-seu/altr_trigger
  [  326.288594] EDAC Altera: SEU UE: Count=0x1, SecAddr=0x30000, ErrData=0x60000000

For this component, it takes few seconds to show the errors detected.

ETHERNET

  root@agilex5_dk_a5e065bb32aes1:/sys/kernel/debug/edac# echo C > ./emac2-rx-ecc/altr_trigger
  [  137.450919] EDAC DEVICE1: CE: Altera ECC Manager instance: emac2-rx-ecc0 block: emac2-rx-ecc0 count: 1 'emac2-rx-ecc'
  root@agilex5_dk_a5e065bb32aes1:/sys/kernel/debug/edac# echo C > ./emac2-tx-ecc/altr_trigger
  [  147.089533] EDAC DEVICE2: CE: Altera ECC Manager instance: emac2-tx-ecc0 block: emac2-tx-ecc0 count: 1 'emac2-tx-ecc'
  root@agilex5_dk_a5e065bb32aes1:/sys/kernel/debug/edac# echo U > ./emac2-rx-ecc/altr_trigger
  [  158.906016] EDAC DEVICE1: UE: Altera ECC Manager instance: emac2-rx-ecc0 block: emac2-rx-ecc0 count: 1 'emac2-rx-ecc'
  root@agilex5_dk_a5e065bb32aes1:/sys/kernel/debug/edac# echo U > ./emac2-tx-ecc/altr_trigger
  [  165.538481] EDAC DEVICE2: UE: Altera ECC Manager instance: emac2-tx-ecc0 block: emac2-tx-ecc0 count: 1 'emac2-tx-ecc'

IO96B0:

  root@agilex5_dk_a5e065bb32aes1:/sys/kernel/debug/edac# echo C > ./io96b0-ecc/altr_trigger
  [  261.437610] EDAC Altera: io96b0-ecc: SBE: word0:0x00400200, word1:0x00000000
  root@agilex5_dk_a5e065bb32aes1:/sys/kernel/debug/edac# [  261.444686] EDAC DEVICE6: CE: Altera ECC Manager instance: io96b0-ecc0 block: io96b0-ecc0 count: 1 'io96b0-ecc'
  root@agilex5_dk_a5e065bb32aes1:/sys/kernel/debug/edac# echo U > ./io96b0-ecc/altr_trigger
  root@agilex5_dk_a5e065bb32aes1:/sys/kernel/debug/edac# echo U > ./io96b0-ecc/altr_trigger
  [  294.514052] EDAC Altera: io96b0-ecc: DBE: word0:0x00406080, word1:0x00012FC0
  [  294.521119] Kernel panic - not syncing:
  [  294.521119] EDAC:IO96B[Uncorrectable errors]
  [  294.529274] CPU: 0 UID: 0 PID: 71 Comm: irq/47-io96b0-e Not tainted 6.12.33-g3234b1ed8956-dirty #12
  [  294.538289] Hardware name: SoCFPGA Agilex5 SoCDK (DT)
  [  294.543323] Call trace:
  [  294.545763]  dump_backtrace.part.0+0xd4/0xe0
  [  294.550064]  show_stack+0x18/0x30
  [  294.553376]  dump_stack_lvl+0x60/0x80
  [  294.557049]  dump_stack+0x18/0x24
  [  294.560358]  panic+0x168/0x360
  [  294.563418]  altr_edac_io96b_device_trig+0x0/0x234
  [  294.568207]  irq_thread_fn+0x2c/0xa8
  [  294.571793]  irq_thread+0x170/0x300
  [  294.575276]  kthread+0x110/0x120
  [  294.578514]  ret_from_fork+0x10/0x20
  [  294.582089] SMP: stopping secondary CPUs
  [  294.586011] Kernel Offset: disabled
  [  294.589486] CPU features: 0x18,00000007,00280928,4200720b
  [  294.594867] Memory Limit: none
  [  294.597985] ---[ end Kernel panic - not syncing:
  [  294.597985] EDAC:IO96B[Uncorrectable errors] ]---

In the error messages displayed, there are 2 fields referred as word0 and word1 whose meaning is this:

word0: ECC error information
word1: Lower 32 bits of the ECC error address

In the case of Uncorrectable errors in IO96B component, it is needed to trigger 2 errors to observe the error detection. After this, the system crashes as this is considered a catastrophic error.

Error Count¶

You can retrieve the number of Correctable or Uncorrectable ECC errors detected in each of the components using the ce_count(Correctable) and ue_count(Uncorrectable) files located at /sys/devices/system/edac/<component>/<component#>/ path.

  root@agilex5_dk_a5e065bb32aes1: /home/root/# cd /sys/devices/system/edac
  root@agilex5_dk_a5e065bb32aes1:/sys/devices/system/edac# ls
  cram-seu        emac2-tx-ecc    mc              sdm-qspi-ecc    usb1-cache-ecc  usb1-tx-ecc
  emac2-rx-ecc    io96b0-ecc      power           uevent          usb1-rx-ecc

The following captures demonstrate an example of retreiven the error count.

CRAM SEU

  root@agilex5_dk_a5e065bb32aes1:/sys/devices/system/edac# cat ./cram-seu/cram-seu0/ce_count
  2
  root@agilex5_dk_a5e065bb32aes1:/sys/devices/system/edac# cat ./cram-seu/cram-seu0/ue_count
  17

ETHERNET

  root@agilex5_dk_a5e065bb32aes1:/sys/devices/system/edac# cat emac2-rx-ecc/emac2-rx-ecc0/ce_count
  2
  root@agilex5_dk_a5e065bb32aes1:/sys/devices/system/edac# cat emac2-rx-ecc/emac2-rx-ecc0/ue_count
  3
  root@agilex5_dk_a5e065bb32aes1:/sys/devices/system/edac# cat emac2-tx-ecc/emac2-tx-ecc0/ce_count
  3
  root@agilex5_dk_a5e065bb32aes1:/sys/devices/system/edac# cat emac2-tx-ecc/emac2-tx-ecc0/ue_count
  4

IO96B0:

  root@agilex5_dk_a5e065bb32aes1:/sys/devices/system/edac# cat ./io96b0-ecc/io96b0-ecc0/ce_count
  3
  root@agilex5_dk_a5e065bb32aes1:/sys/devices/system/edac# cat ./io96b0-ecc/io96b0-ecc0/ue_count
  0

Known Issues¶

The ECC error injection for OCRAM component in Agilex™ 5 is only supported in production devices. For Engineering samples ECC error injection is not suppoered. This is documented as an Errata in 2.1.9. The On-Chip RAM Error Check and Correction (ECC) error injection will not work when using the Linux Altera EDAC driver.
