Robot Controller with Vision System Example Design for Agilex™ 5 Devices¶

Overview¶

This example design demonstrates a combined robotics vision and motion-control architecture on the Agilex™ 5 FPGA E-Series 065B Modular Development Kit. The platform integrates a 6-axis Drive-on-Chip control stack with a robotics video pipeline while higher-level robotics software stack runs on the Hard Processor System (HPS):

6-axis field-oriented control (FOC) in FPGA fabric using a 3x2 Drive-on-Chip topology (three dual-axis control slices) with simulated motors.
Robotics vision ISP pipeline with optional MIPI sensor input, ISP Lite conditioning, and DisplayPort output.
ArUco marker injection and mixing in the video path to emulate visual feedback and target-tracking workflows used in manipulation applications.
HPS Linux software stack for system orchestration, motion/vision coordination.

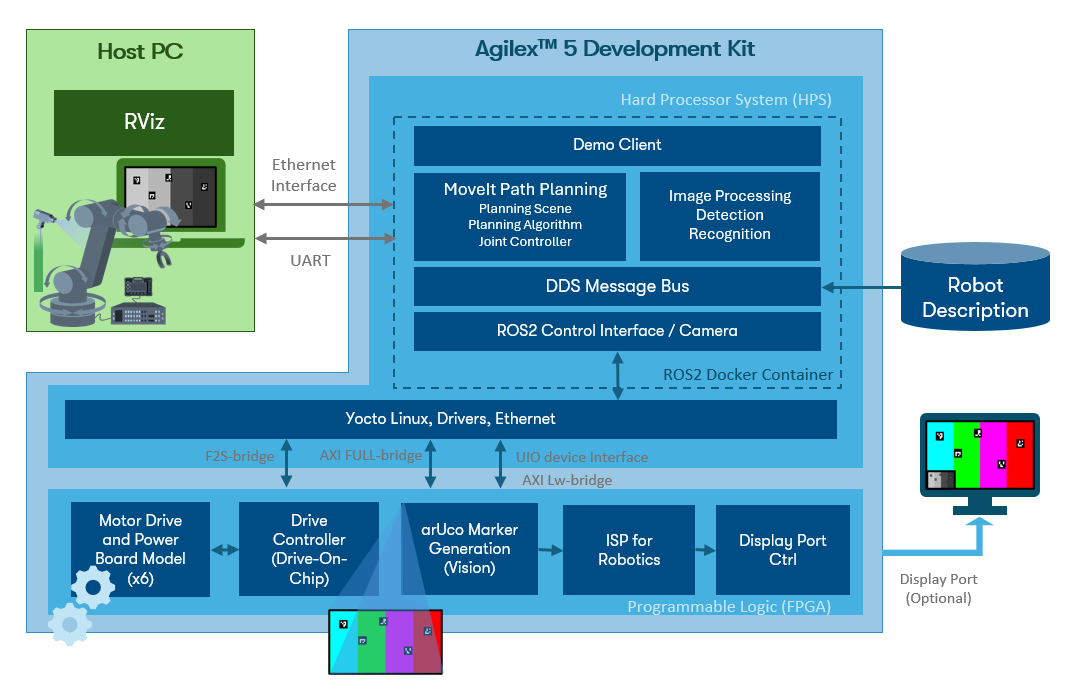

High-Level Block Diagram of the Robot Controller with Vision System Example Design.

The diagram shows a tightly coupled architecture where the upper section implements the robotics vision pipeline and the lower section implements the 6-axis Drive-on-Chip control system. On the vision side, the default path uses ISP In test patterns (MIPI ingest is optional); video passes through ISP Lite conditioning, then flows into the ISP Robotics path where clipping, scaling, grayscale conversion, frame buffering, and ArUco mixing are applied before final composition and DisplayPort output in the ISP Lite Out subsystem. In parallel, the motion side uses D-NiosV, Drive, MotorModel, and Control subsystems to close real-time FOC loops for six axes. Both domains share DDR resources through EMIF subsystems, while the HPS subsystem and Nios® V pipeline controller provide register programming, data movement, and software orchestration so vision feedback and motor-control execution remain synchronized in a single FPGA+HPS platform.

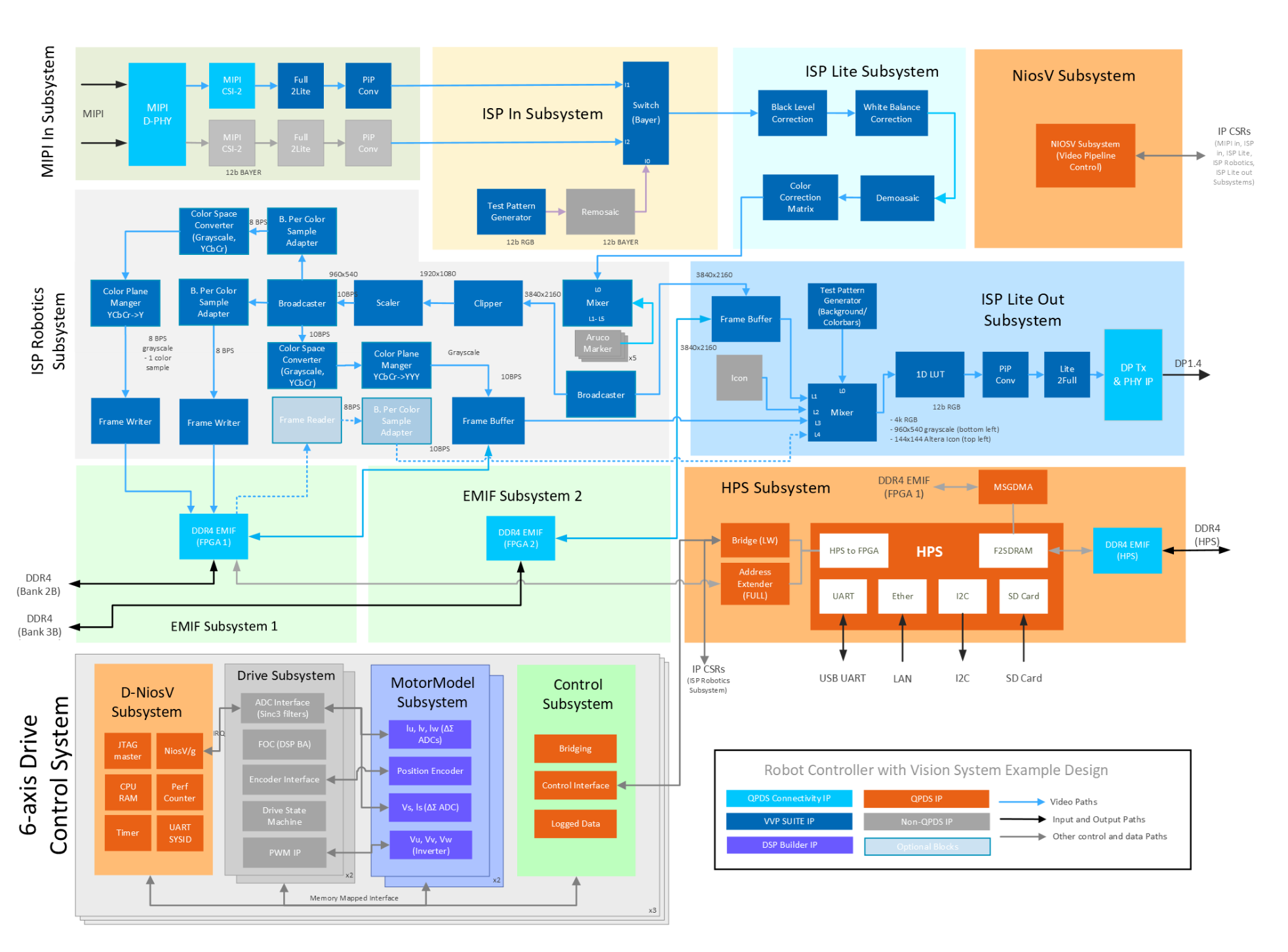

High-Level Hardware Block Diagram of the Robot Controller with Vision System Example Design.

Blue interconnect in the diagram is the live video path (ISP In → ISP Lite → ISP Robotics → ISP Lite Out → DisplayPort). MIPI In is optional. Gray paths are control and memory access from the Nios® V and HPS subsystems.

Subsystem names and grouping match the Modular Design Toolkit (MDT) view and the variant XML (AGX_5E_Modular_Devkit_HPS_ISP_VIS_DOC3x2_ROB.xml).

The hardware variant AGX_5E_Modular_Devkit_HPS_ISP_VIS_DOC3x2_ROB.xml is built with the Modular Design Toolkit from the https://github.com/altera-fpga/agilex-ed-robotics repository. See HPS_ISP_VIS_DOC3x2_ROBOTICS for MDT create and build instructions.

Pre-requisites¶

The following are required to be able to fully exercise the Agilex™ 5 Modular Development Kit.

Software Runtime Requirements¶

Host PC with
- 4 GB of RAM
- Linux OS installed
- Serial terminal (for example GtkTerm or Minicom on Linux and TeraTerm or PuTTY on Windows)
- Tool to write SD card images (USBImager or similar)
- Altera® Quartus® Prime Pro Edition Version 26.1 Programmer and Tools
- Docker
- Rocker (recommended to run RViz in a container on a host PC with X11 forwarding)

Software Build Requirements¶

8 GB of RAM
Linux OS installed
~62 GB free storage (~2 GB Quartus® build, ~60 GB Yocto/KAS)
Python/PIP/KAS for Yocto (or a suitable container)
Altera® Quartus® Prime Pro Edition Version 26.1 with Agilex™ 5 device support
FPGA NiosV/g Open-Source Tools 26.1 (installed with Quartus® Prime)
DSP Builder for Altera® FPGAs Pro Edition v26.1 (optional)

Hardware Requirements¶

Agilex™ 5 FPGA E-Series 065B Modular Development Kit (ordering code MK-A5E065BB32AEA)
Power supply
1 x Micro USB cable (JTAG and HPS serial console)
2 × Ethernet cables (one for the board, one for the host PC). An Ethernet router or switch may be needed for a local network
Micro SD card and USB card writer (minimum 8 GB)
DisplayPort cable, or HDMI cable with DP to HDMI Adapter (4Kp30 capable recommended when using DisplayPort output)
4Kp30 capable monitor or Video Capture Card

Agilex™ 5 FPGA E-Series 065B Modular Development Kit.

Sources¶

The sources below are recommended for Quartus® builds. Users are advised to utilize the updated versions of these building blocks in production environments. Please note that this is a sample design and is not suitable for production or final deployment.

Example Design Source Repositories.

Component	Location	Branch
Assets Release Tag	https://github.com/altera-fpga/agilex-ed-robotics/releases/tag/rel-vision-doc-26.1	rel-vision-doc-26.1
Altera Robotics	https://github.com/altera-fpga/agilex-ed-robotics	rel/26.1
Modular Design Toolkit	https://github.com/altera-fpga/modular-design-toolkit	rel/26.1
Altera ROS2	https://github.com/altera-fpga/altera-ros2	main
Drive-On-Chip (reference)	https://github.com/altera-fpga/agilex-ed-drive-on-chip	rel/26.1
Linux (Yocto/KAS)	https://github.com/altera-fpga/agilex-ed-robotics/tree/rel/26.1/sw	rel/26.1
Linux kernel	https://github.com/altera-fpga/linux-socfpga	socfpga-6.18.2-lts
Arm Trusted Firmware	https://github.com/altera-fpga/arm-trusted-firmware	socfpga_v2.14.0
U-Boot	https://github.com/altera-fpga/u-boot-socfpga	socfpga_v2026.01
Yocto Project: poky	https://git.yoctoproject.org/poky	wrynose

Getting Started¶

Follow these steps to run the example on the Agilex™ 5 E-Series 065B Modular Development Kit.

Download the pre-built binaries¶

Boot Source	Link
SD Card Image	wic.gz, wic.bmap
QSPI	top.hps.jic

Setting up your development board¶

Configure the board switches: The following provides the default configuration for all the switches in the board.

Development Board switch position

Main configurations used in this example design

JTAG: SOM SW4[2:1]=OFF:OFF
ASx4 (QSPI): SOM SW4[2:1]=ON:ON

ESD

Handle ESD-sensitive equipment (boards, microSD cards, camera sensors, etc.) only when properly grounded at an ESD-safe workstation.

(Optional) Connect a DisplayPort or HDMI display to the development kit when validating the ISP and display pipeline (J16).

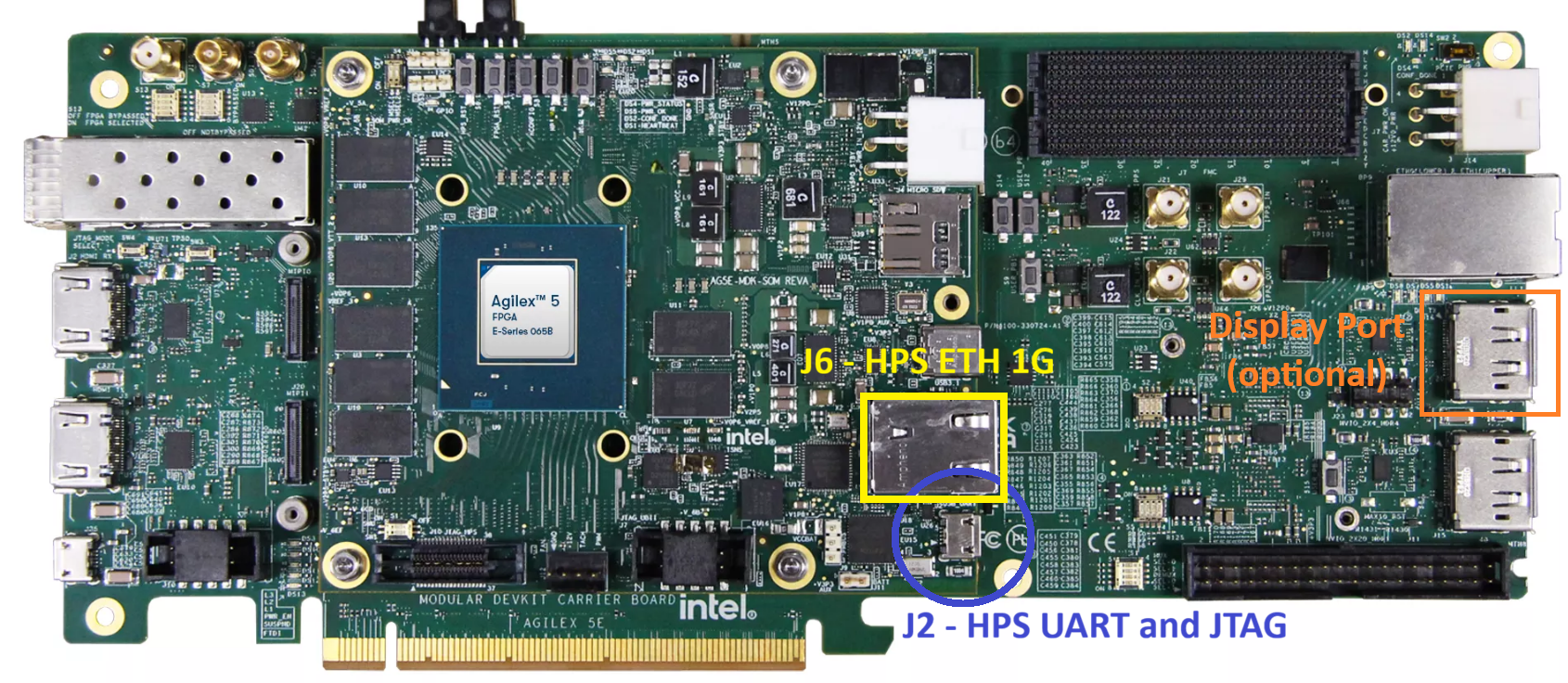

Connect micro USB cable from bottom right of the SOM board to PC (J2, HPS_UART). This will be used for HPS UART communication and JTAG terminal for FPGA programming. Look at what ports are enumerated on your host computer. Use the new one in the list as the HPS serial port (see figure below).
Connect an ethernet cable to the ethernet port on the SOM board (J6, ETH 1G HPS) and make sure your device is in the same network as your intended host device. After Linux boots, check the IP address of the end2 ethernet interface using the ip addr command.

USB connections to the board

SD Card Image Flashing¶

Download SD card image (.wic or .wic.gz) from the prebuilt binary links above.
Write the .wic or .wic.gz SD card image to the micro SD card using one of the options below.
Turn off the board and insert the SD card in the micro SD card slot on the SOM board.

USBImager (Windows, Linux, Mac OS)¶

Open USBImager and click the ... button in the top right.
Select the image you downloaded earlier and click Open.
Next select the device associated with your SD card reader from the drop-down list.
Click Write to start flashing.

bmaptool (Linux)¶

Note

You will require a .wic.bmap file in addition to the .wic or .wic.gz in order to use bmaptool. If this is not available use USBImager.

On many distributions bmap-tools can be installed using your distros package manager (e.g. sudo apt install bmap-tools).

For more information see the Yocto documentation for bmaptool.

First of all determine the device logical name associated with the SD card on your host:

sudo lshw -class disk

Use bmaptool to copy the image to the SD card. Make sure the wic image file and bmap file are in the same directory.

sudo bmaptool copy ${IMAGE} ${DEVICE}

For example:

sudo bmaptool copy core-image-minimal-agilex5_mk_a5e065bb32aea.wic.gz /dev/sda

Flash the QSPI¶

Download the .jic image from the prebuilt binary links above.
Power down the board.
Set MSEL dipswitch S1 on SOM to JTAG: OFF-OFF
Power up the board.
Program the QSPI with the following command. See: quartus_pgm command
```
quartus_pgm -c 1 -m jtag -o "pvi;top.hps.jic"
```

(Optional) Use the Quartus® Programmer GUI
- Launch the Quartus® Programmer and Configure the "Hardware Setup..." and select the SOM device (SM27 MDK OB-SOM UBIII)
- Click "Auto Detect", select the device A5ED065BB32A and press "Change File.."
- Select the .jic file you downloaded earlier. The MT25QU02G device should now show. Select the "Program/Configure" box, and press "Start". Wait until completed (It could take several minutes).

Power down the board. Set MSEL dip switch S1 on SOM to ASX4 (QSPI): ON-ON

Bring up the board¶

Power up the board and set up the serial terminal (minicom, PuTTY, etc.):
- Select the correct COMx port from the HPS serial UART.
- Serial Port configuration:
  - Baud rate: 115200, Data bits: 8, Stop bits: 1, CRC: disabled, Hardware flow control: disabled
- Connect your terminal emulator.

Wait for Linux to boot and login with root user.

Pull the Altera® ROS2 Docker Image¶

Run the following on the development kit HPS to pull the latest Altera® ROS2 Docker image.

Note

An internet connection is required to run the following commands.

docker pull alterafpga/ros2

The Docker image alterafpga/ros2 should now be listed when you run the following command.

docker image ls

The Docker image includes the Altera ROS 2 packages and examples pre-installed and ready to use.

Run the ROS Pick & Place With Vision Example Client¶

To exercise the FPGA example design we provide a ROS 2 based pick & place with vision example application in the Altera ROS 2 repository. The example is a C++ application which detects ArUco markers in a given camera stream and transforms the pose of detected markers to the end effector of a UFACTORY Lite 6 robot arm. It uses the MoveIt framework to manage the planning scene, path planning and trajectory execution.

The example application can either control a physical UFACTORY Lite 6 robot arm or a simulated robot arm driven by Drive-on-Chip simulated motors in the FPGA. Similarly, it can work with a real camera stream or the test pattern stream with generated ArUco markers. The video stream from the FPGA video pipeline is handled the same in software regardless of the source.

Here we will run the fully simulated variant which requires no additional hardware.

On the HPS, start a container using the image pulled in the previous section:

docker run -it --rm --network host --device /dev/uio0 --device /dev/uio1 --device /dev/uio2 --device /dev/uio3 --device /dev/uio4 --device /dev/uio5 alterafpga/ros2

5 Userpace I/O (UIO) devices are passed through to the container:

0-1 are Video Frame Writer devices
2 is the ArUco marker generator controller interface
3-5 are Drive-on-Chip motor control interfaces

Note that the container is run with host networking passthrough mode so the board can communicate to other machines on the same LAN.

Next launch the example application:

ros2 launch xarm_block_camera_demo lite6_simulated_client.launch.py

Upon successful initialization, you should see planning and execution activity similar to:

[ros2_control_node] [INFO] [lite6_traj_controller]: Received new action goal
[ros2_control_node] [INFO] [lite6_traj_controller]: Accepted new action goal
[move_group] [INFO] [moveit.simple_controller_manager.follow_joint_trajectory_controller_handle]: lite6_traj_controller started execution
[move_group-2] [INFO] [moveit.simple_controller_manager.follow_joint_trajectory_controller_handle]: Goal request accepted!

ROS Robot Visualizer (RViz)¶

To visualize what is happening in the example application robotics pipeline on a host PC, run RViz in a container. Rocker is recommended for running graphical applications in a Docker container. The host PC needs to be on the same LAN as the HPS running the ROS example application.

You first need to ensure Docker is installed on your host PC and then follow the Rocker installation instructions before proceeding.

Once you have Rocker installed pull the Altera® ROS2 Docker image.

Note

An internet connection is required to run the following commands.

docker pull alterafpga/ros2

Next, launch RViz in a Docker container using the following commands:

rocker --x11 --devices /dev/dri --network host alterafpga/ros2

Note

The command above is for systems with Intel® integrated or discrete GPUs. On systems with an Nvidia® GPU, follow the Rocker Nvidia® steps and add the --nvidia flag.

Once the container starts run the following command to launch RViz:

rviz2 -d xarm_block_camera_demo/config/moveit_demo.rviz

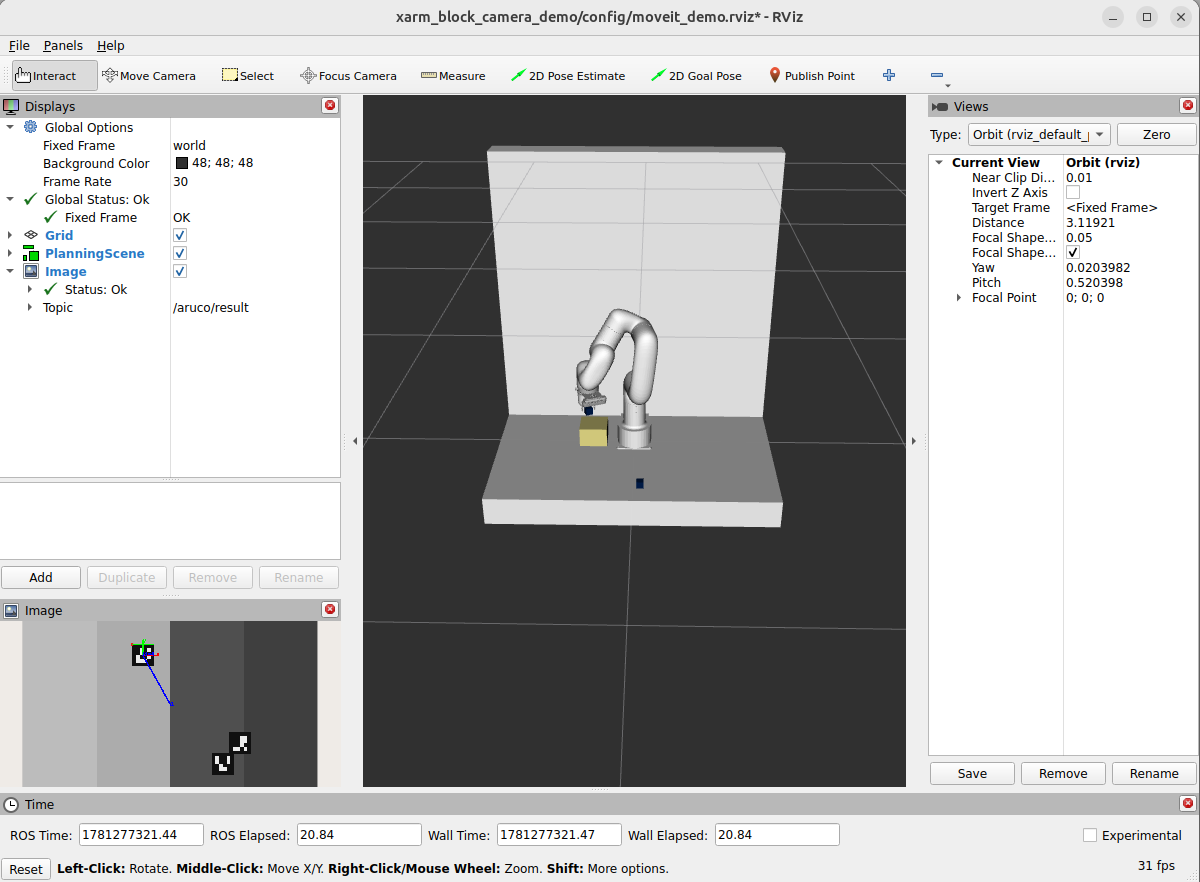

You should see output similar to the screenshot below once the RViz interface loads. The planning scene shows a live view of the robot arm and detected blocks. The image view in the bottom left shows the published camera stream including an overlay of detected ArUco markers.

Recommended User Flows¶

With the available resources, you can build, compile, modify, and execute this design example. Additionally, there are two extra user flows that you can explore.

User Flow 1: Getting Started — run with pre-built binaries.
User Flow 2: Running the example design using the QAR and KAS.
User Flow 3: Running the example design by creating and building with the Modular Design Toolkit (MDT) and KAS.

More resources.

Source	Link
Pre-created QAR	ROBOTICS_ISP_VISION_DOC.qar
JIC / RBF	top.hps.jic, top.core.rbf
u-boot-spl-dtb.hex	u-boot-spl-dtb.hex

Recommended User Flows.

User Flow	Description	User flow 1	User flow 2	User flow 3
Pre-requisites	Software Requirements to run.	✓	✓	✓
	Software Requirements to build.	✗	✓	✓
	Hardware Requirements.	✓	✓	✓
	Download the minimum Pre-built Binaries.	✓	✗	✗
HW-Compilation	Compile pre-created QAR with Quartus®.	✗	✓	✗
	Generating and Building the NiosV/g BSP for the Drive-On-Chip Application.	✗	✓	✗
	Creating and Building the Design based on Modular Design Toolkit (MDT).	✗	✗	✓
	Creating the QSPI Flash and SD card configuration bitstreams for the board (JIC/RBF). Warning!: this procedure requires a `u-boot-spl-dtb.hex` file, which is generated in the step below.	✗	✓	✓
SW-Compilation	Create SD card image (.wic) using YOCTO/KAS NOTE: use KAS_MACHINE=agilex5_mk_a5e065bb32aea and kas-vision-doc.yml configuration	✗	✓	✓
Programming	Setting Up your Development Board.	✓	✓	✓
	SD Card Image Flashing.	✓	✓	✓
	Program the QSPI Flash Memory.	✓	✓	✓
Testing	Run the example design.	✓	✓	✓
