HPS PCIe Root Port System Example Design for the Agilex™ 7 FPGA F-Series Transceiver-SoC Development Kit (P-tile and E-tile)

Summary

PCIe root port is the downstream port of Root Complex which establish the PCIe link with any PCIe Endpoint or PCIe Bridge.

This reference design demonstrates a PCIe root port running on Agilex™ 7 FPGA F-Series Transceiver-SoC Development Kit (P-tile and E-tile) connected to end point. A Gen4x4 link is shown. The root port reference design is based on the Agilex 7 Golden System Reference Design, with PCIe root port and necessary Linux software infrastructure added.

Refer to the GitHub repository for the Quartus Project and Yocto Project files.

Required Components

• Root Port Host Board.
  • Agilex™ 7 FPGA F-Series Transceiver-SoC Development Kit (P-tile and E-tile).
  • OOBE Daughter Card
  • Intel SSD D7 P5510 NVMe End Point

• Hardware Setup

Configuration switches on the board are as below

* SW1: ON-ON-ON-ON * SW2: All ON * SW3: All OFF * SW4: ON-OFF-ON-OFF

Attach an OOBE Daughter Card to J5 on the Agilex 7 F-Series SoC Development Kit. Connect miniUSB cable between host PC, on the board connect USB cable from host computer to miniUSB port (J7) on the OOBE Daughter Card. The Agilex 7 F-Series Root Port Reference Design can be run with Intel SSD D7 P5510 NVMe End Point.

Ensure your NVMe has a valid partition enabled.

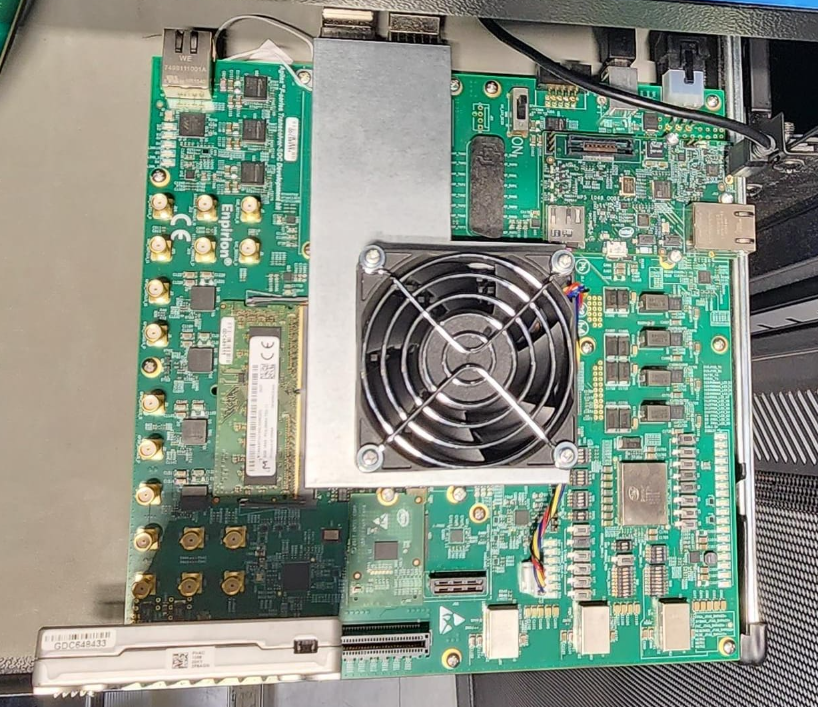

*Full setup with the Agilex™ 7 FPGA F-Series Development Kit and Intel SSD D7 P5510 NVMe End Point.

• Pre-compiled Software/Firmware.

• Tools and software.
  • System with supported Linux distribution with Ubuntu 22.04 (LTS)
  • Intel ® Quartus ®Prime Design Suite software 26.1 version
  • Serial terminal application such as Putty

Helpful Reference Documentation

• Agilex™ 7 FPGA F-Series Transceiver-SoC Development Kit(P-tile and E-tile)

• Multi Channel DMA IP for PCI Express User Guide

• P-Tile Avalon ® Streaming IP for PCI Express

Release Content

Release note and pre-build binaries can be found in the GitHub repository

The pre-build binaries Agilex-7_F-series_Ptile_artifacts.zip contain the files below.

• ghrd.core.rbf
• ghrd.hps.rbf
• Image.lzma
• kernal.itb
• sdimage.tar.gz
• socfpga_agilex7_socdk.dtb
• u-boot.itb

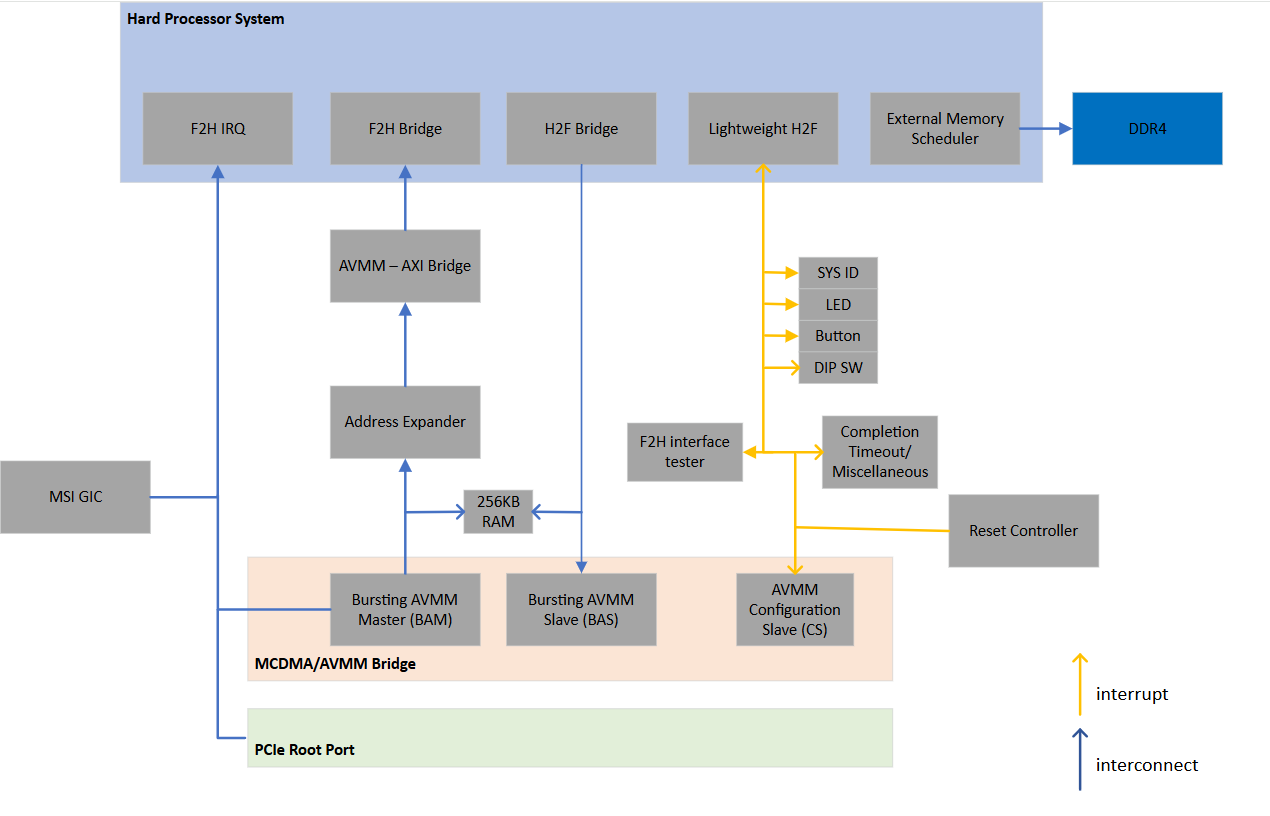

Hardware Description

Memory Map

HPS H2F Memory Map

Address Offset	Size (Bytes)	Peripheral	Remarks
0x80000000	256k	On Chip Memory	Block memory implemented in the FPGA fabric
0x90000000	256M	BAS	Avalon MM Slave of MCDMA BAS port
0xA0000000	2M	PCIe HIP Reconfig	Avalon MM Slave of PCIe HIP Reconfiguration port

HPS LWH2F Memory Map

Address Offset	Size (Bytes)	Peripheral	Remarks
0xF9000000	8	System ID	Hardware configuration system ID
0xF9000210	16	CCT	Cache Coherent Translator
0xF9010000	32k	PCIe CRA	Avalon MM Slave of PCIe HIP CRA port
0xF9018000	128	MSI-to-GIC Vector
0xF9018080	16	MSI-to-GIC CSR	Avalon MM Slave of MSI-to-GIC CSR port
0xF90180A0	32	Performance Counter	Hardware timer for benchmarking purposes
0xF90180C0	256	AVMM CS Cpl TimeOut & System level Reg. map	Error registers along with Timeout values

MCDMA BAM interface

Address Offset	Size (Bytes)	Peripheral	Remarks
0xF901_8000	128	MSI-to-GIC	MSI/MSI-X transactions from PCIe Endpoint. These should be aligned addresses to avoid any re-alignment on BAM AVMM interface.
0x0000_0000 to 0x7FFF_FFFF	2G	F2H	FPGA to HPS interface (SDRAM access). Expandable.
0x10_8000_0000 to 0x11_FFFF_FFFF	6G	F2H	FPGA to HPS interface (SDRAM access) - expanded memory range. Actual allocation is 8G (from 0x10_0000_0000 to 0x11_FFFF_FFFF) to match the 2 power of .

Building the PCIe Root Port Design

Here are the steps to build either HW and SW files:

• SW_Readme
• HW_Readme

Both links show how to build the files needed for the project, according with the Altera® SoC FPGA Golden Software Reference Design (GSRD)

Setting up the environment

 git clone https://github.com/altera-fpga/agilex7-ed-pcie-rp.git
 cd agilex7-ed-pcie-rp
 git checkout dev/rel/26.1
 export TOP_FOLDER=`pwd`

Download the compiler toolchain, add it to the PATH variable, to be used by the GHRD makefile to build the HPS Debug FSBL:

cd $TOP_FOLDER
wget https://developer.arm.com/-/media/Files/downloads/gnu/14.3.rel1/binrel/\
arm-gnu-toolchain-14.3.rel1-x86_64-aarch64-none-linux-gnu.tar.xz
tar xf arm-gnu-toolchain-14.3.rel1-x86_64-aarch64-none-linux-gnu.tar.xz
rm -f arm-gnu-toolchain-14.3.rel1-x86_64-aarch64-none-linux-gnu.tar.xz
export PATH=`pwd`/arm-gnu-toolchain-14.3.rel1-x86_64-aarch64-none-linux-gnu/bin/:$PATH
export ARCH=arm64
export CROSS_COMPILE=aarch64-none-linux-gnu-

Building the Hardware Files

Enable Quartus tools to be called from command line:

export QUARTUS_ROOTDIR=~/altera_pro/26.1/quartus/
export PATH=$QUARTUS_ROOTDIR/bin:$QUARTUS_ROOTDIR/linux64:$QUARTUS_ROOTDIR/../qsys/bin:$PATH

Building the Hardware files:

cd $TOP_FOLDER/src/hw/ag7f014_devkit/syn/
make all

Building the Software Files

Building the Software files:

cd $TOP_FOLDER/src/sw/
. agilex7_dk_si_agf014eb-gsrd-build.sh
build_setup

Perform Yocto bitbake to generate binaries:

bitbake_image

Package binaries into build folder:

package

Generate the Programming file

cd $TOP_FOLDER/src/hw/ag7f014_devkit/syn/
quartus_pfg -c -o hps=on -o hps_path=../../../sw/agilex7_dk_si_agf014eb-gsrd-rootfs/tmp/deploy/images/agilex7_dk_si_agf014eb/u-boot-spl-dtb.hex output_files/top.sof output_files/top.rbf

Adding PCIe root port in dts

Refer to socfpga_agilex_pcie_root_port.dtsi for adding PCIe Root Port bindings to your custom DTS.

Running the System Example Design

Write the $TOP_FOLDER/src/sw/agilex7_dk_si_agf014eb-gsrd-images/gsrd-console-image-agilex7.wic. SD card image to the micro SD card using the included USB writer in the host computer:

• On Linux, use the dd utility as shown next:

# Determine the device asociated with the SD card on the host computer.
cat /proc/partitions
# This will return for example /dev/sdx
# Use dd to write the image in the corresponding device
sudo dd if=gsrd-console-image-agilex7.wic of=/dev/sdx bs=1M
# Flush the changes to the SD card
sync

• On Windows, use the Win32DiskImager program, available at https://sourceforge.net/projects/win32diskimager. For this, first rename the gsrd-console-image-agilex7.wic to an .img file (sdcard.img for example) and write the image as shown in the next figure:

Program the development kit with $TOP_FOLDER/src/hw/ag7f014_devkit/syn/output_files/top.hps.rbf file.

quartus_pgm -c 1 -m jtag -o p;ghrd.hps.rbf@1

Open the Putty serial terminal, it will show the board boot-up process.

Execute the lspci command to display information about all PCI devices on the system

        lspci

There you will see both PCIe devices Rootport(00:00.0) & End Point(01:00.0)

Run the following command to retrieve detailed information about the PCIe Root Port:

        lspci -vvv

fio transactions

Recommended command to perform write transactions on an NVMe SSD:

        fio --filename=/dev/nvme0n1 --rw=write --gtod_reduce=1 --blocksize=64k --size=2G --iodepth=2 --group_reporting --name=myjob --ioengine=libaio --numjobs=num_of_job

Recommended command to perform read transactions on an NVMe SSD:

        fio --filename=/dev/nvme0n1 --rw=read --gtod_reduce=1 --blocksize=64k --size=2G --iodepth=2 --group_reporting --name=myjob --ioengine=libaio --numjobs=num_of_job

Note

    You could change the parameters ==--size=**xG**== with 2G or 8G, ==--rw=**x**== with write or read, ==--numjobs=**x**== with values 4, 8, 16 or 20, i.e.:

    * fio --filename=/dev/nvme0n1 --rw= ==**write**== --gtod_reduce=1 --blocksize=64k --size= ==**2G**== --iodepth=2 --group_reporting --name=myjob --ioengine=libaio --numjobs= ==**4**==

    * fio --filename=/dev/nvme0n1 --rw= ==**read**== --gtod_reduce=1 --blocksize=64k --size= ==**2G**== --iodepth=2 --group_reporting --name=myjob --ioengine=libaio --numjobs= ==**8**==

    * fio --filename=/dev/nvme0n1 --rw= ==**write**== --gtod_reduce=1 --blocksize=64k --size= ==**8G**== --iodepth=2 --group_reporting --name=myjob --ioengine=libaio --numjobs= ==**16**==

    * fio --filename=/dev/nvme0n1 --rw= ==**read**== --gtod_reduce=1 --blocksize=64k --size= ==**8G**== --iodepth=2 --group_reporting --name=myjob --ioengine=libaio --numjobs= ==**20**==
